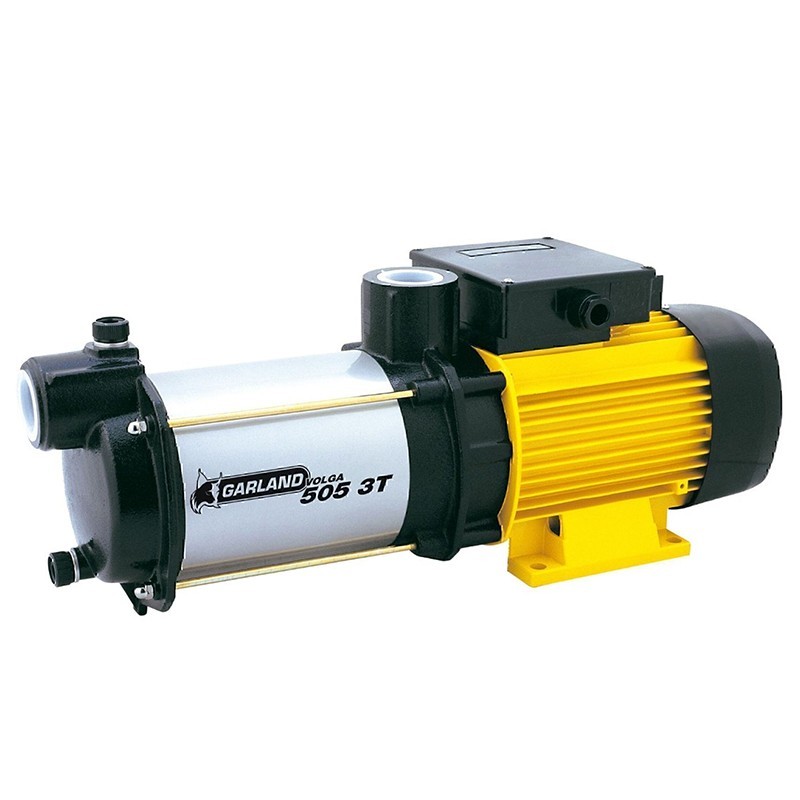

The VOLGA 505-3T-V23 pressure boosting unit Garland is a high performance multi-cell surface pump, perfect for guaranteeing a constant flow of water in domestic or irrigation installations.
With 750W of power and a pressure of 3.2 Bar, it provides a maximum flow rate of 6000 liters per hour, ensuring an efficient and reliable supply. Its strong HT250 cast iron body and three turbines optimize performance and durability.
It can reach a suction head of up to 8 meters and a delivery head of 32 meters, making it a versatile choice. In addition, it can be automated with the Garland Head pressure control, offering greater convenience and control without the need for electrical connections.
| Suction diameter | 33 mm |
| Motor type | Garland AC electric |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Power | 0,75 kW |
| Maximum suction height | 8 m |
| Maximum discharge height | 32 m |
| Chassis material | Polypropylene |
| Maximum flow rate | 6000 l/h |
| Suitable for sludge | No |
| Cutting buoy | No |
| Discharge diameter | 33 mm |
| Weight | 14 Kg |
