PWB solar panel Pramac 200W 20V
- Power rating : 200 W
- Rated voltage : 20 V
- Rated current : 10 A
€345.06 VAT incl.

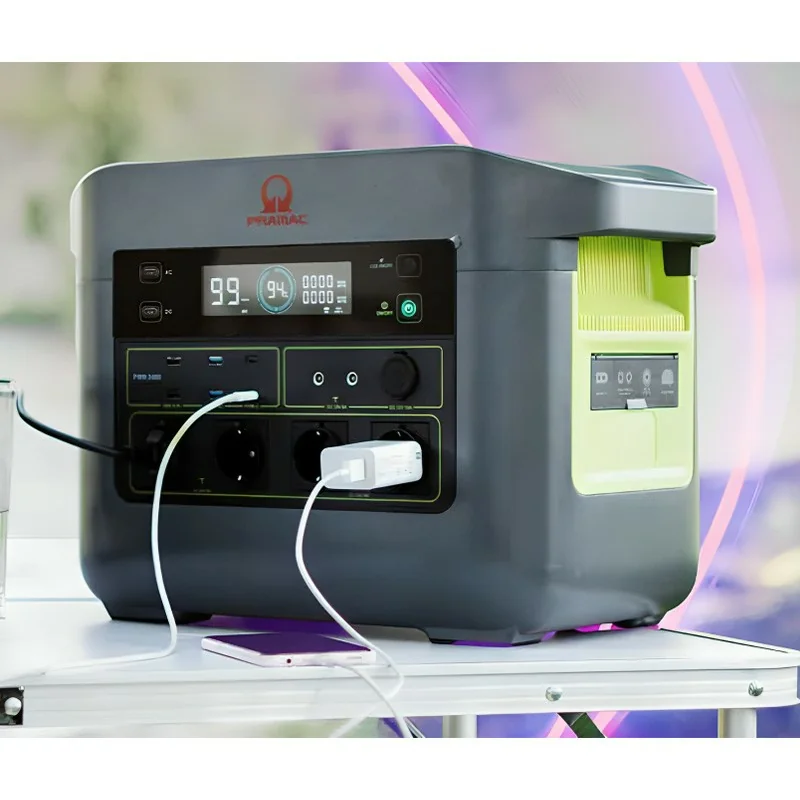

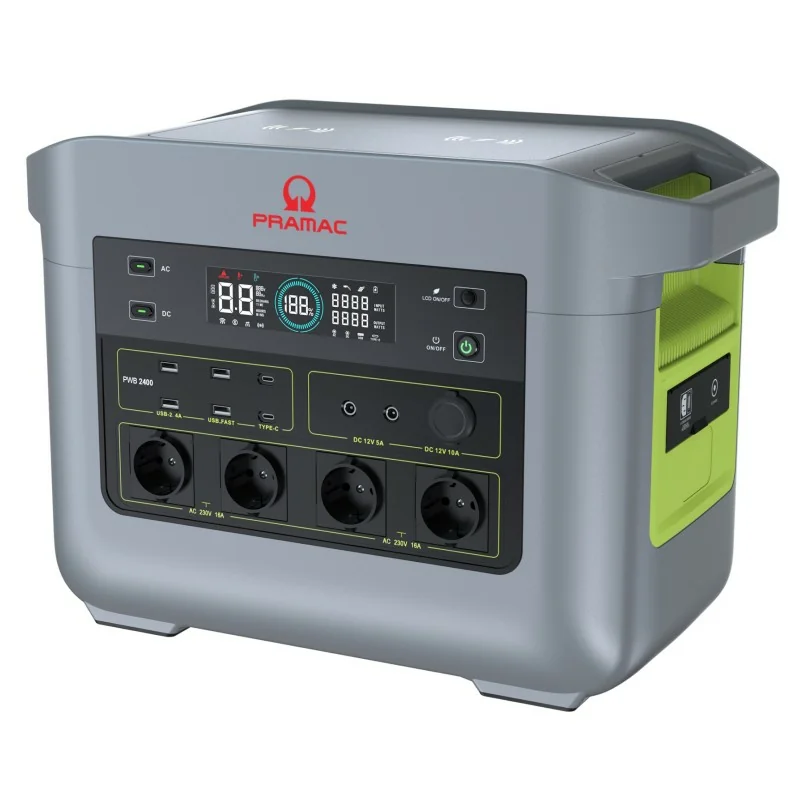

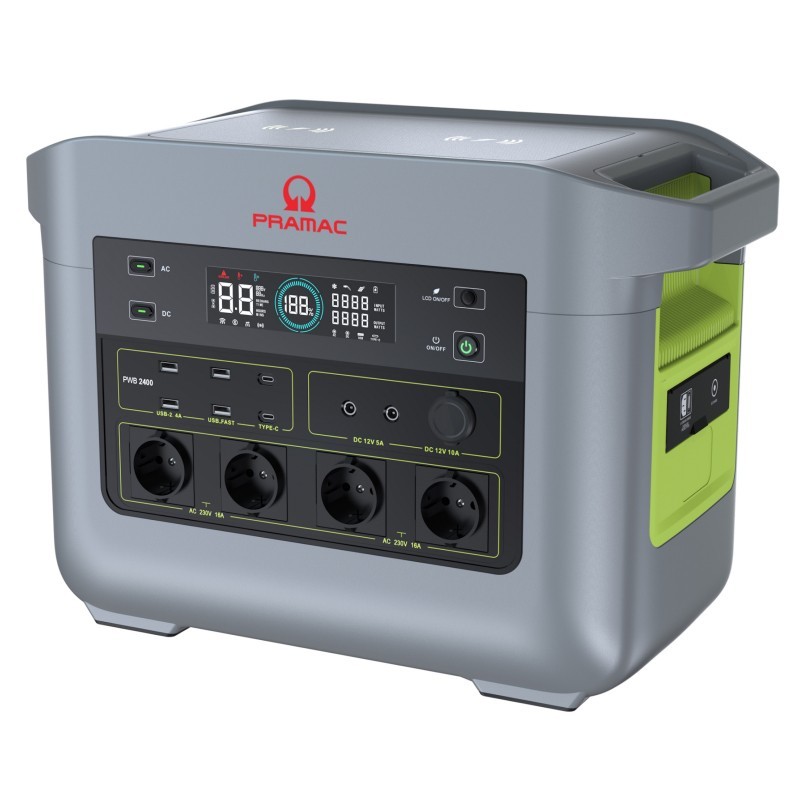

The Pramac PWB2400 power station is a versatile and quiet solution for powering all types of electronic devices and small appliances when mains power is not available. With a continuous power of 2400 W and a peak power of up to 4800 W, it is ideal for camping, outdoor work, emergencies or events without access to power.
Equipped with a 2150 Wh Li-Ion LFP lithium-ion battery with a lifespan of up to 2000 cycles, this station can power everything from cell phones and laptops to small refrigerators, drills or coffee makers. Its multiple outlets - Schuko ports, USB-A, USB-C, 12V sockets and wireless charging - make it easy to connect multiple devices at the same time.
The PWB2400 can be recharged by mains, solar power or even from the car cigarette lighter, adapting to any situation. In just 1 hour it reaches 80% charge from the mains, and with 400 W solar panels, the same percentage is achieved in just 5 hours.
Its compact and robust design, with a weight of only 29 kg, allows comfortable transport without sacrificing capacity. In addition, it includes electronic protections, MPPT system for optimized solar charging and control screen to know the battery status at all times. Looking for autonomy and reliability? This station has it all.
Output Specifications | |
---|---|
Continuous output power | 2400 W |
Peak output power (1.5 s) | 4800 W |
Frequency | 50 Hz |
Voltage | 230 V |
Phases | 1 |
Battery Specifications | |
Battery Type | Li-Ion LFP |
Nominal voltage | 51.2 VDC |
Life (@80% DoD) | 2000 cycles |
Rated capacity | 2150 Wh |
Input Specifications | |
Maximum single phase input | 1800 W |
Charging time @80% @80 | 1 h |
Charging time @ 100% | 2 h |
Maximum DC solar load | 400 W |
Solar charging time @80% (400 W) | 5 h |
Solar charging time @80% (200 W) | 8 h |
Charging by car cigarette lighter (12 V) | 8 A |
Cigarette lighter charging time @ 80% | 19 h |
Installation Data | |
Dimensions (L × W × H) | 496 x 266 x 350 mm |
Weight | 29 kg |
Discharge temp. range | -10 - 40 °C |
Charging temp. range | 0 - 40 °C |
Housing dimensions | 620 x 380 x 490 mm |
Total weight with packaging | 35 kg |
Instruments, Controls and Connections | |
Inverter protection (short circuit, overload, overtemperature, low battery) | ✔ |
System control panel | ✔ |
Battery condition | ✔ |
MPPT solar charge controller | ✔ |
Parallel connector | ✔ |
Connections | |
Schuko ports AC 230 V | 4 |
Car socket (12 V / 10 A) | 1 |
DC 6514 (12 V / 5 A) | 2 |
USB-A 12 W max. (5 V / 2.4 A) | 2 |
USB-A fast 24 W max. (5/9/12 V | 3/2.2/2 A) | 2 |
USB-C 100 W max. (5/9/12/15/20 V | 3/5 A) | 2 |
Wireless charger | 2 |
