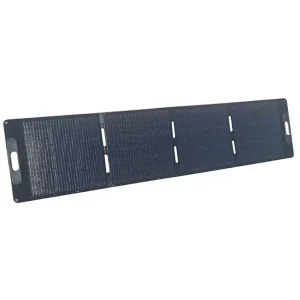

PWB solar panel Pramac 200W 20V
- Power rating : 200 W
- Rated voltage : 20 V
- Rated current : 10 A
€345.06 VAT incl.

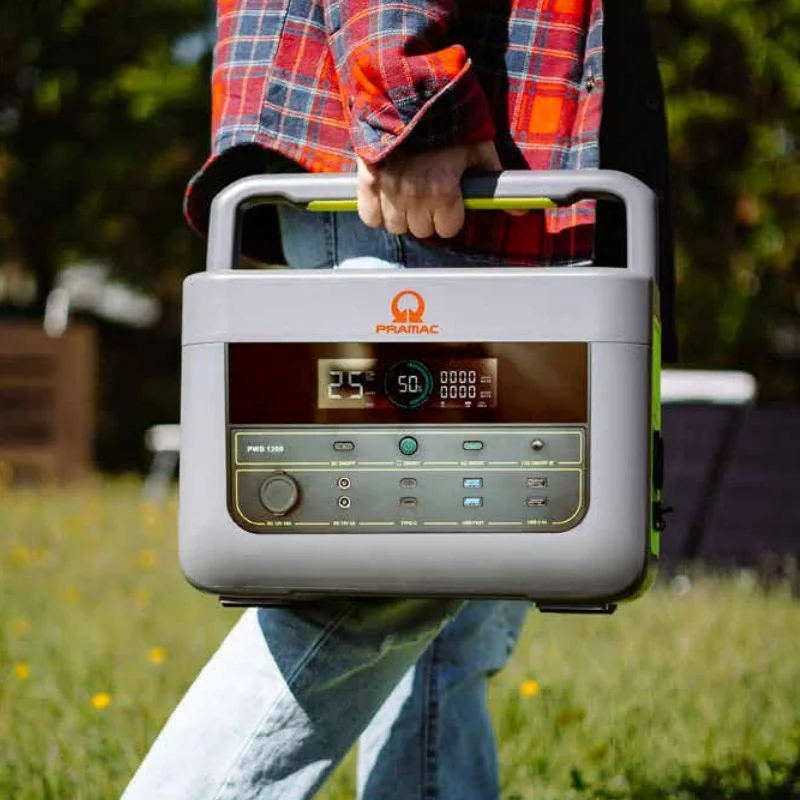

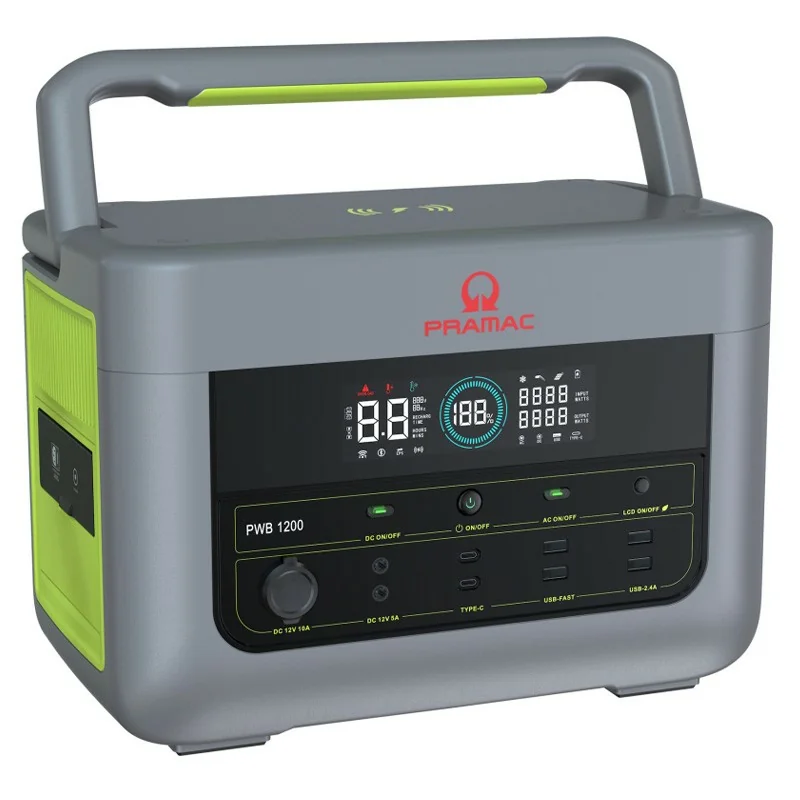

The Pramac PWB1200 solar generator is a compact and powerful power station, ideal for supplying electricity anywhere without relying on the grid. Designed to power everything from smartphones and computers to small appliances such as electric grills or hair dryers, it offers an efficient solution for camping, emergencies or outdoor work.
With a capacity of 1075 Wh and a continuous power of 1200 W (peak of 2400 W), this equipment allows more than 90 cell phone or 20 laptop charges. Its LFP battery ensures a long life of up to 2000 cycles, while the included quick charger allows to reach 80% charge in just one hour.
It includes multiple outlets: two Schuko sockets, USB-A, USB-C, cigarette lighter socket and even a wireless charger, offering great versatility for different devices. It also supports solar charging up to 400 W, reaching 80% in just over two hours with suitable panels.
The EPS function (power Supply emergency) with switching in less than 10 milliseconds makes it a reliable backup for power outages. All this in a portable format of just 16 kg, easy to transport and use wherever you need it most. Looking for energy autonomy? The Pramac PWB1200 is your perfect ally.
Output Specifications | |
---|---|
Continuous output power | 1200 W |
Peak output power (1.5 s) | 2400 W |
Frequency | 50 Hz |
Voltage | 230 V |
Phases | 1 |
Battery Specifications | |
Battery Type | Li-Ion LFP |
Nominal voltage | 25.6 VDC |
Life (@80% DoD) | 2000 cycles |
Rated capacity | 1075 Wh |
Input Specifications | |
Maximum single phase input | 800 W |
Charging time @80% @80 | 1 h |
Charging time @ 100% | 2 h |
Maximum DC solar load | 400 W |
Solar charging time @80% (400 W) | 2.1 h |
Solar charging time @80% (200 W) | 4 h |
Charging by car cigarette lighter (12 V) | 8 A |
Cigarette lighter charging time @ 80% | 11 h |
Installation Data | |
Dimensions (L × W × H) | 376 x 215 x 262 mm |
Weight | 16 kg |
Discharge temp. range | -10 - 40 °C |
Charging temp. range | 0 - 40 °C |
Housing dimensions | 455 x 295 x 365 mm |
Total weight with packaging | 18 kg |
Instruments, Controls and Connections | |
Inverter protection (short circuit, overload, overtemperature, low battery) | ✔ |
System control panel | ✔ |
Battery condition | ✔ |
MPPT solar charge controller | ✔ |
Parallel connector | ✔ |
Connections | |
Schuko ports AC 230 V | 2 |
Car socket (12 V / 10 A) | 1 |
DC 6514 (12 V / 5 A) | 2 |
USB-A 12 W max. (5 V / 2.4 A) | 2 |
USB-A fast 24 W max. (5/9/12 V | 3/2.2/2 A) | 2 |
USB-C 100 W max. (5/9/12/15/20 V | 3/5 A) | 2 |
Wireless charger | 1 |
Data sheet
