Hydraulic Leveling Blade Garto CNH
- Working width 1600 - 2000 mm
- Weight 141 - 189 kg
- Blade rotation 360 degrees
- Required power 30 - 100 HP
€891.64 VAT incl.
Deleks products take about 15 to 25 days. |

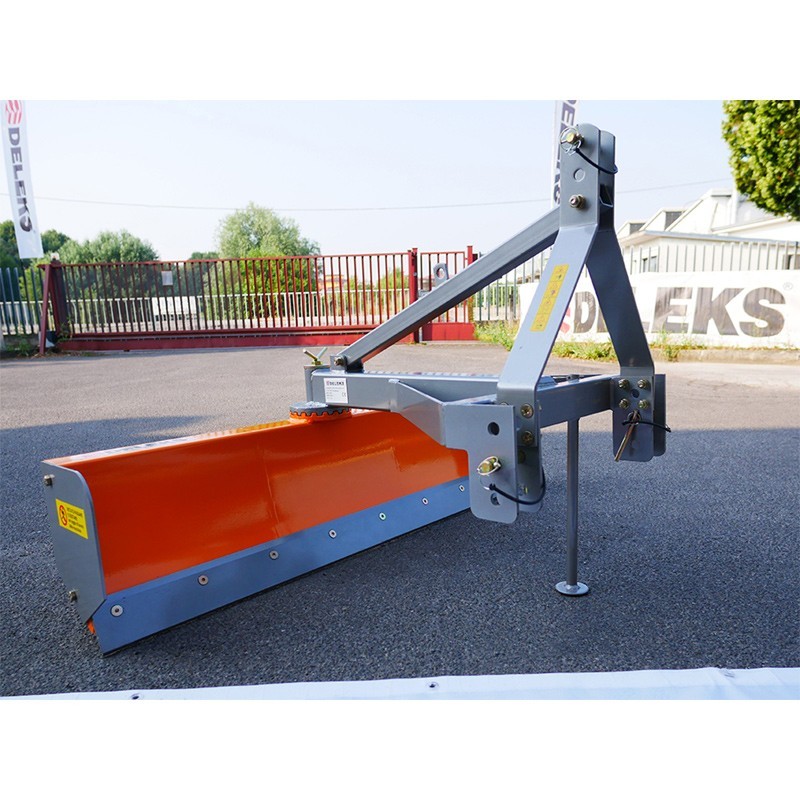

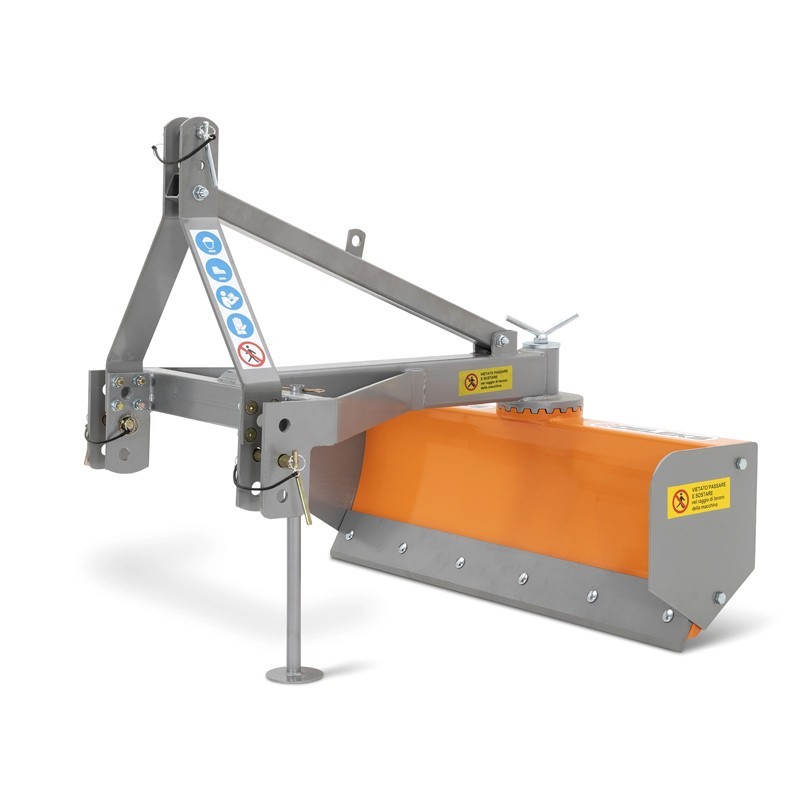

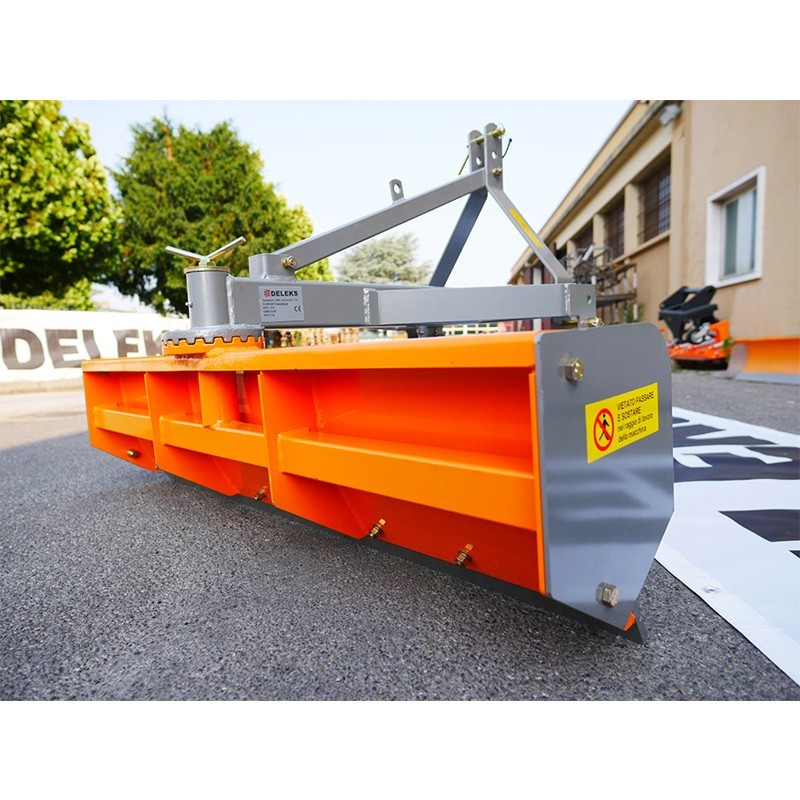

The Deleks DL-130 leveling blade is an attachment for tractors with a recommended power between 16 and 40HP. This leveling blade features a single blade.
The blade offers a width of 150cm and a height of 40cm with a thickness of 13mm made of 360º rotatable steel. Additionally, it has detachable sides with a thickness of 6mm. This blade provides great reliability thanks to the 4mm thick sheet, making it both light and resistant.
The leveling blade attaches to the tractor through a 3-point CAT 1 hitch. This blade model has a width of 150cm, a height of 100cm, and a depth of 50cm, with a weight of only 115kg.
Total width | 1500 mm |
Weight | 115 kg |
Total height | 1000 mm |
Tractor power | 16 - 40 HP |
3-point hitch | Cat. 1 (ø 19-22mm) |
Distance between lower points | 500 - 610 mm |
Distance between 2 points and the ground | 365 - 425 - 485 mm |
Blade height | 400 mm |
Blade | Steel |

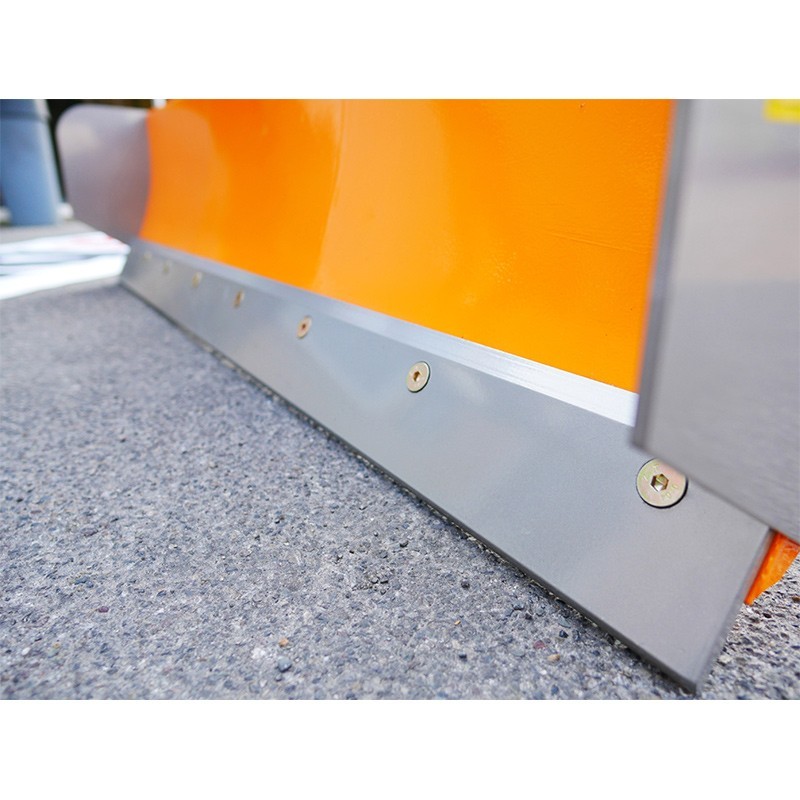

Blade: height | 120 mm |
Blade: thickness | 13 mm |
Sharpening: number | 1 |
Sharpening: space between bolts | 200 mm |
Blade rotation | 360° |
Sheet thickness (yellow) | 4 mm |
Sides | Detachable |
Arm orientation | x |
Sides: thickness | 6 mm |
Packaging dimension | 1500*800*500 mm |
Data sheet
Specific References
