Nebulizer Garland FOGGY GARDEN-V23 50 Bar
- Maximum flow rate : 30 l/h
- Type of water pump : Oil filled brass pump
- Pistons : Ceramic
- Maximum heated surface : 75 m²
€575.91 VAT incl.
The Nebulizer Garland FOGGY WALL-V23 is an innovative option to keep cool the largest outdoor spaces, such as terraces, gardens or restaurant areas. Its wall-mounted installation makes it possible to take advantage of the space and distribute the mist evenly, creating a pleasant atmosphere even on the hottest days.
This system stands out for its capacity to cover up to 75 m² and its silent operation, ideal for enjoying the outdoors without disturbance. Thanks to its high-pressure pump and 18 metal diffusers, the FOGGY WALL-V23 generates a micro-mist that cools the environment and helps control humidity, improving comfort in any environment.
The digital programming and the pressure regulator allow to adapt the operation of the fogger to the needs of each moment, optimizing water and energy consumption. In addition, the integrated filters in each diffuser facilitate maintenance and extend the useful life of the equipment.
The kit includes all the necessary accessories for quick and safe installation, as well as a 20-meter hose for greater flexibility. The Garland FOGGY WALL-V23 is the perfect solution for those looking for efficient air conditioning, durability and ease of use outdoors.
Motor Type | Garland DC electric |
Voltage | 24 V |
Power | 0.12 kW / 0.16 HP |
Pressure | 50 bar |
Max. water inlet pressure | 5 bar |
Flow rate | 30 l/h |
Type of water pump | Oil-immersed brass pump |
Pistons | Ceramic |
Maximum heated surface | 75 m² |
IP protection | IPX5 |
Decompression valve | Yes |
Hose type | Nylon |
Nozzles | Metal with aluminum filter, anti-drip valve and metal cone diffuser |
Maximum number of diffusers | 24 |
Delivery diameter | 6,35 mm |
Maximum diffuser diameter | 0.1 mm |
Type of programming | Digital |
Particulate filter | Outside and on diffusers |
Maximum ambient temperature drop | 12 °C |
Oil sump volume | 0,02 l |
Engine oil type | 15W-40 |
Pressure regulator | Yes |
Pressure hose length | 20 m |

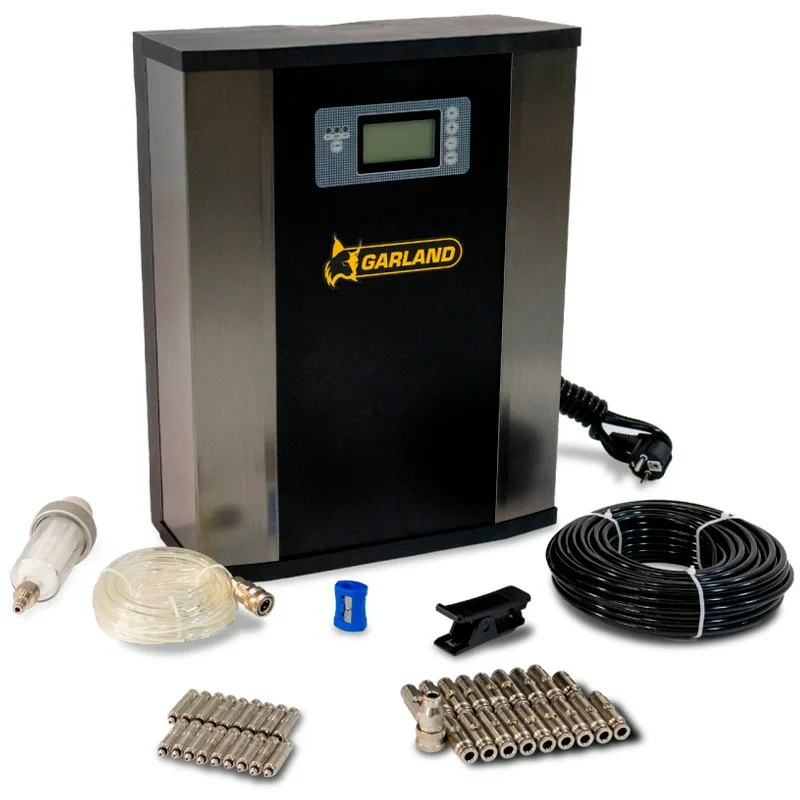

Standard accessories : High pressure pump, 20 m of nylon tubing and connector, 18 nozzles, 17 straight connectors, one end connector, 3 m of suction tubing, water filter, pressure regulator, pressure regulator, pressure regulator tool and pressure regulator assembly |
Data sheet
Specific References
