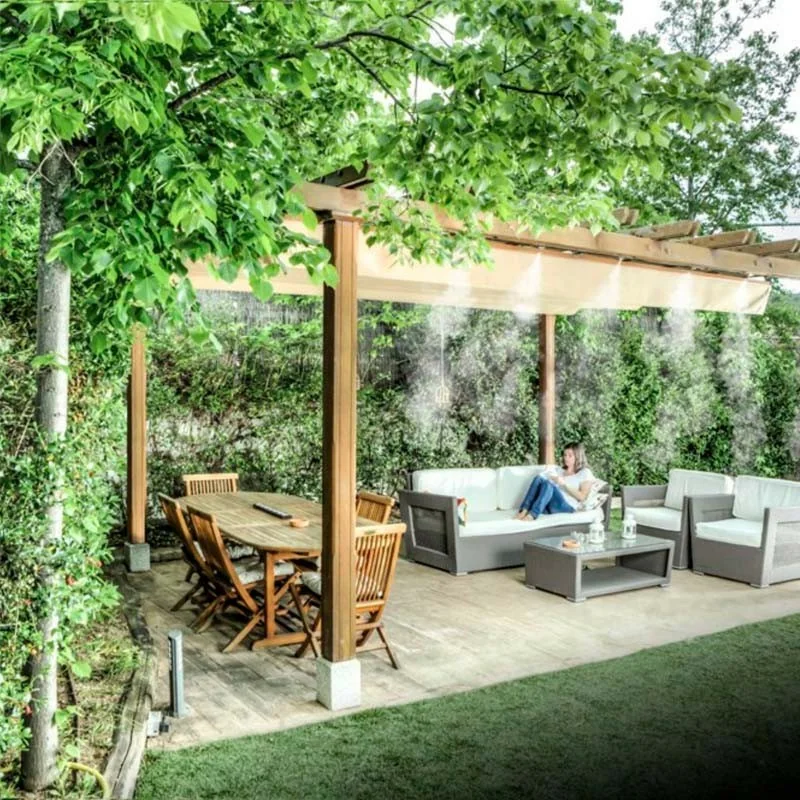

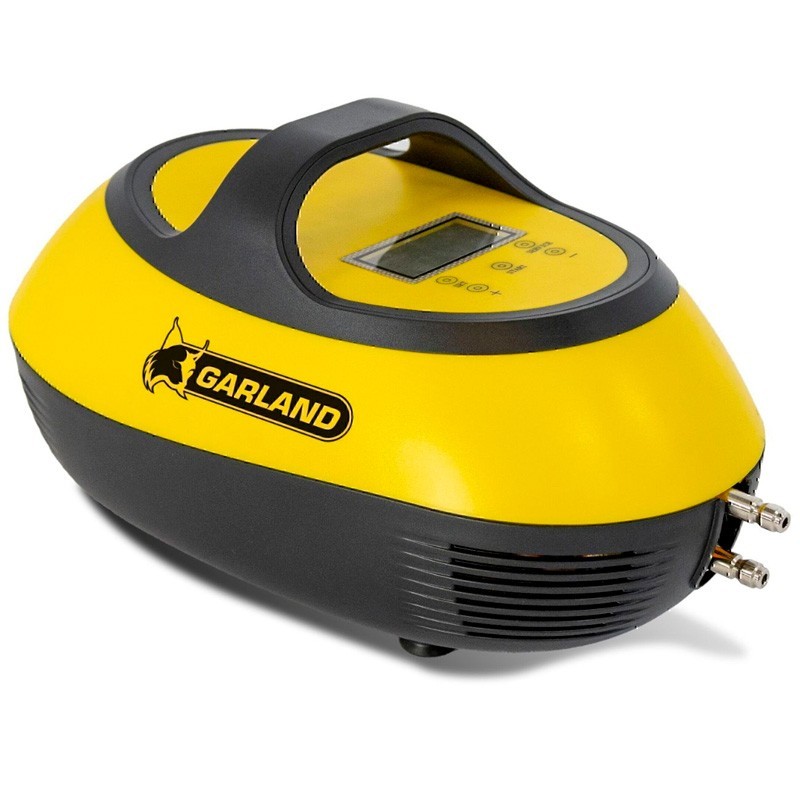

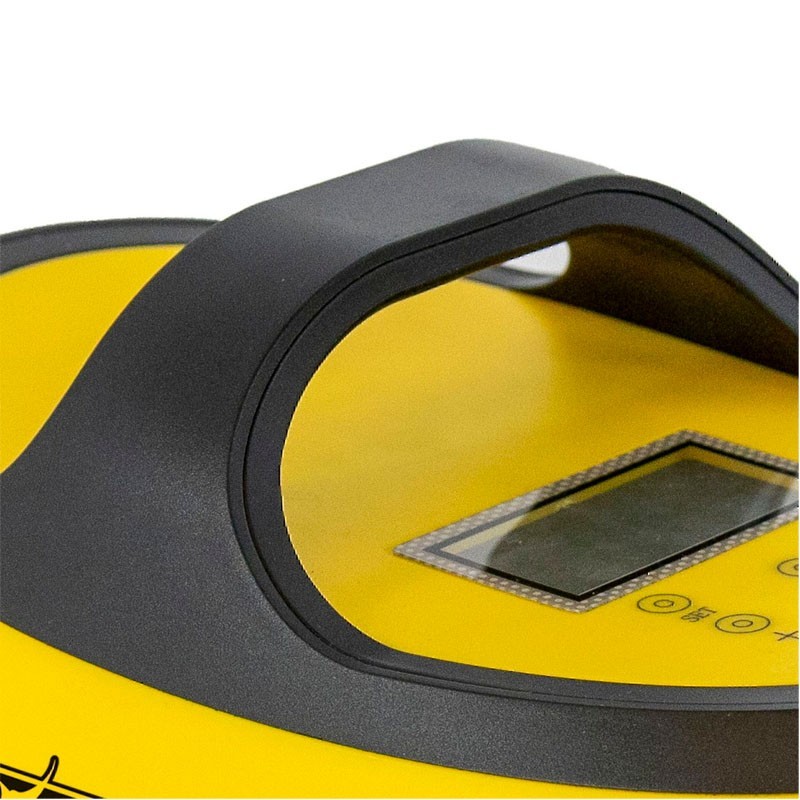

The FOGGY GARDEN-V23 Fogger Garland transforms any outdoor space into an oasis of freshness, ideal for gardens, terraces and large leisure areas. Its DC electric motor and oil-immersed brass pump ensure stable and efficient operation, even during intensive days of use.
Thanks to its 20 meters of nylon hose and the possibility of installing up to 24 nozzles, this system allows a homogeneous distribution of the water mist, covering large surfaces and adapting to different configurations. The pressure regulator and anti-drip valve ensure precise control and prevent water loss.
Digital programming facilitates the adjustment of the operating cycles according to the user's needs, optimizing consumption and comfort. In addition, the particle filter and diffusers with individual mesh filter extend the life of the equipment and simplify maintenance.
With a compact design and resistant materials, the FOGGY GARDEN-V23 is a durable and easy-to-install solution, perfect for those looking to cool large outdoor spaces efficiently and quietly.
| Motor type | Garland DC electric |
| Voltage | 24 V |
| Power | 0.12 kW / 0.16 HP |
| Max. pressure | 50 bar |
| Max. water inlet pressure | 5 bar |
| Maximum flow rate | 30 l/h |
| Type of water pump | Oil-immersed brass pump |
| Pistons | Ceramic |
| Maximum heated surface | 75 m² |
| IP protection | IPX5 |
| Decompression valve | Yes |
| Hose type | Nylon |
| Nozzles | Metal with aluminum filter, anti-drip valve and metal cone diffuser |
| Maximum number of diffusers | 24 |

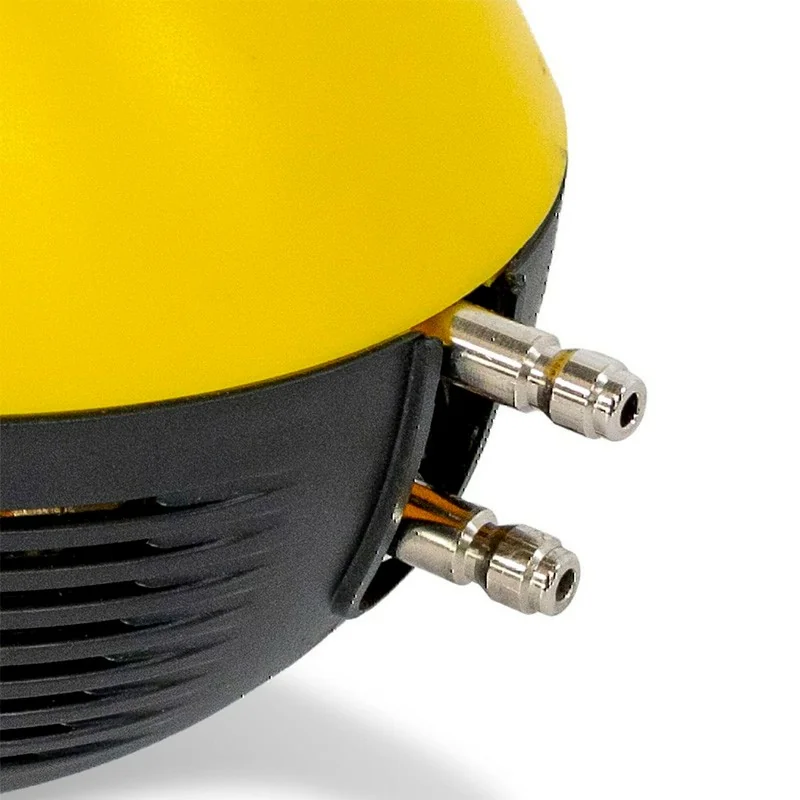

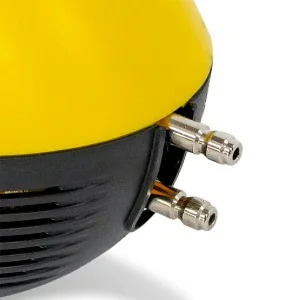

| Delivery diameter | 6,35 mm |
| Maximum diffuser diameter | 0.1 mm |

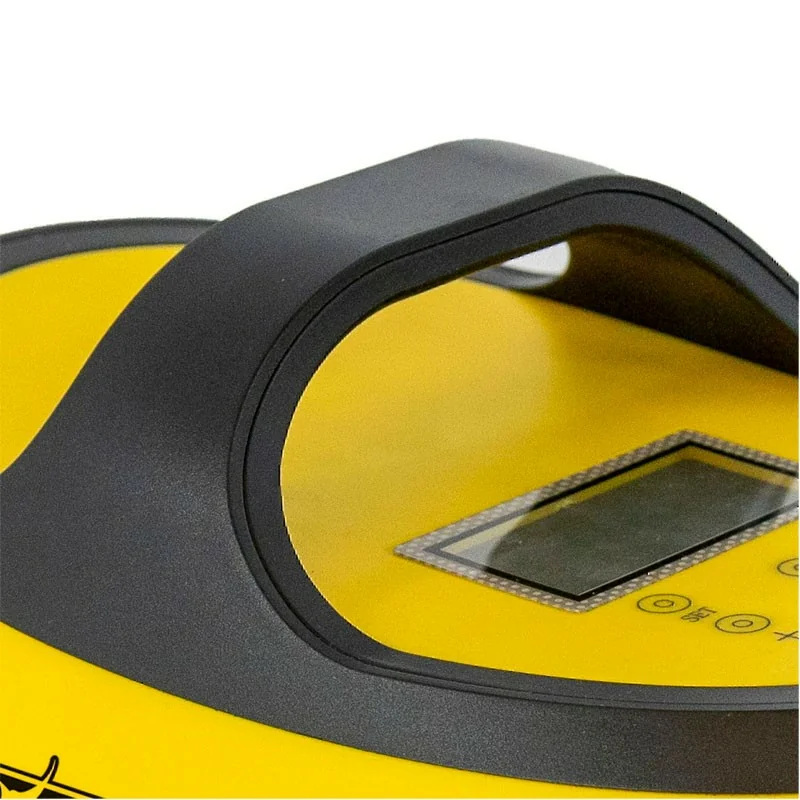

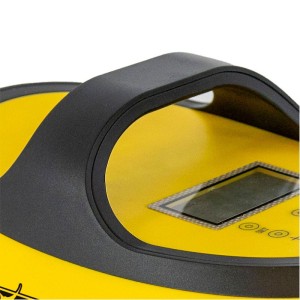

| Type of programming | Digital |
| Particulate filter | Outside and on diffusers |
| Maximum ambient temperature drop | 12 °C |
| Oil sump volume | 0,02 l |
| Engine oil type | 15W-40 |
| Pressure regulator | Yes |
| Pressure hose length | 20 m |
| Empty machine weight | 10 kg |
| Dimensions in use (L x W) | 38 x 21 cm |

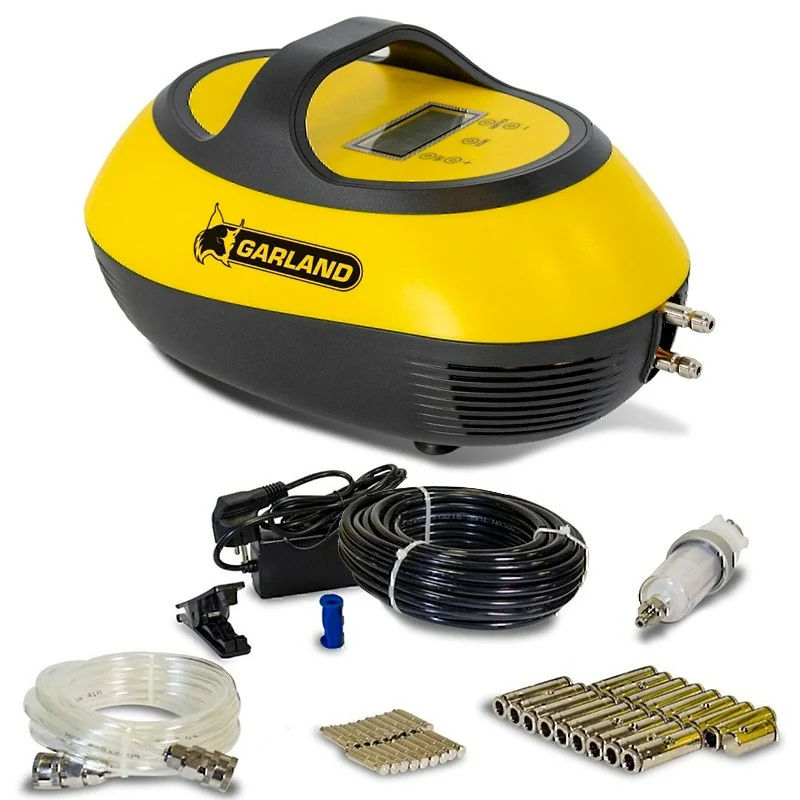

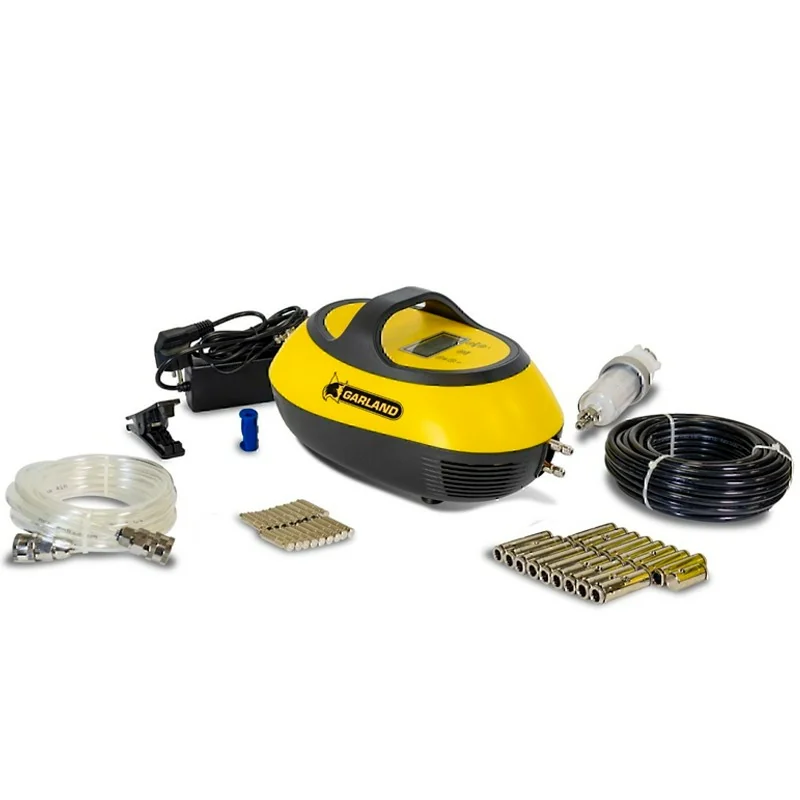

| Standard accessories : High pressure pump, 20 m of nylon tubing and connector, 18 nozzles, 17 straight connectors, one end connector, 3 m of suction tubing, water filter, pressure regulator, pressure regulator, pressure tool and pressure regulator assembly | |
