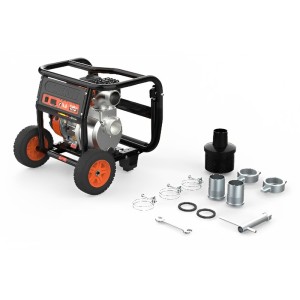

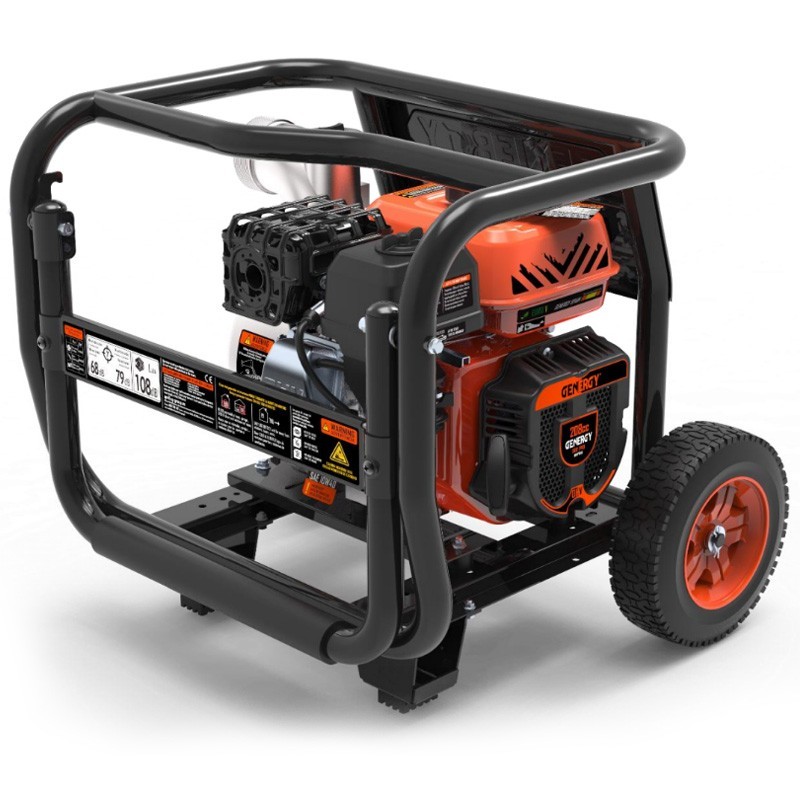

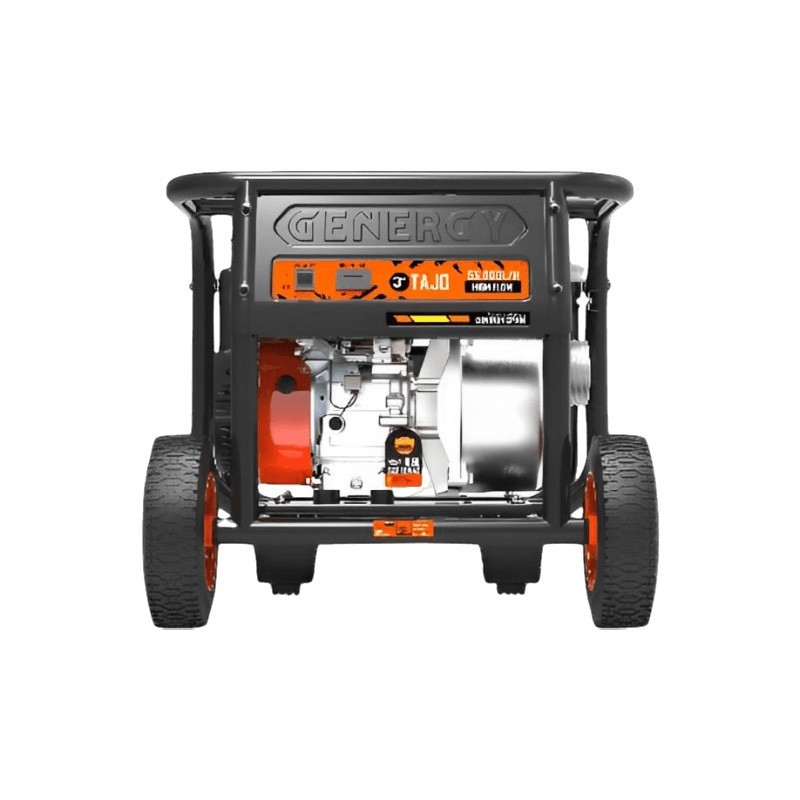

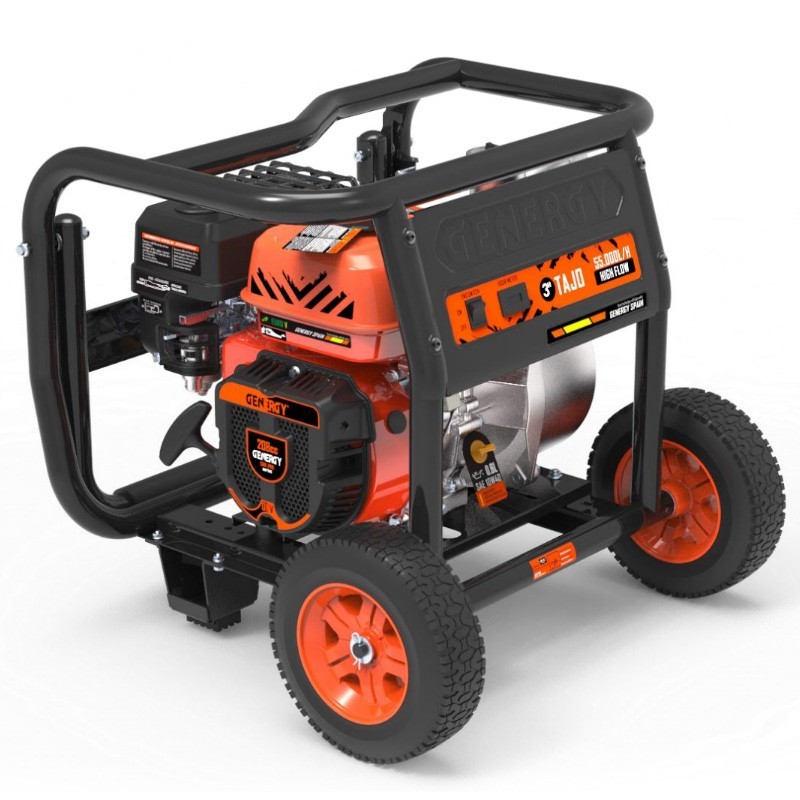

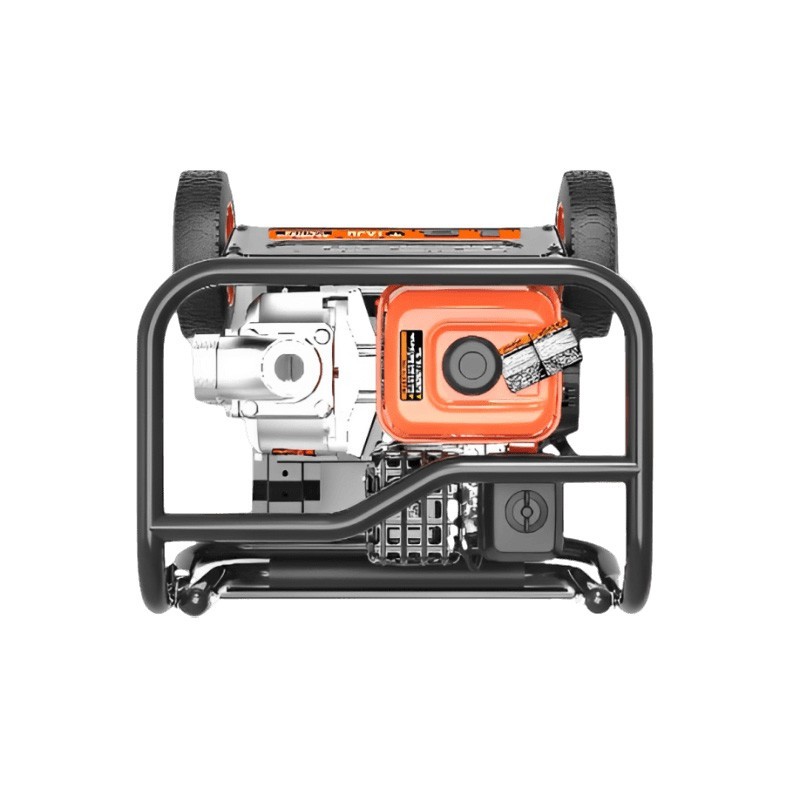

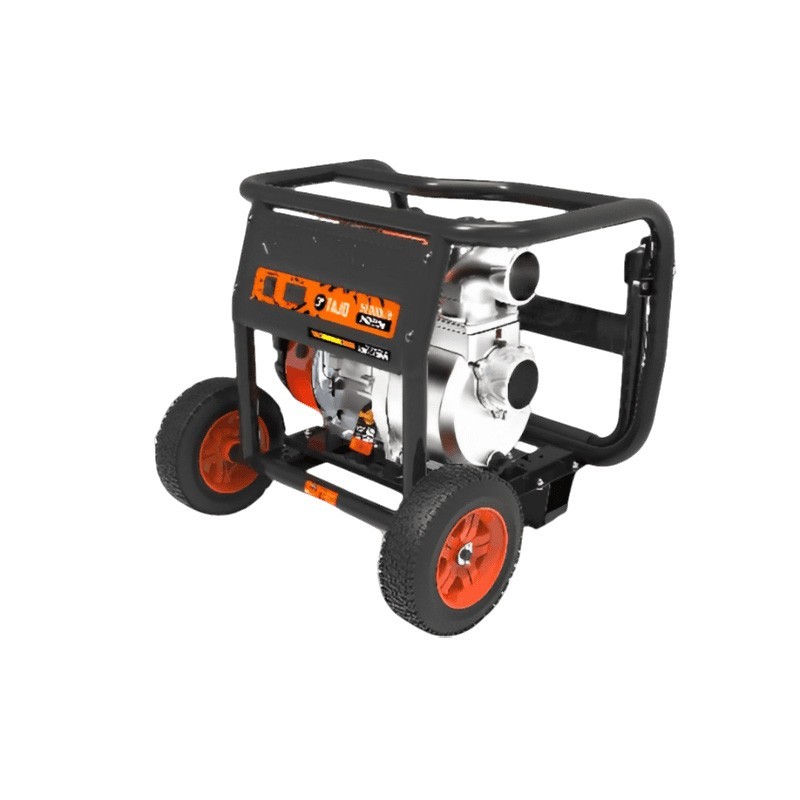

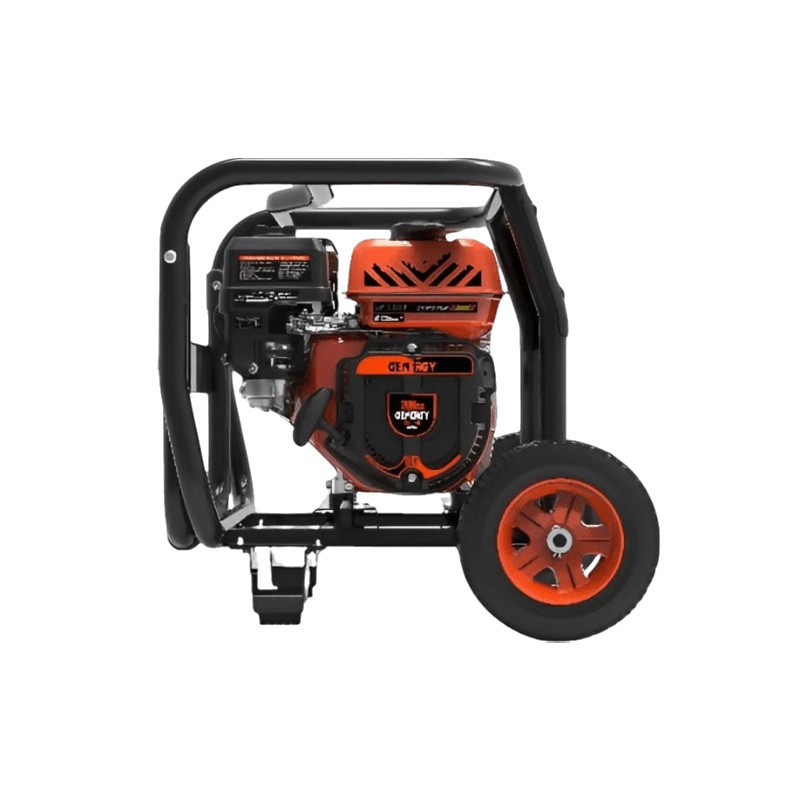

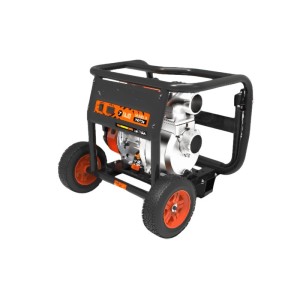

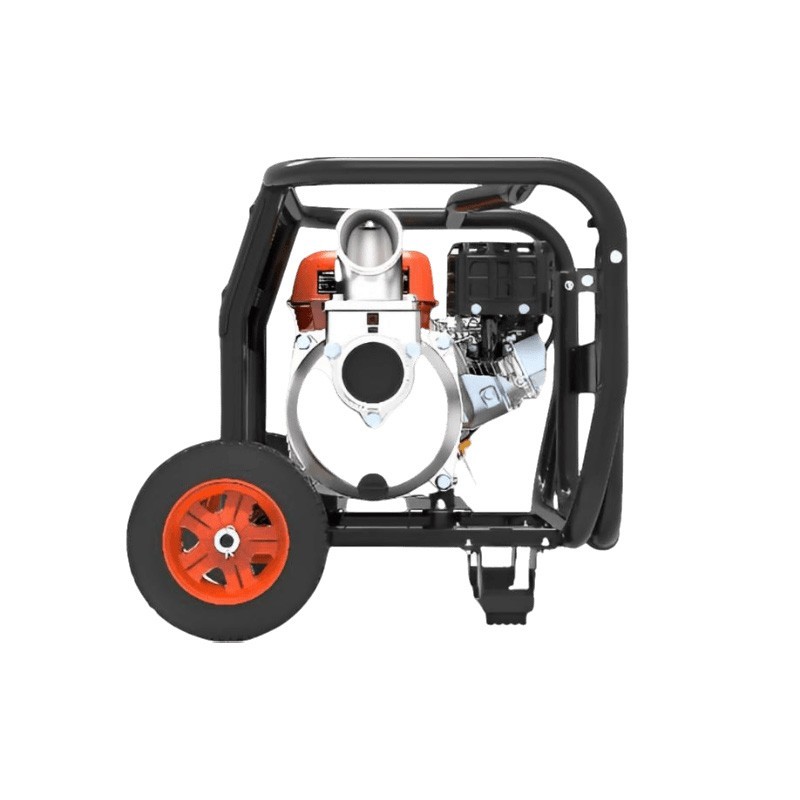

The gasoline motor pump Genergy Tajo 55000 L/H 30 m has a maximum suction lift of 7 meters,dimensions without wheels of 627x509x480 and with wheels of 627x611x583 mm. Its engine is a 4-stroke gasoline OHV air-cooled engine and the motor pump has a weight of 38 kg.
This machine supports both clean and dirty water without solids, has aservice temperature of 5º to 40º, and a manual start type. Its total maximum lift height is 30 meters, and its oil capacity and grade is 0.6L - SAE10W40.
The Gasoline Motor Pump Genergy Tajo 55000 L/H 30 m with a fuel tank capacity of 2.6 L, a maximum flow rate of 55,000 L/H, and a displacement of 208 cc has a thread size of 75 mm, and has a suction time at 5 meters of ≤160 seconds.
| Application | Clean or dirty water with no solids >5o |
| Thread Size - Suction Diameter | BSP 3" - 75mm |
| Maximum flow rate | 55.000L/H |
| Maximum suction head | 7MTS |
| Maximum total head | 30MTS |
| Suction time at 5mts | ≤160S |
| Motor model | SGB210PRO |
| Displacement | 208cc |
| Engine type | Gasoline, 4-stroke OHV air cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 68dB - 79dB (A) |
| Guaranteed sound power level LwA | ≤108dB |
| Measurement uncertainty | ≤1.5dB |
| Start-up type | Manual |
| Fuel tank capacity | 2.6L |
| Consumption at 25-50-75% throttle | 1L/H - 1.1L/H - 1.4L/H |
| Autonomy 25-50-75% throttle | 2.6H - 2.4H - 1.8H |
| Oil capacity and grade | 0.6L - SAE10W40 |
| Standard | EN809 |
| Service temperature | 5º-40º C |
| Transport kit | Integrated with 10" wheels |
| Dimensions without - with casters | 627x509x480 - 627x611x583 mm |
| Weight | 38 kg |
| Reference | 30020 |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
Data sheet
