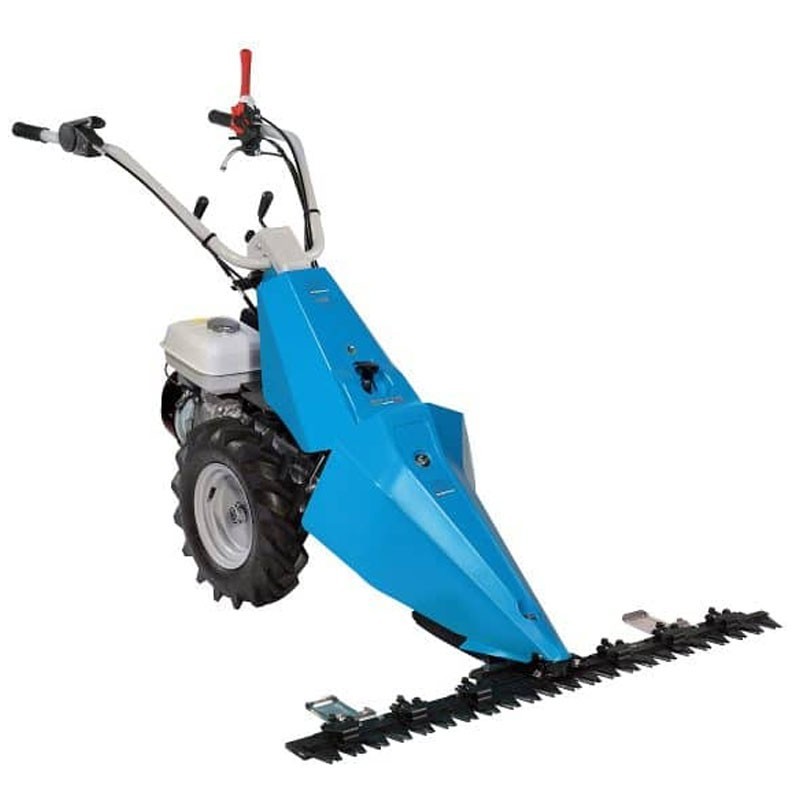

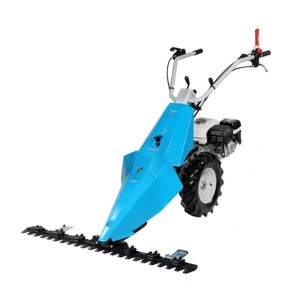

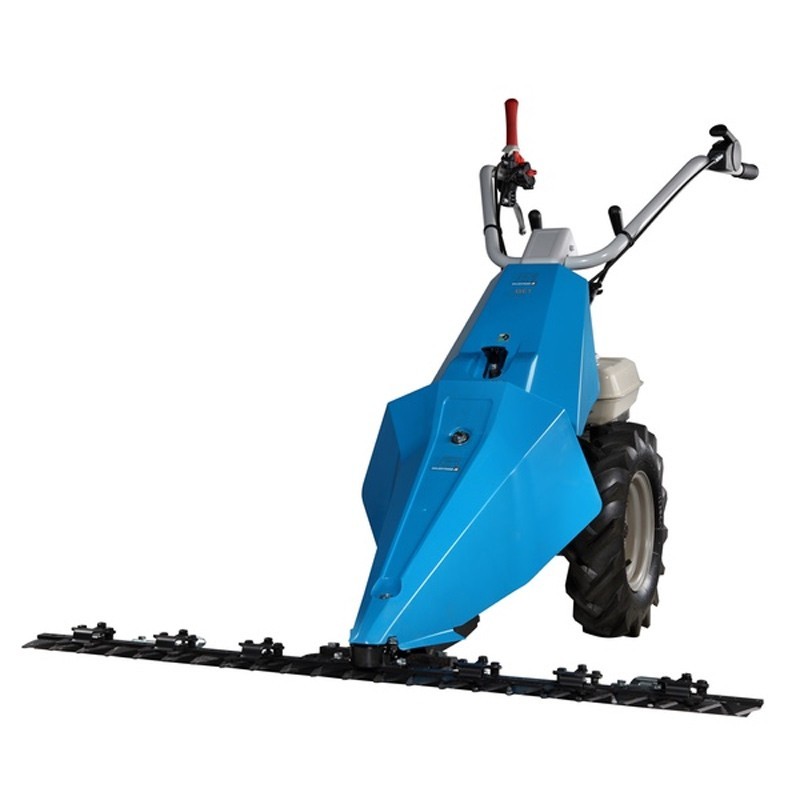

The mower Bertolini BT 130 S has a EMAK K 800 H OHV gasoline engine which provides a power of 5.7 HP and a displacement of 182 cc.

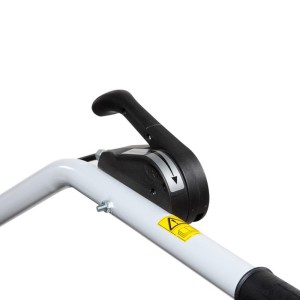

The BT 130 S mower is equipped with a four-speed gearbox, of which two are front and two are rear. It also has a vertically and horizontally adjustable handlebar with anti-vibration device.
This mower model has an independent 973 RPM power take-off . It has a reverse shuttle with hammer lever.
This mower is equipped with a 115 cm mower bar . It is equipped with the QuickFit attachment system.
The mower Bertolini BT 130 S offers an oil-immersed gear transmission. It also offers a dry bevel clutch with a self-retracting starter. The weight of the machine equipped with 4.00-8 wheels and 115 cm mower bar is 105 kg.
| Engine | EMAK K 800 H OHV |
| Power | 5,7 HP |
| Displacement | 182 cc |
| Gears | 4 speeds, 2 forward + 2 reverse |
| Head | Oil bath |
| Transmission | Gearbox in oil bath |
| PTO | Independent 973 revolutions per minute |
| Clutch | Dry conical |
| Starter | Self-retracting |
| Fwd / Rev shuttle | Yes, handlebar control lever |
| Coupling accessories | QuickFit |
| Weight (with wheels, 115 cm mower bar) | 105 kg with wheels, 115 cm cutter bar |
Difference between other brands' oil-immersed clutch and the multi-disc dry clutch of Bertolini
Oil-immersed clutch brake (Other brands) Drawbacks
Multi-disc dry clutch Bertolini
|
| IMPORTANT It is mandatory for the customer to check oil and grease levels before start-up ! |
| If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is satisfied unless an examination is pending. |
