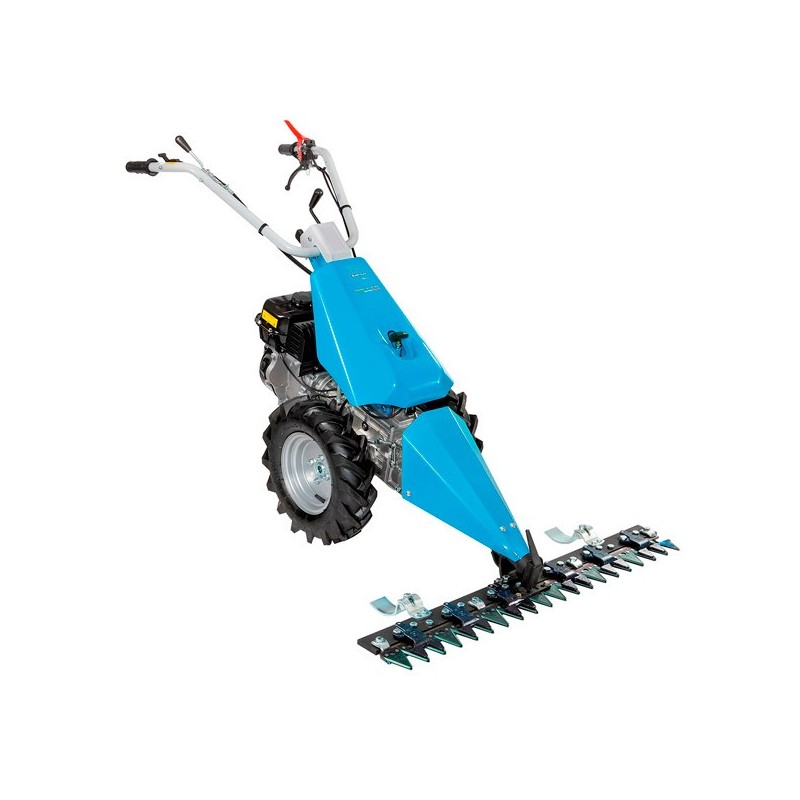

The mower Bertolini 120S It has a Emak K 800 H OHV engine which provides a displacement of 182 cc and a power of 5.7 HP. This mower is compatible with the 92cm cutting bars and the 4.00-8" wheels. Additionally, changing the cutting bar is very simple thanks to its Quickfit system.
This model provides a gear transmission in an oil bath. and a fully adjustable handlebar with an anti-vibration system. It also includes a independent power take-off at 1004 rpm and a dry multi-disc clutch.
This mower is mainly used for cutting grass and forage and, for general field cleaning tasks. . Very competent machine for all those users who are looking for a high-quality motor mower. With a Excellent design and durability like all the products of the prestigious Italian company.
This machine is one of the new models that has been released Bertolini, further improving the design of these motor mowers. It uses the highest quality components to ensure one of the best results and excellent machine durability.
| Engine | Emak K 800 H OHV |
| Gears | 1 forward + 1 backward |
| Working width | 92cm |
| Head | Eccentric Movement |
| Transmission | Gears in an oil bath |
| Clutch | Multi-disc in dry conditions |

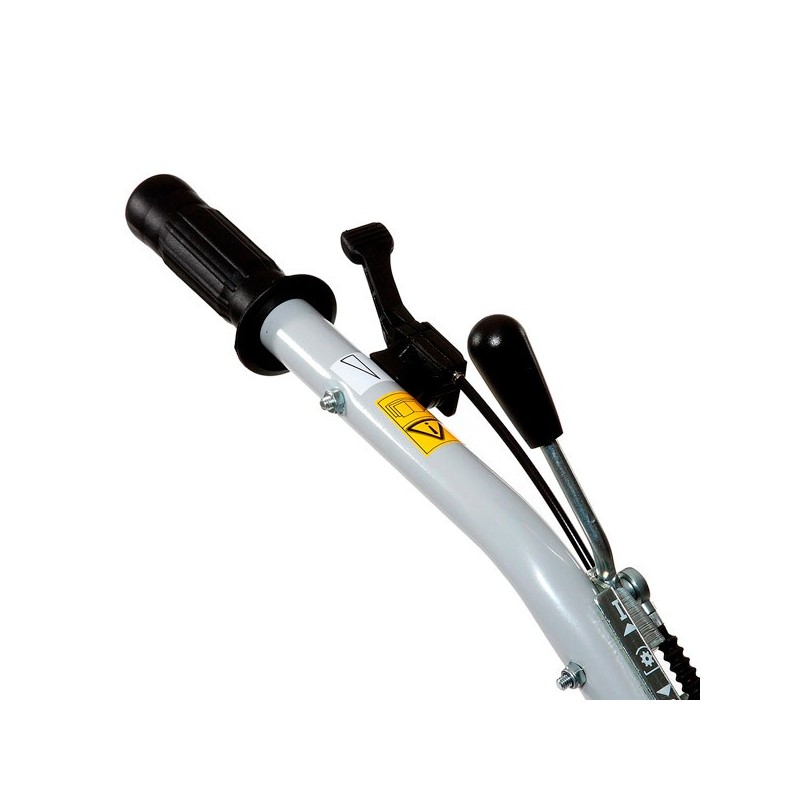

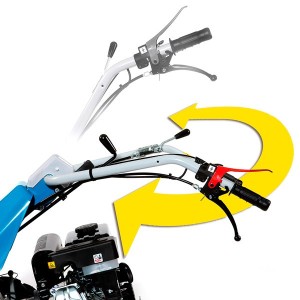

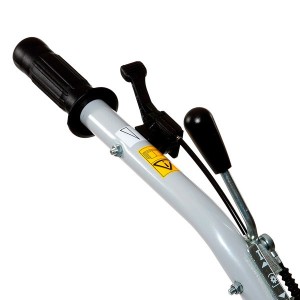

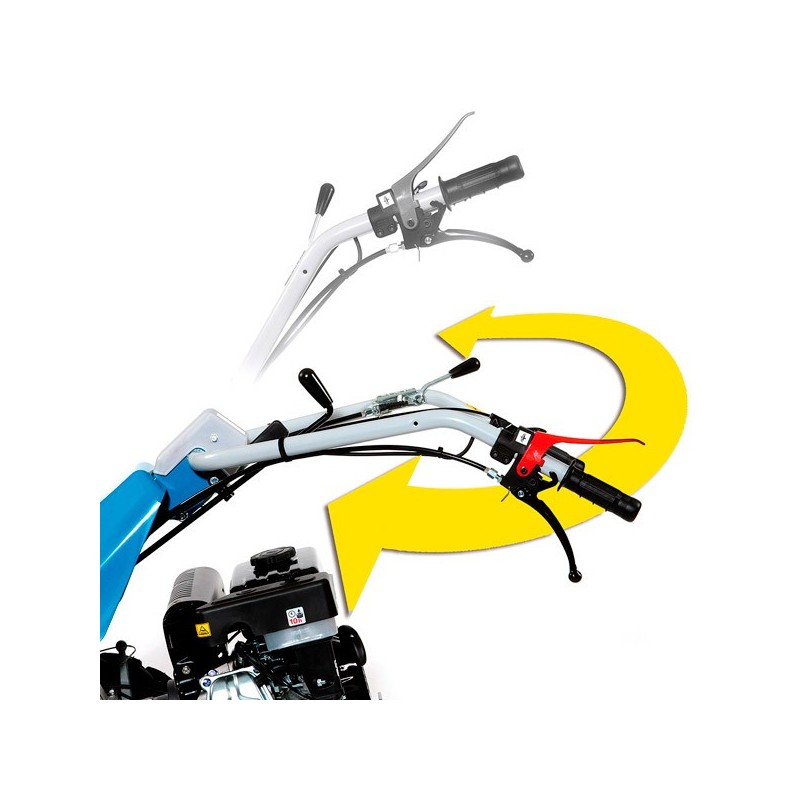

| Handlebar | Adjustable height and width with anti-vibration device |
| Power take-off | Independent at 1004rpm |
| Coupling accessory | QuickFit integral supplied as standard |

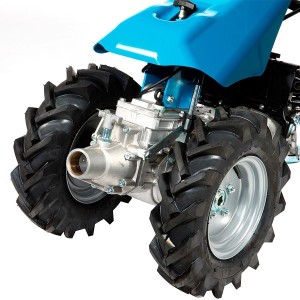

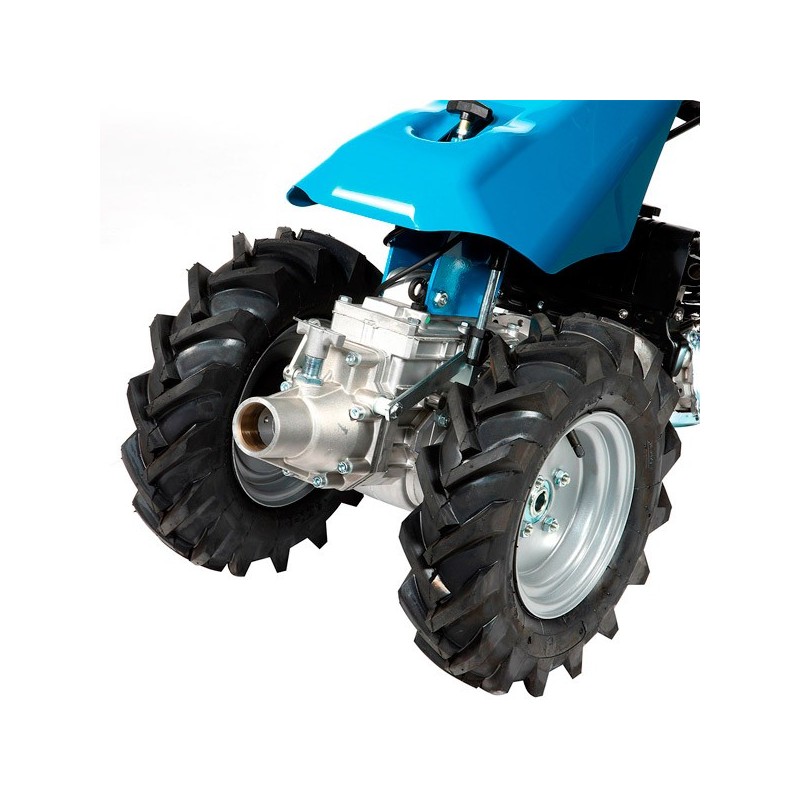

| Wheels | 4.00-8" |
| Weight | 80 kg (with wheels, drive bar, and cutter) |
Difference between the oil bath clutch of other brands and the dry multi-disc clutch of Bertolini
Clutch brake in oil bath (Other brands) Inconveniences
Multi-disc dry clutch Bertolini
|
| IMPORTANT It is mandatory for the client to check oil levels and lubrication before starting up! |
| If the merchandise cannot be checked at the time of receipt, it should be noted on the carrier's document that the customer is in agreement pending examination. |
