Hydraulic MiniDumper with shovel KPC KGF560PRO 500KG
- Load capacity : 500 kg
- Dimensions : 1500 x 720 x 1240 mm
- Track width : 108 mm
€7,014.58 VAT incl.
The unauthorized use, copying or distribution of the information, images or links contained on this website constitutes a violation of intellectual property rights and will be prosecuted in accordance with the Law. If any improper use of any link or any type of data from our website is detected, legal action will be immediately initiated, as well as notification to the Spanish Data Protection Agency for the relevant purposes.

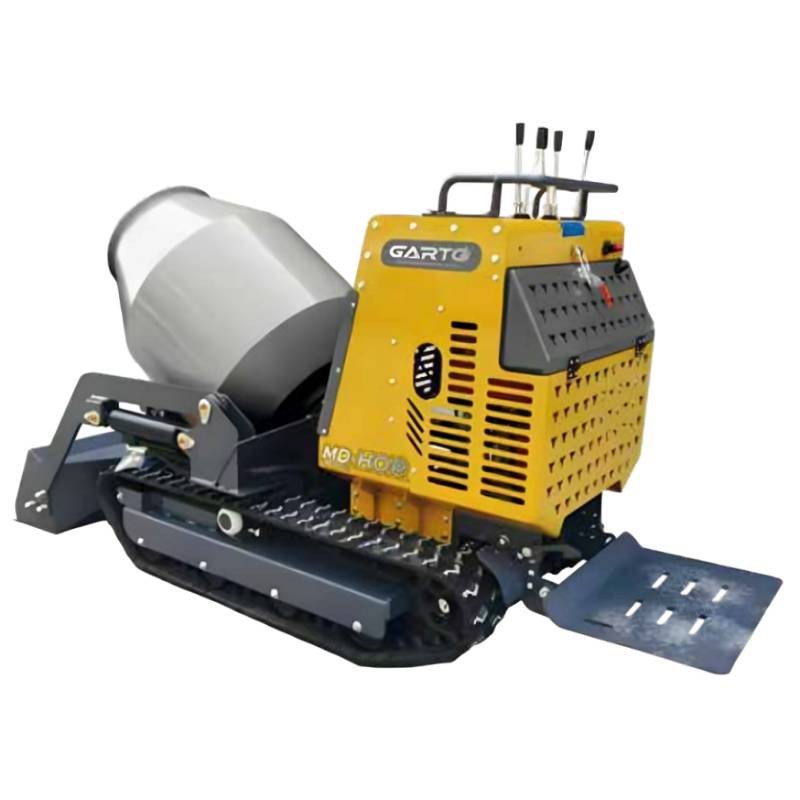

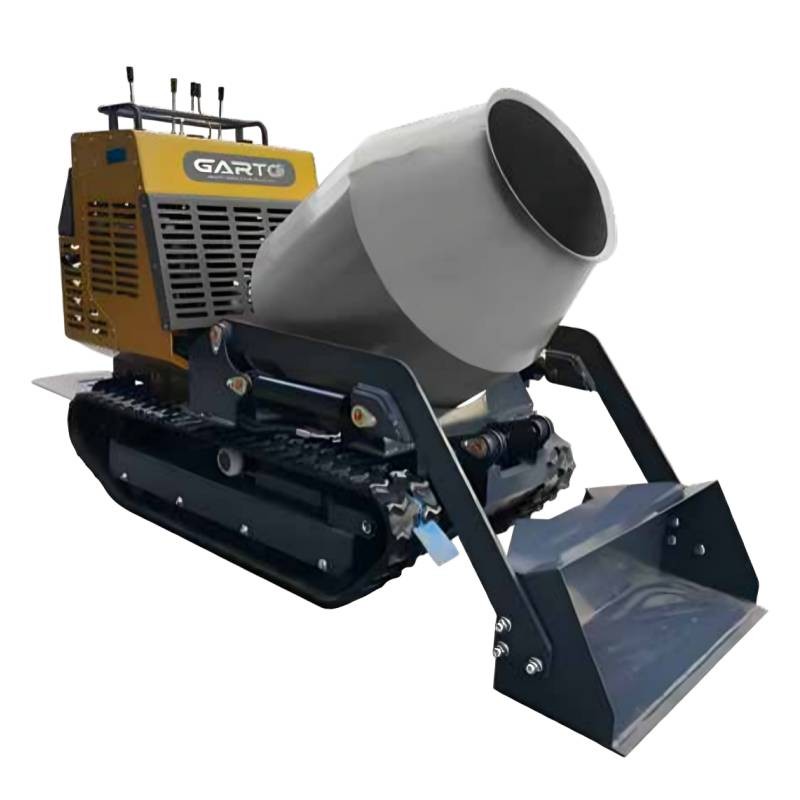

The GARTO MD-HOR is a concrete mixer dumper on tracked designed to optimize the transport and preparation of concrete on site. Its compact and robust configuration allows it to work efficiently in reduced spaces, facilitating both the mixing and the displacement of the material in irregular or difficult to access terrains where conventional machinery cannot reach.
This equipment incorporates a reliable 390 cc LONCIN OHV engine with an output of 13.5 hp, combined with a heavy-duty gear transmission. Its traction system by means of tracked of 180 mm rubber and the automatic safety brake guarantee superior stability and total control during operation, even on slopes or unstable surfaces.
With a capacity of 300 dm³ and an inlet diameter of 72 cm, the concrete mixer allows a constant work flow. In addition, the equipment's versatility is enhanced by its extendable and hinged edge box, making the MD-HOR a comprehensive solution for construction professionals looking for durability, power and maneuverability in a single self-propelled machine.
| Model | MD-500 ECO | |
| Engine | LONCIN OHV 2T | |
| Displacement | 390 cc | |
| Rated power | 13,5 HP / 3600 rpm | |
| Fuel | Gasoline | |
| Starter | By puller | |
| Transmission | Gears | |
| Gears | 3 front + 1 rear | |
| Safety brake | Automatic | |
| Concrete mixer capacity | 300 dm³ | |
| Inlet diameter | 72 cm | |
| Operating weight | 750 kg | |

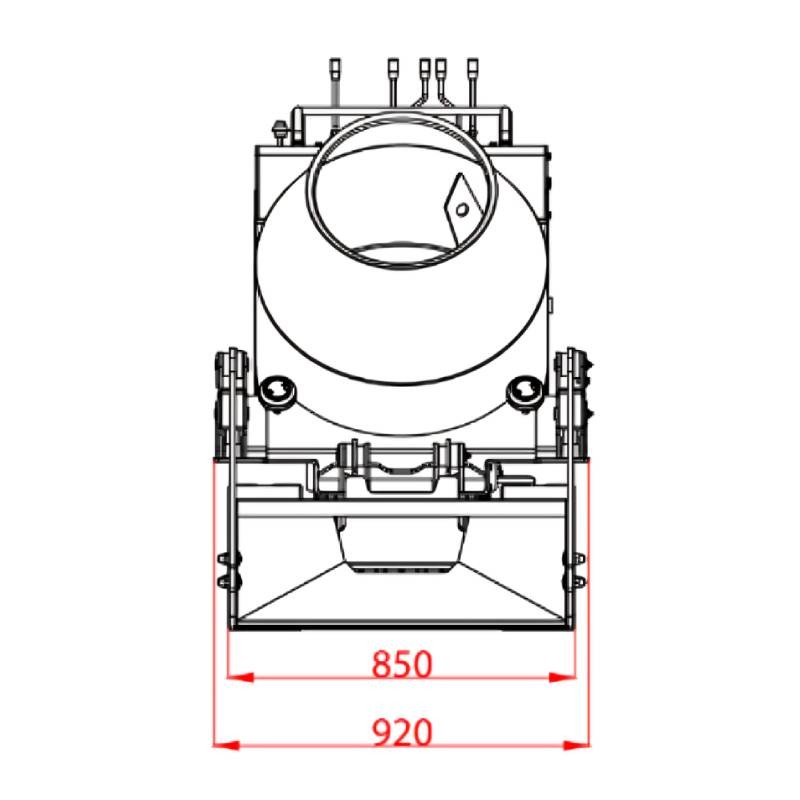

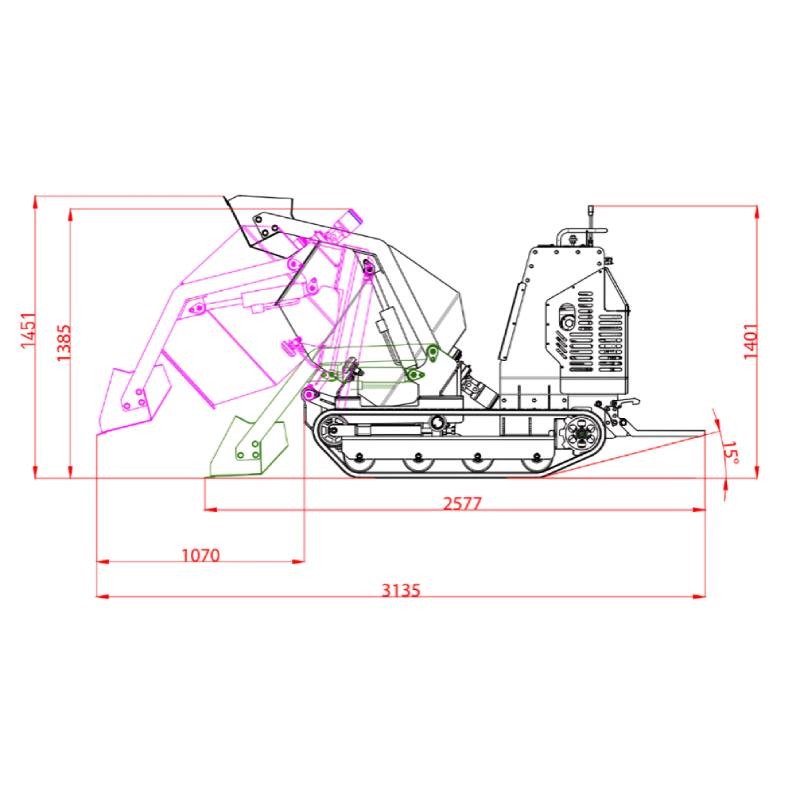

| Machine size | 1800 x 900 x 1500 mm | |
| Chassis width | 850 mm | |
| Tracked rubber | 180 mm | |
| Minimum turning radius | 1300 mm | |
| Drawer | Extendable and hinged edges | |
| Fuel tank | 6,5 L | |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
