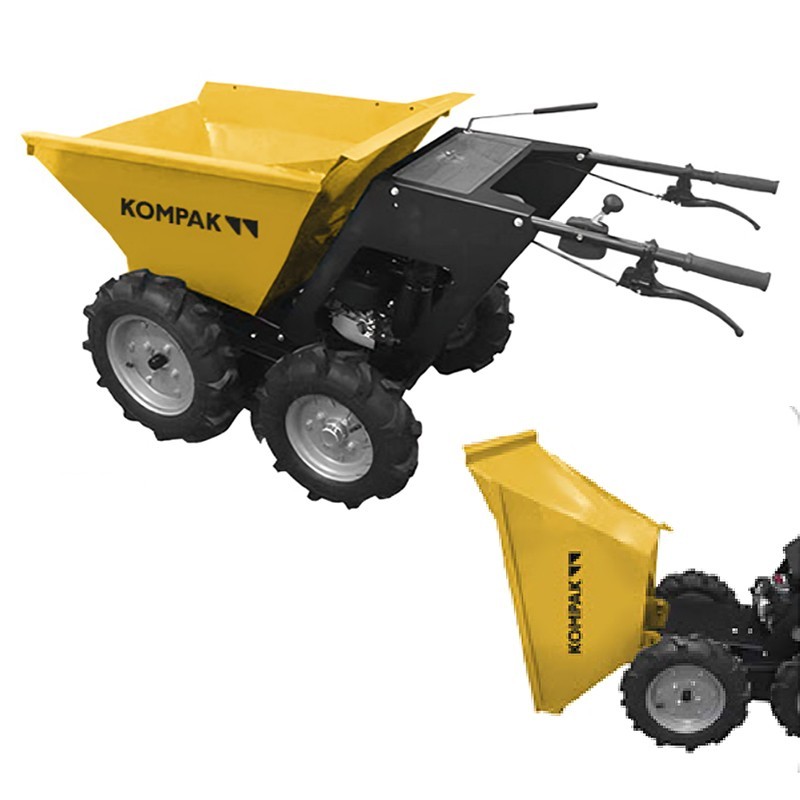

The gasoline Mini dumper Kompak MD250-5 equipped with a 196 cc Hyundai IC200 engine, offers an impressive 6.5 HP/4.8 kW, ensuring robust performance in various working conditions.
Its 250 kg maximum load capacity and a foldable platform facilitate fast and effective material handling. With a mechanical 4-wheel chain drive, the Mini dumper Kompak MD250-5 guarantees solid and stable traction on varied terrain.
With 4 forward and 1 reverse speed , this machine provides versatility and total control during operation. Its compact dimensions of 1327 x 750 x 870 mm allow for easy maneuverability, while its weight of 158 kg makes it strong enough to tackle demanding jobs.
| Engine model | Hyundai IC200 |
| Displacement | 196 cc |
| Engine power | 6.5 HP / 4.8 kW |
| Tank capacity | 1.4 liters |
| Max. load | 250 Kg |
| Folding platform | Mechanical |
| Parking brake | Automatic safety brake |
| Drive | 4-wheel chain |
| Speeds | 4 forward + 1 reverse |
| Max. forward speed | 4,5 km/h |
| Max. reverse speed | 2.0 km/h |
| Front tire size | 400-10 |
| Rear tire size | 400-8 |
| Dimensions (W x L x H) | 1327 x 750 x 870 mm |
| Weight | 158 kg |
| Noise level | 82 db (A) |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
