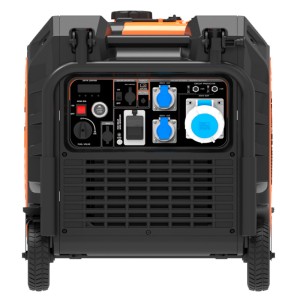

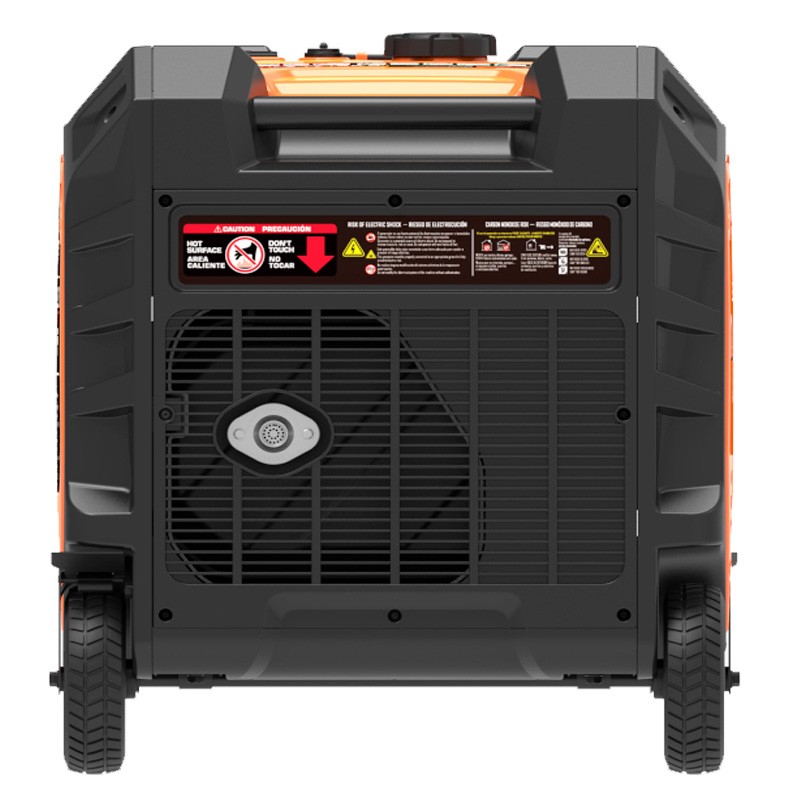

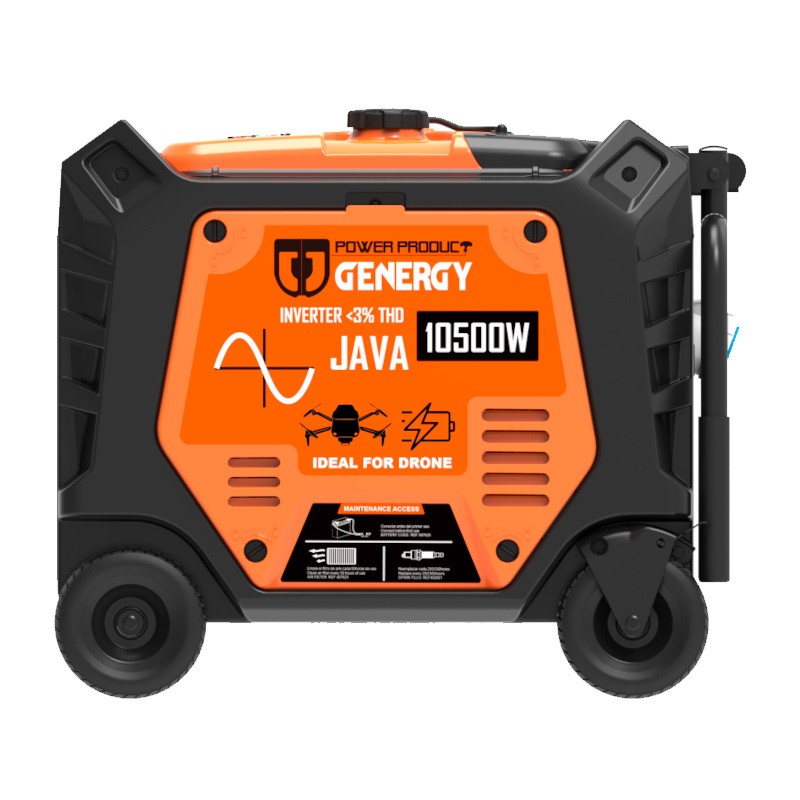

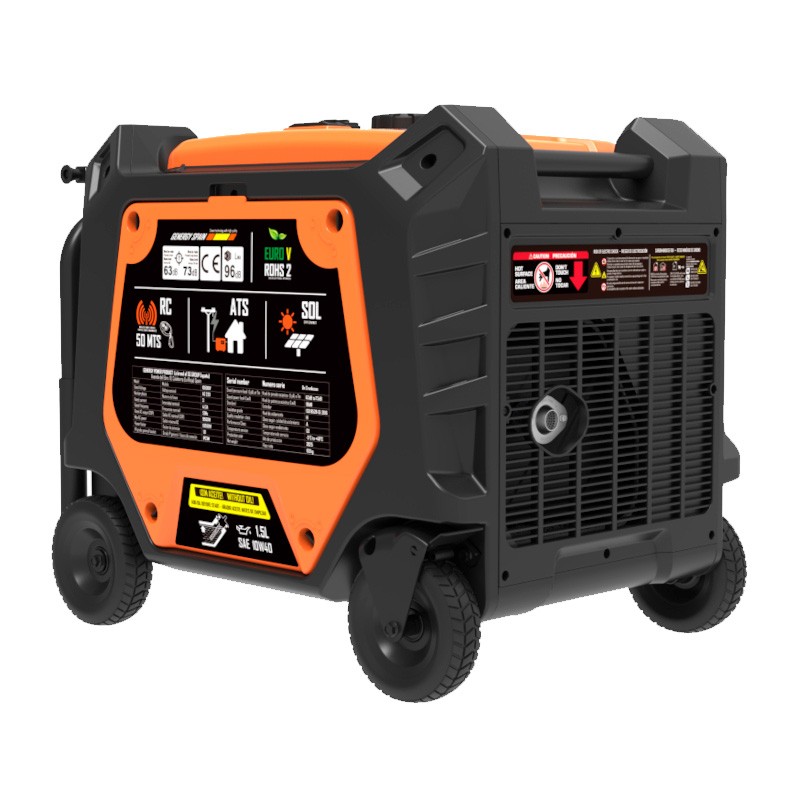

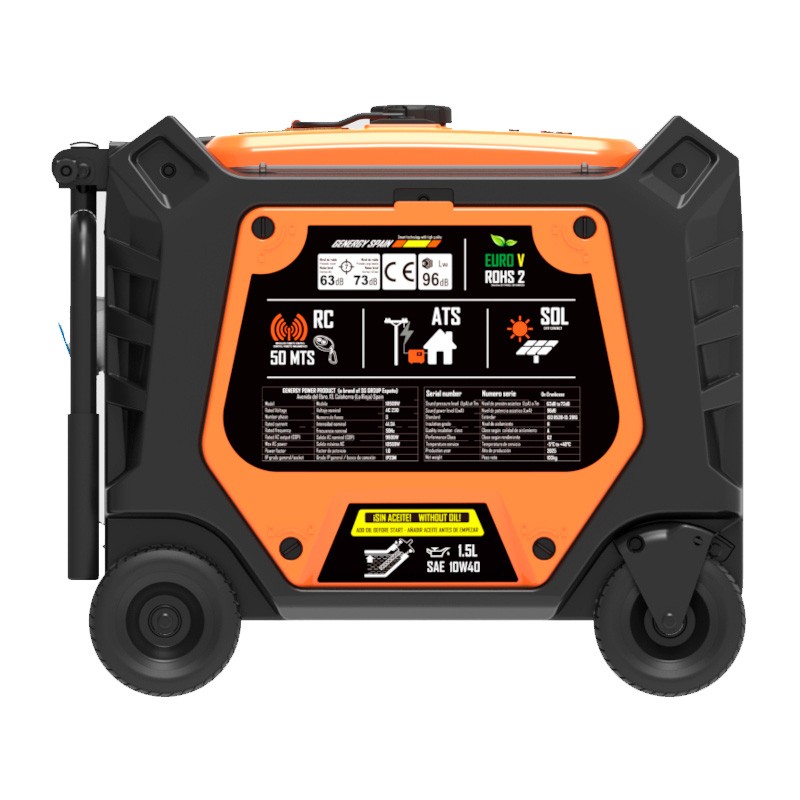

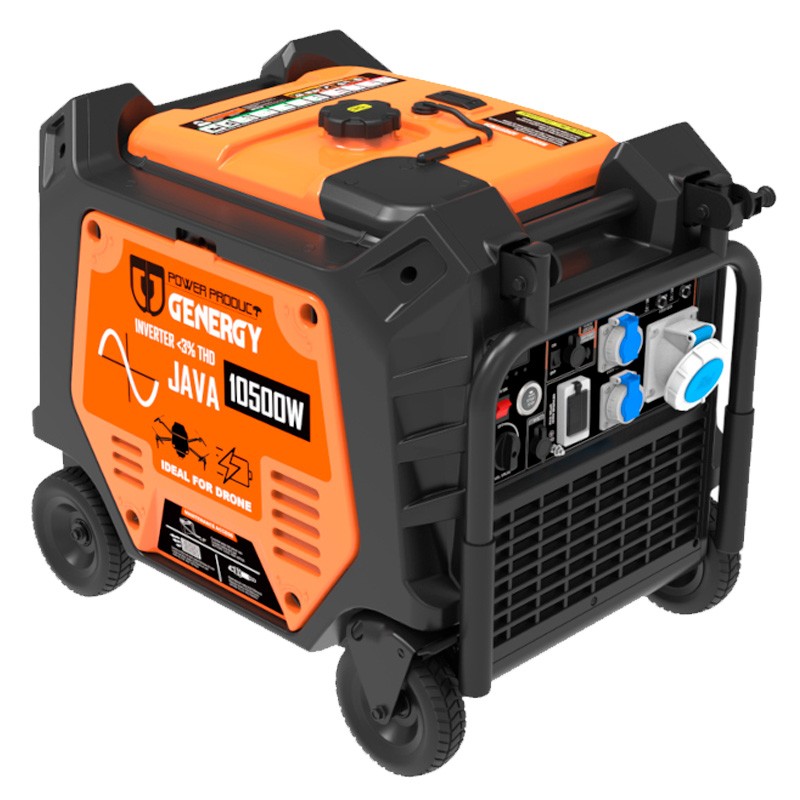

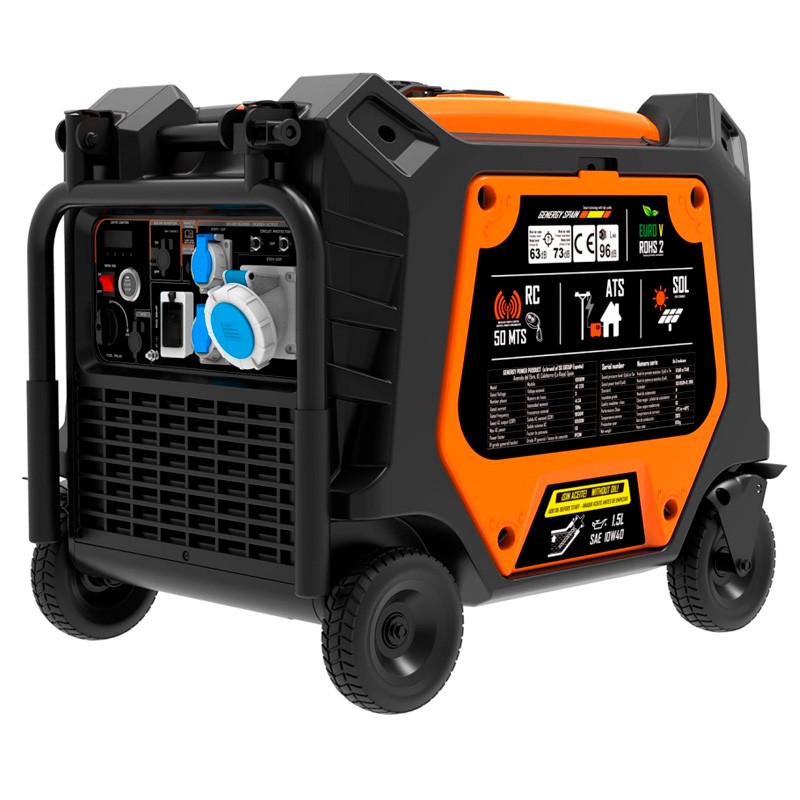

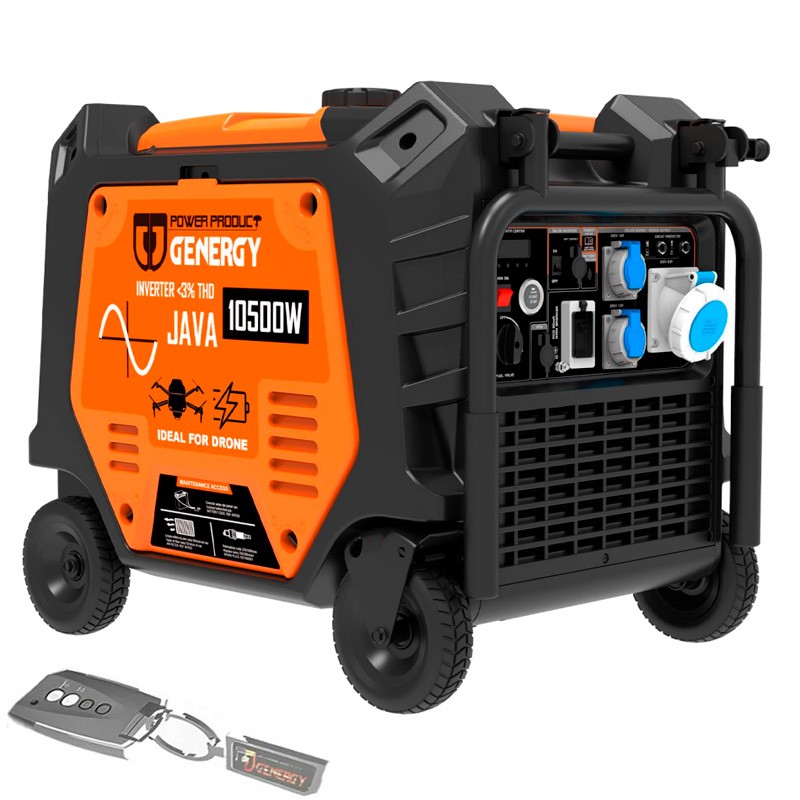

The Genergy JAVA RC SOL ATS stands out especially for its various and complete starting systems, one of the great advantages of this model compared to other generators in its category. It allows manual start, electric start with battery included, remote control start, dry contact start and mains failure operation, a very interesting combination for installations where comfort, automation and quick response are required. In addition, the ATS connector and SOL mode greatly expand its possibilities for domestic, professional or energy backup applications.
In terms of performance, this generator works with inverter technology and delivers up to 10500 W of maximum power and 9500 W of nominal power at 230 V and 50 Hz, with single-phase output and power factor 1. It is powered by the air-cooled 4-stroke OHV gasoline engine Genergy SGS550PRO Euro V of 550 cc, designed to offer good performance, low emissions and long life. The 30 L tank allows an approximate range of 16.5 hours at 25 percent load, 10 hours at 50 percent and 7 hours at 75 percent, with fuel consumption of 1.81, 2.95 and 4.24 L per hour.

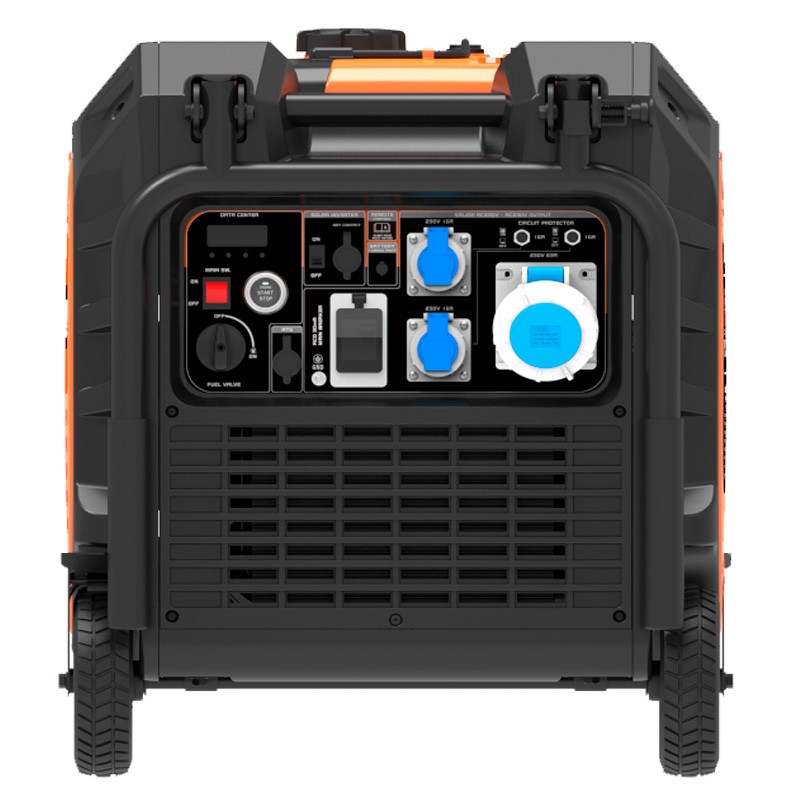

It is also a very complete equipment in connectivity and control, with digital display for voltage, frequency, working hours, load and fuel level, as well as ECO mode that adjusts rpm according to demand and can reduce consumption by up to 30 percent. It incorporates IP67 16 A and 64 A sockets, 16 A circuit breaker, differential, grounding, fuel valve, battery port and well-organized panel for more convenient use. All this in a compact format of 810 x 600 x 695 mm, with a weight of 103 kg and a sound level of 63 to 73 dB at 7 meters, a very balanced combination for those looking for high power, starting automatisms and quality inverter current.
| Model | JAVA RC/SOL/ATS 10500W | |
| Reference | 31031 (8436531942281) | |
| Stabilization system | Inverter process | |
| Voltage and frequency | 230 V - 50 Hz | |
| Maximum power | 10500 W | |
| Nominal power | 9500 W | |
| Number of phases | Single-phase | |
| Power factor | 1 | |
| Motor | ||
| Model | Genergy SGS550PRO Euro V | |
| Displacement | 550 cc | |
| Type | Gasoline 4-stroke OHV air cooled | |
| Noise and operation | ||
| Sound pressure level | 63 dB - 73 dB (at 7 m) | |
| Sound power level | 96 dB (guaranteed LwA) | |
| Start type | Manual / Electric / Dry contact / Mains failure / Remote | |
| Tank and consumption | ||
| Tank capacity | 30 L | |
| Consumption | 1.81 L/h (25%) - 2.95 L/h (50%) - 4.24 L/h (75%) | |
| Autonomy | 16,5 h (25%) - 10 h (50%) - 7 h (75%) | |
| Oil | 1,5 L - SAE 10W40 | |
| Technical characteristics | ||
| Insulation class | H / A | |
| Performance class | G2 | |
| Transport kit | Yes (wheels included) | |
| Dimensions | 810 × 600 × 695 mm | |
| Weight | 103 kg | |
| Control panel and highlights | ||
| Digital display | Voltage, frequency, working hours, load indicator, and fuel level | |
| ECO mode | Automatic RPM adjustment with fuel savings of up to 30% | |
| Connections | 2x16A IP67 / 1x64A IP67 / ATS / dry contact / battery port | |
| Protection | Differential 30 mA and circuit breaker 16 A | |
