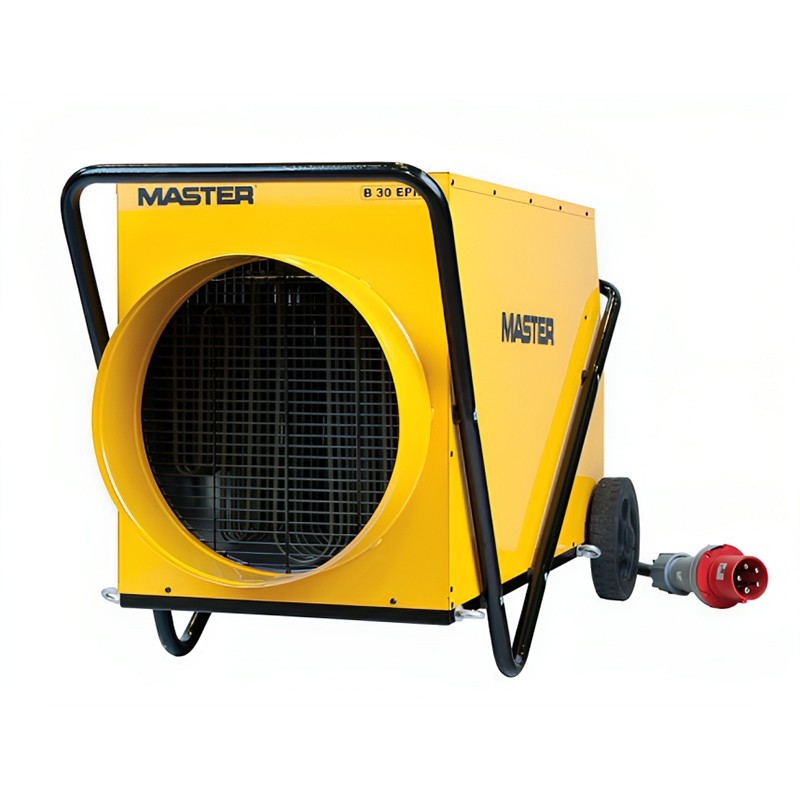

Electric duct heater MASTER B 30 15-30 KW
The MASTER B 30 electric duct heater is highly versatile, with a summer/winter switch that allows for both ventilation and heating. In addition, its quiet operation is perfect for noise-sensitive environments.
This heater features a thermally protected motor and an overheat thermostat to ensure safety and durability. Its ability to adjust the heat makes it ideal for a wide range of applications, from agriculture to events and festivals.
With an airflow of 3,500 m³/h and a heat output of 15 to 30 kW, the MASTER B 30 offers powerful performance. Its transport features, such as large wheels and lifting eyes, make it easy to handle in different locations.
Finally, its manual restart, low oxygen consumption and absence of fumes, odors and moisture make it an environmentally friendly and safe choice for a variety of applications. In summary, the MASTER B 30 is an efficient and versatile solution for heating and ventilation in a variety of environments.
Suitable for
- Agriculture
- Commercial buildings and spaces
- Construction
- Emergency services
- Industry and production
- Military and aerospace
- Rental companies
- Events and festivals
Specifications
| Air flow rate |
3.500 m3/h |
| Heating capacity |
15/30 kW |
| Heating capacity |
51.200-102.400 Btu/h |
| Heating capacity |
12.900-25.800 Kcal/h |
| Power supply |
400 V /3ph/ 50 Hz |
| Plug (male) from the heater |
63A/5P |
| Rated current |
43,5 A |
| Switch position 1 |
Off |
| Switch position 2 |
Fan |
| Switch position 3/4 |
15/30 kW |
| Room thermostat |
Optional TH5 |
| Temperature range |
|
| Protection |
IP24 |
| Product dimensions |
1030 x 580 x 680 mm |
| Dimensions with packaging |
1050 x 600 x 820 mm |
| Net/gross weight |
53/63 kg |
