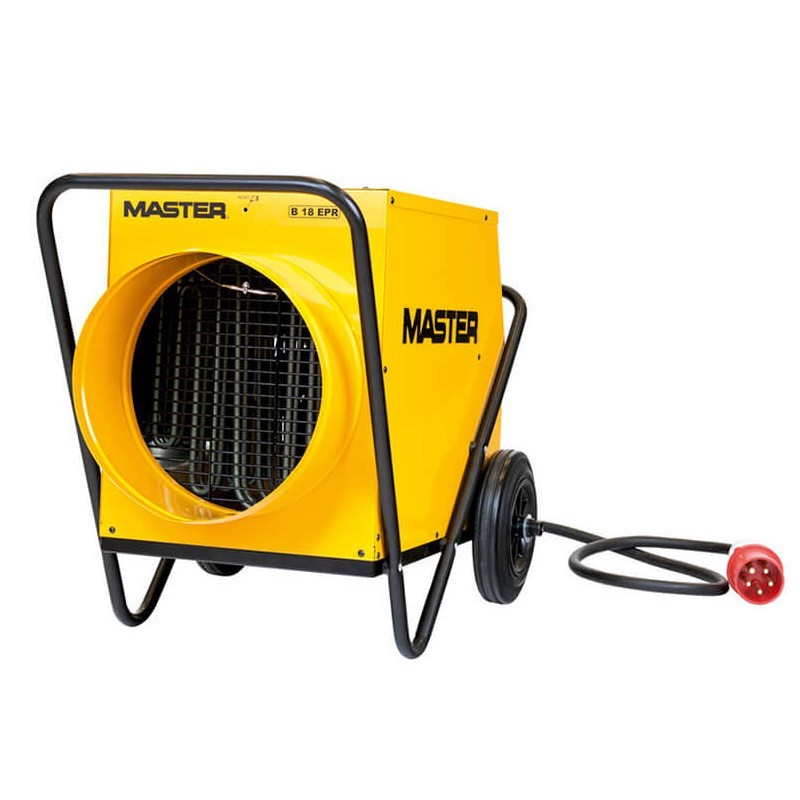

Electric duct heater MASTER B 18 9/18 KW
The MASTER B 18 electric duct heater equipped with a thermally protected motor, this device offers safe and reliable operation. Its overheat thermostat ensures precise temperature control, while its 1,700 m³/h air flow ensures efficient heat distribution.
With an adjustable heat output of 9 to 18 kW, the MASTER B 18 is capable of providing heat without oxygen consumption and without generating fumes, odors or humidity. This makes it ideal for a wide range of environments, from agriculture to commercial buildings, construction, emergency services, industry and production, and events and festivals.

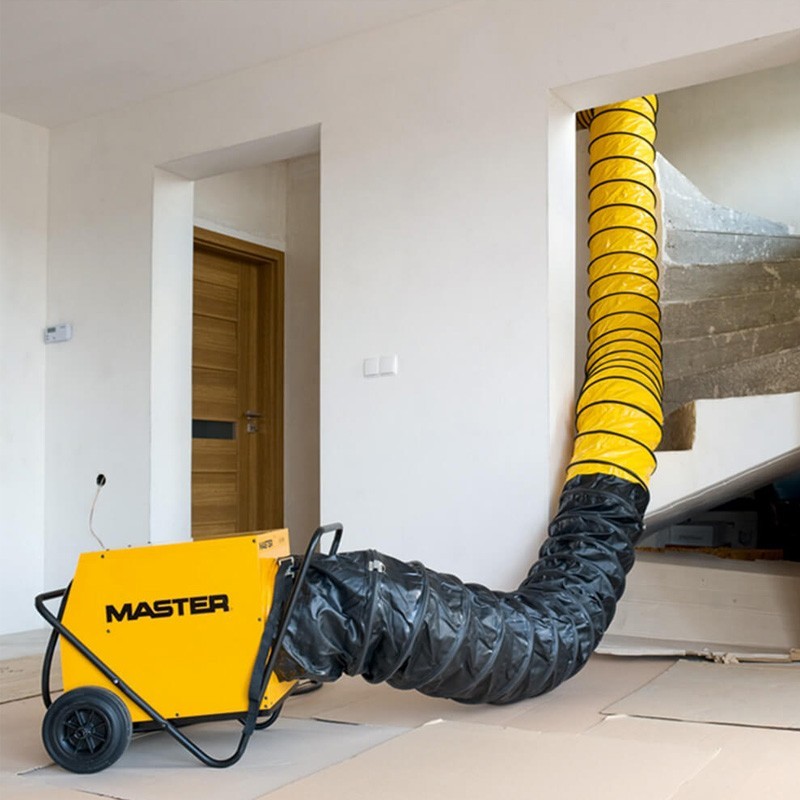

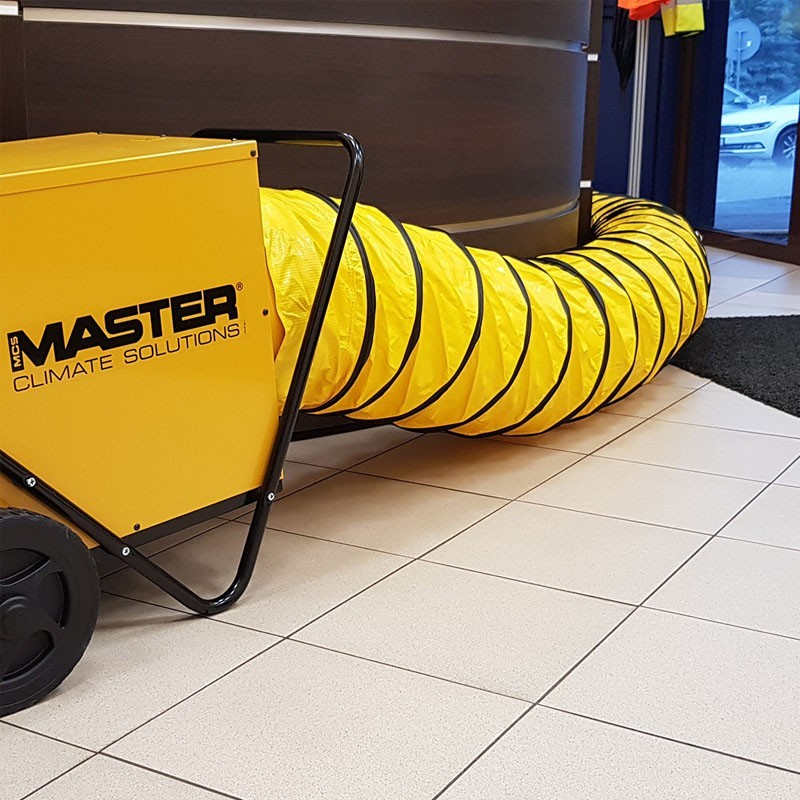

In addition, its ability to connect to a flexible pipe and its large wheels make it easy to transport and place anywhere it is needed. The device also has additional features, such as lifting eyes for easier transport, a manual reset and a summer/winter switch for ventilation, all with a low noise level.
Suitable for
- Agriculture
- Commercial buildings and spaces
- Construction
- Emergency services
- Industry and production
- Military and aerospace
- Rental companies
- Events and festivals
Specifications
| Air flow rate |
1.700 m3/h |
| Heating capacity |
9/18 kW |
| Heating capacity |
30.700-61.400 Btu/h |
| Heating capacity |
7.740-15.480 Kcal/h |
| Power supply |
400 V /3ph/ 50-60 Hz |
| Plug (male) from the heater |
32A/5P |
| Rated current |
32 A |
| Switch position 1 |
Off |
| Switch position 2 |
Fan |
| Switch position 3/4 |
9/18 kW |
| Room thermostat |
Optional TH5 |
| Temperature range |
|
| Protection |
IP24 |
| Product dimensions |
700 x 490 x 530 mm |
| Dimensions with packaging |
600 x 400 x 460 mm |
| Net/gross weight |
27/29.3 kg |
