Electric duct heater MASTER B 18 9-18 KW
- Starting : Electric
- Power : Electric
- Power : 9/18 kW
- Chassis material : Enameled steel
- Country of manufacture : Italy
€875.41 VAT incl.

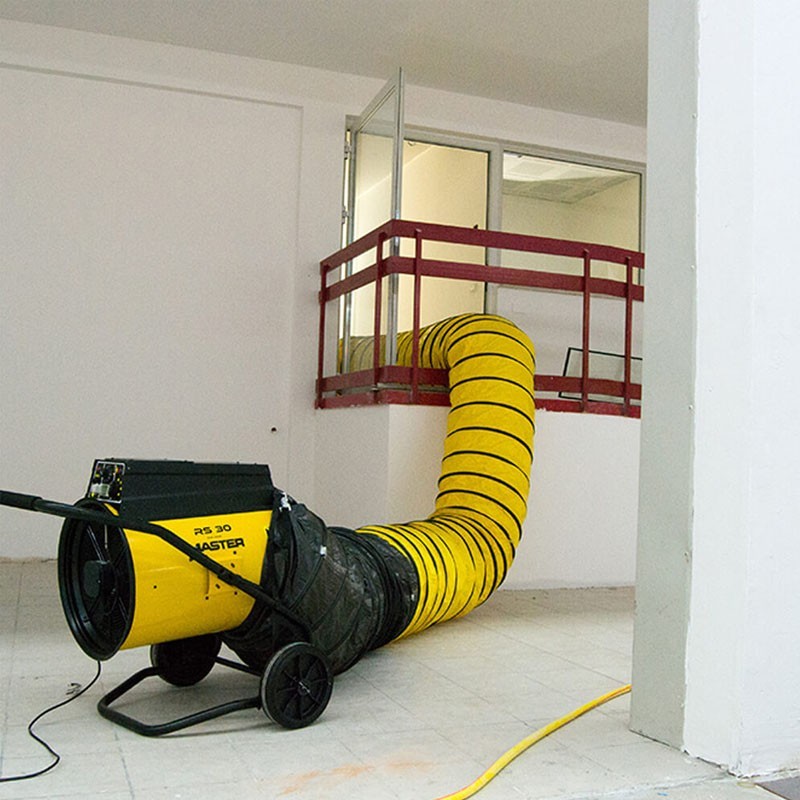

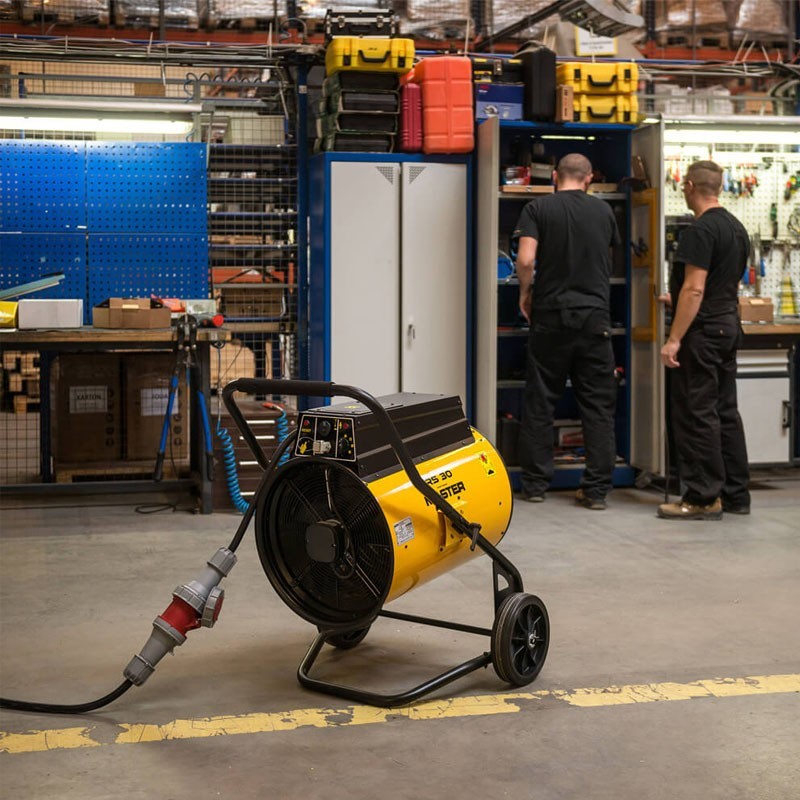

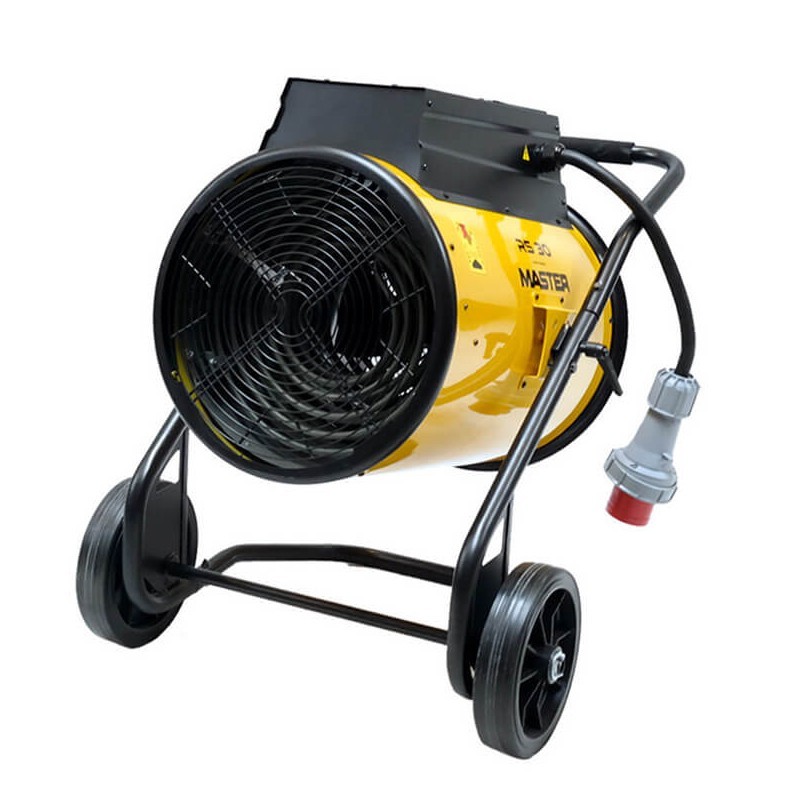

The MASTER RS 40 electric duct heater is versatile, with power ranging from 13 to 40 kW, ideal for agriculture, commercial buildings, construction and more. Its air flow rate of up to 3,100 m³/h ensures efficient heat distribution.
This heater offers 380-400 V, 50 Hz power supply with a 63A/5P plug. Its room thermostat controls the temperature in a range of -30 to +35 °C, ensuring comfort and safety.
With a compact design and large wheels, it is easy to transport, ideal for rental companies and events. In addition, it is environmentally friendly, with no oxygen consumption, fumes or humidity, and operates with low noise level. In short, the MASTER RS 40 is an efficient and versatile solution.
This heater also has safety features such as overheat protection, manual reset and a summer/winter switch for ventilation, ensuring a safe and comfortable experience.
Air flow rate | 3,100 m3/h |
Heating capacity | 13/26/40 kW |
Heating capacity | 44,360-136,500 Btu/h |
Heating capacity | 11,200-34,400 Kcal/h |
Power supply | 380-400 V /3ph/ 50 Hz |
Plug (male) from the heater | 63A/5P |
Rated current | 58 A |
Switch position 1 | Fan |
Switch position 2 | 13 kW |
Switch position 3/4 | 26/40 kW |
Room thermostat | Included |
Temperature range | -30 - +35 °C |
Protection | IP20 |
Product dimensions | 990 x 710 x 800 mm |
Dimensions with packaging | 870 x 630 x 770 mm |
Net/gross weight | 46/52 kg |
