SUITABLE FOR USE ON PUBLIC ROADS

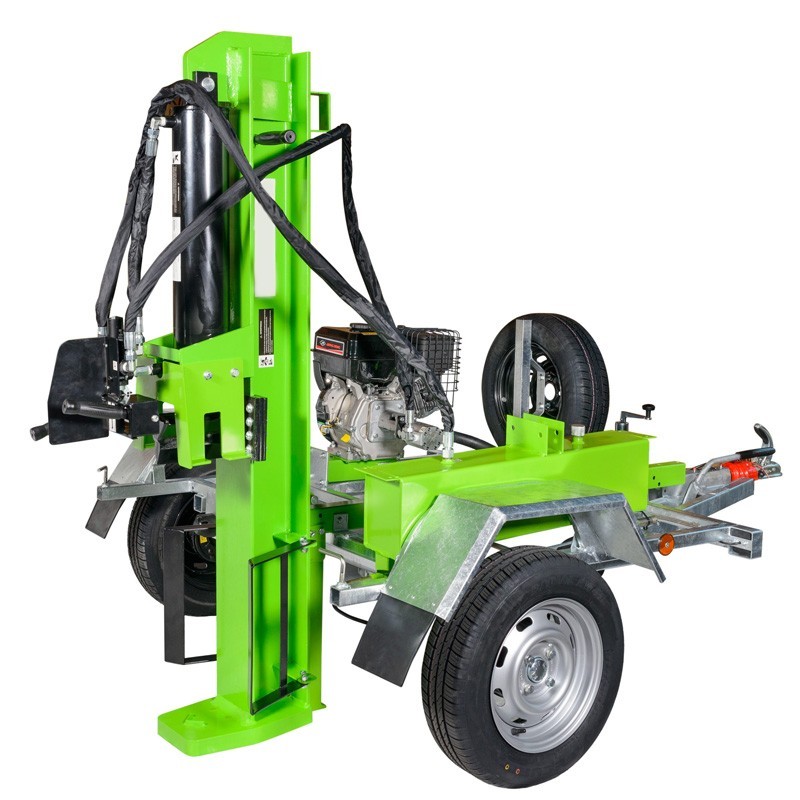

The wood chipper Centauro TPS35TR1 has a powerful 4-stroke gasoline engine that with its 270 cubic centimeters generates 6.6 kilowatts of power translating into about 9 horsepower.
As for the pressure we can exert on the wood, this is 241 bars of piston thrust on the wood thus exerting a cutting force of 35 tons.
The hydraulic fluid capacity of the Centauro firewood breaker is 20 liters and we can use different types of fluid as long as we comply with the 10wt AW32, ASLE H-150 or ISO32 standards.

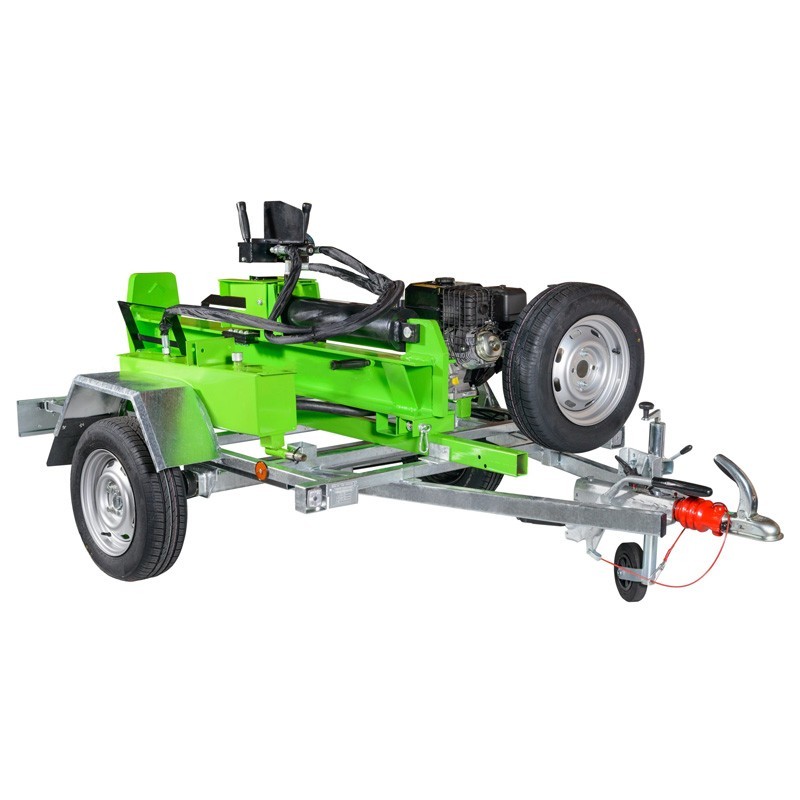

The most outstanding feature over its younger brother Centauro TPS35T is that it has a trailer approved for the road. Finally, it has two working positions, horizontal and vertical.
| MODEL | TPS35TR1 |
| Engine | 4-stroke gasoline |
| Displacement | 270 cc |
| Power | 6.6 kW / 9 HP |
| Maximum pressure | 3500 psi |
| Maximum flow rate | 15.2 gpm |
| Hydraulic oil capacity | 20 liters |
| Hydraulic oil type | 10wt AW32, ASLE H-150 or ISO32 |
| Trailer hitch size | 2 inch ball |
| Maximum towing speed | 50 km/h |
| Cutting length | 65 cm |
| Hydraulic cylinder diameter | 12,7 cm |
| Maximum cutting diameter | 50 cm |
| Cutting force | 35 tons |
| Working positions | 2 positions (horizontal and vertical) |
| Trailer | Yes, suitable for public roads |
| Weight without trailer | 165 kg |
| Weight with trailer | 340 kg |
| IMPORTANT NOTICE |
| It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement , unless there is a pending examination. |
