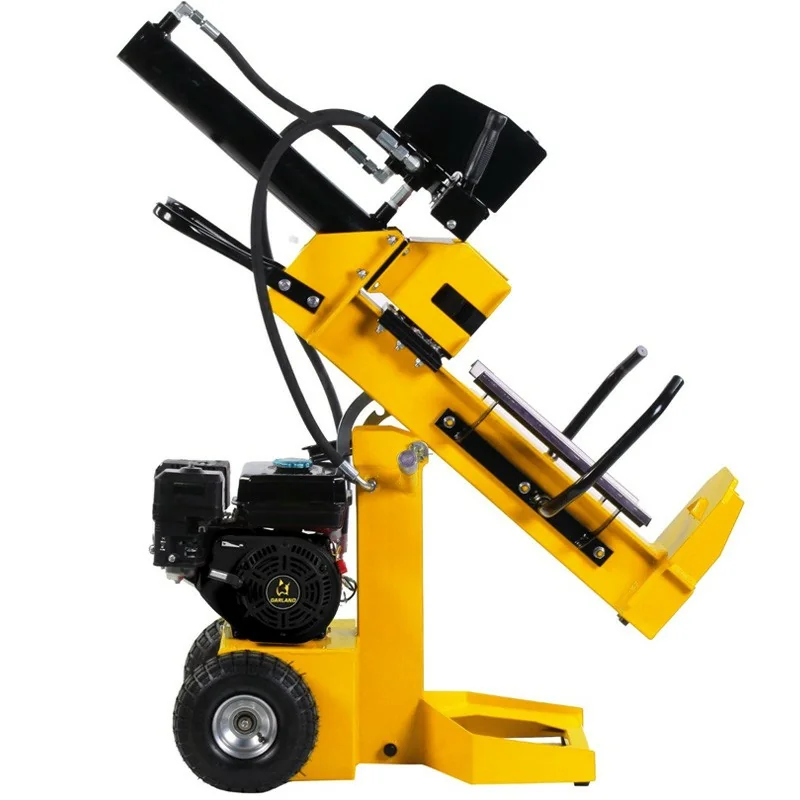

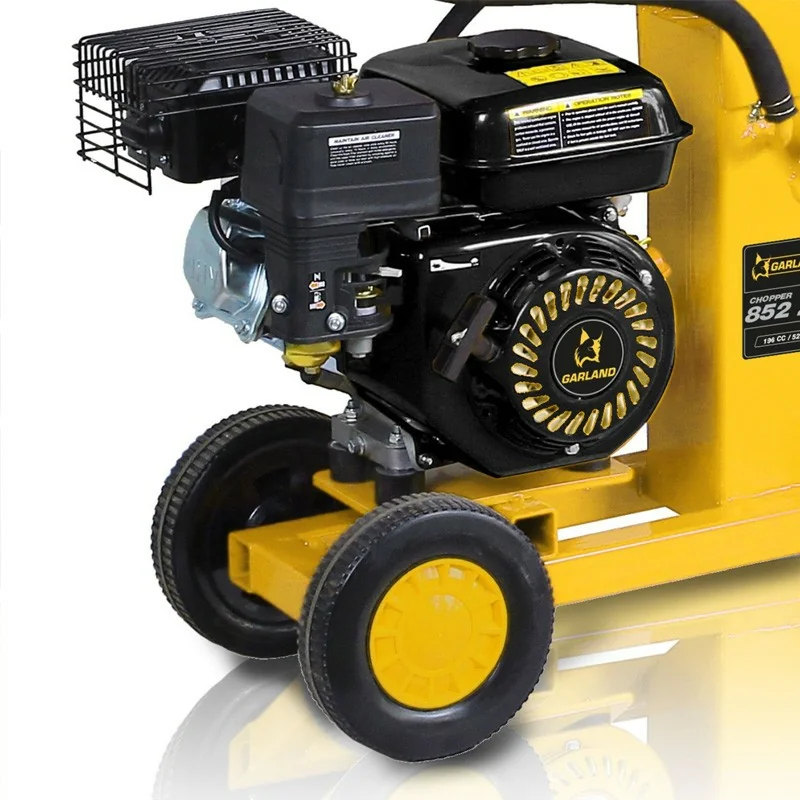

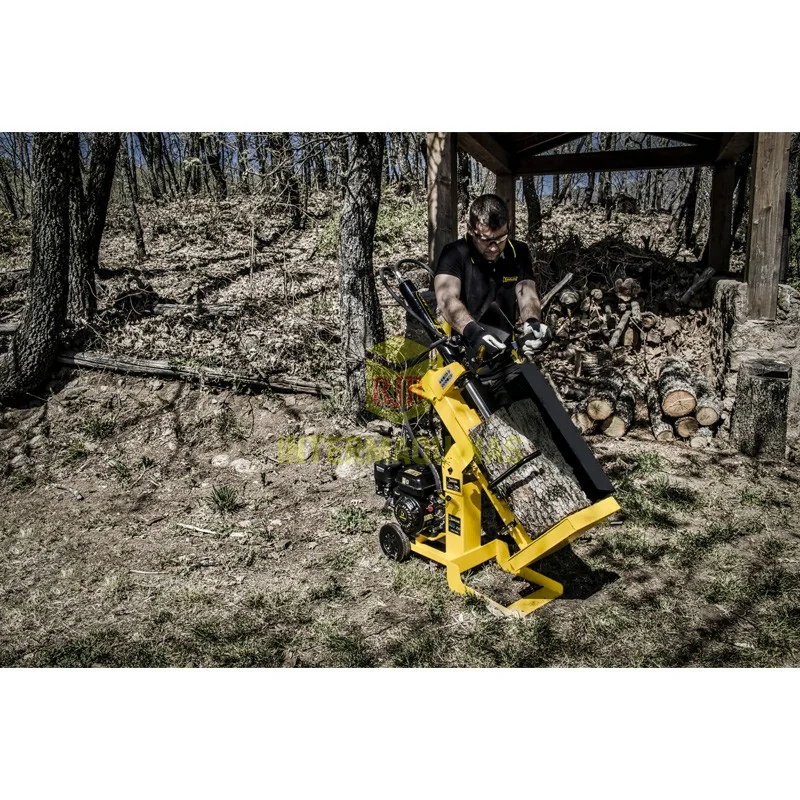

Chipper Garland Chopper 852 ZG-V23 is powered by a 208 cc 4-stroke gasoline engine that provides total autonomy on the farm or in the bush. It delivers 12 tons of thrust to split logs up to 30 cm in diameter and 52 cm long with a stable and guided blade. The two-speed feed system allows fast approach and powerful final pressure to shorten cycles.
It allows horizontal, vertical and intermediate positions to adapt to the size of the log and the operator's posture. The ZHB safety system requires two-handed operation and prevents accidental start-up. It moves easily thanks to the pneumatic wheels and integrated handle and maintains constant pressure with 5 liters of hydraulic oil.
| Motor | |
| Type | Garland 4T |
| Displacement | 208 cc |
| Power | 2.3 kW |
| Idle speed | 1800 min-¹ |
| Maximum engine speed | 3600 min-¹ |
| Torque | 10 Nm |
| Consumption | 0.4 kg/kWh |
| Working performance | |
| Cutting force | 12 T |
| Speeds (forward + reverse) | 2 |
| Working width | 300 mm |
| Working plane | Variable (horizontal / vertical) |
| Max. log length | 52 cm |
| Safety and control | |
| Soft start | No |
| Two-hand safety mechanism | Yes |
| Transport and design | |
| Trunk lift | No |
| Transport wheels | Yes |
| Carrying handle | Yes |
| Hydraulic and sound data | |
| Hydraulic volume | 5 L |
| Guaranteed / measured sound power | 97 dB(A) |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
HYDRAULIC OIL NOT INCLUDED
