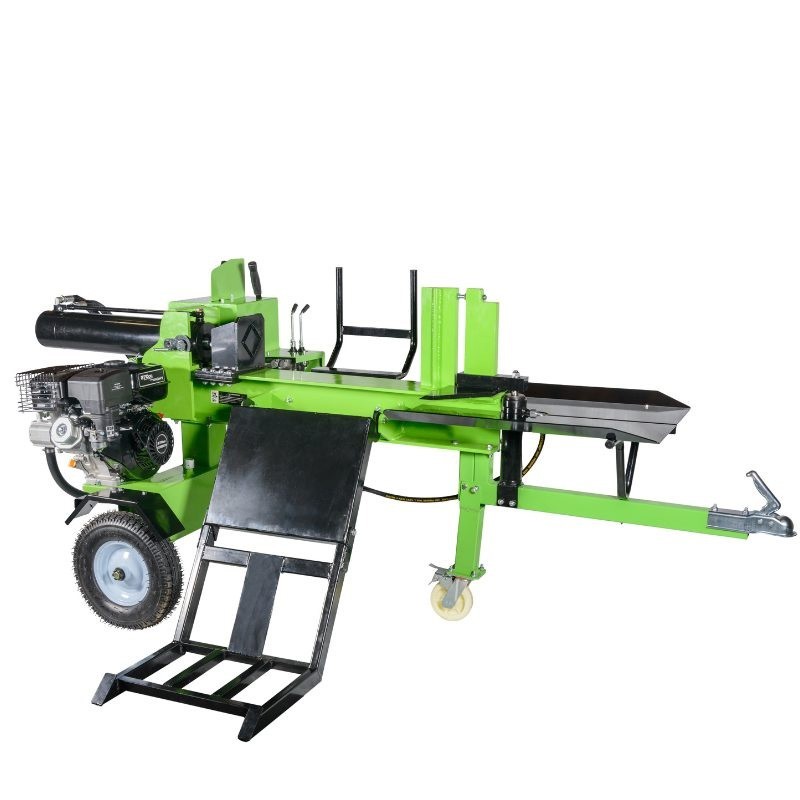

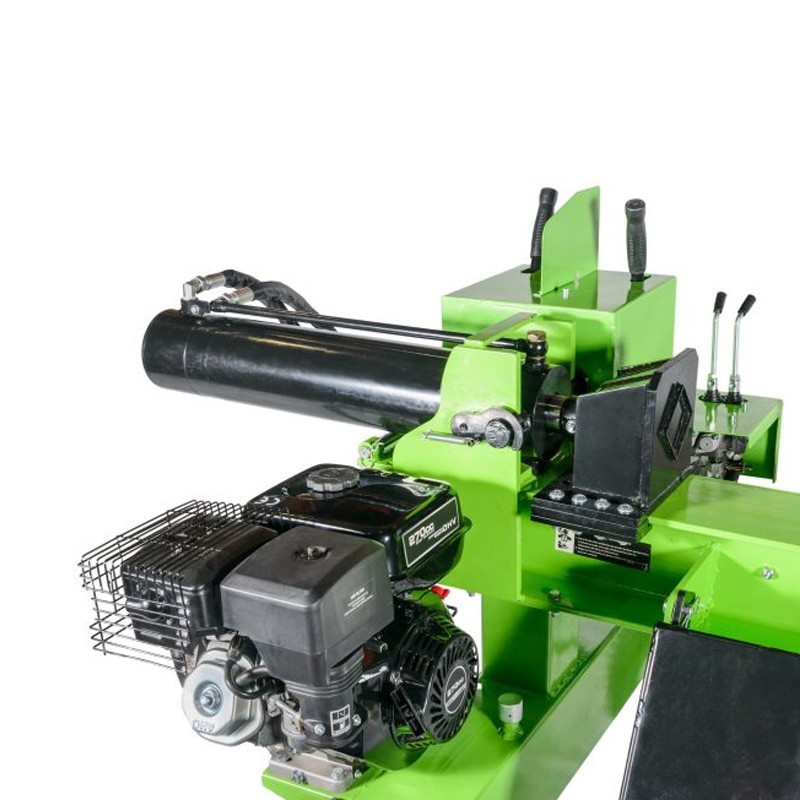

The EuroCentauro TPS35TN firewood chipper is equipped with a 4-stroke gasoline engine capable of delivering 9 horsepower. Thanks to this engine, the chipper can handle logs up to 65 cm long and all this with an incredible cutting force of 35 tons.

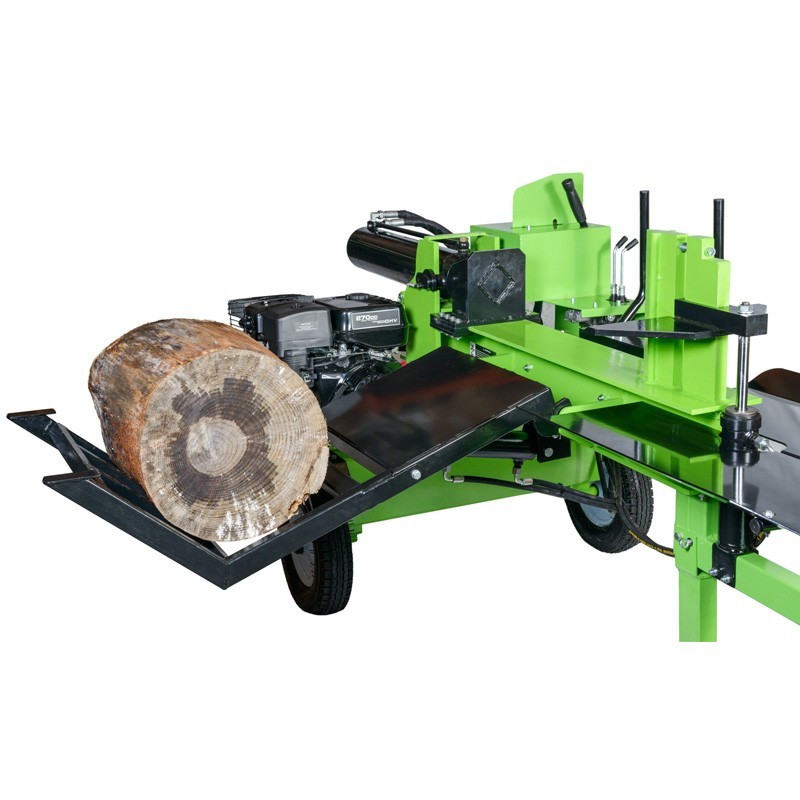

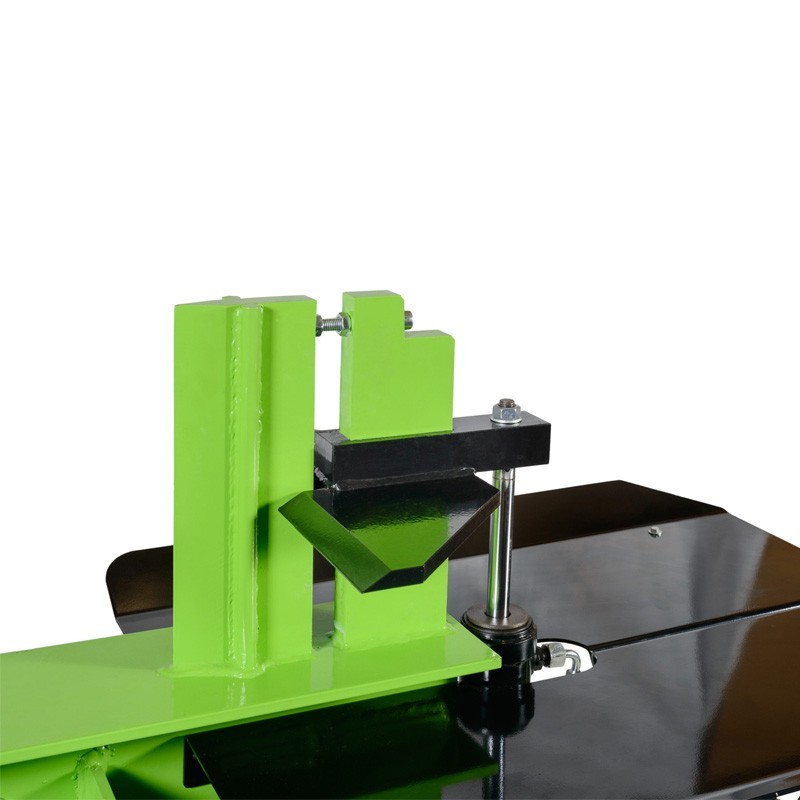

The wood cutting operation is double wedge. One wedge is vertical and fixed and the other wedge is horizontally positioned and is mobile with hydraulic height adjustment. It also has a hydraulic log elevator that facilitates the work with the heaviest logs.
As for the rest of its features, it is worth mentioning that it has a chassis prepared to be towed by a vehicle, although it is not suitable for use on public roads. Finally, the weight of this log splitting machine is 185 kilograms.
Engine | 4-stroke gasoline |
Displacement | 270 cc |
Power | 9 HP |
Cutting force | 35 tons |
Maximum trunk diameter | 50 cm |
Maximum pressure | 3500 psi |
Maximum flow rate | 15 gpm |
Hydraulic fluid capacity | 24.60 liters/ 35T |
Hydraulic Type | 10wt AW32, ASLE H-150, or ISO32 |
Max. cutting length | 650mm |
Hydraulic cylinder int. bore | 127mm |
Max. log diameter | 500mm |
Log elevator | hydraulic |
Cutting system | double cutting wedge: fixed vertical wedge and movable horizontal wedge with hydraulic height adjustment |
Trailer | Yes (not suitable for public roads) |
Weight | 185 Kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels prior to start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
