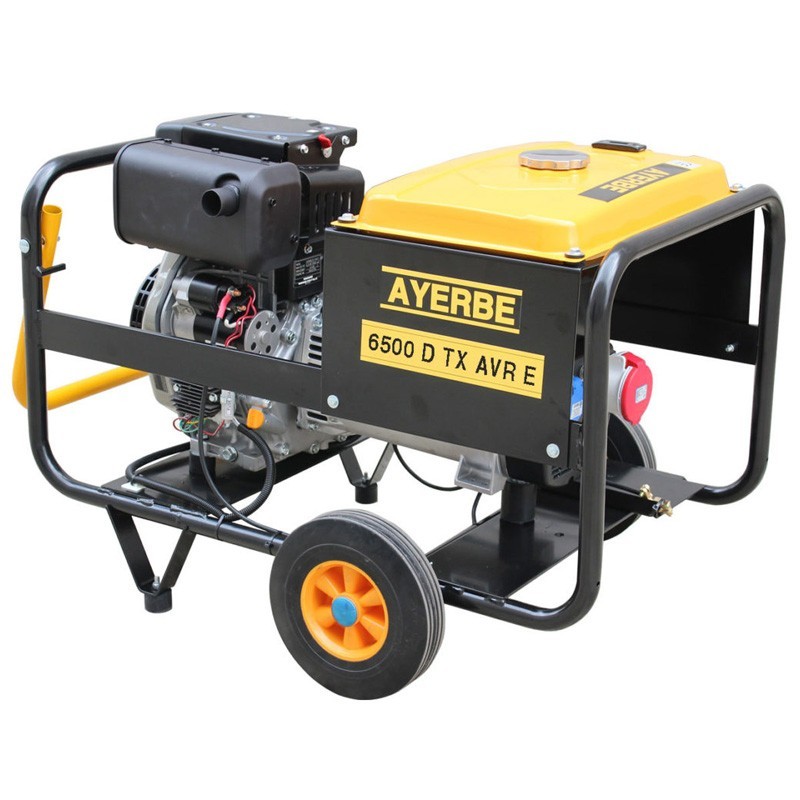

Three-phase diesel electric generator Ayerbe AY 6500 D TX AVR E


  • Engine Yanmar L-100 406 cc 10 HP
  • Maximum power: 5000 W
  • Stabilization: AVR
  • Weight: 115 Kg

Battery NOT included in electric start models

En stock
icon Power Supply
Power Supply
Diesel
icon Stabilization
Stabilization
AVR
icon Current
Current
Three-phase
icon Startup
Startup
Electric
icon Engine
Engine
Yanmar
icon Engine model
Engine model
L 100
icon Displacement
Displacement
406 cc
icon Engine type
Engine type
4 strokes
icon Power rating
Power rating
4000 W
icon Maximum power
Maximum power
5000 W
icon Type of winding
Type of winding
Copper
icon Type of generator
Type of generator
With handle and wheels
€2,490.08 excl. VAT
- 4%
€2,390.48 excl. VAT
€2,892.48 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Three-phase diesel electric generator Ayerbe AY 6500 D TX AVR E
€2,892.48
Qty

Diesel generator Ayerbe AY 6500 D TX AVR E

The generator Ayerbe AY 6500 D TX AVR E has a 10 HP Yanmar diesel engine and delivers a maximum power of 5000 watts at 400 volts. If you want to know more, stick around because we will explain more reasons why to buy this generator.

As you can see, this generator features an AVR regulation system that protects our electronic devices against voltage spikes. As for its equipment, it comes with a handle and wheels to make it easier to take it everywhere.

As a general rule this type of machines do not usually have much autonomy but with the AY 6500 D TX AVR E model does not happen and it has a large tank of 15 liters that gives us an autonomy of up to 9 hours.

Although it does not have a soundproof cabin and its weight is a little higher than its smaller brothers, it does not lag behind in power-price ratio.

Technical specifications

Maximum power 5000 W 400 V / 1700 W 230 V
Nominal power 4000 W 400 V / 1300 W 230 V
R.p.m. 3.000 r.p.m.
Voltage / Frequency 400 V - 230 V. / 50 Hz
Starting ELECTRIC
Power factor Cos phi 0,8
Noise level 108 LwA / 79 LpA@7m
Motor
Brand YANMAR
Model L 100
Power 10 HP
Displacement 406 cc
Cooling system Air
Engine oil type SAE 20W40 / IPE grade CD, CF
Intake Natural
R.P.M. of engine 3.600 r.p.m.
Speed governor Mechanics
Fuel DIESEL
Fuel consumption at 75% 1.7 L/H
Oil capacity 1,1 L
Starting system Electric
Alternator
Brand MECC ALTE
Model ET20FS
Type AVR electronic regulation
Insulation type Class H
IP protection IP 23
Excitation system A.V.R.
Voltage Tolerance + - 1% per compound
Poles 2
Voltage / Frequency 230 / 50 Hz.
Type of coating Standard (without impregnation)
Dimensions and Weight
Tank capacity 15 l
Autonomy at 75% 9 hours
Weight 115 kg
Dimensions 950 x 700 x 730 mm
Packing volume 0,48 m³
