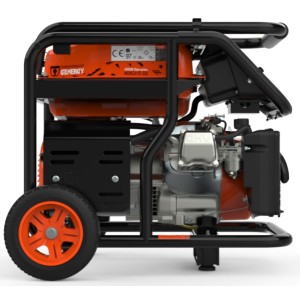

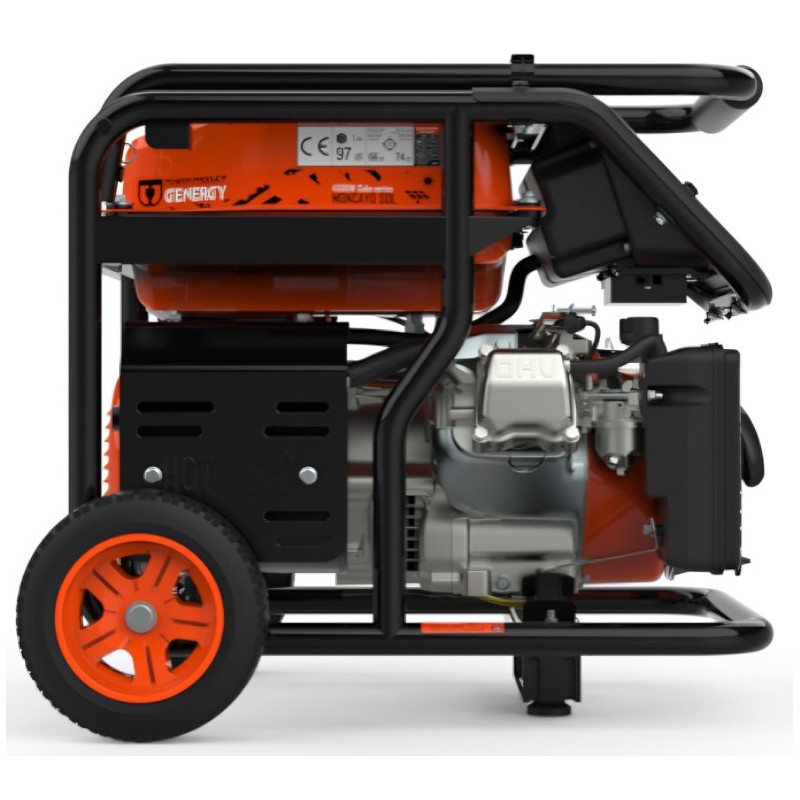

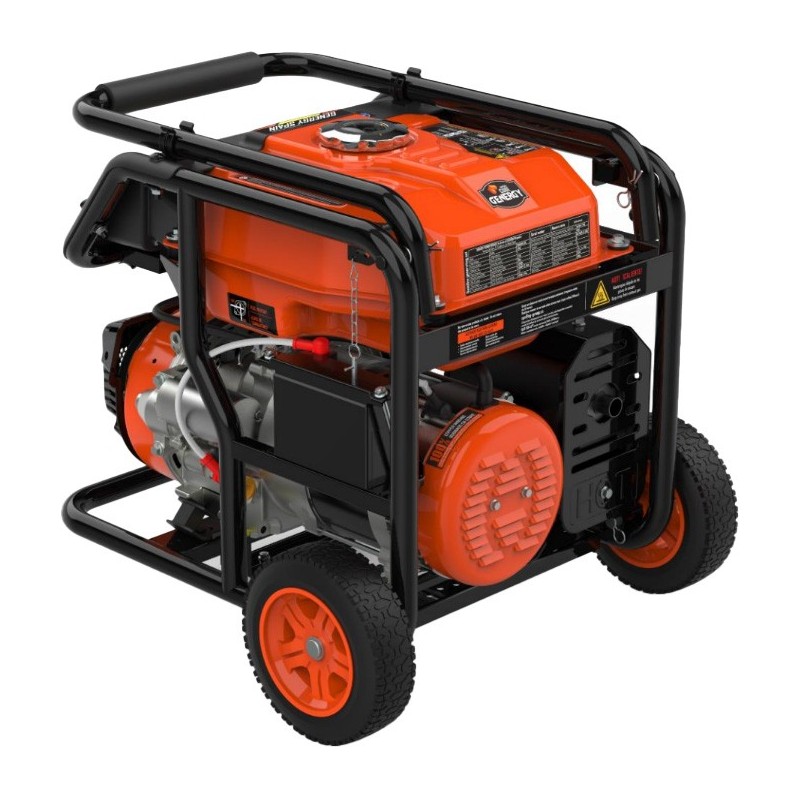

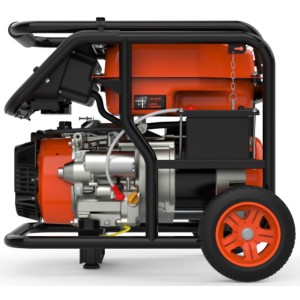

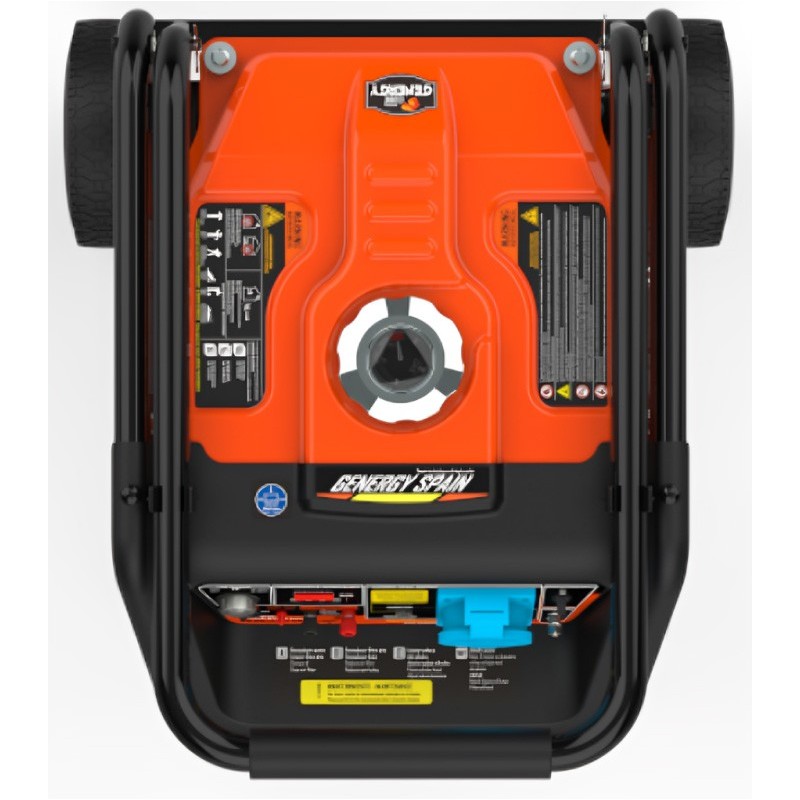

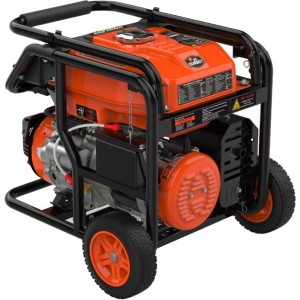

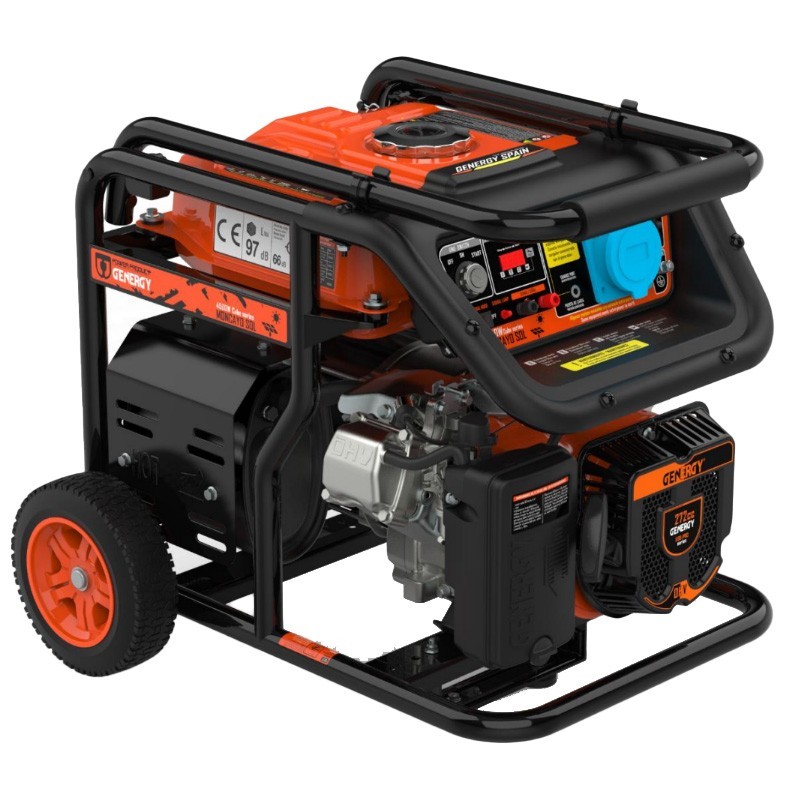

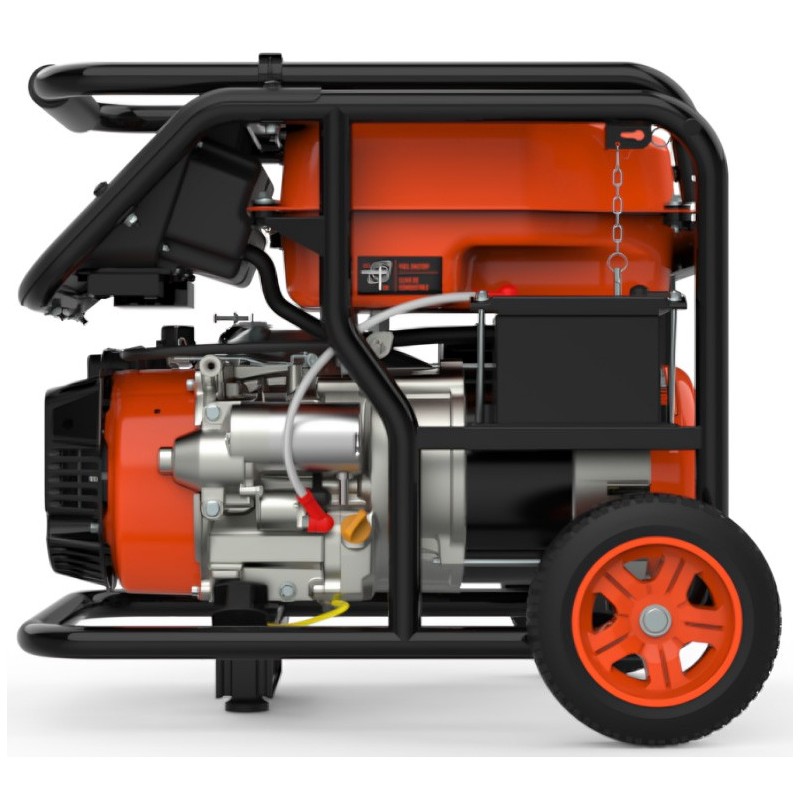

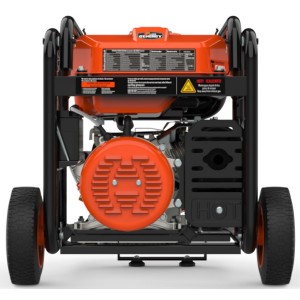

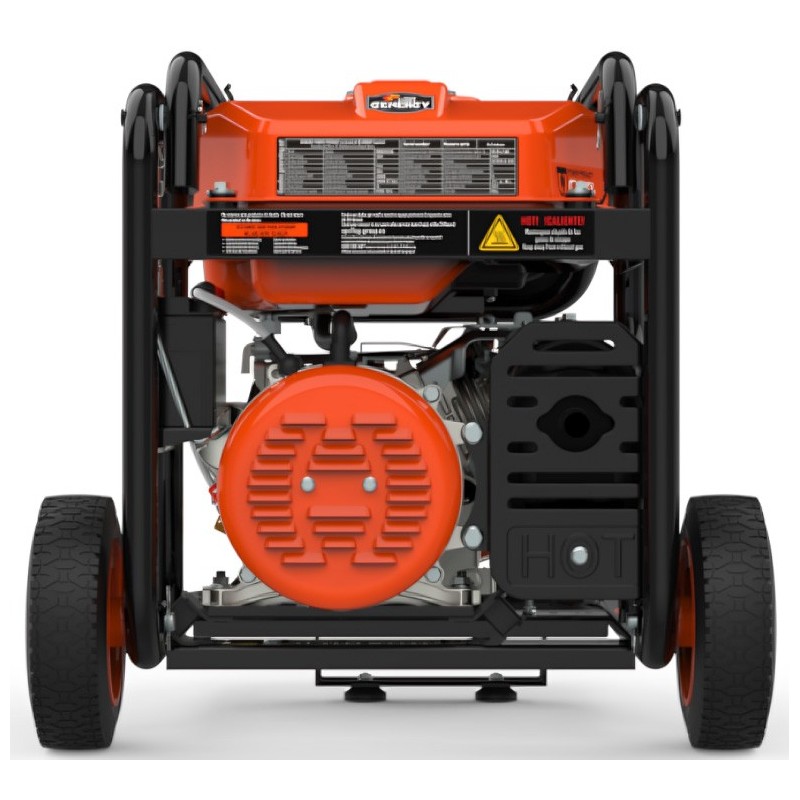

The electric generator Genergy Moncayo SOL is the perfect solution to back up photovoltaic and wind installations, guaranteeing a stable and reliable power supply under any circumstances.
Its automatic operation, activated by NO contact, allows the generator to start autonomously when renewable energy is not sufficient, offering an efficient and uninterrupted integration.
This model stands out for its versatile starting, which combines manual, electric and automatic starting, adapting to different needs. In addition, its high-quality copper alternator and SVR voltage stabilizer ensure optimal and long-lasting performance, even in the face of demanding inductive loads or adverse environmental conditions.

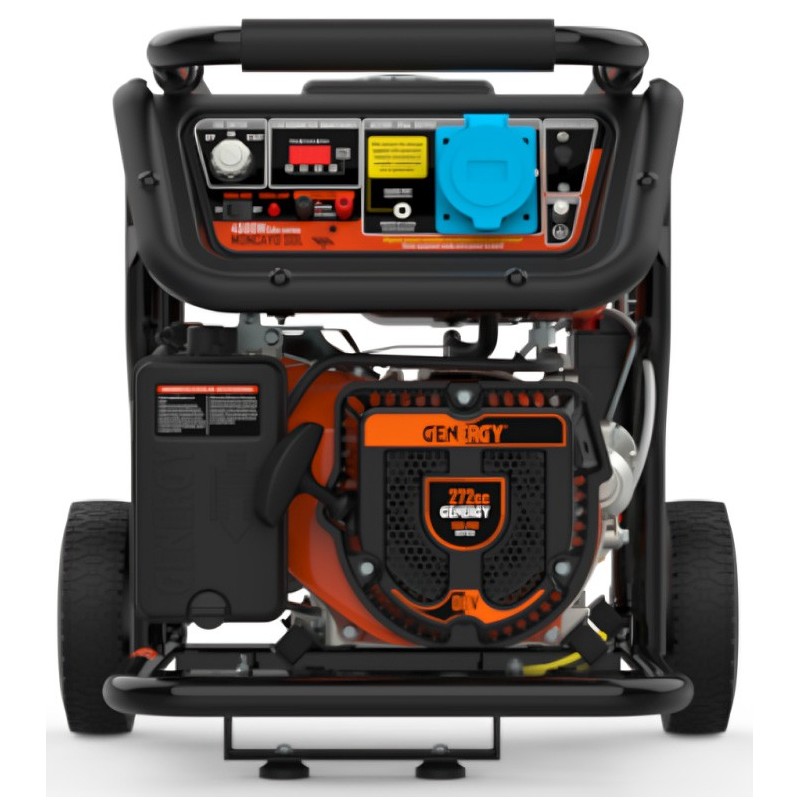

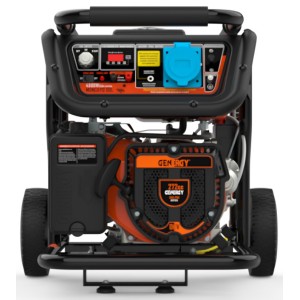

Thanks to its Zero Gravity frame, the Genergy Moncayo SOL is easy to transport, facilitating its use in different locations. Its intelligent display informs at all times about the status of the generator and maintenance work, ensuring efficient and prolonged operation without surprises.
| Stabilization system | SVR" electronics |
| Voltage - Frequency | 230V - 50Hz |
| Maximum Power | 4500 W |
| Nominal Power | 4000 W |
| Type by number of phases | Single-phase |
| Power factor | 1 |
| Motor Model | SGB270PRO |
| Displacement | 272 cc |
| Engine type | Gasoline, 4-stroke OHV air cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 66 dB - 74 dB |
| Guaranteed sound power level LwA | 97 dB |
| Starting type | Manual, Electric, Automatic by potential free NA contact in support of photovoltaic |
| Fuel tank capacity | 13L |
| Consumption at 25-50-75% load | 1,24 L/H-1.78L/H-2.34L/H |
| Autonomy 25-50-75% load | 10.4H - 7.3H - 5.5H |
| Oil capacity and grade | 1L - SAE10W40 |
| Insulation level | F |
| Class according to insulation quality | A |
| Performance class | G1 |
| Standard | ISO 8528-13:2016 |
| Transport kit | Integrated with 8" wheels |
| Dimensions | 632x577x563 mm |
| Weight | 60 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
