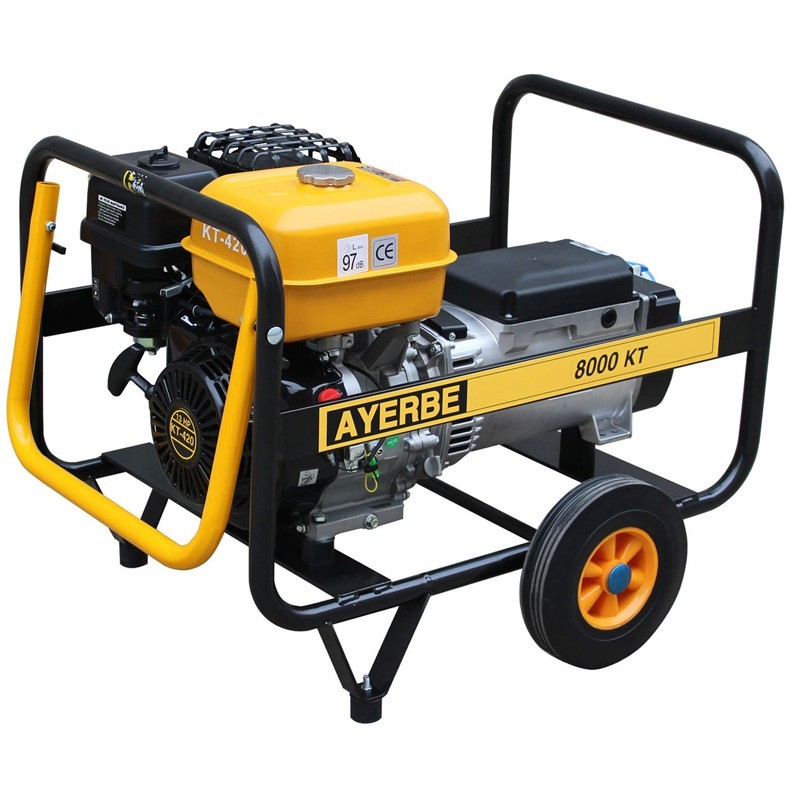

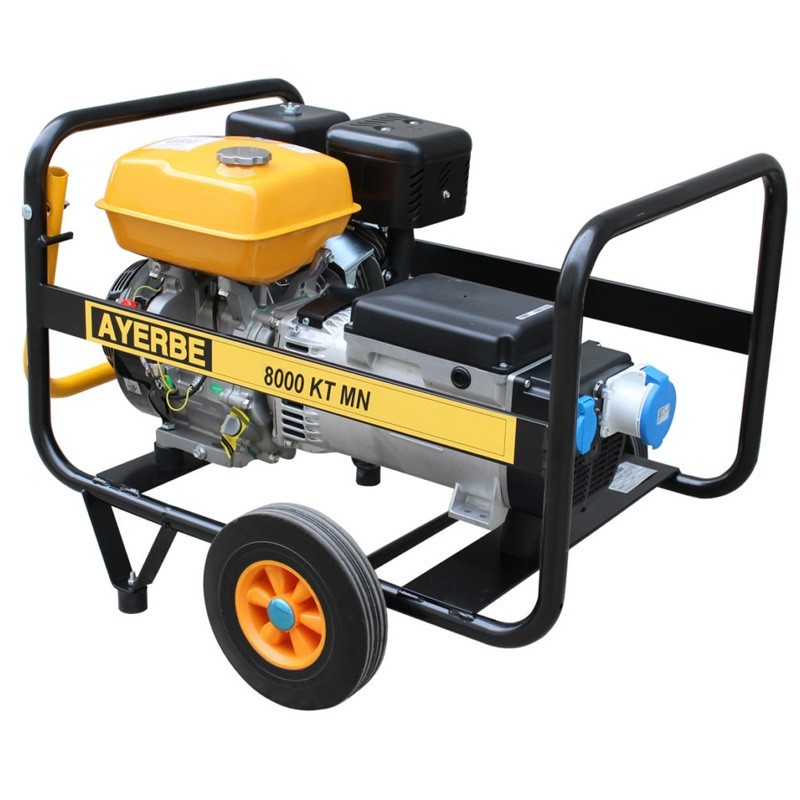

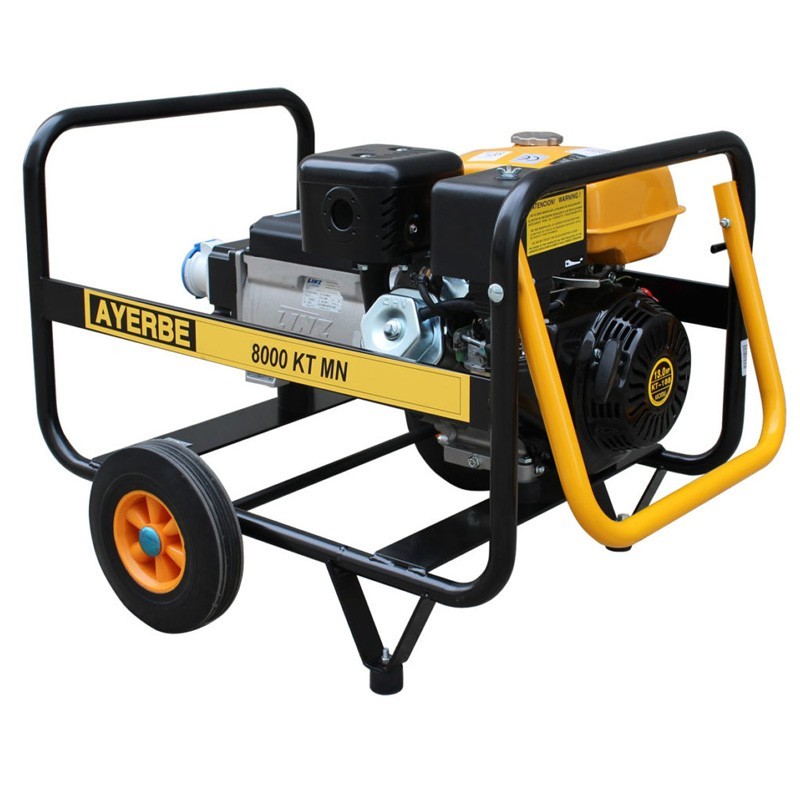

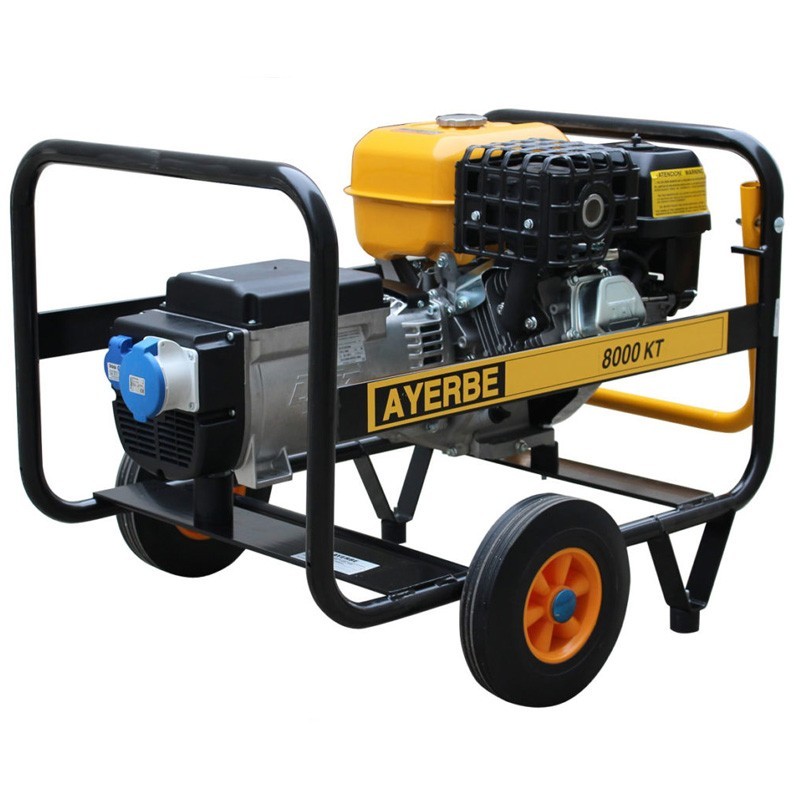

Gasoline Electric Generator Ayerbe AY 8000 KT MN 230V 6400W
The Gasoline Generator Ayerbe AY 8000 KT MN is a powerful power source that provides a maximum power of 8 KVA at 6400W and a nominal power of 7 KVA at 5600W, operating at 3000 revolutions per minute. With its manual start capability, this generator is reliable in emergency situations. Its power factor is 0.8, ensuring efficient power delivery.
This generator is equipped with a KIOTSU model KT-420 engine of 13 hp and 420 cc displacement, air-cooled and naturally aspirated. Its speed regulation system is mechanical, and it runs on gasoline, offering a consumption of 2.1 liters per hour at 75% load. With an oil capacity of 1.1 liters, this generator is robust and reliable.
The gasoline generator Ayerbe AY 8000 KT MN features a LINZ model E1 C10 MI brushless alternator with Class H insulation and IP23 protection. In addition, it is self-excited and brushless, which makes it highly reliable and low maintenance.
With a 6.5 liter tank, it offers an autonomy of 3 hours at 75% load, and its compact and resistant design, with a weight of 85 kg and dimensions of 950 x 746 x 625 mm, makes it a versatile and durable option for generating energy in various applications.
Technical Data
| Maximum power |
8 KVA - 6,400 W |
| Rated power |
7 KVA - 5,600 W |
| R.p.m. |
3.000 r.p.m |
| Voltage / Frequency |
230 V. / 50 Hz |
| Start |
Manual |
| Power factor |
Cos phi 0,8 |
| Noise level |
97 LwA / 77 LpA@7m |
| Motor |
| Brand |
KIOTSU |
| Model |
KT-420 |
| Power |
13 HP |
| Displacement |
420 cc |
| Cooling system |
Air |
| Engine oil type |
SAE 20W40 / IPE grade CD, CF |
| Intake |
Natural |
| R.P.M. engine oil |
3.600 r.p.m. |
| Speed governor |
Mechanics |
| Fuel |
Gasoline |
| Fuel consumption at 75% |
2.1 L/H |
| Oil capacity |
1,1 L |
| Starting system |
Manual |
| Alternator |
| Brand |
LINZ |
| Model |
E1 C10 MI |
| Type |
Brushless |
| Insulation type |
Class H |
| IP protection |
IP 23 |
| Excitation system |
Self-excited brushless |
| Voltage Tolerance |
+ - 5% |
| Poles |
2 |
| Voltage / Frequency |
230 / 50 Hz |
| Type of coating |
Standard (without impregnation) |
| Dimensions and Weight |
| Tank capacity |
6,5 l |
| Autonomy at 75% |
3 hours |
| Weight |
85 kg |
| Dimensions |
950 x 746 x 625 mm |
| Packing volume |
0,44 m³ |
| IMPORTANT NOTICE |
|
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
|
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
