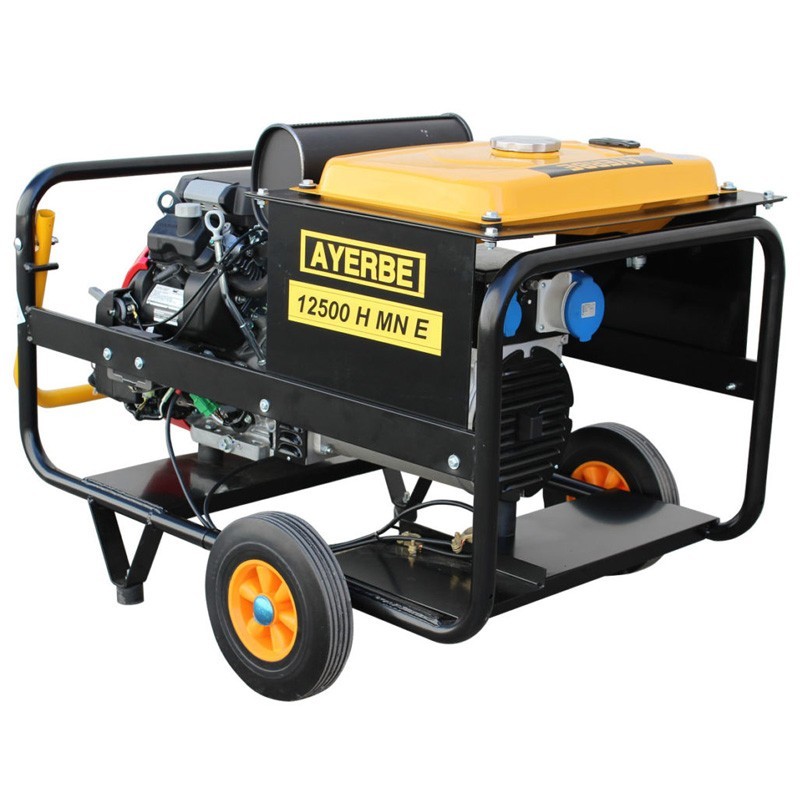

The single-phase electric generator Ayerbe AY 12500 H MN with a maximum power of 12.5 KVA (10,000 W) and a rated power of 10 KVA (8,000 W), this generator is capable of powering a wide range of devices and equipment with ease.
Its compact dimensions of 950 x 720 x 746 mm along with a weight of 150 kg make it relatively portable for its capacity, allowing it to be transported and used in various locations with relative convenience.
Its autonomy at 75% load of 14 hours, backed by a 25-liter fuel tank, makes it a reliable and durable source of electricity in prolonged situations. In addition, with an electric start and a voltage of 230 V at 50 Hz, this generator offers the stability needed to power sensitive devices.
| Maximum power | 12,5 KVA - 10.000 W |
| Rated power | 10 KVA - 8,000 W |
| R.p.m. | 3.000 r.p.m |
| Voltage / Frequency | 230 V. / 50 Hz |
| Starting | Electric |
| Power factor | Cos phi 0,8 |
| Noise level | 99 LwA / 76 LpA@7m |
| Motor | |
| Brand | HONDA |
| Model | GX 630 |
| Power | 21 HP |
| Displacement | 630 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Intake | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 3.2 L/H |
| Oil capacity | 1,7 L |
| Starting system | Electric |
| Alternator | |
| Brand | MECC ALTE |
| Model | S20F - 200 |
| Type | Brushless |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Self-excited brushless |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 25 l |
| Autonomy at 75% | 14 hours |
| Weight | 150 kg |
| Dimensions | 950 x 720 x 746 mm |
| Packing volume | 0,52 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
