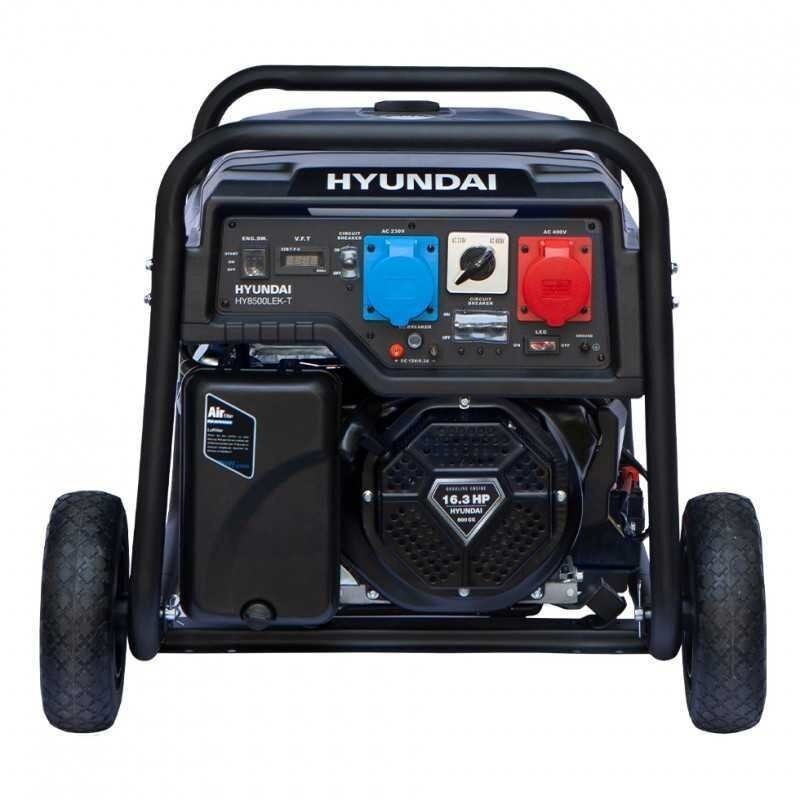

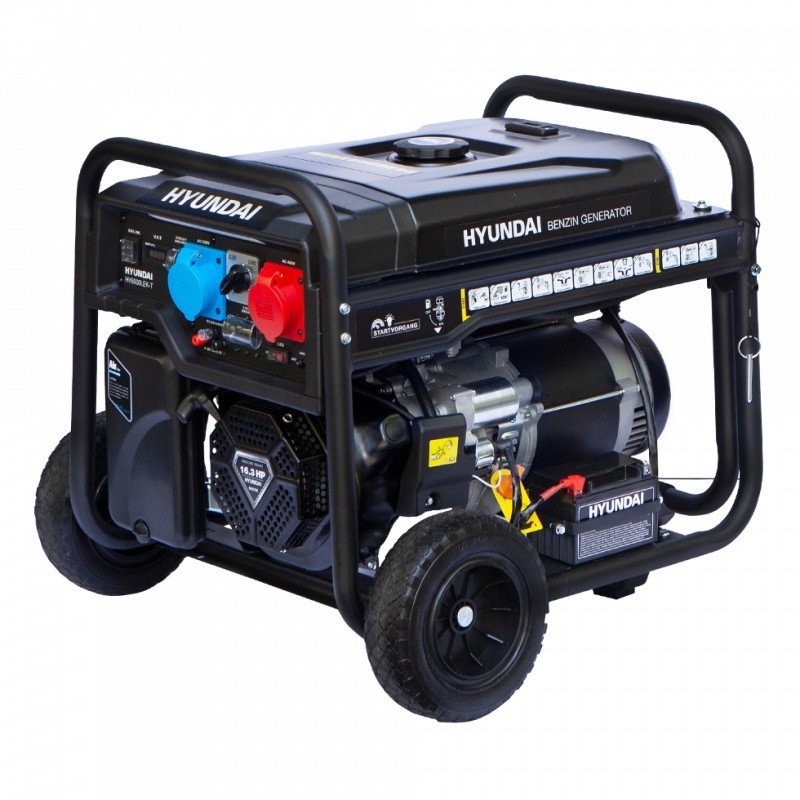

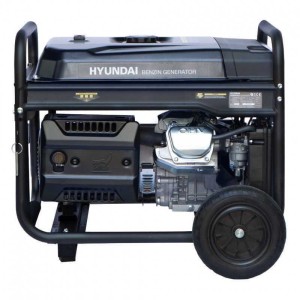

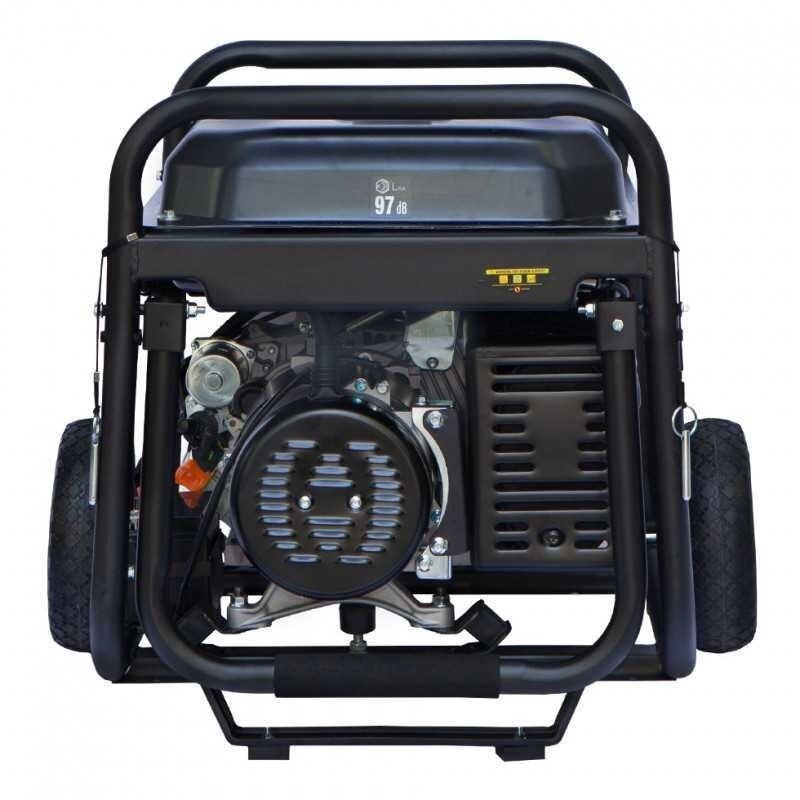

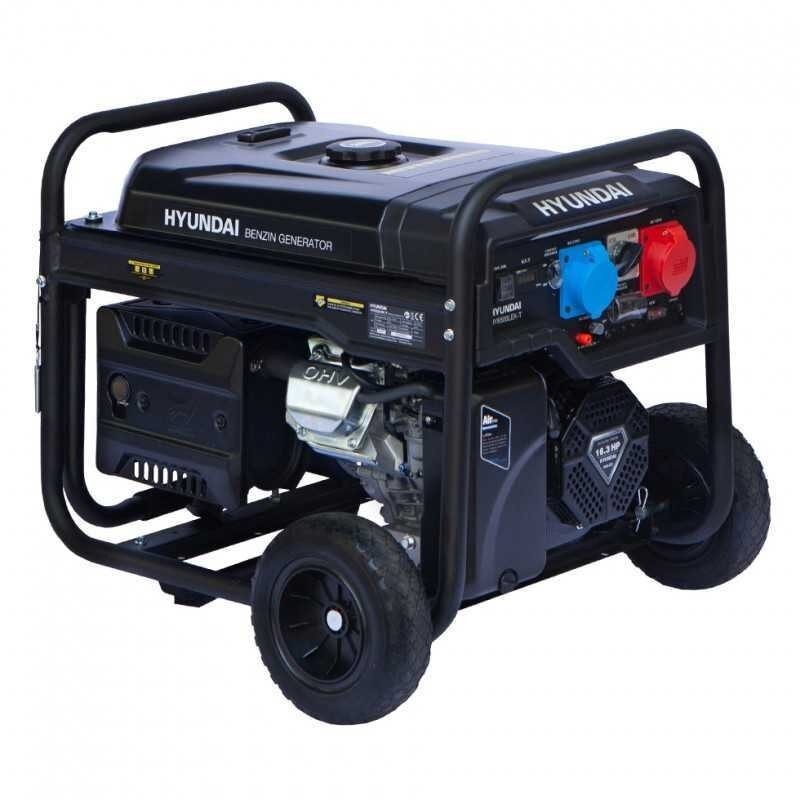

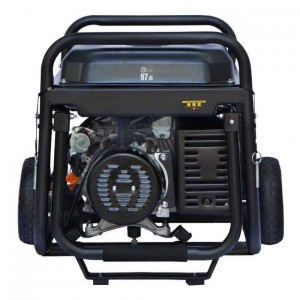

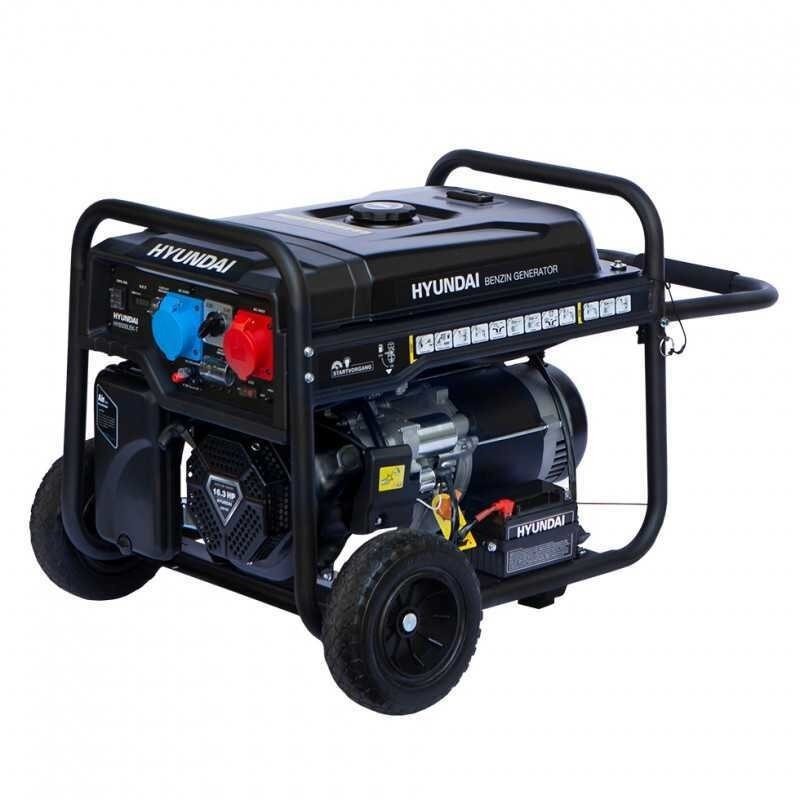

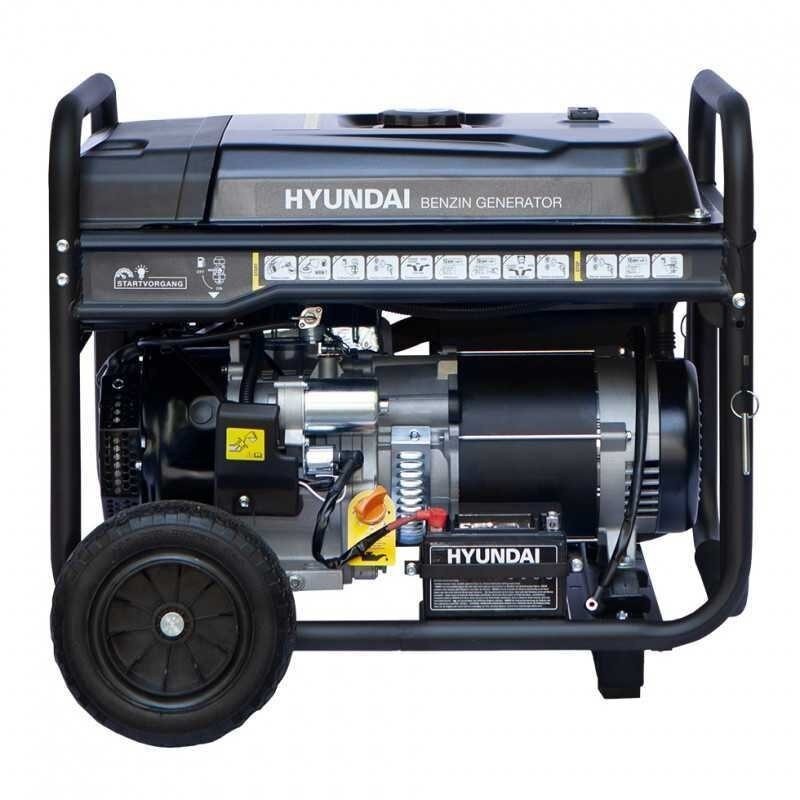

The HYUNDAI HY10100LEK-T generator stands out for its maximum power output of 10 kVA at 230 V and 10.6 kVA at 400 V, offering robust and efficient performance. Equipped with a built-in fuse, it ensures additional protection and a constant power supply thanks to its automatic voltage regulator (AVR).
This generator is designed to protect against overloads and low oil levels, prolonging its service life and reliability. In addition, it features an LED display that makes it easy to read key parameters such as voltage, frequency and run time, allowing for continuous and accurate monitoring of the generator.
These features, together with its ability to operate efficiently at 50% load, make it an ideal choice for those seeking a powerful and safe generator for a variety of applications.
| Voltage | 230 V / 400 V |
| Nominal Power 230 V | 7.2 kW |
| Maximum Power 230 V | 10 kVA |
| Rated Power 400 V | 7.7 kW |
| Maximum Power 400 V | 10.6 kVA |
| Frequency | 50 Hz |
| Tank Capacity | 28 L |
| Operation at 50% Load | 10,5 h |
| AC output | 1 x 230 V (32 A) 1 x 400 V (16 A) |
| DC output | 1x12V / 8,3A |
| Engine Type | 4 Stroke Gasoline Engine, OHV |
| Displacement | 500 cc |
| Starter | Manual / Electric |
| Oil Capacity | 1,2 L |
| Nominal current | 31.3 A / 11.5 A |
| Sound Level | 73.79 dB(A) |
| Product Dimensions | 74 x 57.6 x 57.7 cm (74 x 57.6 x 57.7 x 57.7 cm) |
| Casing Dimensions | 75 x 85,5 x 58 cm |
| Net Weight | 96,5 Kg |
| Gross Weight | 101,7 Kg |
| IMPORTANT NOTICE |
| It is obligatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
