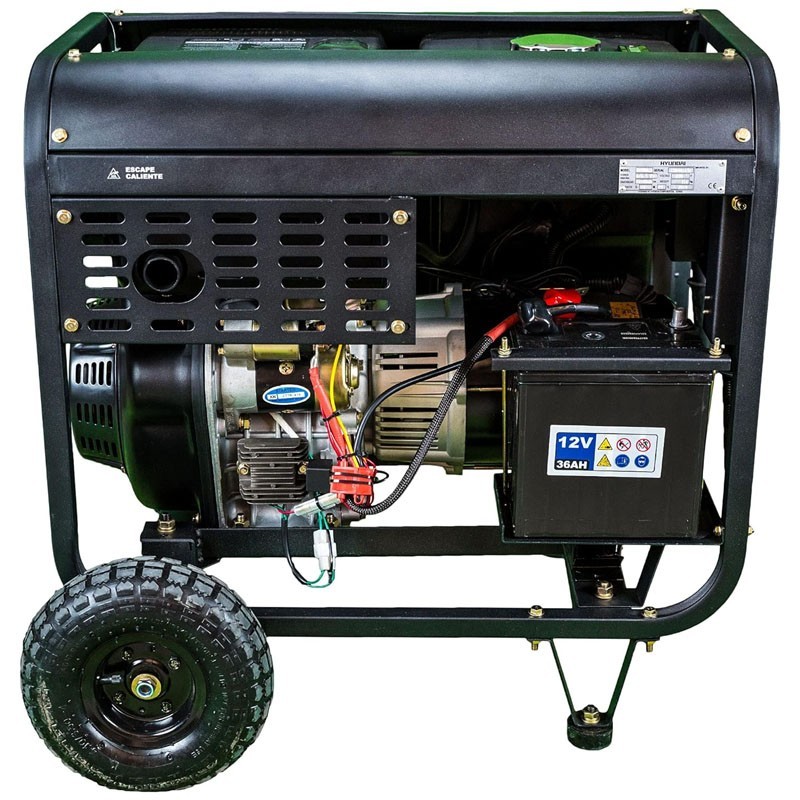

The diesel electric generator Hyundai DHY6000LEK stands out for its efficiency and easy installation. Its compact engine requires low maintenance and features efficient fuel consumption, ensuring reliable power supply. With a quick start, it is a reliable choice in emergency situations.
Equipped with a 4-stroke air-cooled diesel engine, it offers a rated power of 6 kW and a maximum of 6.5 kW. Features such as the low oil level alarm with automatic shutdown and the double support base to reduce vibrations ensure solid performance. In addition, it has a large 13 L tank for greater autonomy.
The generator's compact alternator Hyundai DHY6000LEK, with AVR voltage regulation and 100% copper winding, provides stable operation over time. The control panel includes essential functions, such as overload protection, pre-heating system for easy starting, and ATS connectivity for automatic power transfer.
This generator also offers advanced features such as overload protection through current measurement, LED display, grounding and battery status readout. With quick connections and an automatic transfer system, the Hyundai DHY6000LEK is a robust and complete solution for power generation needs.
| Frequency | 50 Hz |
| Rated Power | 6 kW |
| Maximum Power | 6,5 kW |
| Voltage | 230 V |
| Current | 28 A |
| Sockets | 1x16A /1 x32A |
| Digital display | LED6 |
| Tank capacity | 14 L |
| Operation at 50% load | 13 h |
| Noise level at 7 Mts; 50% | 77 dBA |
| Battery | 30 Ah |
| Engine Type | Diesel |
| HYUNDAI engine model | D500E |
| Power | 13 HP |
| Starting mode | Manual / Electric |
| Displacement | 498 cc |
| Oil capacity | 1,65 L |
| Alternator | A6S |
| Rated power | 6 kVA |
| Power factor | 1 Cos φ |
| Voltage regulation type | AVR |
| Net Weight | 116 Kg |
| Gross Weight | 120 Kg |
| Product Dimensions | 720x480x600 mm |
| Packing Dimensions | 740x500x645 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines area free gift, so they are exempt from warranty. |
