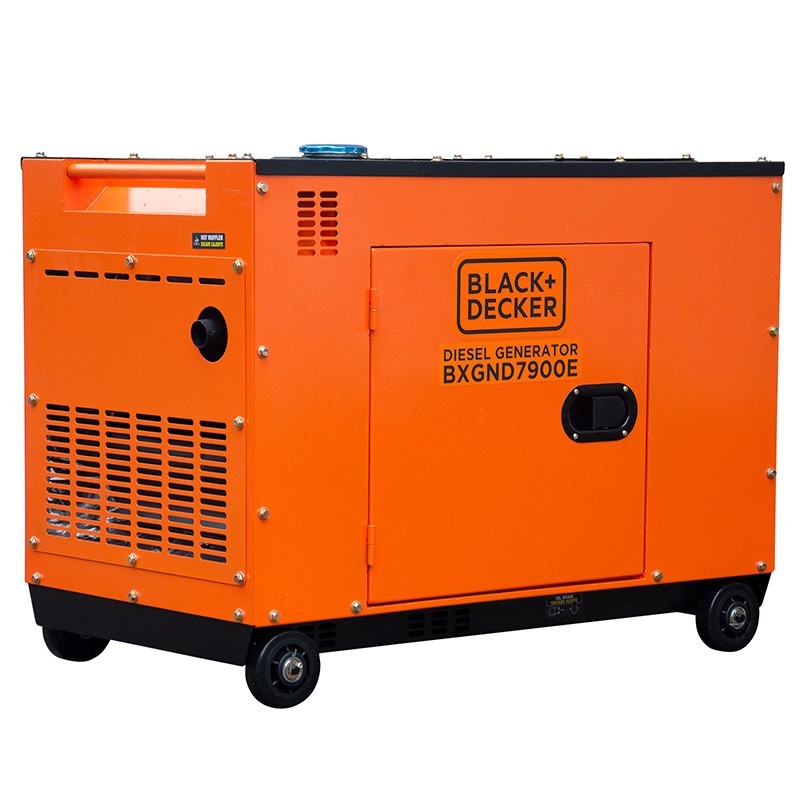

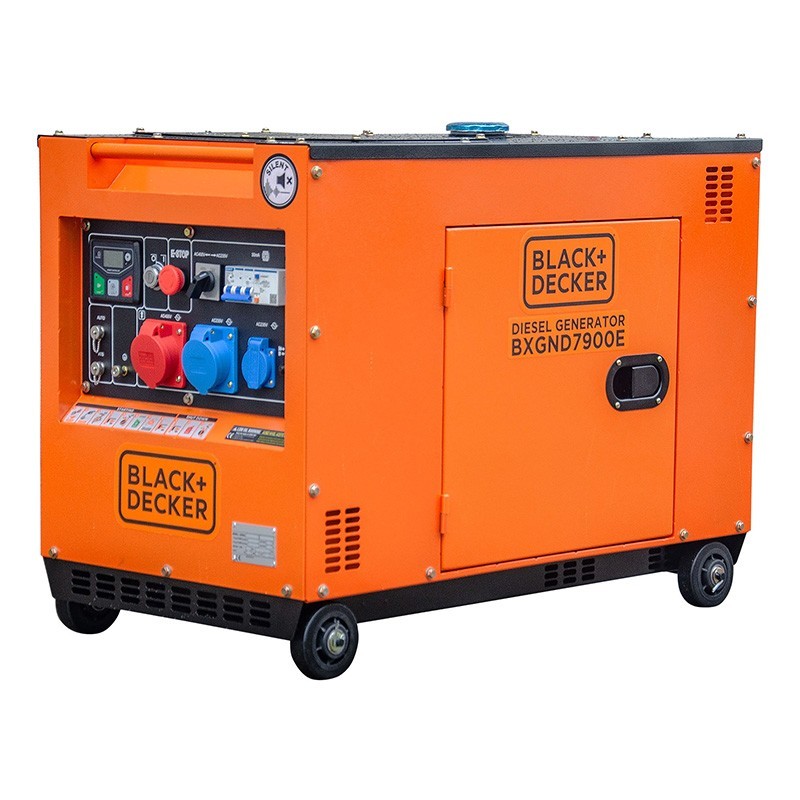

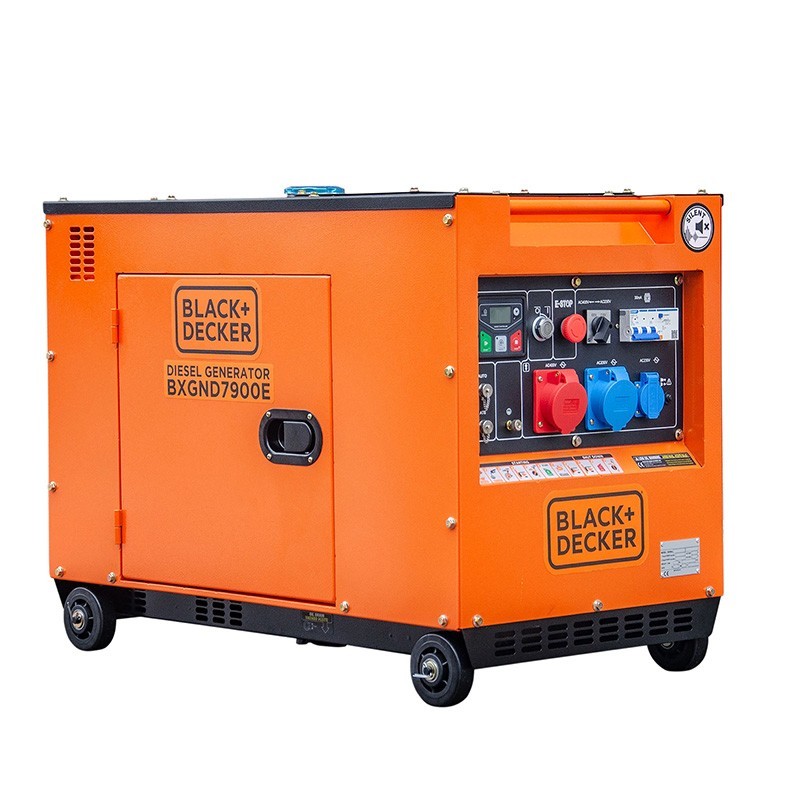

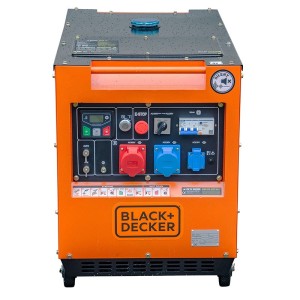

The diesel generator DUAL POWER BLACKandDECKER BXGND7900E offers single and three phase current at 230V and 400V respectively making it a dual power model. This generator has a maximum power of 5700 W with a 16 A output and a 32 A output.
Its 4-stroke engine is air-cooled and runs on diesel by direct injection. It includes a low oil level alarm and automatic engine shutdown. The control panel includes overload protection and an easy start processing system.
| Voltage | Full Power 400 / 230 v |
|---|---|
| Rated Power | 7.5 kVA / 5400 W |
| Maximum Power | 7,9 kVA / 5700 W |
| Frequency (Hz) | 50 Hz |
| Outputs | 1 x 16 A / 1x 32 A |
| Display | LED6 |
| Battery | 36 Ah |
| DC output | 12 V / 8.3 A |
| Fuel Capacity | 12 L |
| Consumption 50% load | 9 h |
| Noise level at 7 meters | 72 dBA |
| Engine model | D500E |
| Engine - Displacement | 498 cc |
| Engine - Oil Capacity | 1,65 L |
| Alternator - Model | A6T |
| Alternator - Rated Power | 5 kVA |
| Alternator - Power Factor | 0.8 / 1 |
| Alternator - Voltage Regulation | AVR |
| Low Oil Pressure | Yes |
| Emergency button | Yes |
| Net Weight | 152 Kg |
| Gross Weight | 168 Kg |
| Product Dimensions | 920 x 520 x 760 mm |
| Box Dimensions | 960 x 560 x 790 mm |
| Starting Mode | Electric / Automatic |
| Engine Power | 13 Hp |
| Intensity | 28 A |
| Differential | 30 mAh |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
