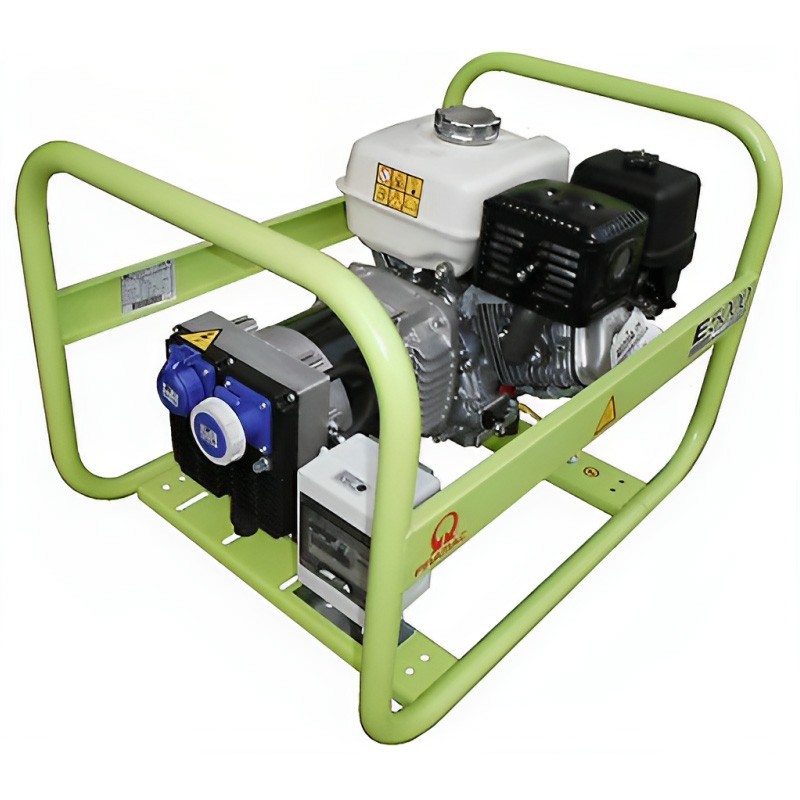

The Gasoline Electric Generator Pramac E5000 with a fuel tank capacity of 5.3 liters, this generator is capable of delivering optimum performance over long periods of time. Its fuel consumption at 75% load is 1.67 liters per hour, ensuring excellent resource management efficiency.
This generator features a variety of sockets, including SCHUKO 230V 16A IP68 and 2P+T CEE 230V 16A IP67, allowing a wide range of electrical devices and equipment to be connected with ease.
In addition, it is equipped with multiple protections, such as thermal protection, oil protection, 30mA differential protection and magneto-thermal protection, ensuring the safety of both the generator and the connected devices. In addition, its hour-counter facilitates the monitoring of operating time and maintenance.
| Frequency | 50 Hz |
| Voltage | 230 V |
| Power factor | 0.9 cos ϕ |
| Phases | 1 |
| Maximum power | 4600 W |
| Nominal power | 3900 W |
| Engine Brand | Honda |
| Engine model | GX270 Recoil |
| Cooling system | Air |
| Aspiration | Natural |
| Speed regulator | Mechanical |
| Nominal operating speed | 3000 rpm |
| Fuel | Gasoline |
| Starting system | Manual |
| Oil tank | 1.1 l |
| Displacement | 270 cc |
| Alternator type | Brushless |
| Class | H |
| IP protection | 23 |
| Poles | 2 |
| Voltage tolerance | +5; -10 (cosϕ1) % |
| Voltage regulation system | Compound |
| Guaranteed sound level (LWA) | 97 dBA |
| Noise pressure level @ 7 mt | 69 dB(A) |
| Fuel tank capacity | 5.3 l |
| Fuel consumption at 75% load | 1.67 l/h |
| Fuel consumption at 100% load | 2.22 l/h |
| Autonomy at 75% load | 3.17 h |
| Autonomy at 100% load | 2.39 h |
| Dimensions | 715 x 540 x 490 mm |
| Dry weight | 61 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
