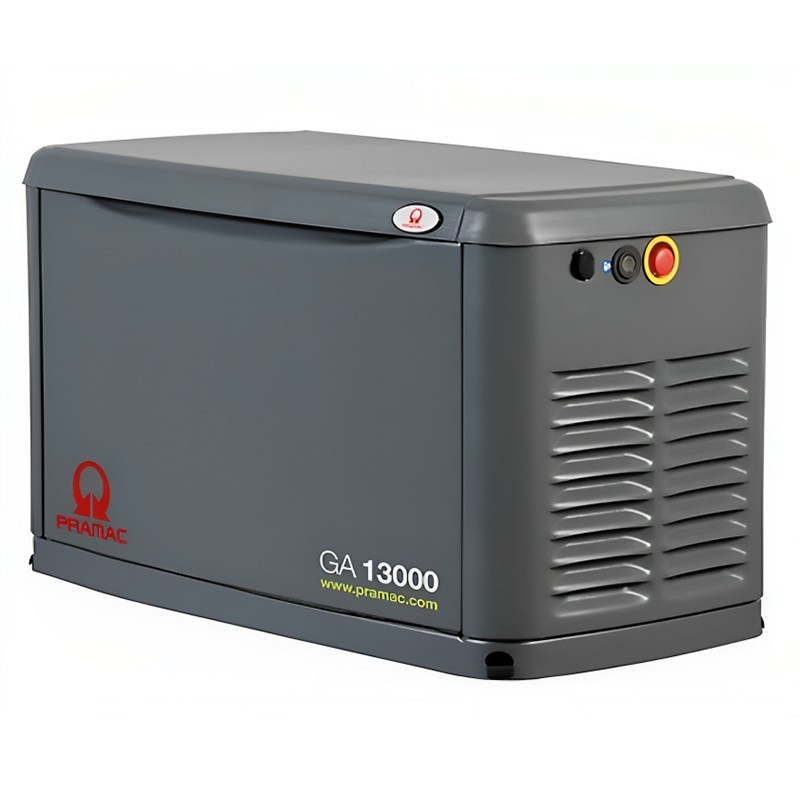

Features and Benefits Gas Electric Generator Pramac GA13000
The Gas Electric Generator Pramac GA13000 is a reliable and efficient power source with several outstanding features. Its soundproof aluminum body ensures quiet operation, making it ideal for a variety of applications. In addition, it uses true power™ electrical technology to provide stable and reliable power. The inclusion of wi-fi connectivity and the possibility of remote tracking via the mobile link™ app make it easy to monitor and control.
The multilingual digital evolution™ controller with two-line LCD display allows for precise control, and LED indicators for system status and maintenance intervals keep the user informed of performance and maintenance needs. The flexible fuel connector and the ability to run on natural gas or LPG, backed by an electronic speed controller, make this generator a versatile and efficient choice to meet energy needs in a variety of environments.
Engine:
- Generac G-Force design for fuel efficiency.
- Durability with cast iron cylinder walls.
- Low oil and overheat protection.
- Smooth starting and pressurized lubrication.
Evolution™ settings:
- Engine heating and cooling.
- Voltage control and overload protection.
- Weatherproof construction.
- Constant speed regulation and Wi-Fi connectivity.
Generator:
- Improved efficiency with rotating field.
- Generates a smooth sine wave for electronic devices.
- Illuminated controls for easy operation.
- Automatic voltage regulation and low harmonic distortion.
Equipment:
- Built-in silencer for safety.
- Compact and attractive design.
- Vibration resistant mounting and sediment trap.
- Durable mounting platform.
Technical Data
| Emergency power ESP (LPG) |
13000 VA |
| Emergency power ESP (Natural Gas) |
13000 VA |
| Frequency |
50 Hz |
| Voltage |
230 V |
| Phases |
1 |
| Power factor |
1 cos ϕ |
| Brand Motor |
Generac |
| Model |
G-force 1000 series |
| Engine type |
OHV air-cooled |
| Number of cylinders and arrangement |
2 in V |
| Displacement |
999 cc |
| Compression ratio |
9.5:1 |
| Starting system |
Electric |
| Electrical circuit |
12 V |
| Speed regulator |
Electronic |
| Nominal operating speed |
3000 rpm |
| Oil capacity |
1.8 l |
| Fuel |
Natural gas or LPG |
| Natural gas: fuel consumption 50% |
4.02 m³/h |
| Natural gas: fuel consumption 100% |
6.48 m³/h |
| Liquid Propane: fuel consumption 50% 58 l/h |
5.58 l/h |
| Liquid Propane Gas: fuel consumption 100% 86 l/h |
8.86 l/h |
| Voltage regulation system |
AVR |
| Poles |
2 |
| Maximum current (LPG) |
56.52 A |
| Maximum current (Natural Gas) |
56.52 A |
| Magnetothermal circuit breaker |
63 A |
| Guaranteed sound level (LWA) |
96 dBA |
| Noise pressure level @ 7 mt |
63 dB(A) |
| Quiet-Test Mode |
54 dB(A) |
| Dimensions L x W x H |
1232 x 648 x 733 mm |
| Dry weight |
193 Kg |
Control panel features and protections
The Gas Electric Generator Pramac GA10000 is equipped with a Digital Evolution™ Controller that provides precise control over all genset systems, ensuring stable electrical current. Its backlit LCD display automatically adapts to light conditions for easy reading.
The controller offers multiple functionalities, such as hour meter, voltage loss/return adjustment, programmable starts and maintenance logs and alerts. It also has a wide range of protections, from overload to battery failure protection and automatic voltage regulation.
In addition, the generator incorporates advanced features, such as automatic shutdown for low oil pressure or high oil temperature, engine sensor failure detection, external bypass capability, and the ability to update firmware on-site. MOBILE LINK™ Wi-Fi connectivity enables remote monitoring and control, while a magneto-thermal circuit break er enhances safety.
| IMPORTANT NOTICE |
|
| Mandatory by customer to check oil and grease levels prior to start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
|
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
