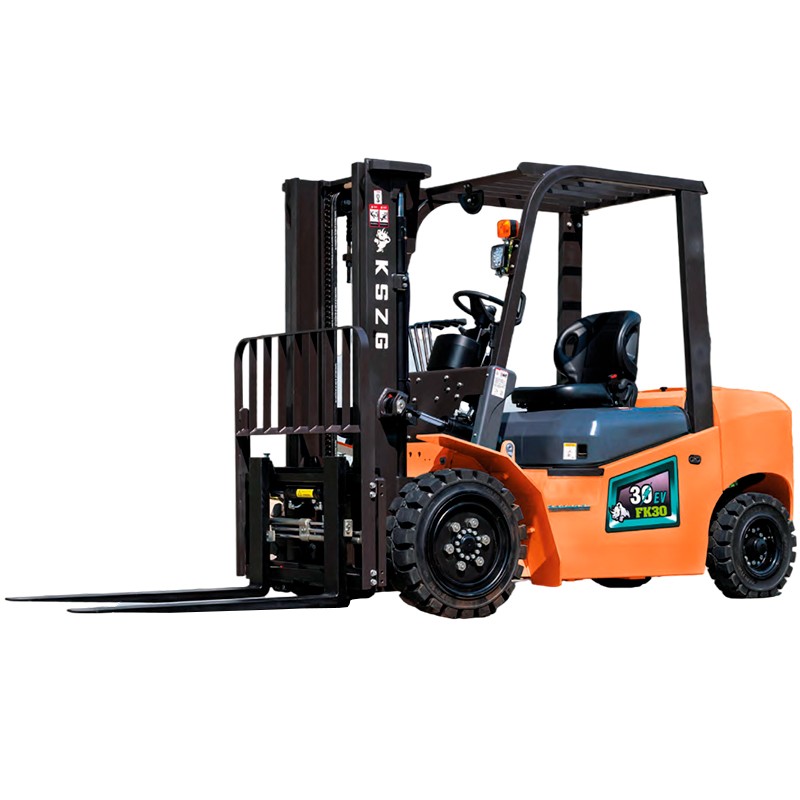

The Rhinoceros FK30 forklift truck is a forklift truck designed for intensive work in warehouses, logistics and industrial environments where lifting power without emissions is needed. It offers a load capacity of 3.5 tons and a maximum lift height of 3000 mm, a very balanced configuration for moving heavy pallets and working on shelves and loading docks at a steady pace.

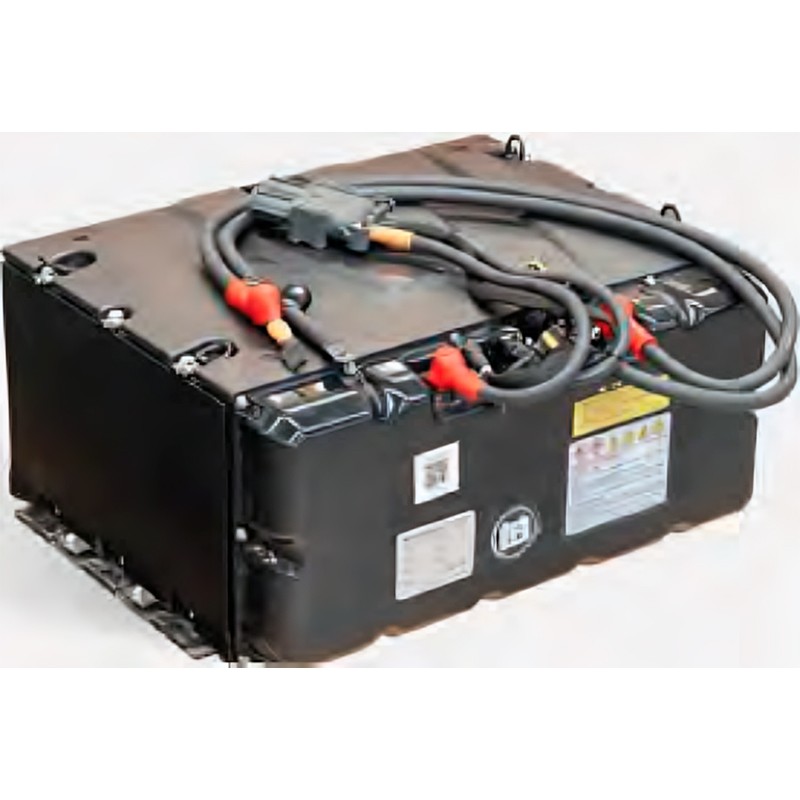

It is equipped with a 76.8 V 205 Ah lithium battery, with an autonomy geared towards professional use and a low-maintenance approach. The truck has a weight of 4120 kg, a total width of 1224 mm and reaches a maximum speed of 14 to 15 km/h for agile movements within the warehouse. The wheelbase is 1830 mm and the minimum turning radius is 2610 mm, which helps maneuvering in industrial aisles while maintaining stability when working with a load.
The forks measure 45 x 122 x 1220 mm and the distance between forks is adjustable, ranging from 263 to 1100 mm to adapt to different pallet formats and special loads. Maximum lift capacity is 11 percent at full load and 20 percent unloaded, and it mounts 28x9 15 and 6.50 10 front rear tires for good support and traction. It can use 100 A, 150 A and 200 A battery chargers, an advantage for adjusting charging times according to the operation.
| Load capacity | 3.5 Tn | |
| Engine | Electric | |
| Battery | Lithium 76.8 V 205 Ah | |
| Battery warranty | 8 years or 15,000 working hours | |
| Weight | 4120 kg | |
| Overall width | 1224 mm | |
| Maximum lifting height | 3000 mm | |
| Maximum speed | 14-15 km/h | |
| Distance between axles | 1830 mm | |
| Distance between forks | Max. outside 1100 mm / Min. 263 mm | |
| Minimum turning radius | 2610 mm | |
| Fork dimensions | 45 x 122 x 1220 mm | |
| Climbing capacity | Full load 11% / No load 20% | |
| Front tire | 28×9-15 | |
| Rear tire | 6.50-10 | |
| Chargers available | 100 A, 150 A and 200 A (consult) | |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case. |
