Bender Sima DEL-45 Three-phase
- Motor Power: 3 kW
- 2 Speed Motor Power: 4,5 kW
- Motor phase: Three-phase
€7,149.72 VAT incl.

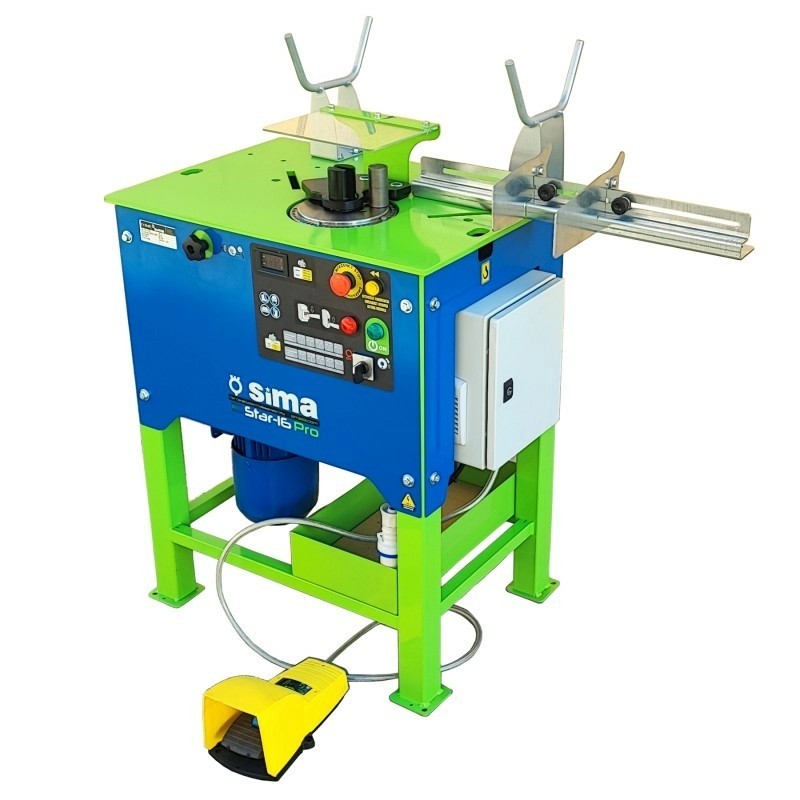

The electric stirrup bender Sima STAR 16 stands out for its ease of maintenance thanks to its removable panels. With a power of 2.2 kW in single-phase and 1.5 kW in three-phase, it guarantees a powerful performance. The IP65 inductive sensors and the voltage and amperage indicator ensure precise operation.
With a plate RPM of 19, it offers a balanced working speed. Its safe design includes an internally protected connection plug, emergency stop and magnetothermal protector. In addition, it features an hour meter for efficient tracking.
In summary, the Sima STAR 16 Electric Stirrup Bender is the ideal choice in construction, combining power and safety.
Model | SINGLE-PHASE | THREE-PHASE | |
Motor voltage | 230 V | 230 / 400 V | |
Frequency (Hz / Plug) | 50 - 60 / 4P | 50 / 4P | 50 / 5P |
Power | 1,5 Kw / 2 HP | ||
Installed Plug | 16A. 3P+T 6H | ||
Max. Diameter Bending | 16 mm | ||
Plate RPM | 17 | ||
Net weight | 214 Kg | ||
Packing dimensions | 735x547x893 mm |
Elastic limit / Grade | Re=N / mm2 480 / G-60 | ||
Tensile strength | Rm=N / mm2 650 | ||
Nºx | Bent mandrel | mm | in / # |
7 | Ø18 | Ø6 | Ø1/4" |
6 | Ø24 | Ø8 | Ø5/16" |
5 | Ø36 | Ø10 | Ø3/8" / #3 |
3 | Ø36 | Ø12 | Ø1/2" / #4 |
1 | Ø48 | Ø16 | Ø5/8" / #5 |
Elastic Limit / Grade | Re=N / mm2 650 / G-75 | ||
Tensile strength | Rm=N / mm2 850 | ||
Nºx | Bending mandrel | mm | in / # |
7 | Ø18 | Ø6 | Ø1/4" |
6 | Ø24 | Ø8 | Ø5/16" |
5 | Ø36 | Ø10 | Ø3/8" / #3 |
3 | Ø36 | Ø12 | Ø1/2" / #4 |
1 | Ø48 | Ø16 | Ø5/8" / #5 |
Data sheet
Specific References
