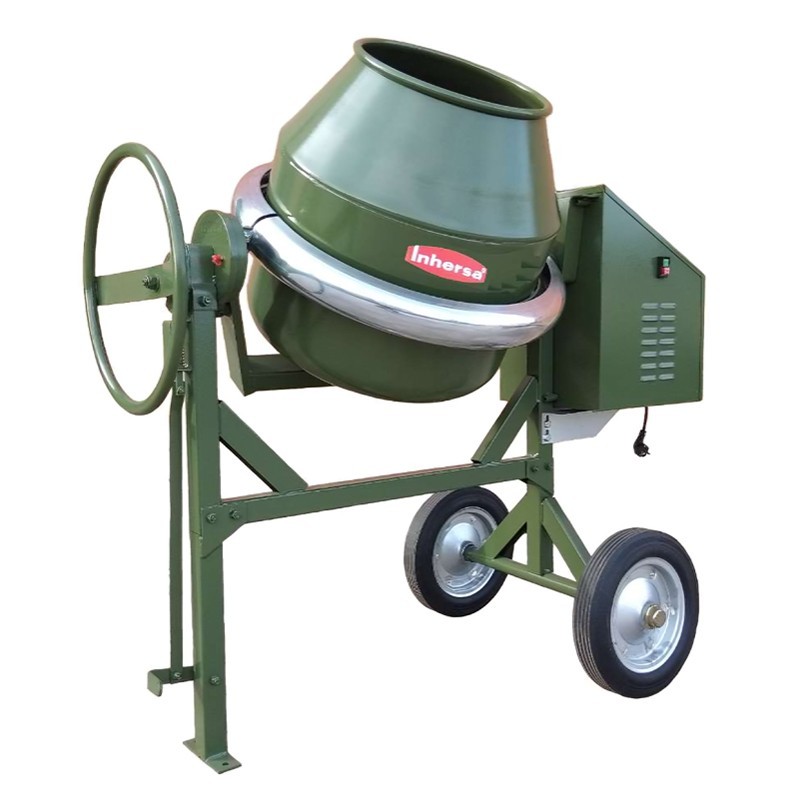

Electric/gasoline concrete mixer Inhersa H-150 155 L
The electric/gasoline concrete mixer Inhersa H-150 stands out for its ability to easily fold the legs, which simplifies transport and storage, offering a convenient solution for construction professionals and amateurs alike. The cast-iron, internally geared, crown-gear turning mechanism ensures long-lasting and efficient operation.
Its frame, made of 3 mm thick structural steel sections, provides a solid base for the equipment. In addition, this concrete mixer offers the option of changing the cab to adapt to an electric or gasoline engine, providing flexibility depending on the user's needs.
With a 155-liter tank capacity and 125-liter mixing capacity, this concrete mixer offers reliable performance. The incorporation of maintenance-free grease bearings on the bucket and pinion pivot shafts, along with splined couplings on the drive shafts, ensures smooth operation and prevents common breakdowns.
Attention to detail is evident in the bowl design, with kneading blades welded rather than bolted, which increases the durability of the equipment. In addition, the presence of a start-stop switch on the outside of the motor cabinet, with minimum voltage coil to prevent accidental starts, complies with current CE standards.
It is available in three different models with single-phase electric motor, HONDA gasoline engine and KOHLER gasoline engine.
Specifications
Tank capacity |
155 L |
Mixing capacity |
125 L |
Weight |
93 Kg |
Height |
130 cm |
Length |
144 cm |
Width |
75 cm |
Characteristics of the models
ELECTRIC |
SINGLE-PHASE |
|
Power |
1 Hp |
|
Volts |
230 V |
|
Frequency |
50 Hz |
|
GASOLINE |
KOHLER |
HONDA |
Model |
CH270 |
GX-160 UT1LX4 |
Power |
6 Hp |
5.5 Hp |
RPM |
1800 rpm |
1800 rpm |
IMPORTANT NOTICE |
|
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
