Ayerbe Column Drill AY 20 TS PRO-LINE 650 W
- Power 650W
- 12 speed
- MT3 cone
€649.92 VAT incl.

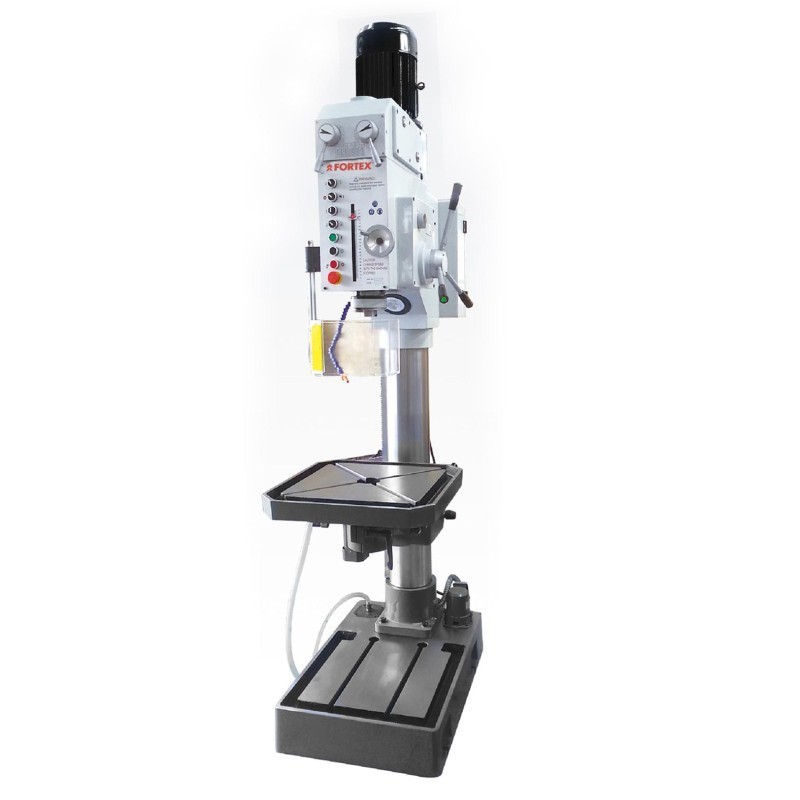

The Fortex FTX 50 TEC PRO is a professional pillar drill with a 3000 watt three-phase motor that combined with its gear transmission makes this drill an option to take into account when buying a pillar drill.
The fact that it has a gearbox allows this drill to have 18 different speeds and thus adapt to any circumstance.
The speeds range from 55 to 1450 revolutions per minute. The change of these speeds is done by means of a lever drive.
The depth that this professional drill can reach is 210 mm and its motorized table can be tilted up to 90 degrees. In addition, it is equipped with a drill cooling system and, as usual with all its models, the FTX 50 TEC PRO complies with CE standards.
MODEL | FTX 50 TEC PRO |
Power Supply | 400V/F3 |
Power | 2,2/3 kW - 3/4 Hp |
Transmission | Gears |
Number of speeds | 18 |
Speed | 52 - 1400 m.p.m. |
Maximum drill capacity | 40 mm |
Tapping capacity | M33 |
Drill-column distance | 375 mm |
Morse taper | MT4 |
Drilling depth | 210 mm |
T-slot size | - |
Spindle-base distance | 1325 mm |
Distance spindle-table | 80 - 800 mm |
Max. worktable travel | 720 / 650 (auto) mm |
Column diameter | 180 mm |
Base dimension | 860X580 mm |
Table dimension | 580X580 mm |
Table inclination | 90º |
Spindle feed | - |
Cooling equipment | Yes |
Total height | - |
Net/Gross Weight | 760 / 860 Kg |
Dimensions | 2250X1140X650 mm |
Data sheet
Specific References
