Column drill Ayerbe AY 32 TC MN/TX PRO 1500 W
- Maximum capacity : 32 mm
- Power : 1500 W / 230-400 V
- Drill chuck capacity : 3 - 16 mm
€1,133.76 VAT incl.

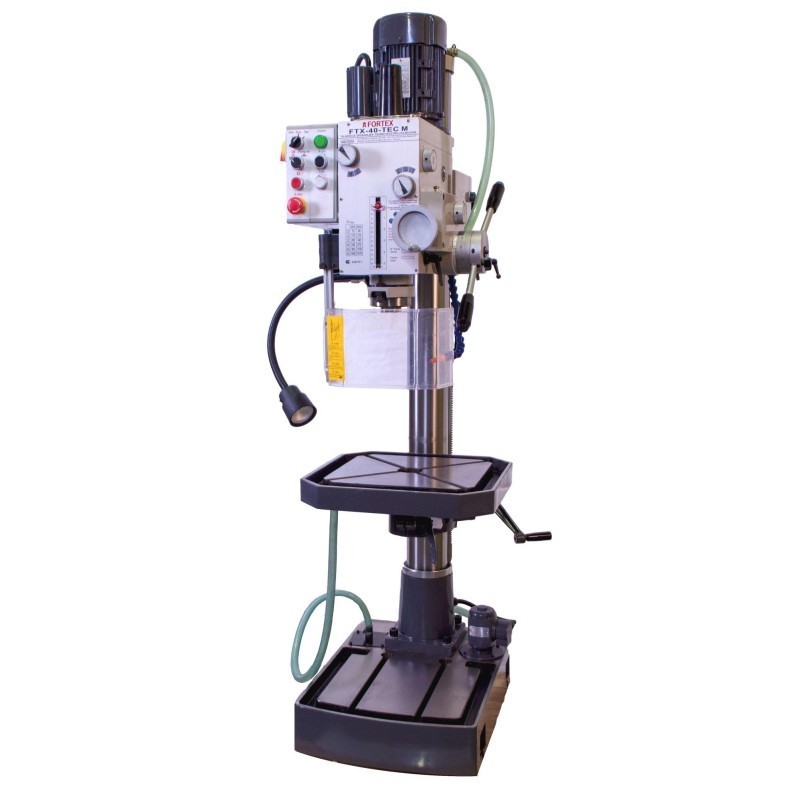

The powerful Fortex FTX 40 TEC M pillar drill has an electric motor that generates an incredible 1500 watts of power in single-phase mode. Thanks to this, the drill has 6 different speeds ranging from 75 to 1600 mpm.
The gearbox is silent so it will not be annoying to work with. In addition, the drill includes an automatic spindle feed as well as cooling equipment. The spindle and spindle shank are high precision so you will get a longer life and quality finish.
The head of this drill is tiltable up to 90 degrees and has a drill holder protector with a safety microswitch. It weighs 330 kilos and measures 74 x 72 x 183 centimeters compared to its smaller siblings.
MODEL | FTX 40 TEC M |
Power Supply | 230V/F1 |
Power | 1,5 kW - 2 Hp |
Transmission | Gears |
Number of speeds | 6 |
Speed | 75 - 1600 m.p.m |
Maximum drill capacity | 40 mm |
Tapping capacity | M20 |
Drill-column distance | 272 mm |
Morse taper | MT4 |
Drilling depth | 120 mm |
T-slot size | 2 X 14 mm |
Spindle-base distance | 1180 mm |
Distance spindle-table | 610 mm |
Max. worktable travel | - |
Column diameter | 115 mm |
Base dimension | 650X450 mm |
Table dimension | 540X470 mm |
Table inclination | 90º |
Spindle feed | 0,1 / 0,18 / 0,26 mm/r |
Cooling equipment | Yes |
Total height | - |
Net/Gross Weight | 330 Kg |
Dimensions | 720X740X1830 mm |
Data sheet
