Single-phase magnetic drill Euroboor Eco 50S Plus

Rating:
(0)
  • Power Supply: 230 V
  • Power: 1300 kw - hp
  • Annular cutters: 12 - 50 Ø mm
  • Countersinking: up to 55 Ø mm
En stock
€1,185.85 excl. VAT
- 4%
€1,138.42 excl. VAT
€1,377.48 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Single-phase magnetic drill Euroboor Eco 50S Plus
€1,377.48
Qty

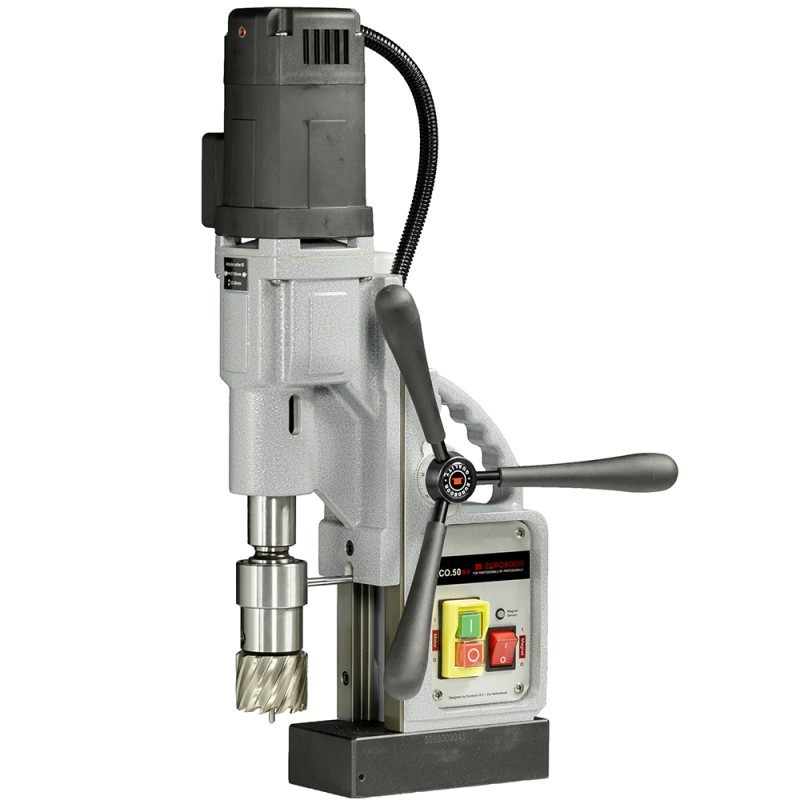

Euroboor Eco 50S Plus Magnetic Drill

The Euroboor Eco 50S Plus magnetic drill has a 230 volt single phase motor that generates a power of 1300 watts. This makes the drill capable of operating at two different speeds , the first being 315 rpm and the second 690 revolutions per minute.

The magnetic holding capacity of this drill is 16671 newtons per meter and the access to the carbon brushes is self-locking. The gearbox is completely integrated into the drill and is oil bathed.

As for the maximum stroke this magnetic drill can do is 170 mm and the countersinking can be done up to 55 mm. The weight of this machine is only 11 kilograms, which makes it easy to transport.

Technical data

MODEL ECO 50S+
Power Supply 230V/F1
Power 1,3 Kw-Hp
Annular cutters 12 - 50 Ø mm.
Drill bit 1 - 23 Ø mm.
Countersinking up to 55 Ø mm.
Max. stroke 170 mm.
Threading -
Magnet 168X84X49 mm.
Speed (I) 0-315 (II) 0-690 m.p.m.
Morse taper MT3 3/4" (19.05)
Magnetic holding capacity 16670 Nm.
Dimensions 45 x 32 x 32 cm
Net/Gross Weight 11,20 Kg.
260864

Specific References

EAN-13
8720143712418
MPN
ECO 50S+
