| Assembly and set-up INCLUDED |

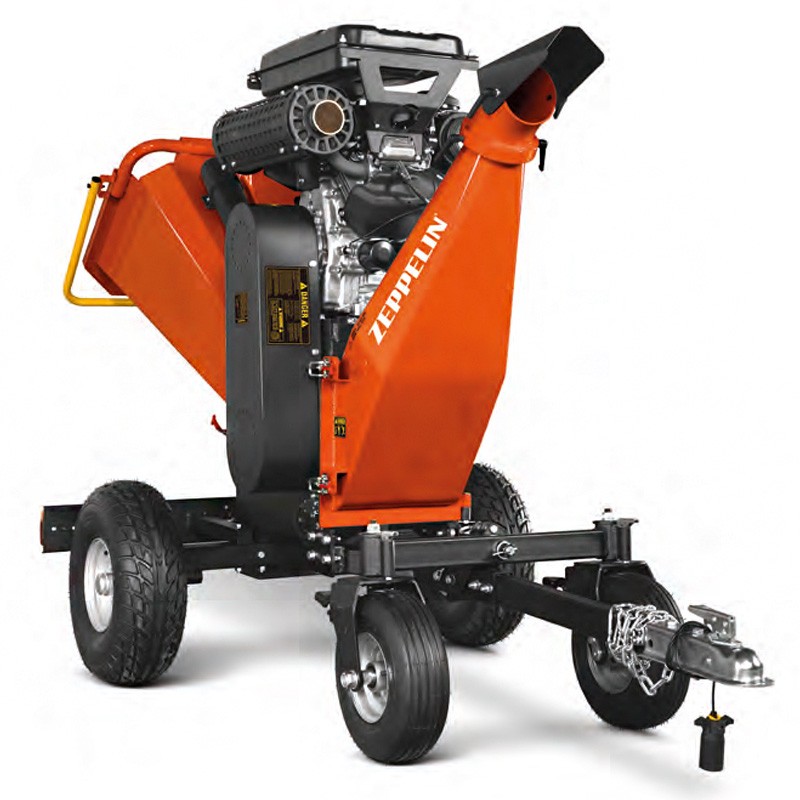

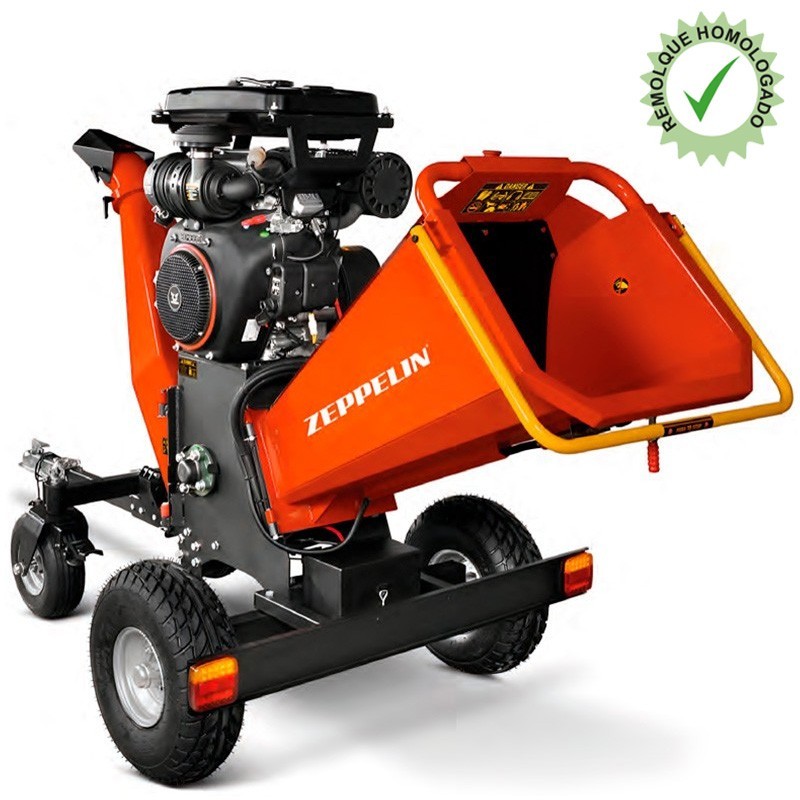

Professional bio shredder Zeppelin designed to move from farm to farm with total legality thanks to its homologated trailer. The chassis is sturdy and stable and the wheels fold and lock for easy maneuvering on the construction site or in the garden. The discharge rotates 360 degrees to orient the chip where it is convenient and work with less displacement.
It is powered by a Zongshen 35 HP four-stroke gasoline engine with electric start for constant thrust and quick start-up. The large hopper swallows uneven branches with very little preparation and the double-blade system with fixed counter-blade shreds wood with a uniform chip. A stop bar and stop button add to the safety of daily use.
It is a machine designed for intensive pruning, road clearing and grove maintenance. Easy transport, high performance and low maintenance so that the machine is ready when needed.
Outstanding features
 |

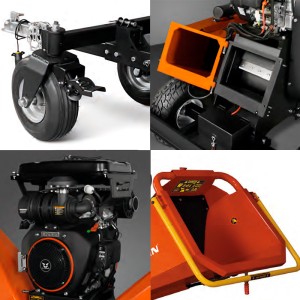

ZongShen 35 HP engineThe ZongShen 35 HP engine is designed to deliver power and reliability for everyday work, with solid, consistent performance. It delivers 35 HP at 3600 r.p.m. and a maximum torque of 71 Nm at 2600 r.p.m., which translates into excellent pulling power and response under load. With 999 cc, 8.5:1 compression ratio, 1 7/16" (36.5 mm) PTO shaft, electric start and 54 kg dry weight, it is an efficient and robust choice for machinery that demands continuous performance. |
 |
Folding and lockable wheelsIt has folding and lockable wheels for easy transport and stability during work. Incorporates 13x5.00-6 front tires and 19x7.00-8 rear tires, providing better traction, support and control in different terrains. |
 |
Double Blade + 1 fixed bladeCutting system with double blade plus one fixed blade, designed to achieve a more efficient, uniform cut and better performance even in thicker vegetation. |
| Reference and homologation | |
| Reference | ES71991 |
| Trailer | Approved |
| Engine | |
| Brand | Zongshen |
| Engine | 4-stroke |
| Fuel | Gasoline |
| Power | 35 HP |
| Starter | Electric |
| Safety and cutting system | |
| Safety | Stop bar and button |
| Unloading | 360° rotation |
| Cutting system | Double blade + 1 fixed blade |
| Max. branch diameter | 200 mm |
| Dimensions and weight | |
| Dimensions | 1265 x 770 x 1250 mm |
| Weight | 320 kg |
| Wheels | |
| Front wheel | 13x5.00-6 |
| Rear wheel | 19x7.00-8 |
| IMPORTANT WARNINGS |
| It is compulsory for the customer to check oil and grease levels before starting up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
