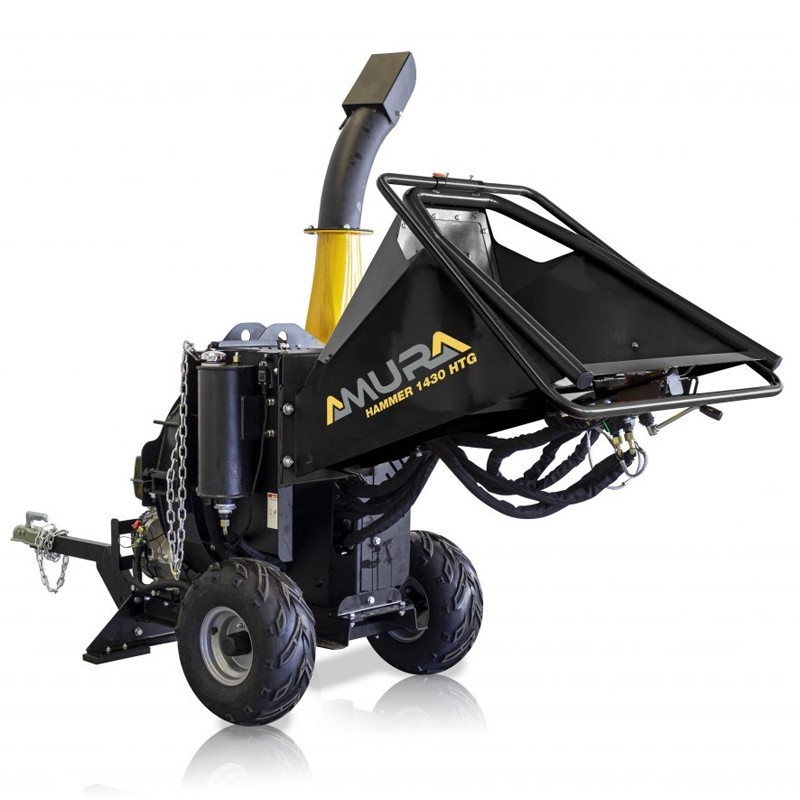

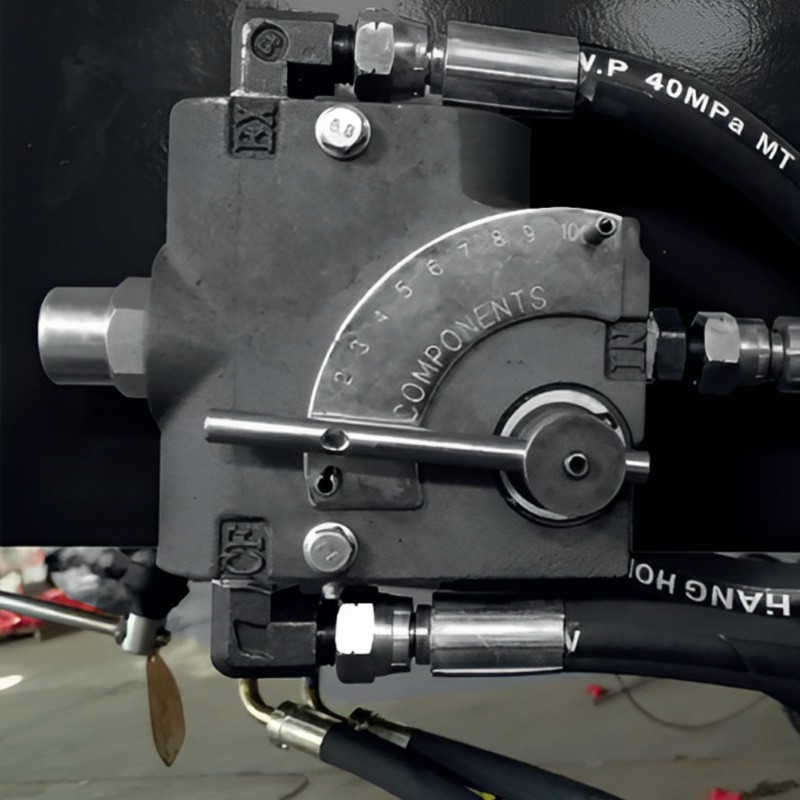

The Amura Hammer 1430HTG-V20 mulcher features a dual mulching process, employing knives and hammers for efficient waste reduction. Its hydraulic feed and rotating nozzle improve operation and precision in the direction of the shredded waste.
Featuring the SC system for safety and control, this shredder incorporates a trailer and pneumatic wheels for easy transport between work areas.
With a displacement of 420 cc, it offers a power of 10.30 kW / 13.4 HP, ensuring a powerful performance. In conclusion, the Amura Hammer 1430HTG-V20 shredder merges effective shredding and practical mobility for plant waste management.
| Brand | Garland Amura |
| Model | Hammer 1430HTG-V20 |
| Engine | 4-stroke |
| Fuel | Unleaded gasoline > 90 octane |
| Displacement | 420 cc |
| Power | 10.30 kW / 13.4 hp |
| Maximum torque | 245 Nm |
| Maximum engine speed | 3.600 min |
| Fuel tank capacity | 6,5 l |
| Oil capacity in crankcase | 1,1 l |
| Maximum pressure of the hydraulic circuit | 200 bar |
| Hydraulic oil tank capacity | 4000 cc |
| Maximum crushing height | 200 mm |
| Maximum crushing width | 120 mm |

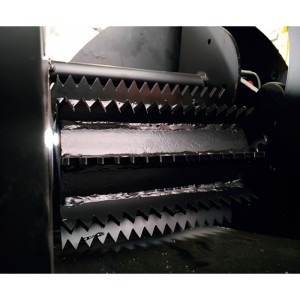

| Crushing | Knives and hammers |
| Maximum rotational speed of the knife plate | 2.250 min¯¹ |
| Blade dimensions | 210 mm |
| Pneumatic wheels | 16x6,5-8 |
| Maximum towing speed | 10 km/h |
| Guaranteed sound power | 114 dB(A) |
| Weight | 280 kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
