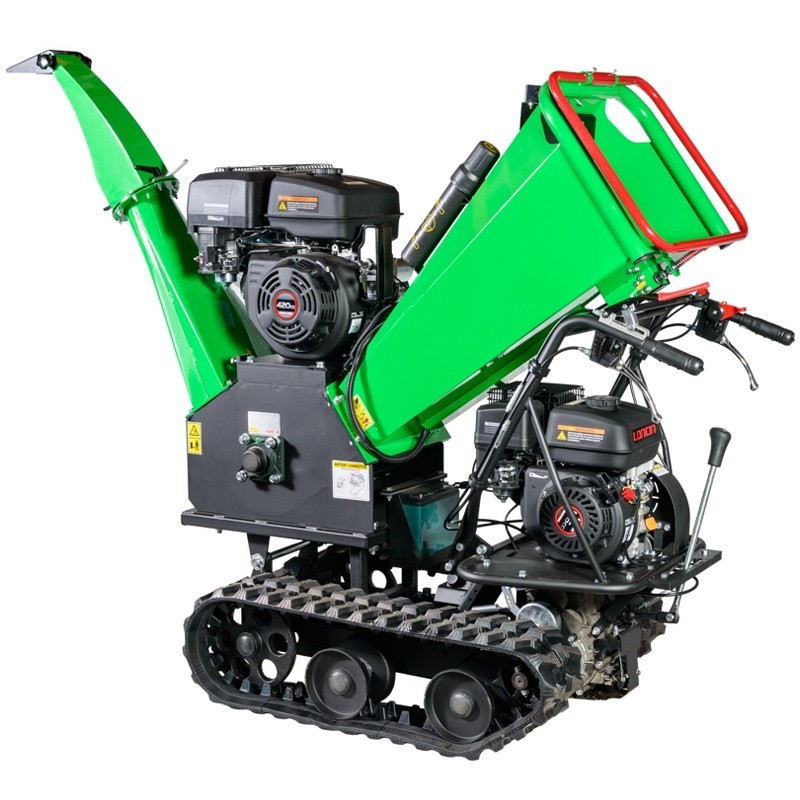

Today we will show you the latest manufacture of EuroCentauro, the branch shredder on tracked EuroCentauro TPS1500. This machine has a 4 stroke gasoline engine Loncin that is capable of generating up to 15 horsepower.
This engine must work at 3600 revolutions per minute to be able to move a roller rotor with 2 shredder blades to start the shredding process. This bio shredder is capable of shredding pruning debris such as branches very quickly and easily, taking into account that the maximum diameter of the branch is 120 mm.
As for its maintenance to prevent clogging and breakdowns, this machine was designed with the possibility of being able to remove the hopper to one side to access the rotor and clean it much easier.
Finally, this mulcher has several safety systems in case of emergency and to transport it more comfortably from one place to another, it has tracked of 180 mm.
| MODEL | TPS1500 |
| Engine | Loncin 4-stroke gasoline |
| Power | 11 kW - 15 HP |
| Displacement | 420 cc |
| Speeds | 3 forward and 1 reverse |
| Gearbox | expandable steel body |
| Load capacity | 300 kg |
| Width of the tracked | 180 mm |
| Transmission | centrifugal clutch with Kevlar double V-belt |
| Starter | Electric and manual |
| Shredding stages | Single stage |
| Shredding elements | Drum with two blades and one anvil |
| Max. cutting diameter | 120 mm |
| Emergency stop systems |
|
| Wheels | 16" x 8.0-7 tubeless tires (tubeless) |
| Machine transfer | hitch points available on the hopper as well as hitch for towing |
| Weight | 275 kg (with shredder and tracked) |
| IMPORTANT NOTICE |
| It is compulsory for the customer to check oil and grease levels before starting the machine. If it is not possible to check the goods at the time of reception, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
