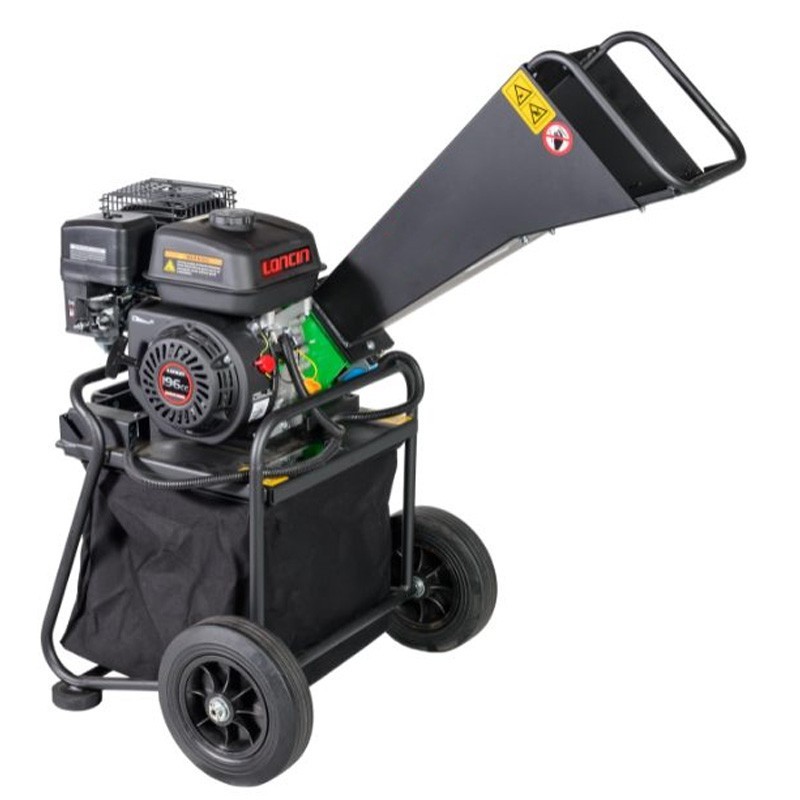

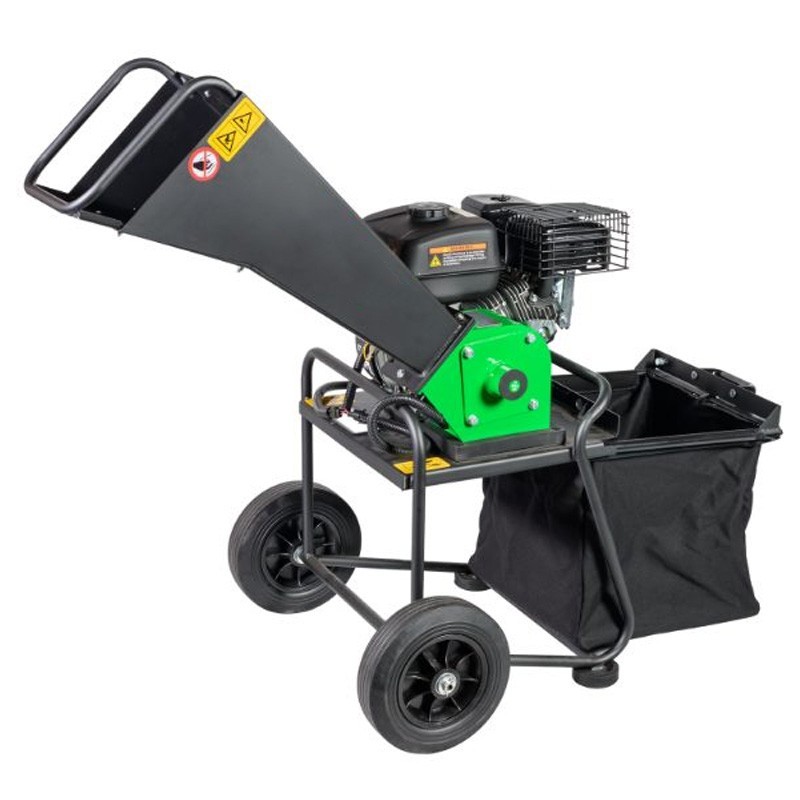

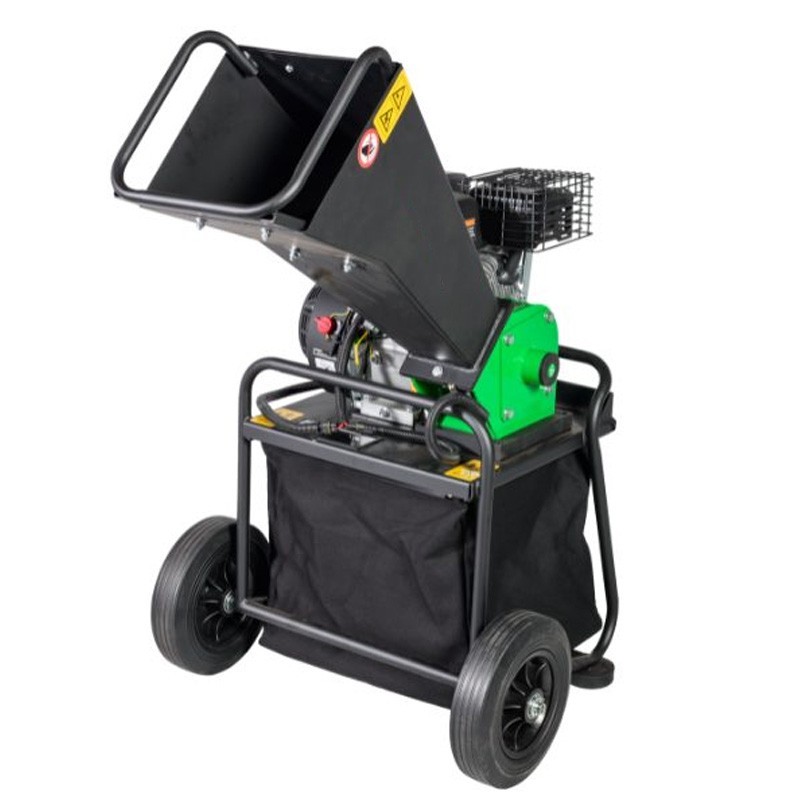

The gasoline branch shredder EuroCentauro TP50G has an engine Loncin of 6.5 horsepower that works at 3600 revolutions per minute rotating the drum rotor in order to start shredding the branches.
The engine is powered exclusively by gasoline and to start it we will pull a puller tied to a rope. The displacement of this engine is 196 cc and it is one of the most reliable engines available on the market.
In addition, the bio shredder EuroCentauro TP50G has a 64 liters dustpan where all the shavings and dust produced by the process of shredding the branches will fall. This dust bin can be easily emptied by opening the drawer and removing the bag.
The maximum diameter of branches that we will be able to shred with this machine is 50 mm and the process will be done directly in a single stage. As safety systems to prevent possible accidents, the branch shredder EuroCentauro TP50G has a motor ignition switch as well as a sensor for opening the drawer where the collector is located.
| MODEL | TP50G |
| Engine | gasoline 4-stroke Loncin G200F |
| Displacement | 196 cc |
| Engine revolutions | 3600 rpm |
| Power | 4.5 kW - 6.5 HP |
| Starter | Manual |
| Shredding mode | one stage |
| Shredding elements | Drum made up of 2 blades and 1 anvil |
| Blade material | Cr12 |
| Maximum cutting diameter | 50 mm |
| Safety systems | Motor ignition switch and drawer opening sensor with catcher |
| Transfer of the machine | Gripping points available on the hopper |
| Wheels | Yes, 10 inch rubber |
| Pickup dimensions | 400 x 390 x 400 mm |
| Collector capacity | 64 liters |
| Machine dimensions | 983 x 658 x 1059 mm |
| Packing dimensions | 660 x 570 x 610 mm |
| Weight | 51,5 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement , unless there is a pending examination. |
