Branch shredder Deleks DK-500 LIFAN 196cc
- Engine: Lifan 168F-2 6.5HP - 196cc
- Cutting system: Drum with 2 blades + 1 counter-blade
- Transmission: V belts
- Inlet width: 150.0*120.0 mm
€1,076.38 VAT incl.

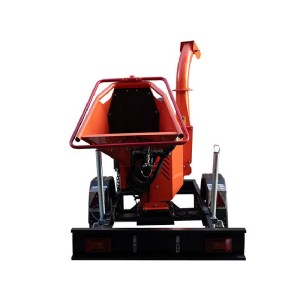

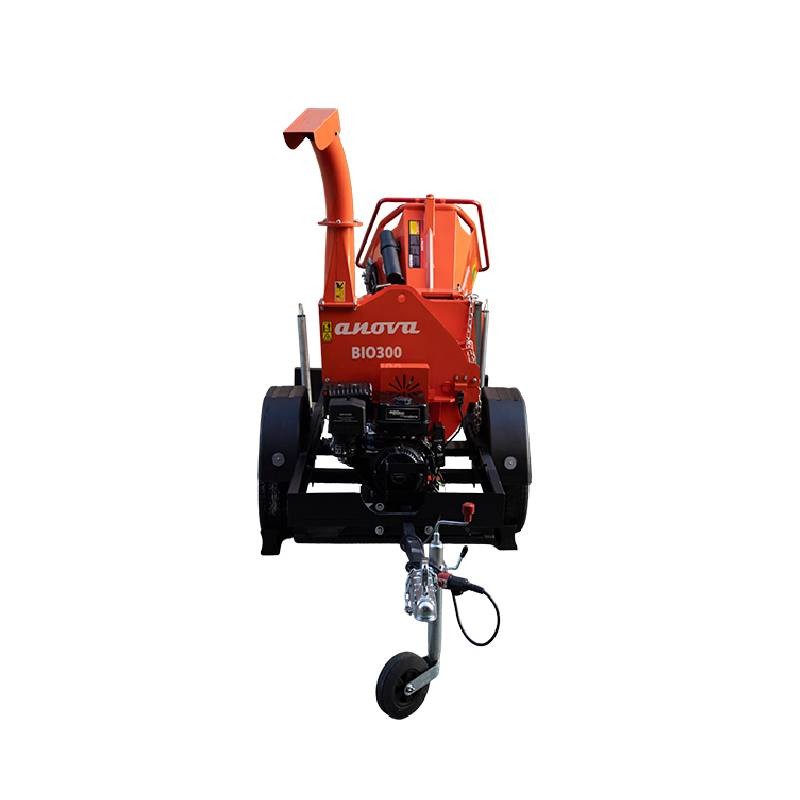

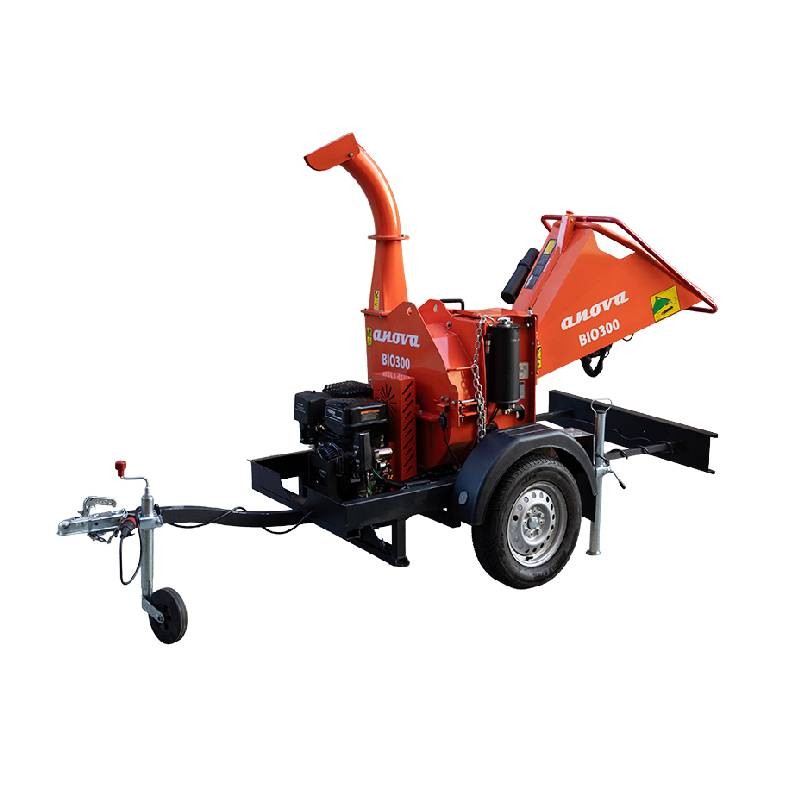

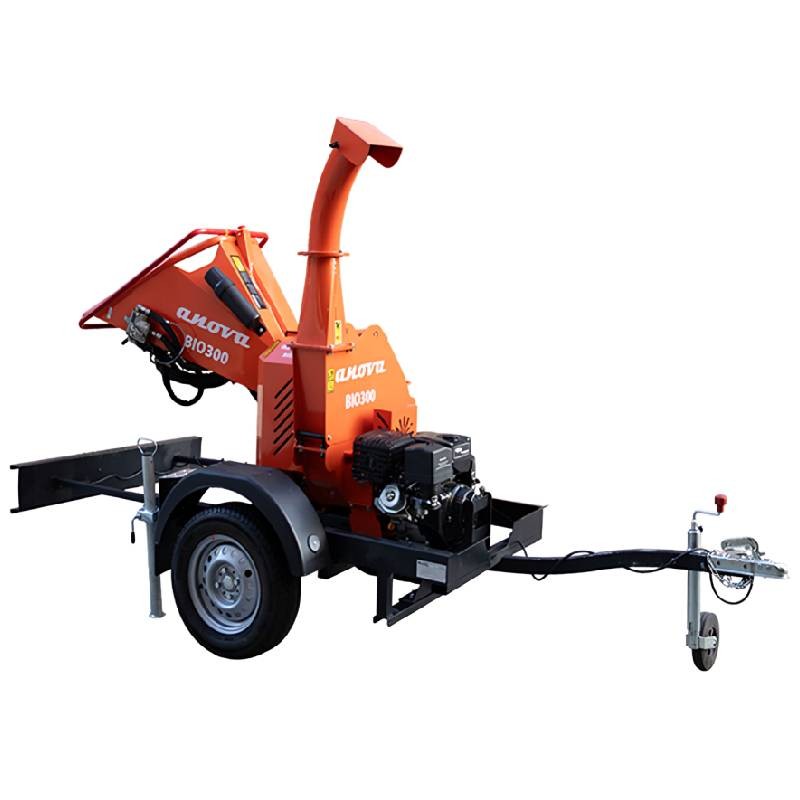

The BIO300 shredder with approved trailer is the direct evolution of the BIO300R model, designed for professionals who demand mobility and power in a single unit. Its 420cc 4-stroke engine Anova complies with Euro V standards, reducing emissions without compromising the capacity to shred branches up to 120 mm in diameter.
The power Supply hydraulic system with roller at 600 RPM automates the material input, reaching an output of up to 6 m³/h with total safety for the operator. Its sturdy 430 kg chassis is mounted on a road-approved short trailer, eliminating the need for additional transport platforms.
Thanks to its dual electric and manual start, it guarantees operability in any working condition or climate. It is the ideal tool for forestry companies, municipalities and pruning services that need to move between locations and generate quality wood chips efficiently.
| Engine | 4-stroke gasoline - Euro V | |
| Displacement | 420 cc | |
| Power | 15 HP | |
| Starter | Electric and manual | |
| Maximum inlet diameter | 120 mm | |
| Output | 4-6 m³/h | |

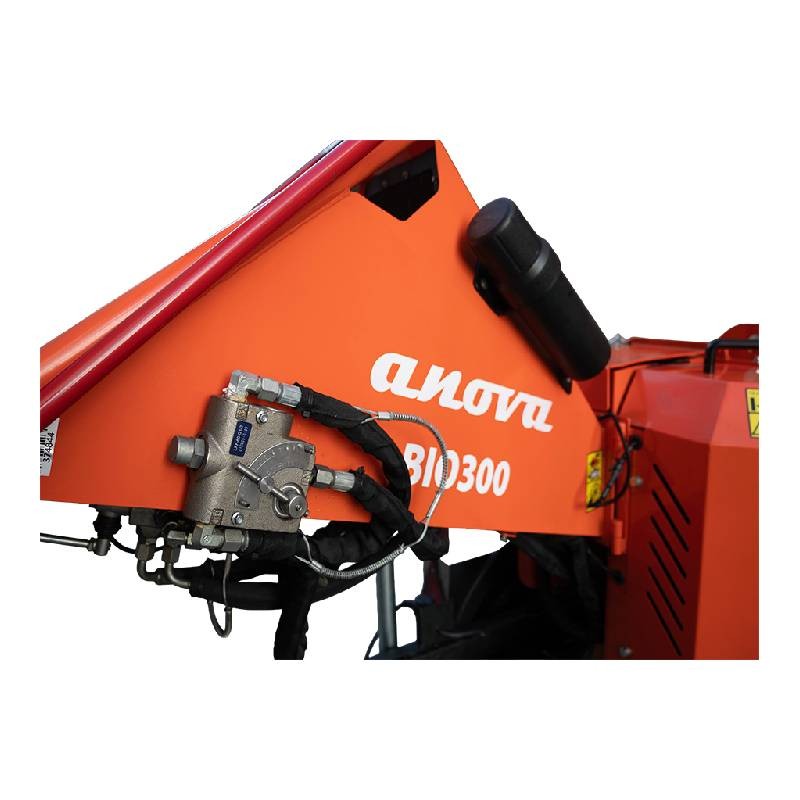

| Roller of power Supply | With hydraulic speed and direction regulation | |
| Roller speed | 600 RPM | |
| Hydraulic pump | 10 ml/r - 20 MPa | |
| Cutting system | Flywheel knife plate with combined fixed and floating knife system | |
| Fixed blades | 2 units of 210 mm | |
| Floating blades | 10 pcs | |
| Open flywheel | For material ejection | |
| Access to shredding chamber | Quick and direct for cleaning | |
| Safety stop button | Including | |
| Safety bar | With automatic stop | |
| Emergency stop | With bar on filling hopper | |
| Chassis | Black lacquered steel | |
| Weight | 430 kg | |
| Trailer | Homologated for road circulation | |
| Hitch head | Universal 750 kg type ALKO | |
| Torsion axle | 750 kg type ALKO | |
| Jockey wheel | Folding | |
| License plate system | Rear quick hitch | |
| Signal lights | For road circulation | |
| Mudguards | Fiber with marking and rubber skirts | |
| Wheel size | 155/80R13 | |
| Towing hook | For use in private areas | |
| Engine oil type | SAE 30 | |
| Quantity of engine oil | 1,1 L | |
| Engine oil part number | 99-6032 or 100006E | |
| Type of hydraulic oil | Hydraulic ISO VG46 | |
| Hydraulic oil quantity | 4 L | |
| Hydraulic oil part number | 99-6038 | |
| Measurements length x width x height | 330 x 127 x 190 cm | |
| IMPORTANT NOTICE |
| It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
