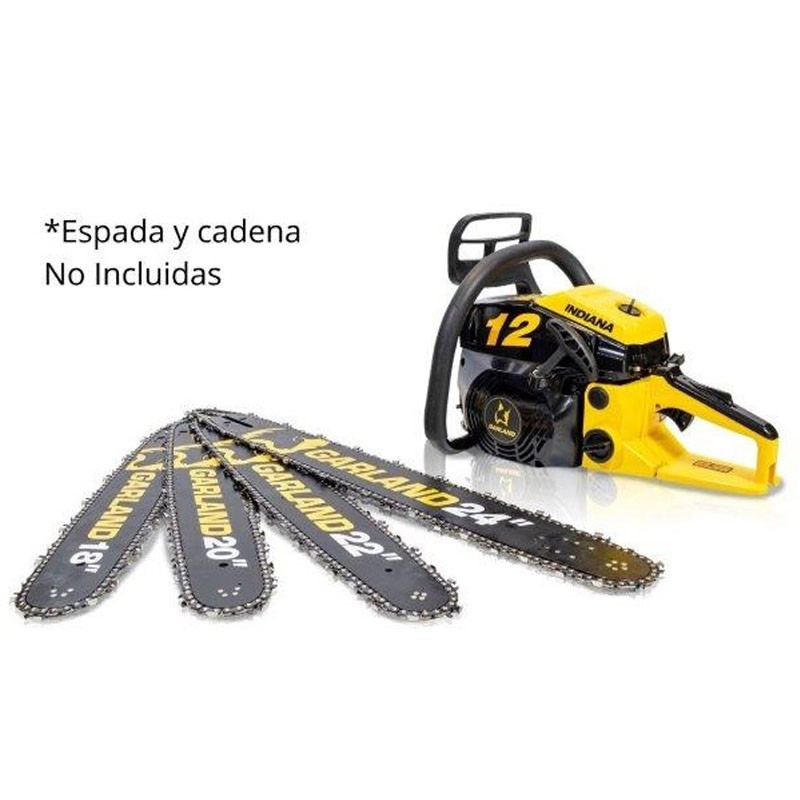

Sword and chain not included

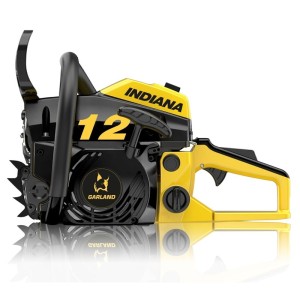

The chainsaw Garland Indiana 12-V20 is powered by a 2-stroke gasoline engine Garland. It has a total displacement of 54.5 cc. It has a fuel consumption at maximum power of 0.6 kg/h.
The Indiana 12-V20 chainsaw model from Garland has a fuel tank capacity of 0,550L. It also offers a total oil tank capacity of 0.260L. The chainsaw has a pruning function.
This chainsaw offers an adjustable bar length of 18-20-22-24". In addition, the 12-V20 model has a diaphragm type carburetor. It includes a dipstick.
The Garland Indiana 12-V20 chainsaw guarantees a 3/8" chain pitch. This chainsaw has an automatic lubrication type and a box type packaging. It has a chain thickness of 0.058"
The Indiana 12-V20 model has packaging dimensions of 41 cm in height, 28.5 cm in width and 26 cm in depth. In addition, it has a total packaging weight of only 6.3 kg.
| Engine type | Garland 2 T |
| Displacement | 54.5 cc |
| Power | 2.2 kW / 2.95 hp |
| Chain / Pitch | 3/8" bp - 0,050" |
| Weight empty machine | 5,5 kg |
| Idle | 3000 min-¹ |
| Maximum engine speed | 10 500 min-¹ |
| Torque | 2,6 Nm |
| Consumption | 0,511 kg/kWh |
| Autonomy | 19,95 min |
| Fuel tank volume | 0,55 l |
| Clutch | Yes |
| Type of lubricating pump | Automatic |
| Chain adjustment without tools | No |
| Clutch RPM | 4300 min-¹ |
| Lubricant reservoir volume | 0,25 l |
| Standard accessory | Including maintenance socket wrench |
| Average vibration level | 8.1 m/s² (8.1 m/s²) |
| Cte. uncertainty vibration | 1.5 m/s² (1.5 m/s²) |
| Sound pressure | 101.96 dB(A) |
| Cte. uncertainty sound level | 3 dB(A) |
| Sound power (guaranteed/measured) | 120 dB(A) |
| Dimensions in use (L x W x H) | 41 x 27 x 27 cm |
| Packing weight | 7.8 kg |
| Packing dimensions (L x W x H) | 28.5 x 41 x 26 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before starting the machine. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
