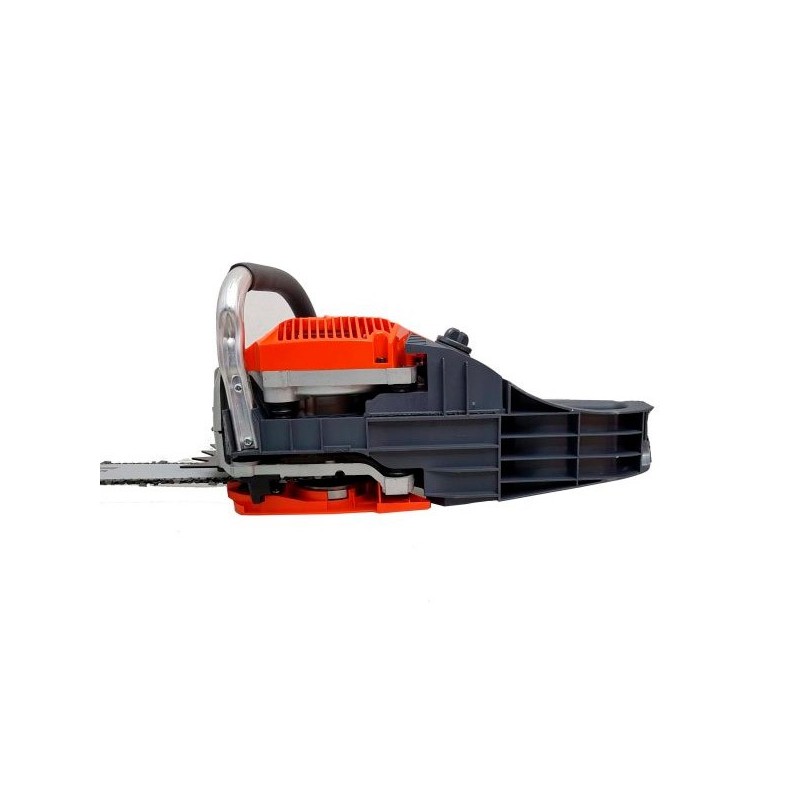

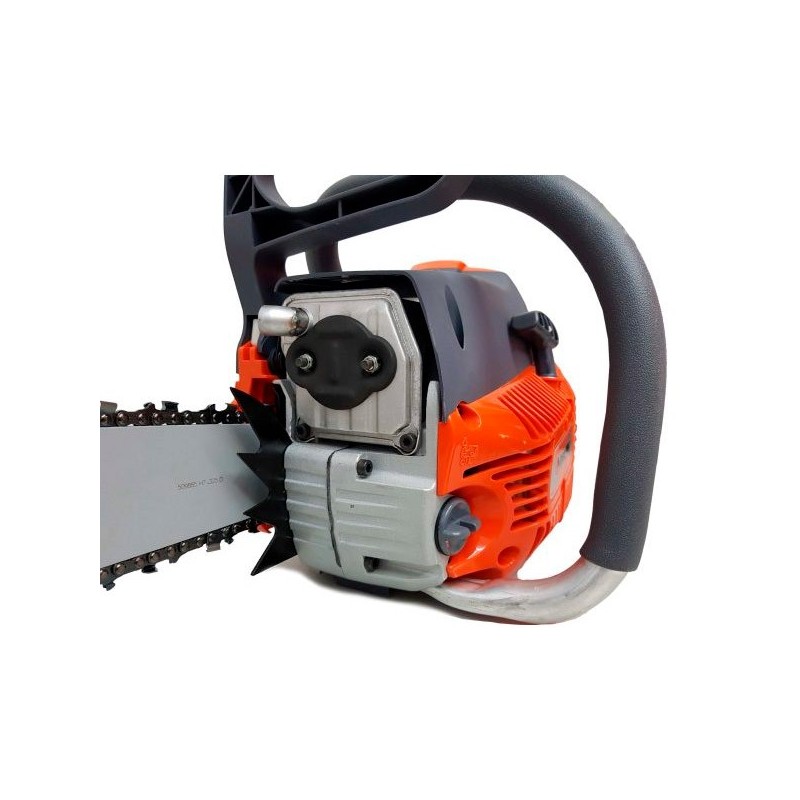

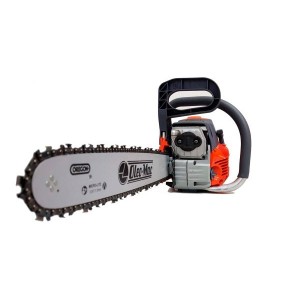

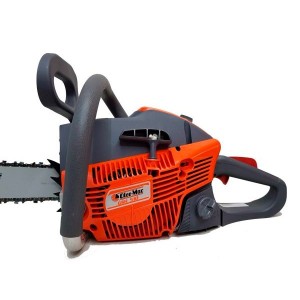

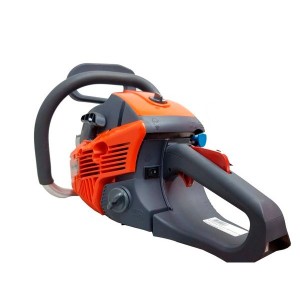

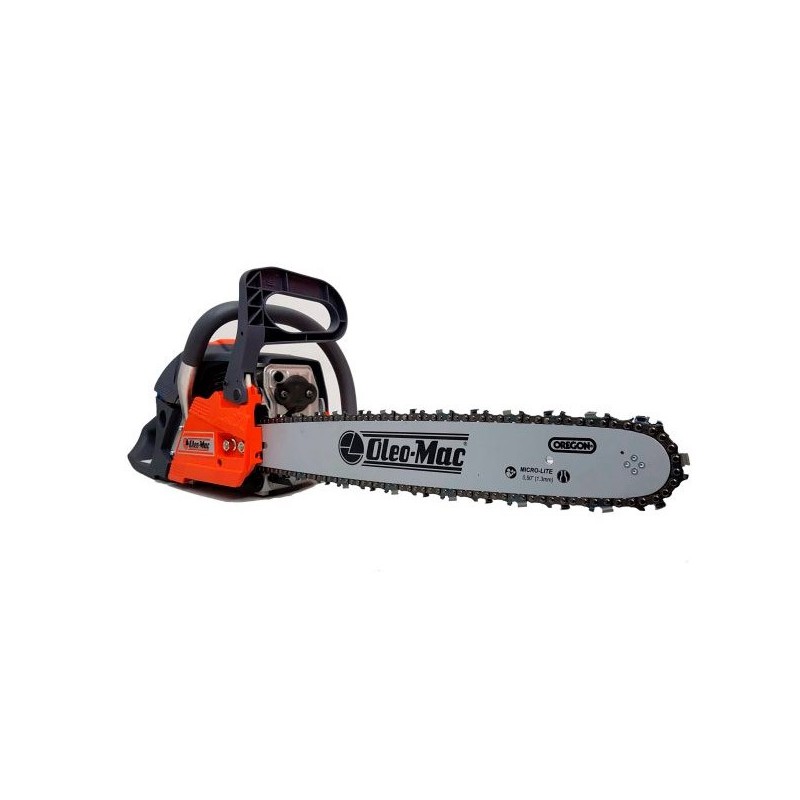

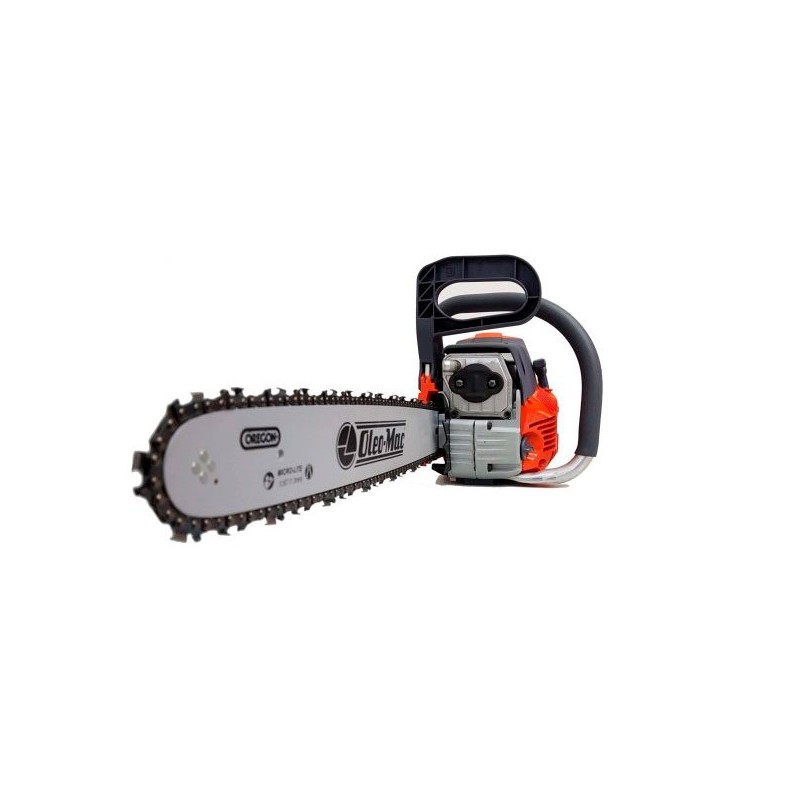

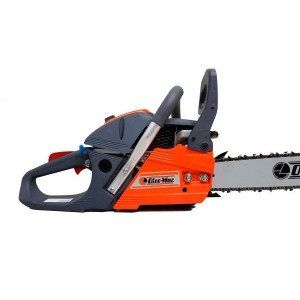

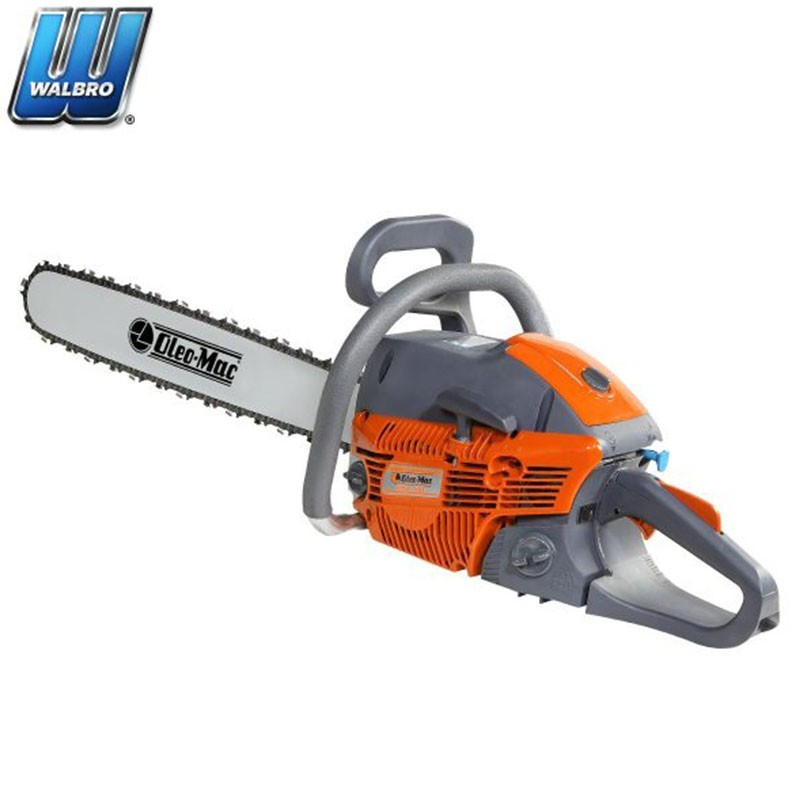

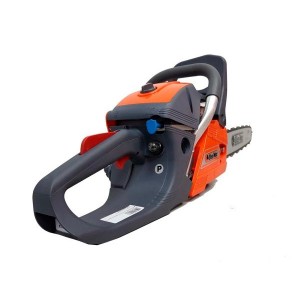

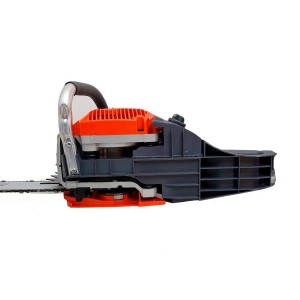

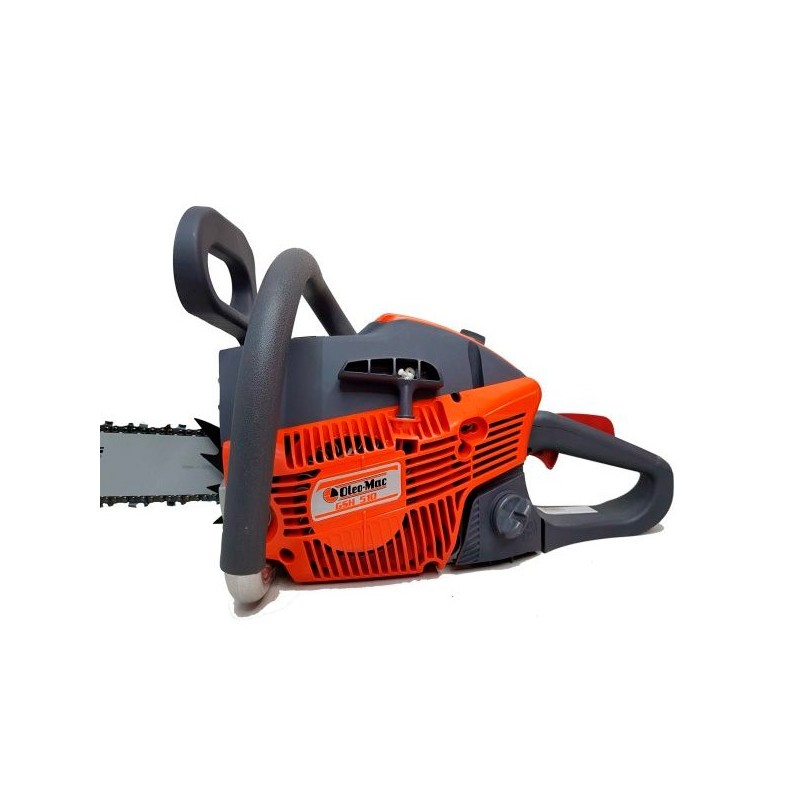

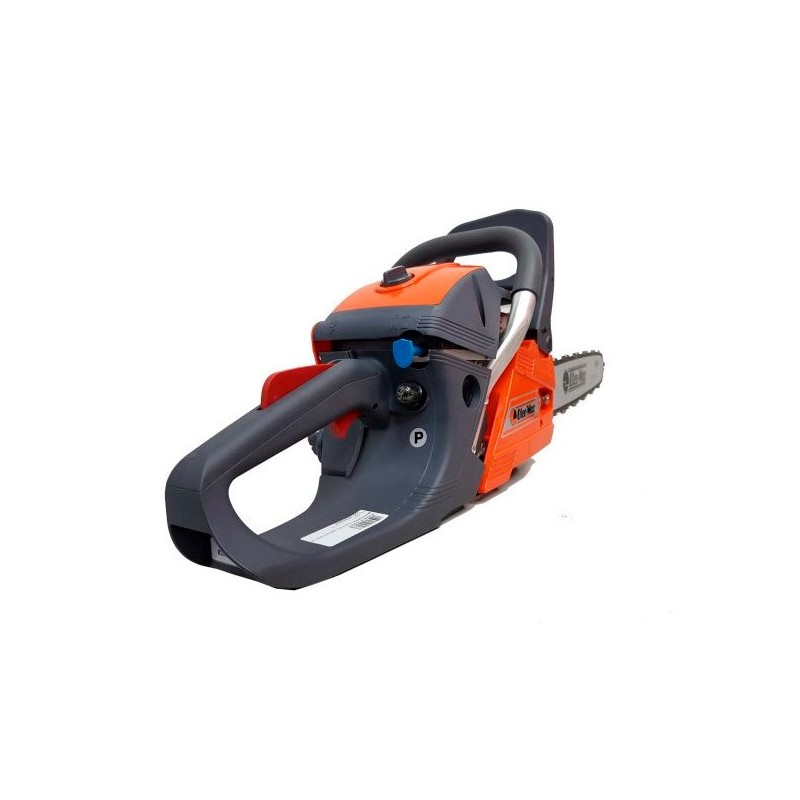

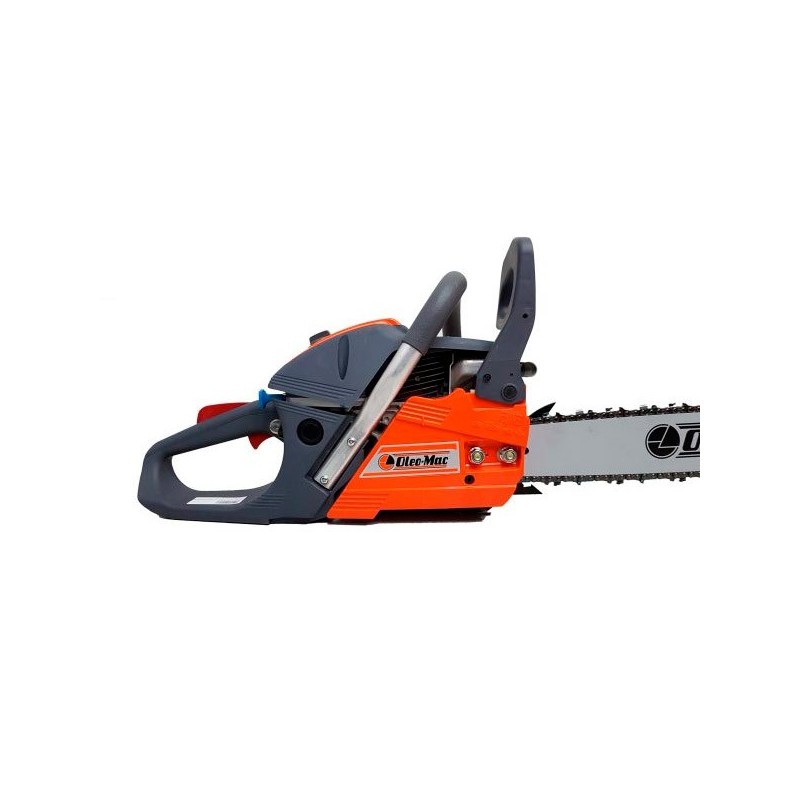

The chainsaw Oleo Mac GS411 has a 2-stroke Stroke Emak engine (EURO 5). It provides a power of 3.0HP / 2.2kW (7,500rpm) and a displacement of 50.9 cc. It also has a magnesium semi-carcass and 2 elastic rings.
This model of chainsaw Oleo Mac GS411Has an electronic ignition system. It has an analog coil plus fixed advance and a flywheel diameter of 100mm.

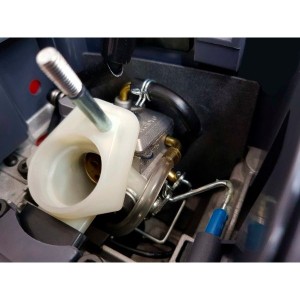

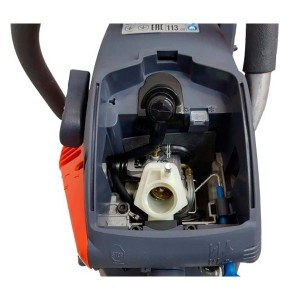

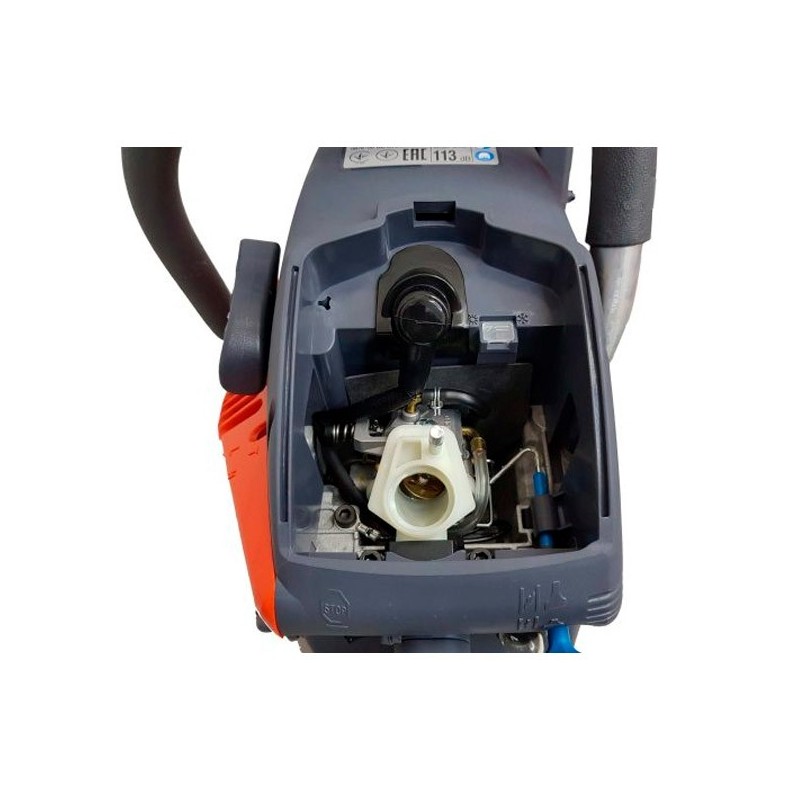

The chainsaw Oleo Mac GS411Offers a system of power Supply and lubrication with walbro carburetor. It has a Nylon air filter system. It has a tank capacity of 0.55 L fuel.
This chainsaw features a sword and chain cutting system with a plastic chain housing. It has a side chain tensioner. The model has a weight (WITHOUT cutting tools) of 5.4Kg.
| Displacement | 50.9cc |
| Power | 3HP |
| Sword length | 46cm - 18" |
| Chain pitch | 3/8 "x.325" Oregon |
| Oil tank capacity | 0.27L |
| Gasoline tank capacity | 0.5L |
| Sound pressure | 110 dB |
| Power level | 113 dB(A) |
| Dry weight without bar and chain | 5.4kg |
 |
Emak EURO 5 engine. It has a magnesium half-frame. |
 |

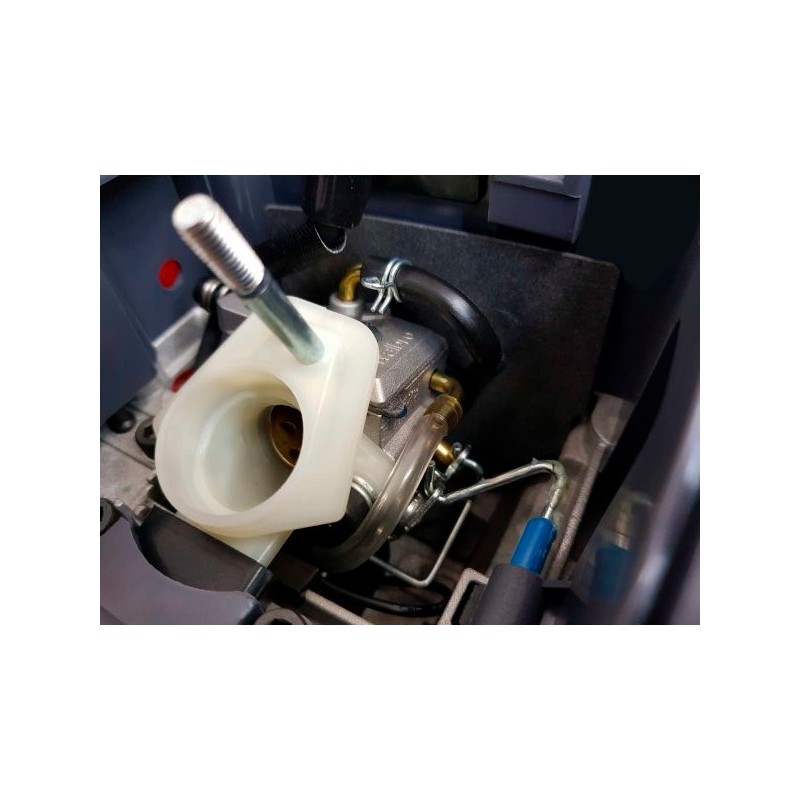

It has a forged and machined steel connecting rod and crankshaft. It also has a walbro carburetor. |
 |
It has a large flywheel with innovative profile fins. This ensures a more regular operation of the engine and optimum cooling even at high temperatures. |
 |

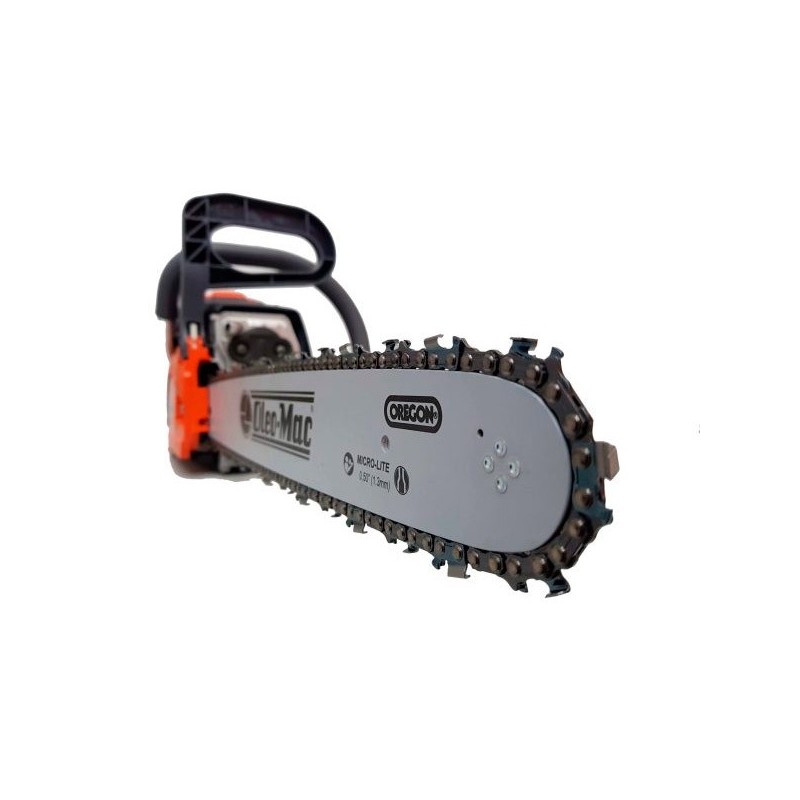

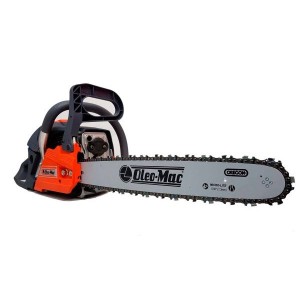

It has an Oregon 16"/18"-pitch .325 x .050" Oregon sword cutting system. It also has a 3-piece centrifugal clutch |
 |
It has an adjustable oil water pump. It does not pump at minimum and has less safety clogging. This guarantees less maintenance. |
 |
It offers a side chain tensioner. It facilitates chain tensioning and adjustment operations. |
 |
It has an EasyStart easy start system, offering the same advantages as the EasyOn system. The difference is that it has a greater reduction of kickback. This is thanks to a double spring starter. |
 |

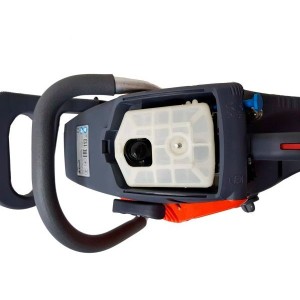

Filter cover for tool-free inspection. This is thanks to the screw knob that facilitates the inspection steps. Nylon net filtering surface. It is easier and faster to clean, it guarantees greater durability. |
 |
It has an anti-vibration system with 1 spring and 5 rubber blocks and 5 rubber blocks. These are located between the handle and the motor support. It has a total vibration isolation for the operator |
 |
It has an automatic choke. With a single control it is possible to operate either combined or independently. |
 |
Primer device that facilitates cold starting after each fuel refueling. |
 |
It has a reinforced silencer. It is designed to reduce noise. |
| IMPORTANT Oil level and lubrication must be checked by the customer before start-up! |
| If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
- Battery and charger not included
Blade and chain not included
