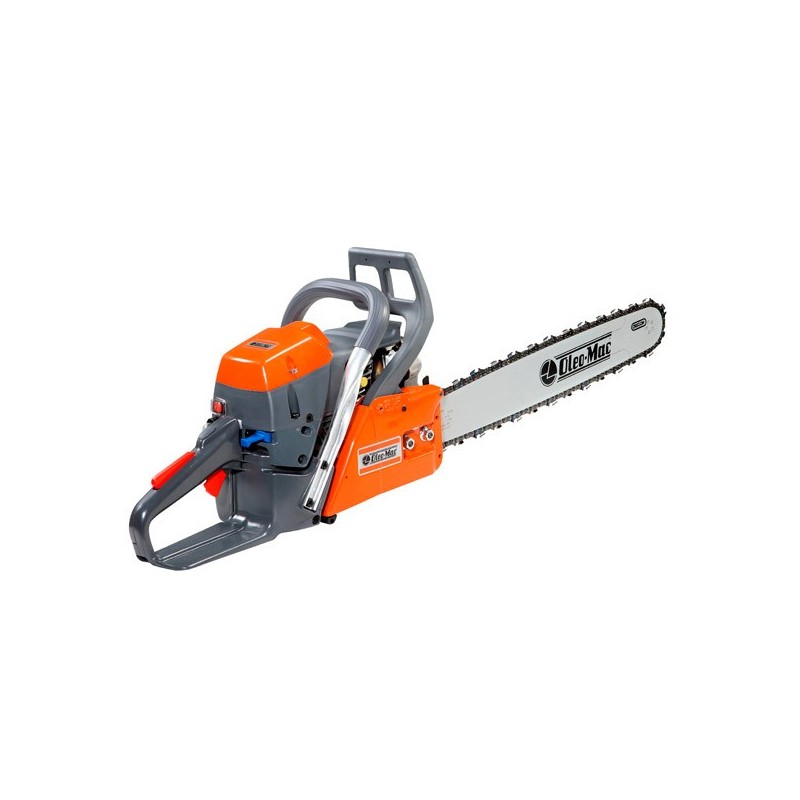

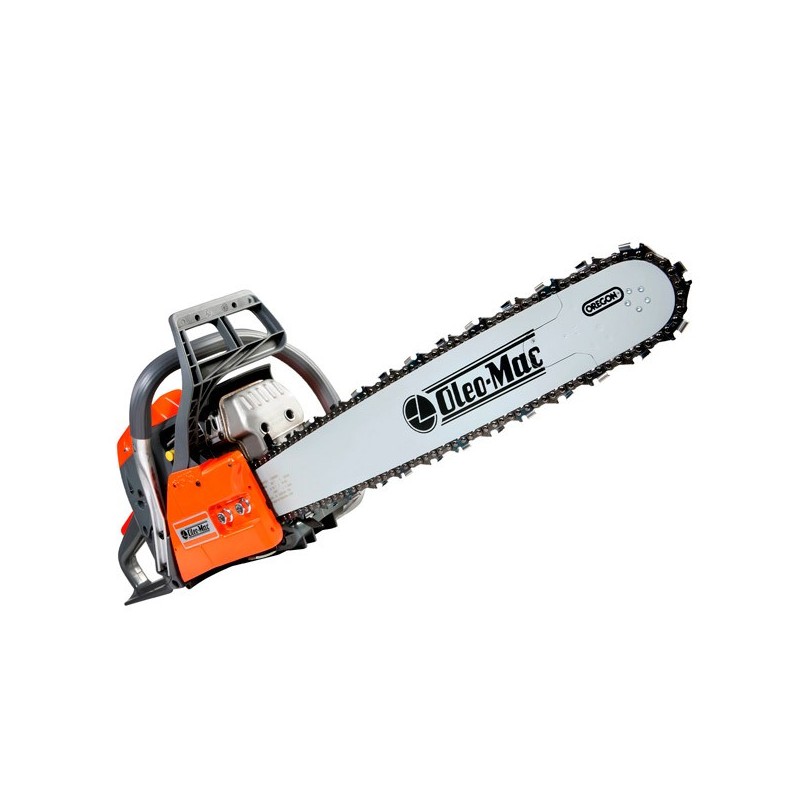

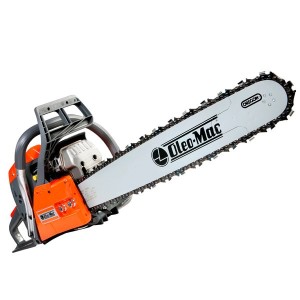

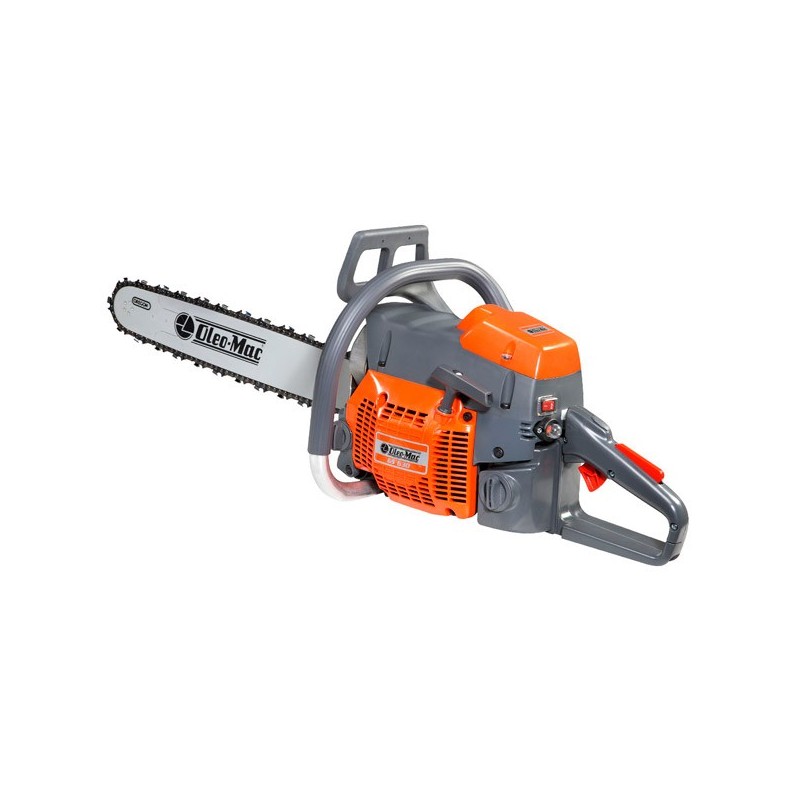

The chainsaw Oleo Mac GS 630 has a 2-stroke Emak engine (EURO 5) which provides a power of 4.7 HP / 3.5 KW (9500rpm) and a displacement of 63.2 cc. This engine has a maximum fuel consumption of 1630 g/h (9500rpm).
This chainsaw model from Oleo Mac also features an electronic capacitive ignition system. It features a digital electronic coil with variable advance and an NGK BPMR8Y spark plug.

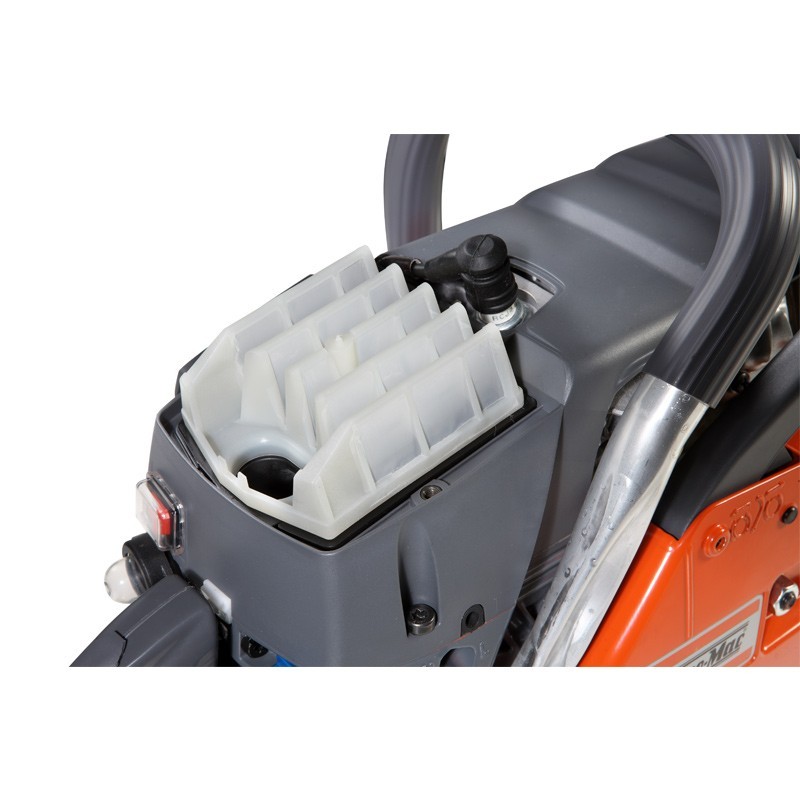

The GS 630 chainsaw offers a power Supply and lubrication system with Walbro HDA-350 carburetor. It also offers a plastic filter system with a large, reusable filter area. It has a fuel tank capacity of 0.70L.
The model comes with a 7-tooth pinion drive system. It has a centrifugal clutch with engagement at 3600rpm.
It also has a cutting system with a bar length of 16"-18" - 20" (41-46-51 cm) and a 3/8" x .058" - .325" x .058" chain block. Inertial brake system and .35 L oil capacity.
The Oleo Mac GS 630 Chainsaw includes a front chain tensioner and a steel grapple. It also includes a front and rear handles, both of which are anti-vibration. The model weighs only 5.8 kg.
| Engine | 2-stroke |
| Power | 4.7 HP |
| Displacement | 63,2 cm3 |
| Sword length | 46cm/18" (46cm/18") |
| Chain (pitch x thickness) | 3/8" x .058" / 68 ESB |
| Oil / fuel tank | 0.35L / 0.70L |
| Vibration level Lh /rh | 5.9 / 6.8 m/s² / 5.9 / 6.8 m/s² |
| It has an anti-vibration system with six shock absorbers. These dampers are made of rubber and are located on the control handle and the engine block. It ensures fatigue reduction by isolating the operator from vibrations. |  |
| It has a front handle which is made of aluminum. This handle is coated in rubber. It provides a firm, anatomical and comfortable grip. |  |

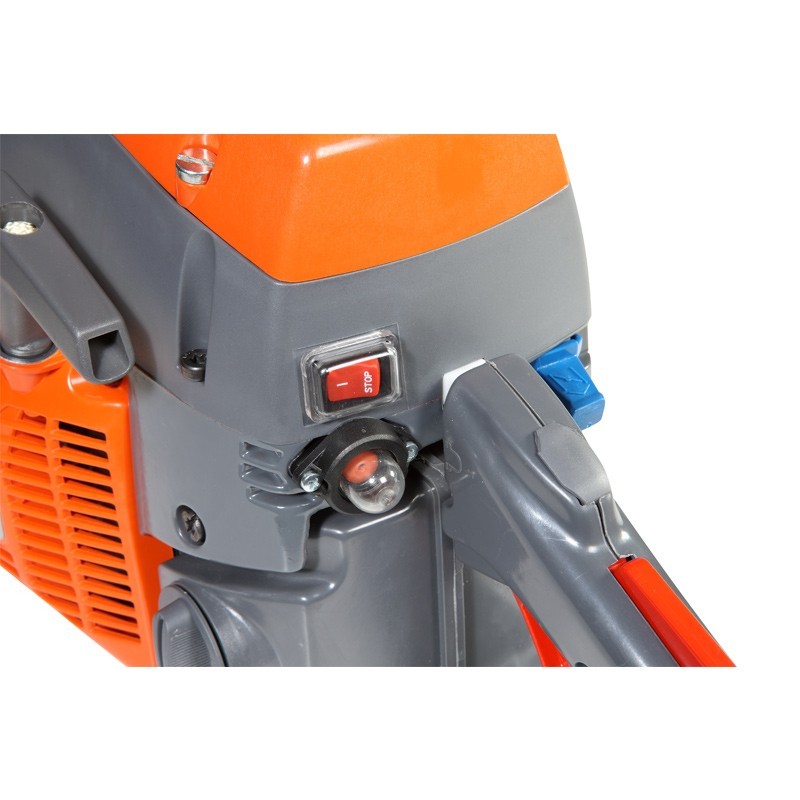

| It comes with controls which are ergonomic. All functions of the machine can be easily controlled with the right hand. This can be done without having to remove the handle. |  |
| It has a reinforced silencer. This muffler is designed to reduce noise emission even at maximum speed. |  |
| It has an automatic chain lubrication pump. When the engine is at minimum, it stops supplying oil in order to reduce sawdust clogging. In addition, it also reduces cleaning and maintenance time. |  |
| It has a chain sump with a large discharge section. This chain guard facilitates the expulsion of the sawdust and reduces its accumulation. This reduces the frequency of cleaning and maintenance. Two protections, a rubber one on the chain guard and a plastic one on the tank. This increases resistance in case of chain fall |  |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before starting the machine. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
Sword and chain not included
