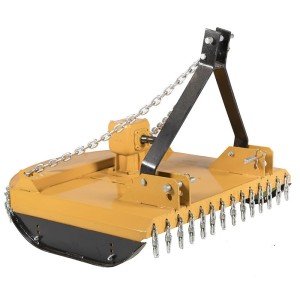

Blade Brush Cutter for Dimago 100 18-30 HP Tractor
- Tractor power: 18 - 30 HP
- Working width: 96 cm
- Plate: 4 mm
- Weight: 115 kg
€1,256.59 VAT incl.
Deleks products take about 15 to 20 days. |

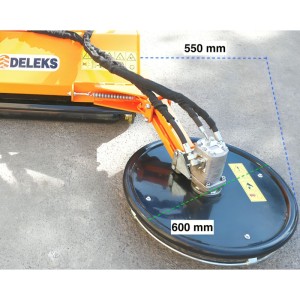

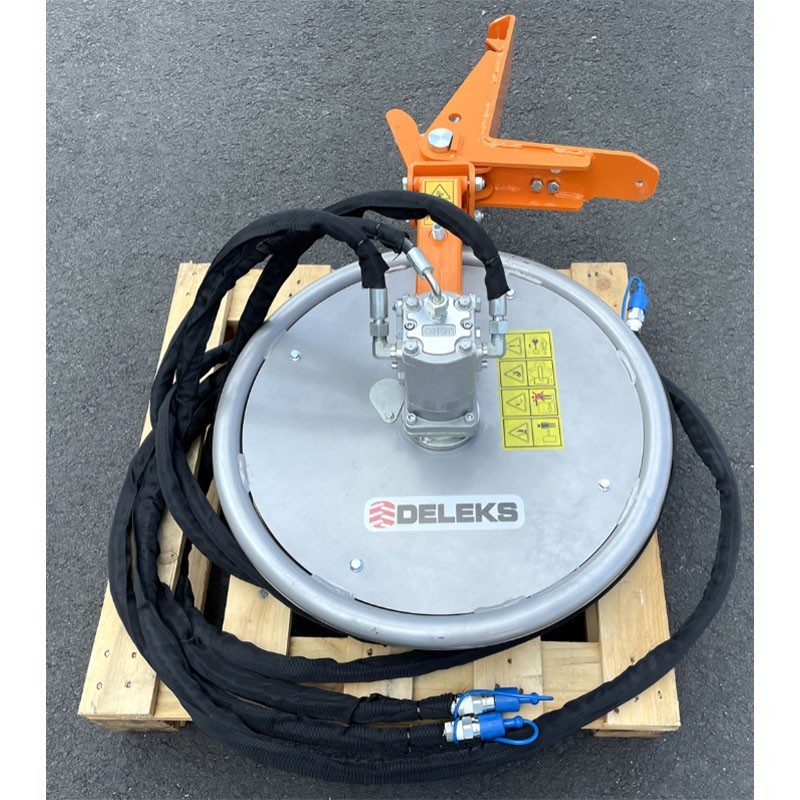

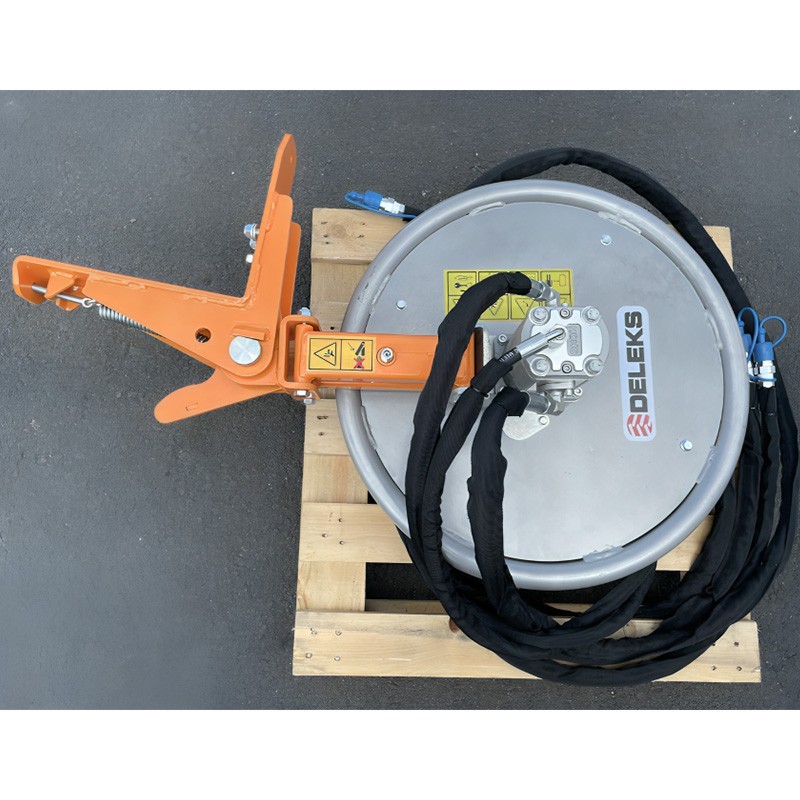

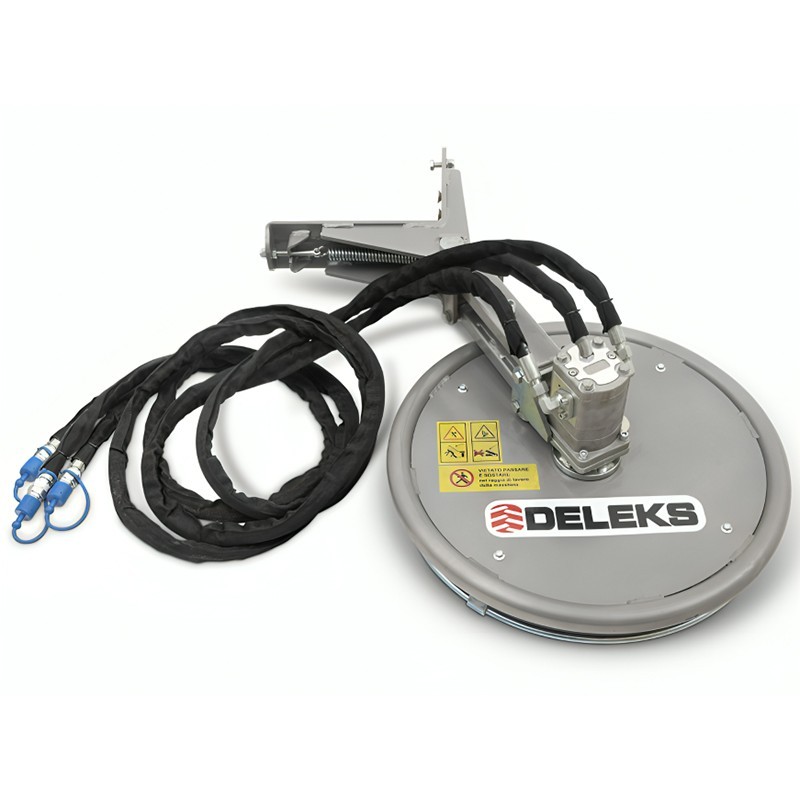

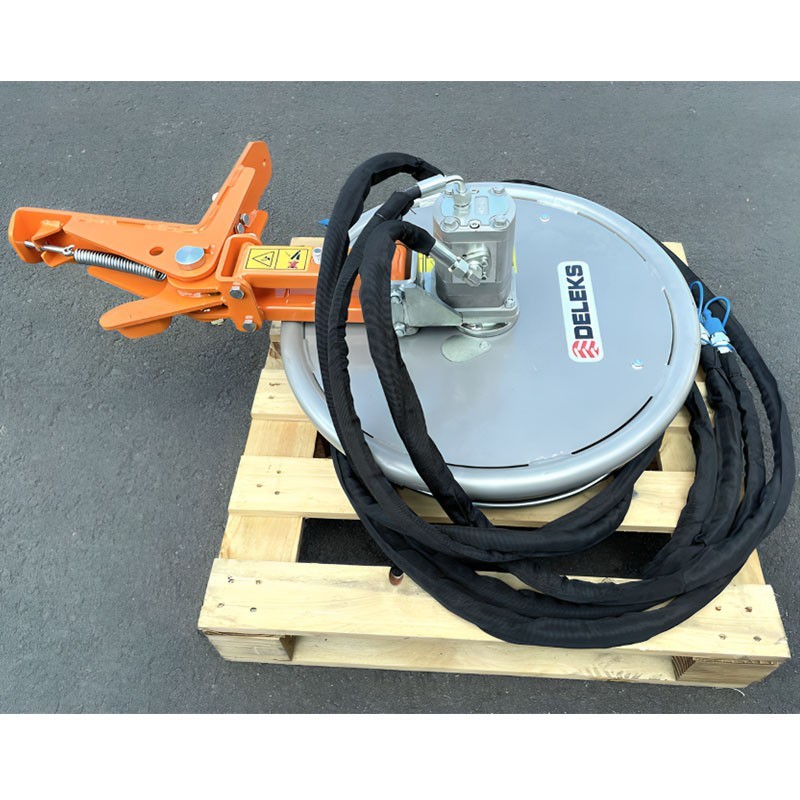

The inter-row header Deleks DISC-603 is mounted on the shredder and is used to clean around the plants and inter-rows without damaging the bark. Inter-row disc, directly attachable to the tractor hydraulics, with mechanical reverse system, 600 mm diameter, with protective structure.
The strips under pasture fences after mowing and paddocks can be kept clean with the DISC-603 hydraulic inter-row head.

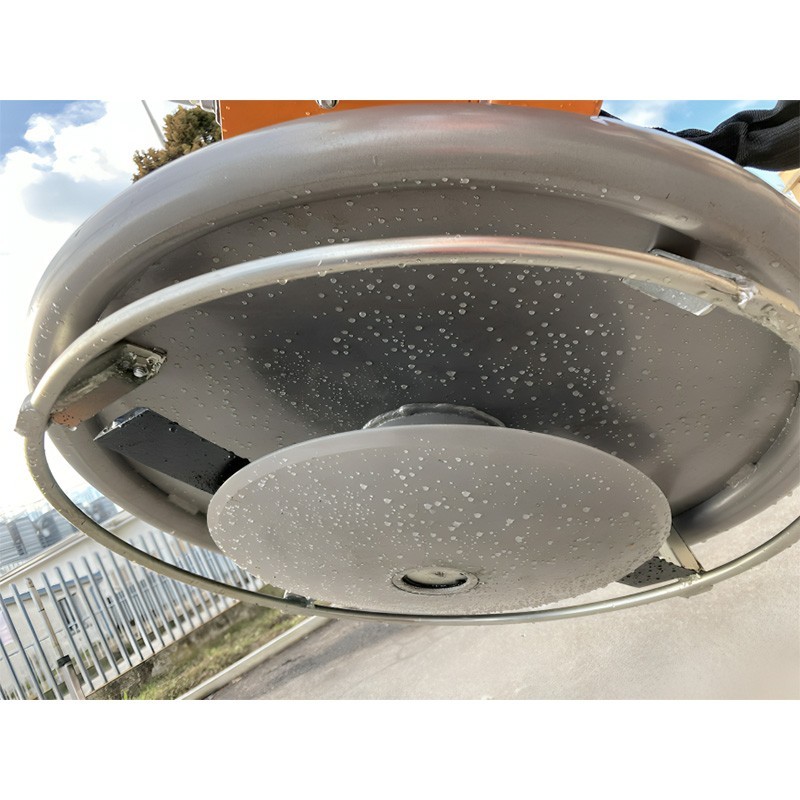

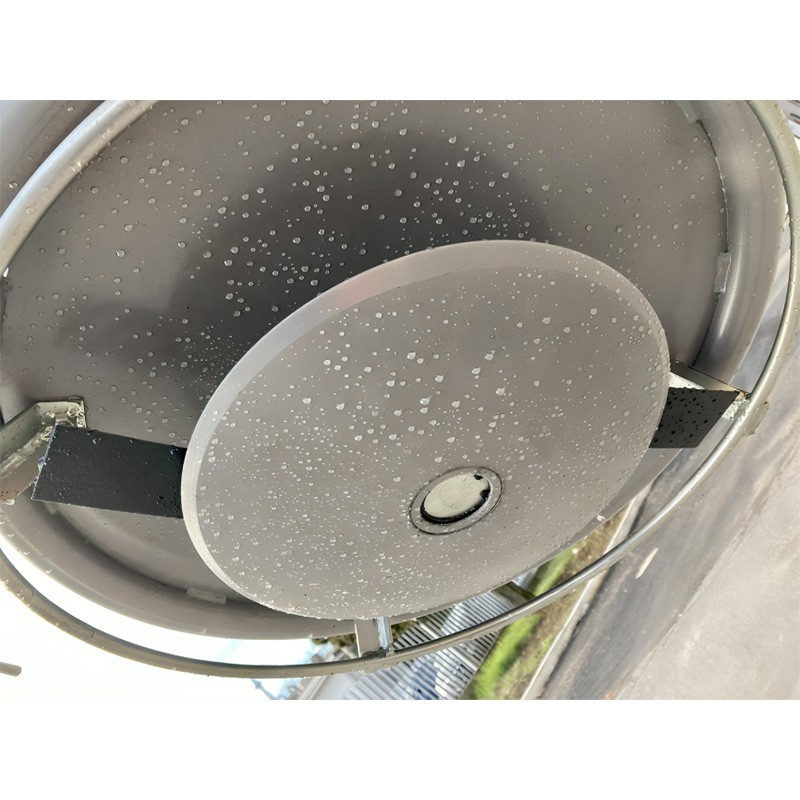

DISC-603 has also proven its effectiveness in maintaining photovoltaic systems and mulching under fences. It is specially built low and has a smooth surface so it can slide under fruit-covered branches or under solar panels.

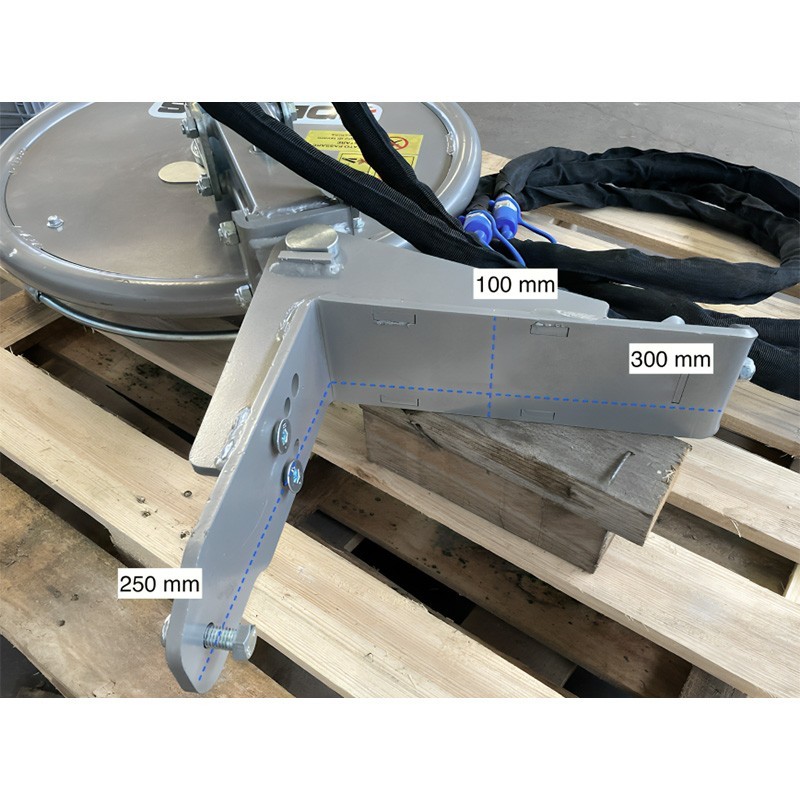

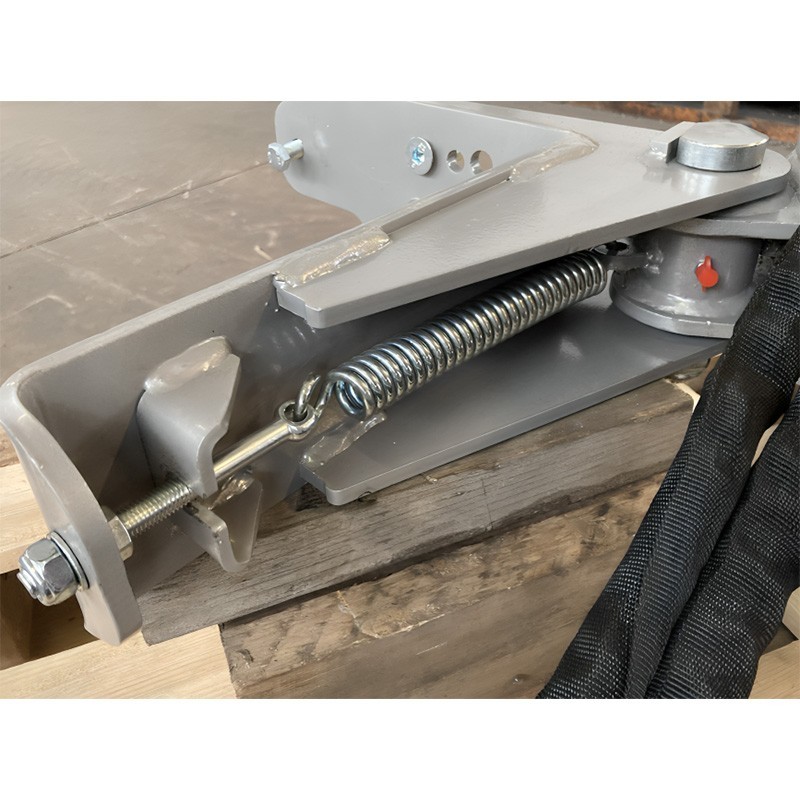

Manual height and tilt adjustment. Mechanical spring return. Hydraulic motor with 2 x 4.0m tubes and quick couplings. The third tube is for drainage.
Maximum oil flow: 30 l/min. The disc is mounted on a parallel system and is floating to allow it to follow the irregularities of the terrain.
By reversing the hitch direction, it can also be mounted on the left side. So, with the purchase of 2 DISC-603 it is possible to obtain a double windrow system on your shredder: on the right and left side of the machine.
Working width | 600 mm |
Weight | 46 kg |

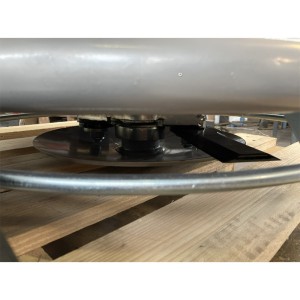

Blade rotation speed | 1500 RPM |
Optimal oil flow | 30 l/min maximal |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
CARDAN SHAFT INCLUDED
