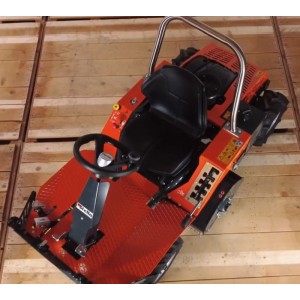

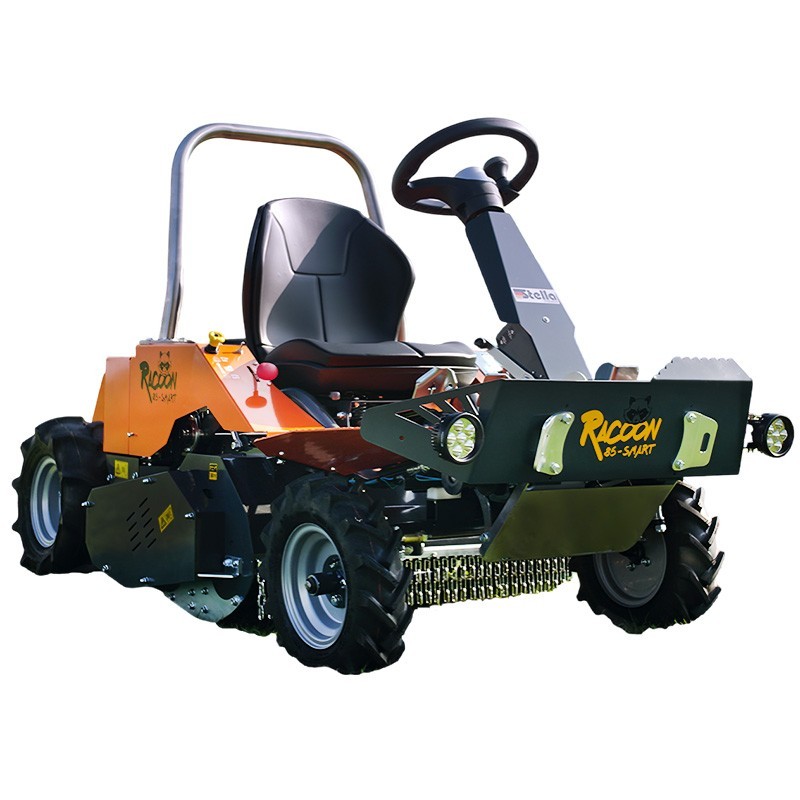

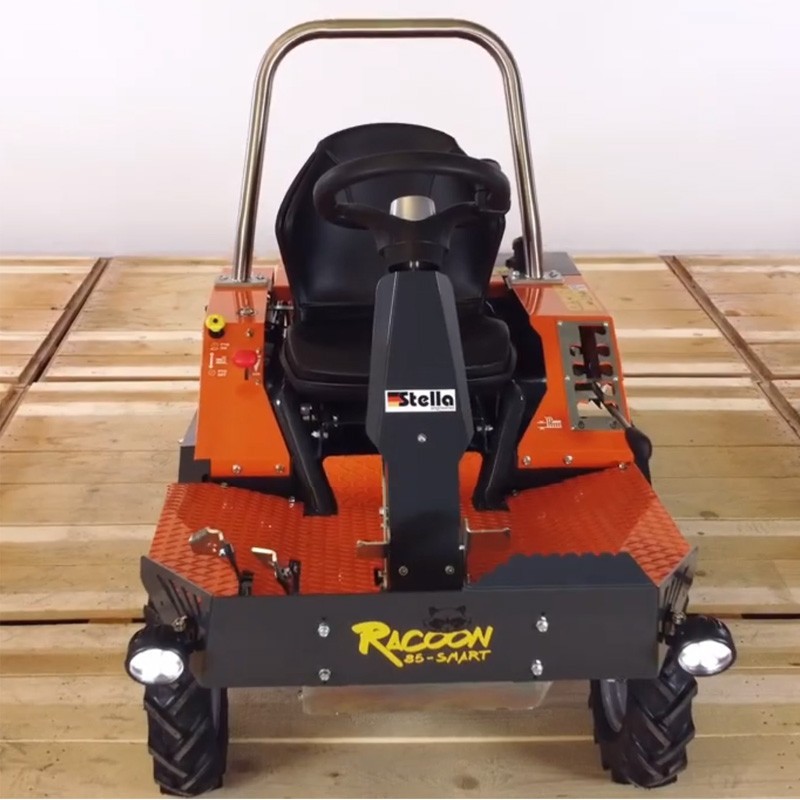

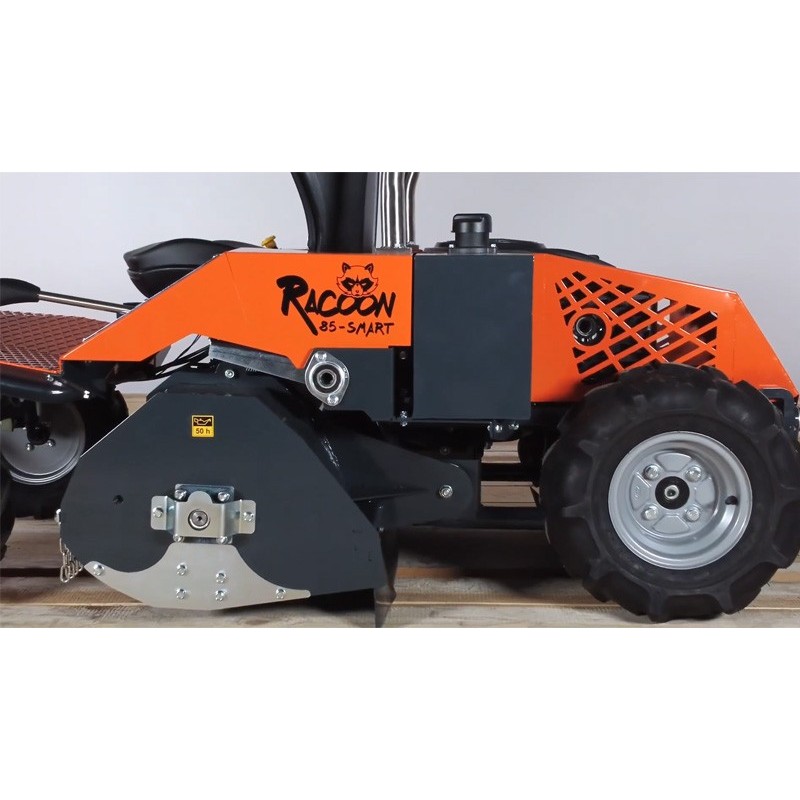

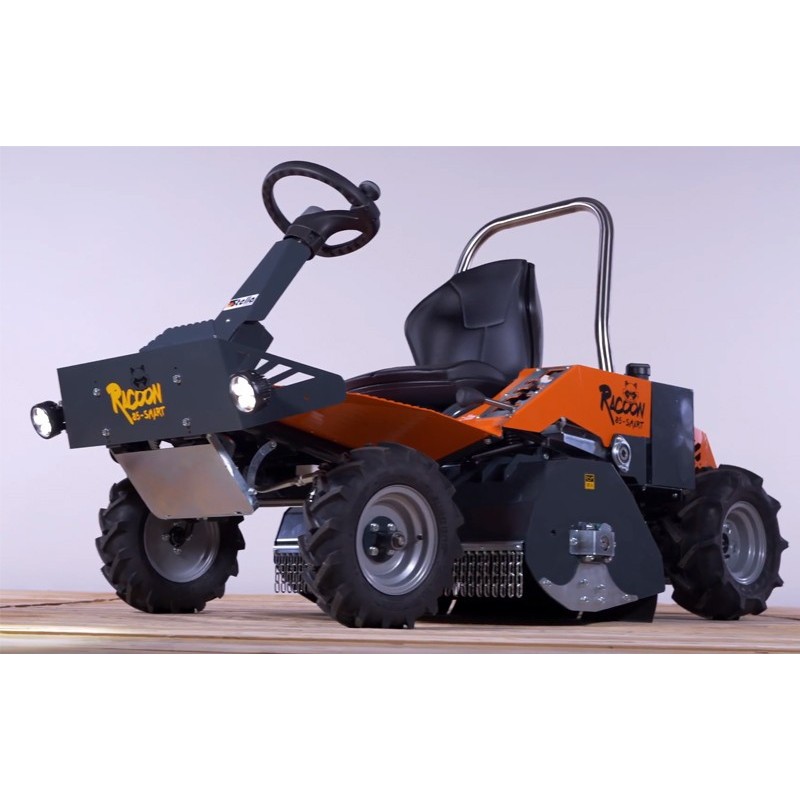

The Stella Racoon 85 brushcutter tractor stands out for its 15 HP RATO RV 450 engine, which provides great power for demanding jobs in difficult terrain. With a fuel tank capacity of 12 liters and a double filter air filtration system, it ensures efficient performance during long working days.
Its rear-wheel drive and 100% connectable differential lock ensure total control in difficult terrain, allowing forward movement up to 7 km/h and reverse at 5 km/h. Equipped with a cutting width of 85 cm and 48 Y-type blades, the Stella Racoon 85 is ideal for fast and effective brushcutting.

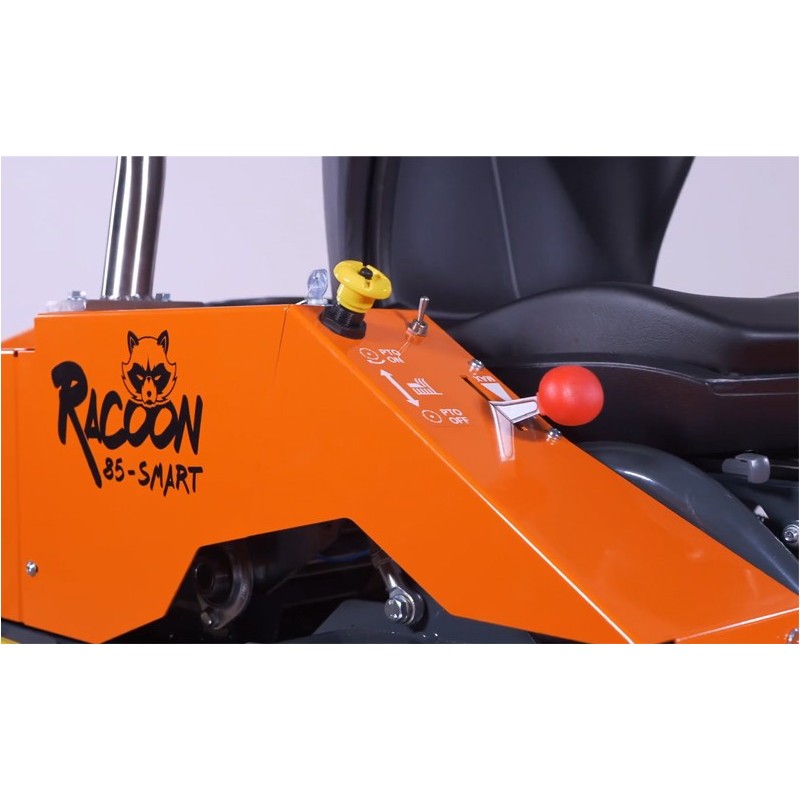

Its cutting system includes an electromagnetic clutch that makes it easy to stop the blades, offering greater safety and durability. In addition, its protection system with front chains and rear rubber tarpaulin minimizes risks during use.
With a robust structure and high quality components, this tractor is perfect for clearing tasks in agricultural land and difficult access areas.
| Engine | RATO RV 450, 1 cylinder OHV 4 strokes |
| Power | 15 HP |
| Displacement | 449,5 cc |
| Fuel tank capacity | 12 liters |
| Oil tank capacity | 1.4 liters |
| Battery power | 12V - 28Ah |
| Air filtration | Dual filter |
| Drive | Rear |
| Differential lock | 100% connectable |
| Driving speed | 0-7 km/h (forward) / 0-5 km/h (reverse) |

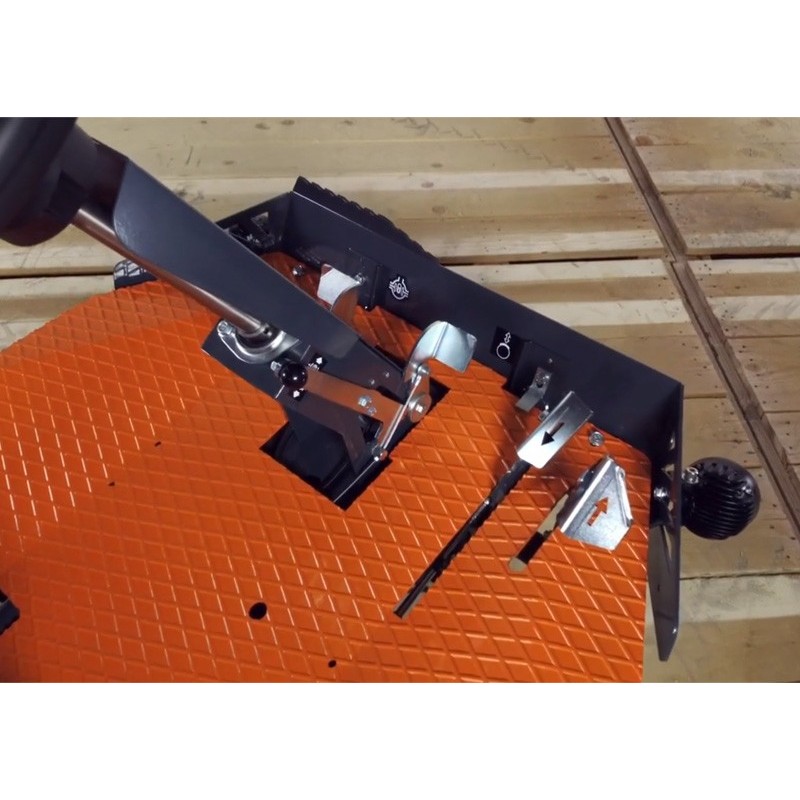

| Gear control | Double pedal for forward and reverse |
| Differential lock activation | Front pedal |
| Front wheels | 4.00 - 8" agricultural profile (AS) |
| Rear wheels | 17.00-7" drive |
| Steering | Rack and pinion |

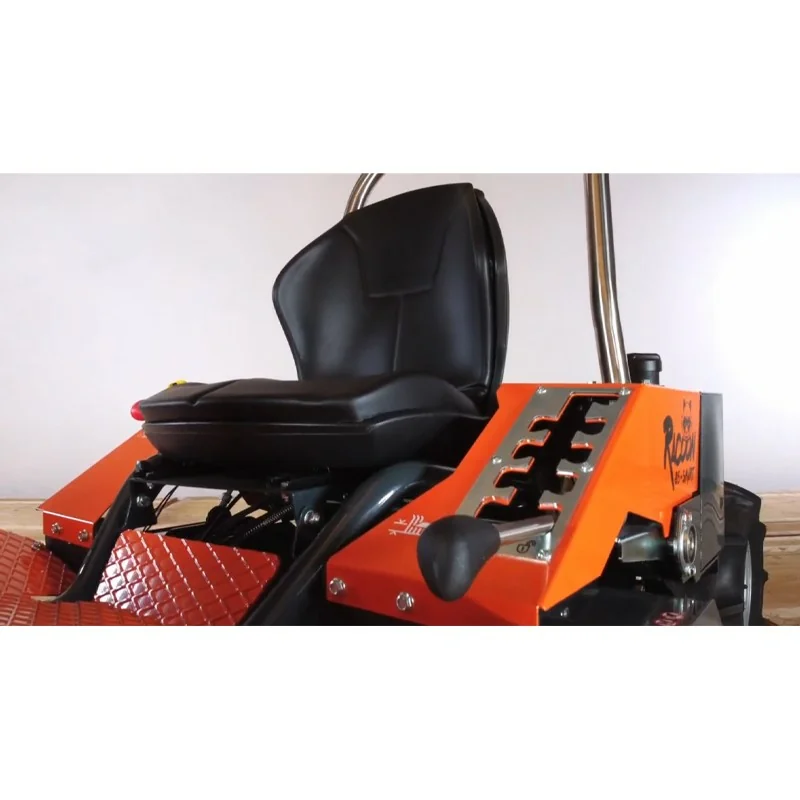

| Seat | Standard |
| Service brake | Hydrostatic |
| Parking brake | Brake pedal lock |
| Cutting width | 85 cm |
| Number of blades | 48 blades type Y |
| Blade drive | Electromagnetic clutch and V-belt type B |
| Blade stop | EMC electric clutch |

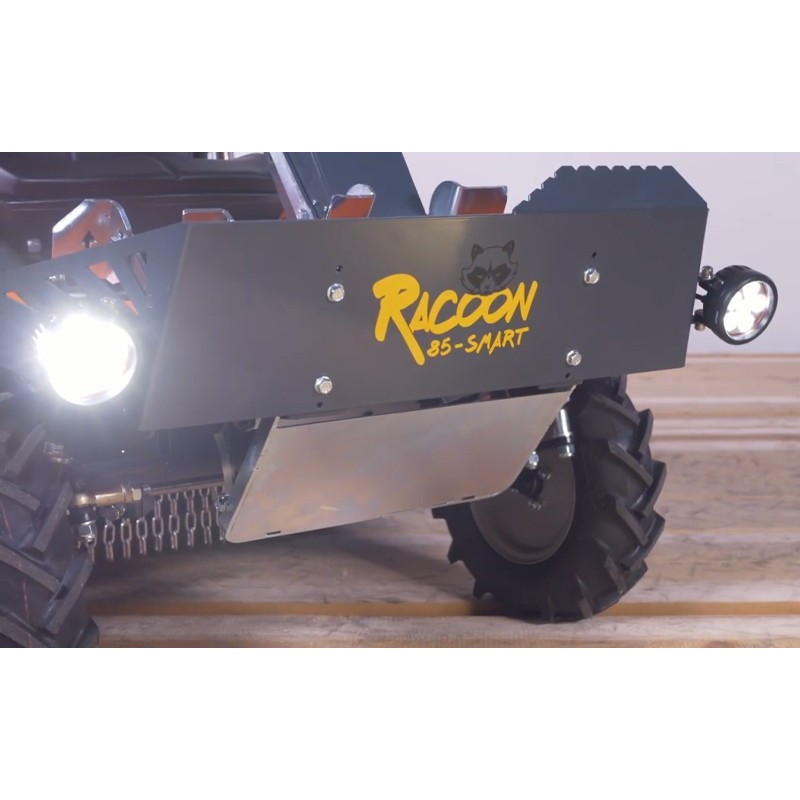

| Protection system | Front chains and rear rubber tarpaulin |
| Cutting height | 30-90 mm (4 fixed and 6 floating positions) |
| Dimensions | 200 x 105 x 110 cm |
| Distance between axles | 135 cm |
| Weight | 306 kg |
| Tie-down points | 2 front and 2 rear |
| Crane eyelet | 3 points (1 front and 2 rear) |
| IMPORTANT NOTICE |
| It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
