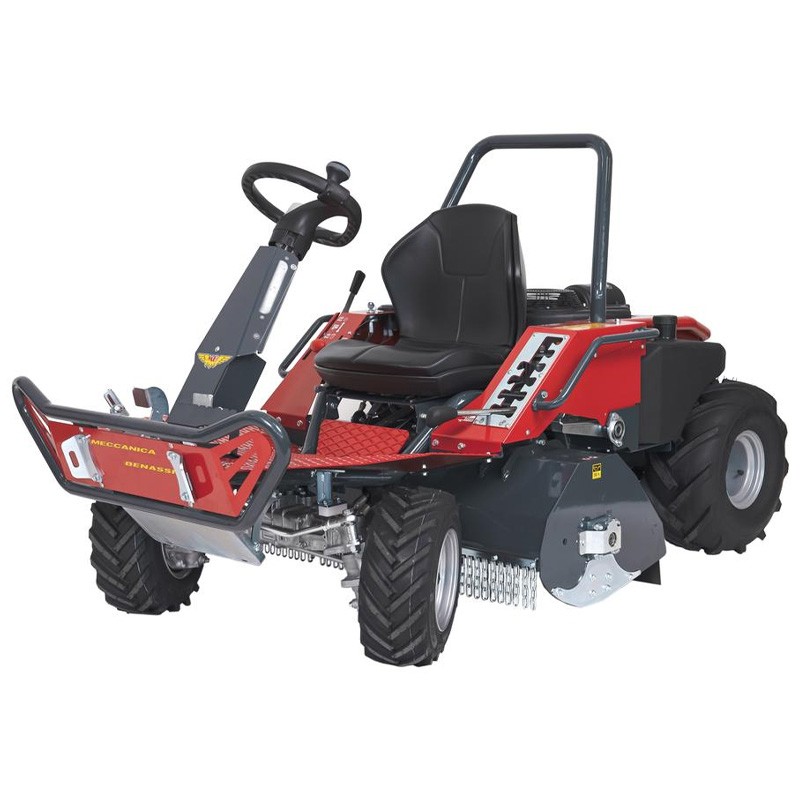

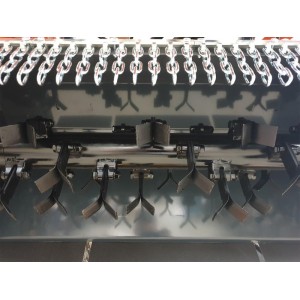

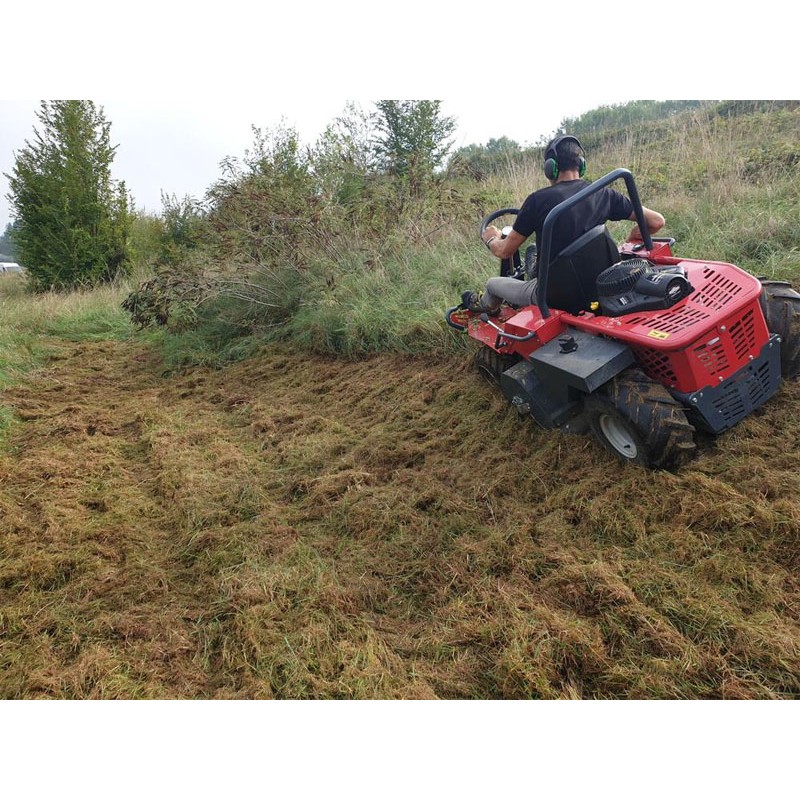

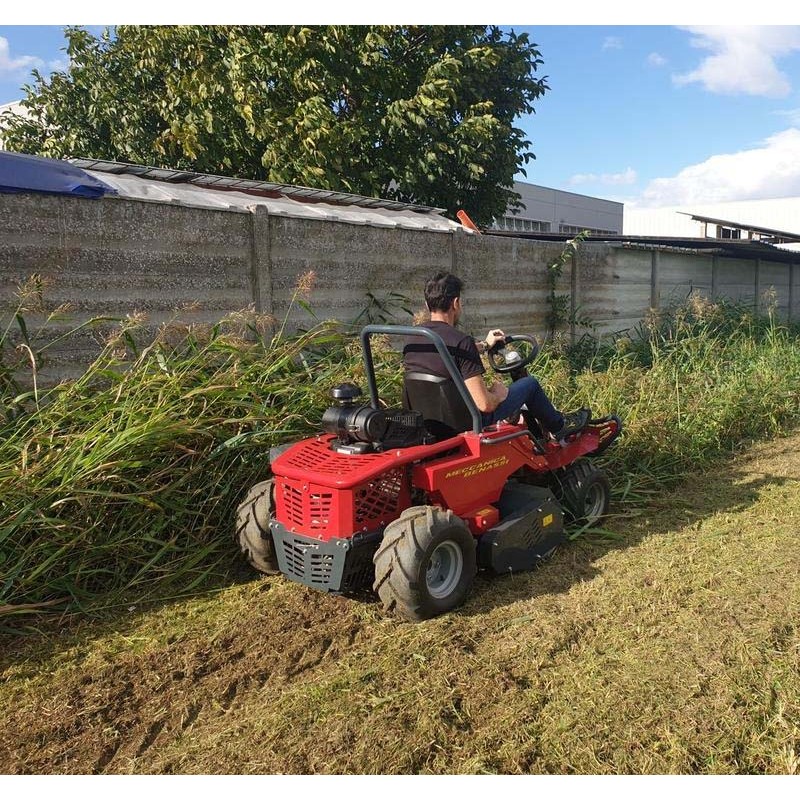

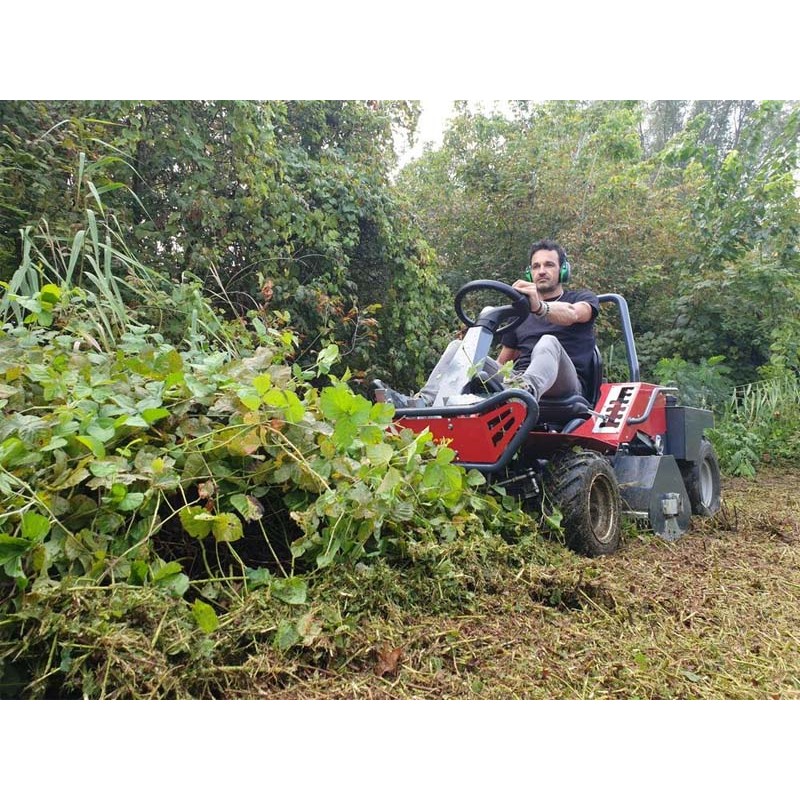

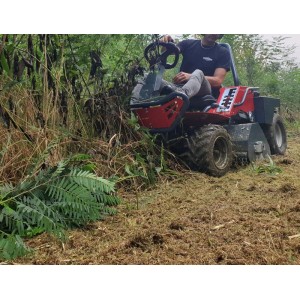

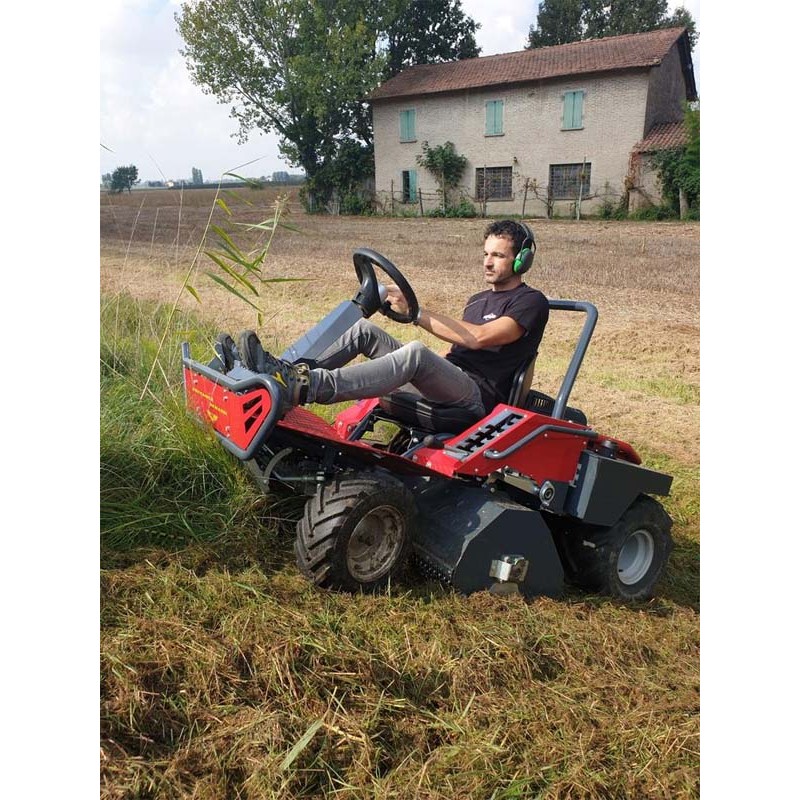

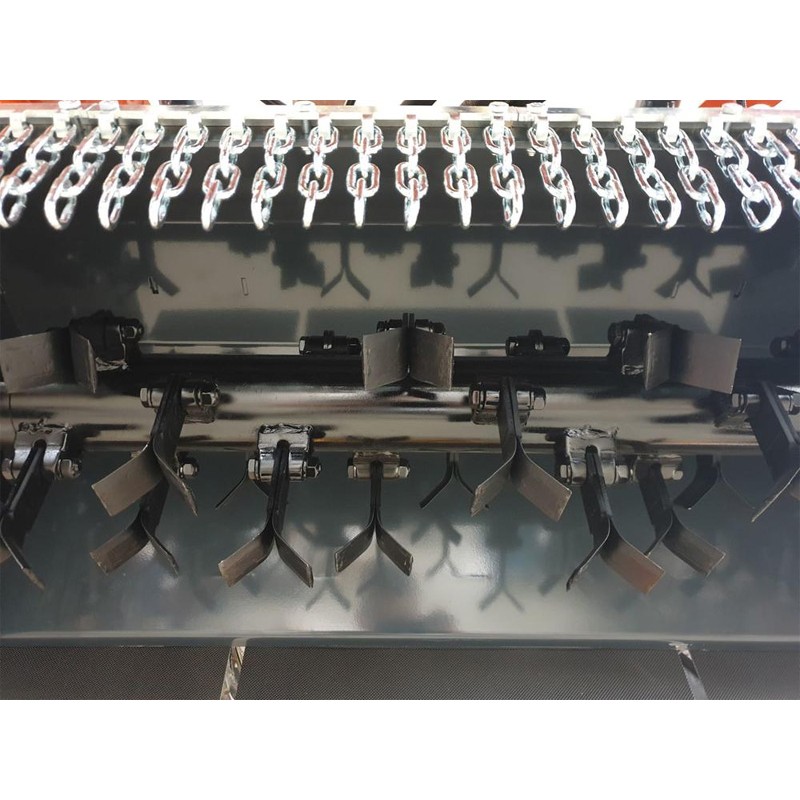

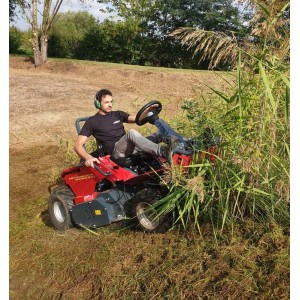

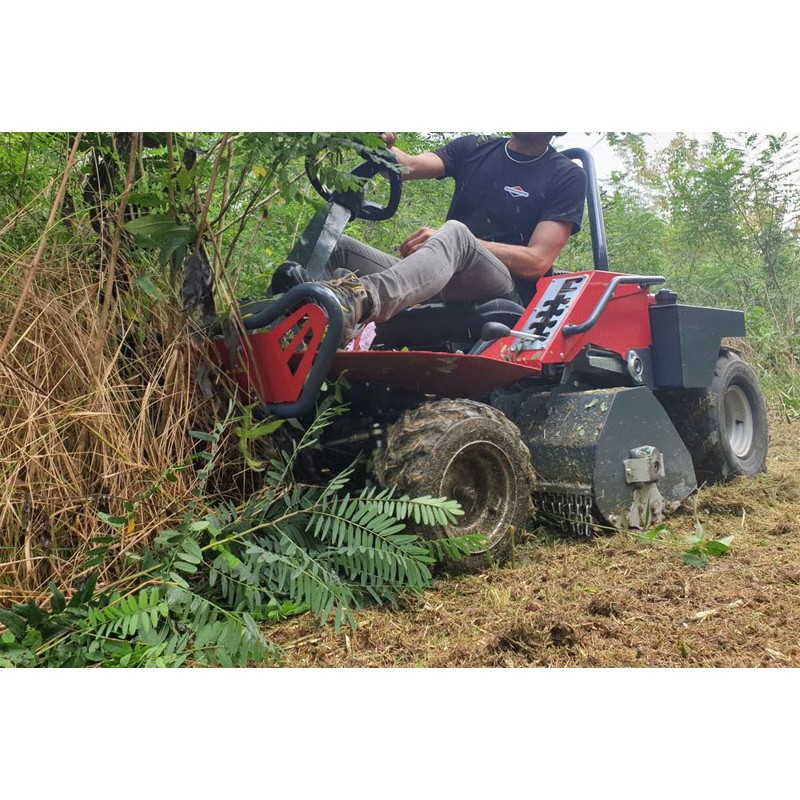

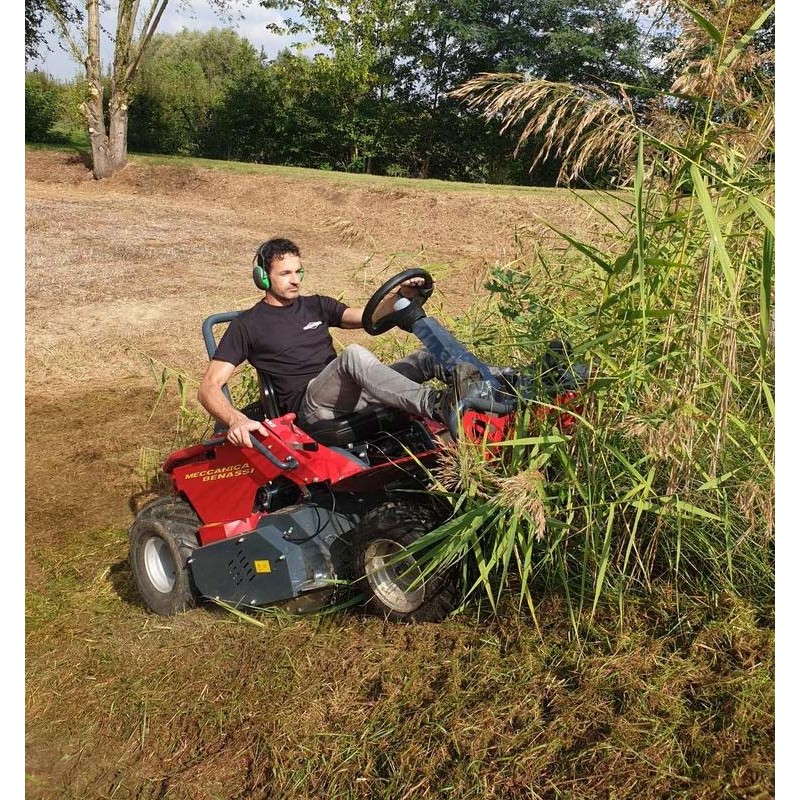

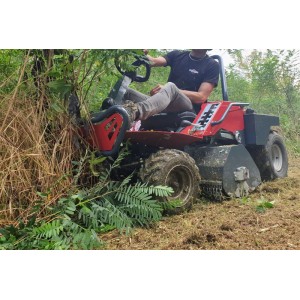

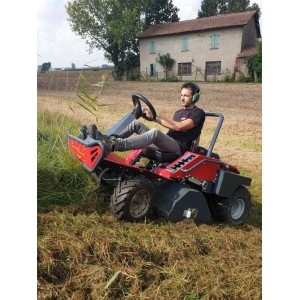

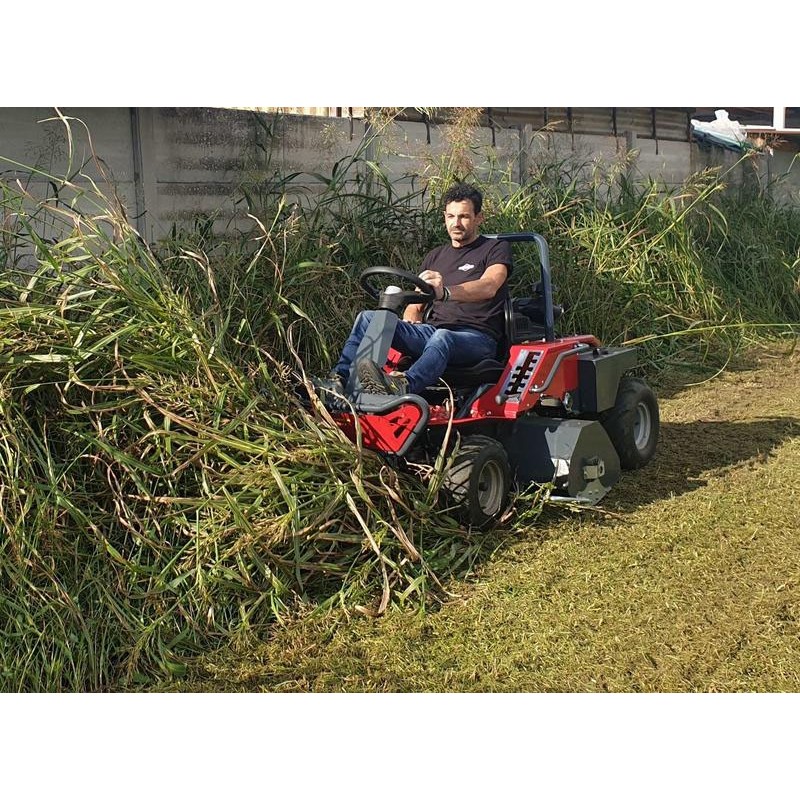

The Fox 95 4WD is a compact and very stable brushcutter tractor that works where others can't reach. With 95 cm of cutting and 52 blades it cleans tall grass and weeds with a uniform finish. The platform supports fixed and floating positions to follow the ground and maintain the height between 30 and 92 mm.

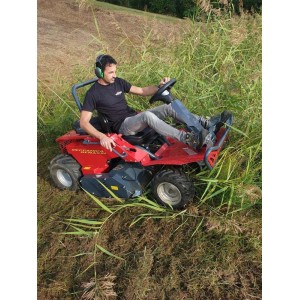

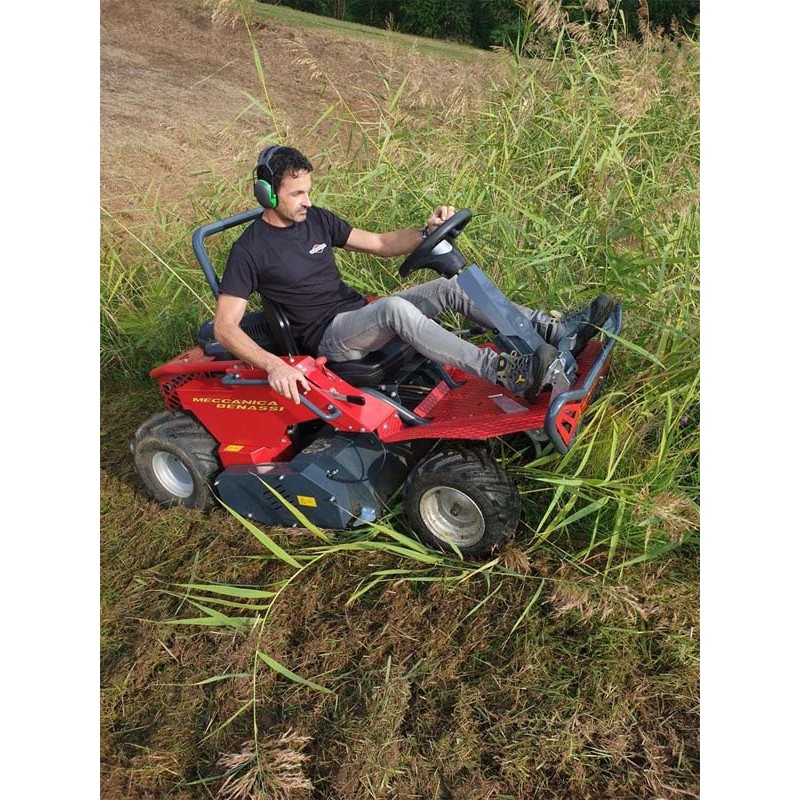

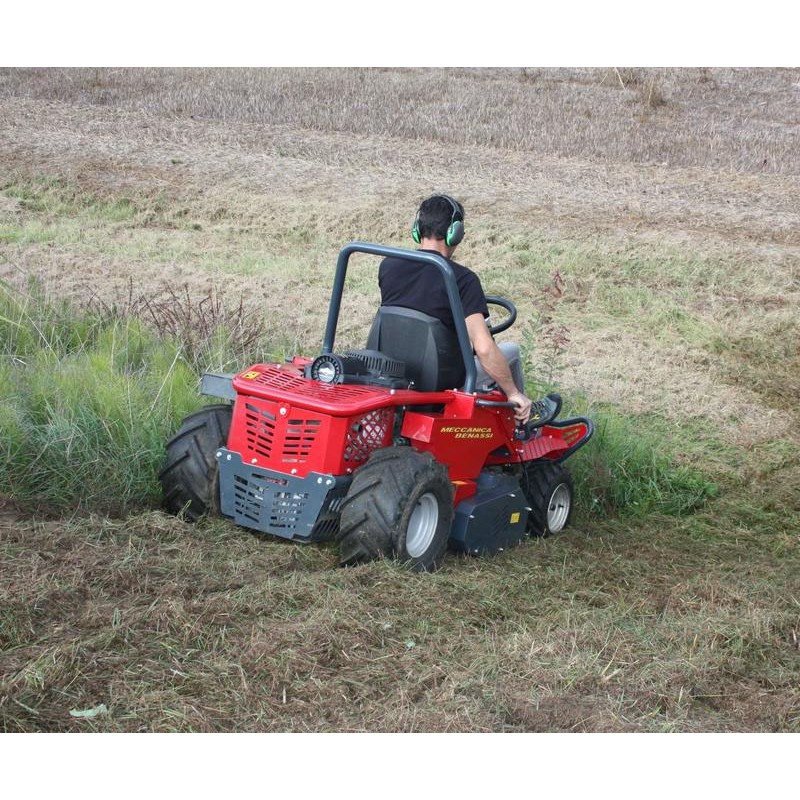

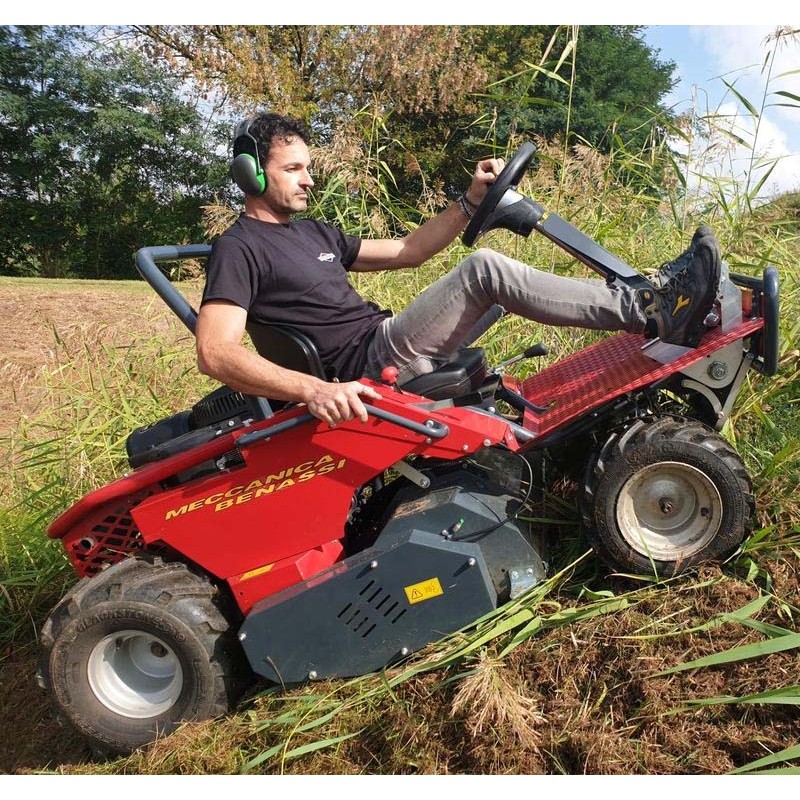

Moves with ease on slopes and uneven ground thanks to the permanent all-wheel drive. Combines Kanzaki front and Tuff Torq rear drives for continuous thrust and easy handling. The low chassis, wide wheels and weight distribution provide safety on slopes.
Briggs & Stratton Commercial 724 cc engine delivers 21.6 HP with cyclonic filter for extended maintenance. The 13.2 liter tank provides good range, reliable starting and easy service belt drive. The driving position is spacious and the seat is at a comfortable height for long days.

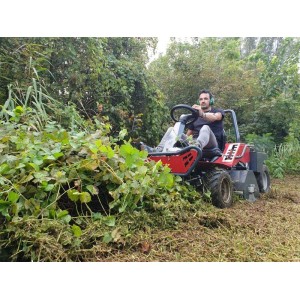

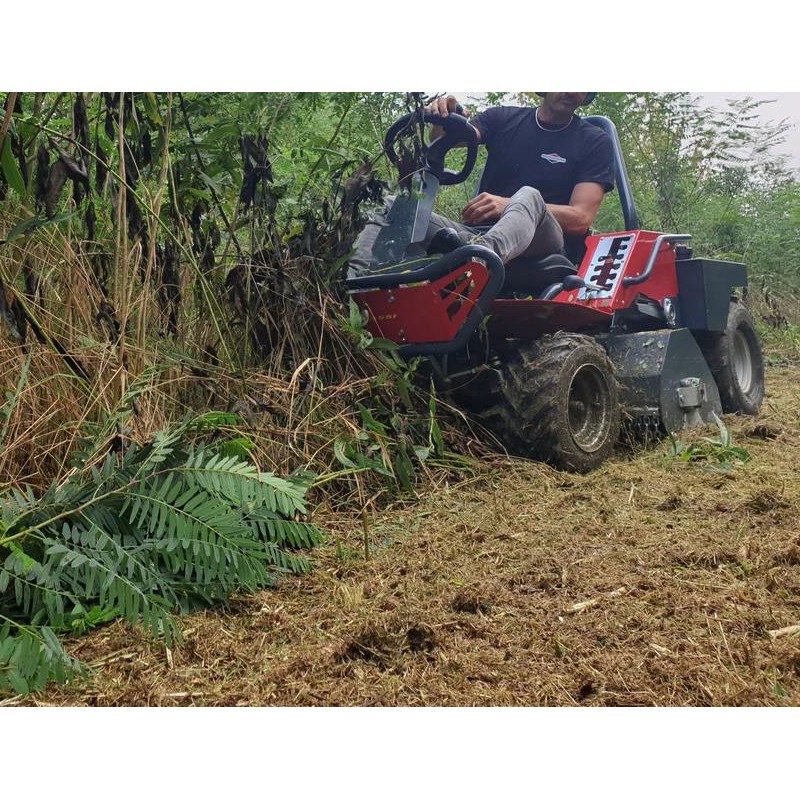

Designed for municipalities, farms and landscaping that need performance on slopes, shoulders and meadows with dense vegetation. Compact for moving through trees and rugged for year-round operation.
| Engine | |
| Brand | Briggs & Stratton |
| Displacement | 724 cc |
| Power | 21.6 hp (15.90 kW) |
| Revolutions | 3400 rpm |
| Oil tank capacity | 1,5 L |
| Air filter | Cyclonic |
| Battery | 12 V - 28 Ah |
| Cutting and blades | |
| Cutting height | 30-92 mm |
| Cutting width | 95 cm |
| Cutting diameter | 312 mm |
| No. of blades | 52 |
| Cutting position | 4 fixed, 6 swinging/floating |
| Transmission and traction | |
| Drive | 4WD permanent |
| Transmission | Belt |
| Front transmission | Kanzaki KXH-10N |
| Rear Transmission | Tuff Torq K-664E |
| Wheels | |
| Front wheels | 16x6,50-8 |
| Rear wheels | 20x10-8 |
| Dimensions | |
| Outer width | 1120 mm |
| Height | 1212 mm |
| Length | 2020 mm |
| Distance between axles | 1350 mm |
| Height seat position | 662 mm |
| Distance between front wheels | 970 mm |
| Distance between rear wheels | 1025 mm |
| Capacities and weight | |
| Fuel tank | 13,2 L |
| Weight | 388 kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
