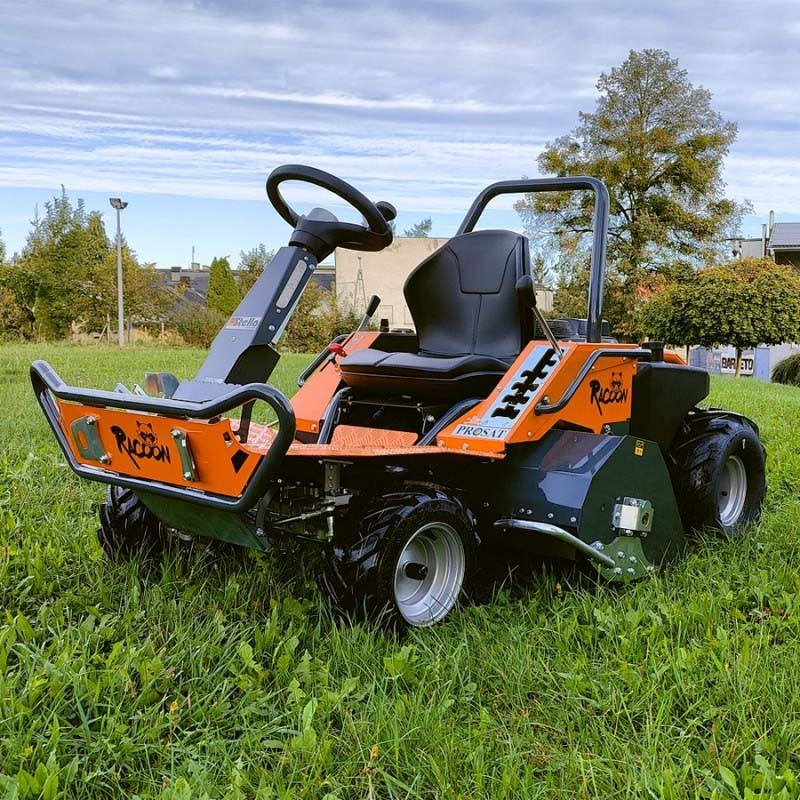

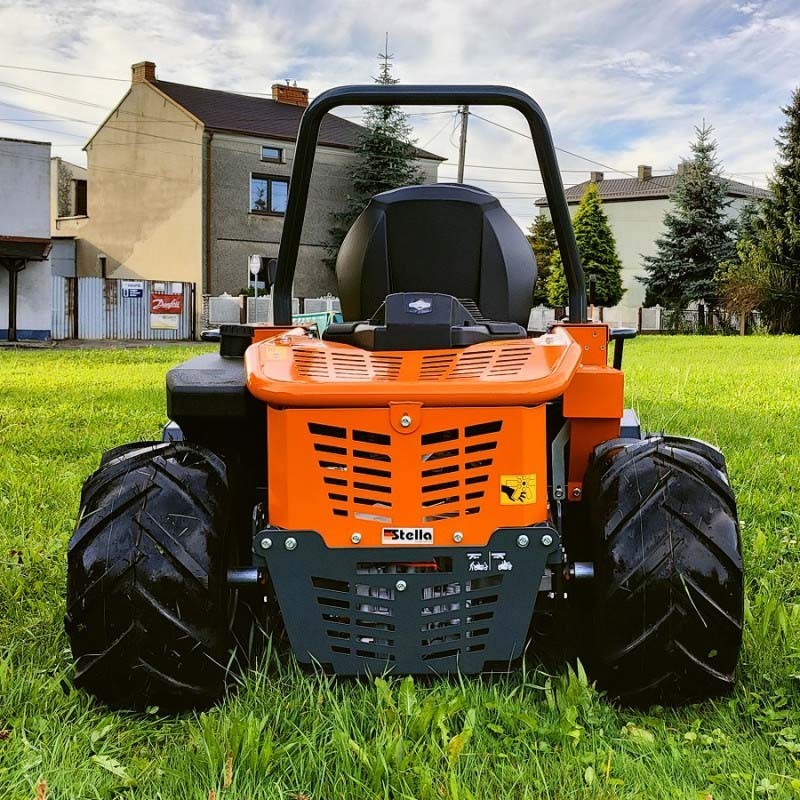

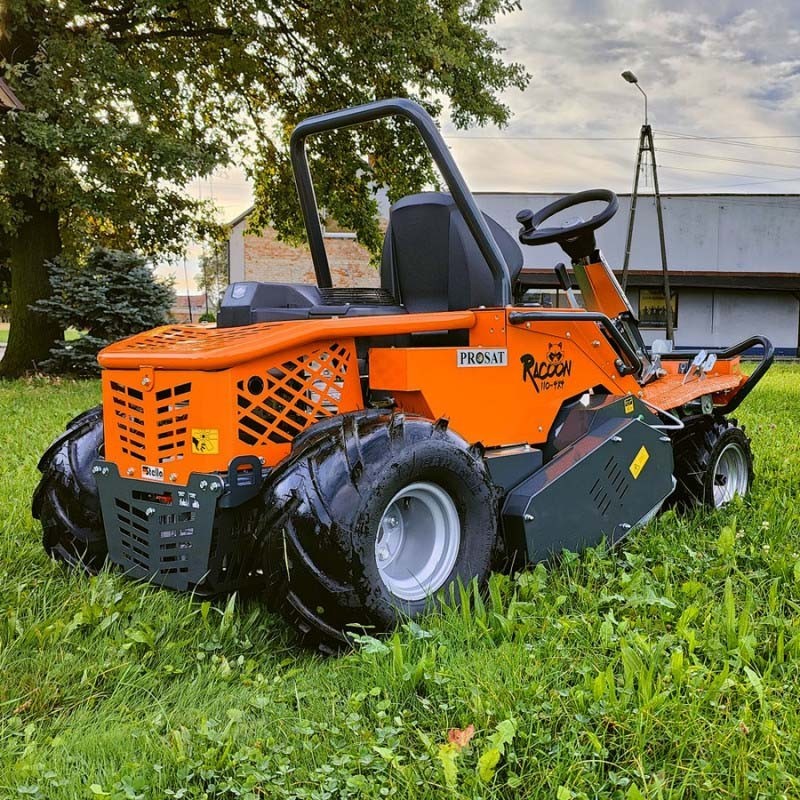

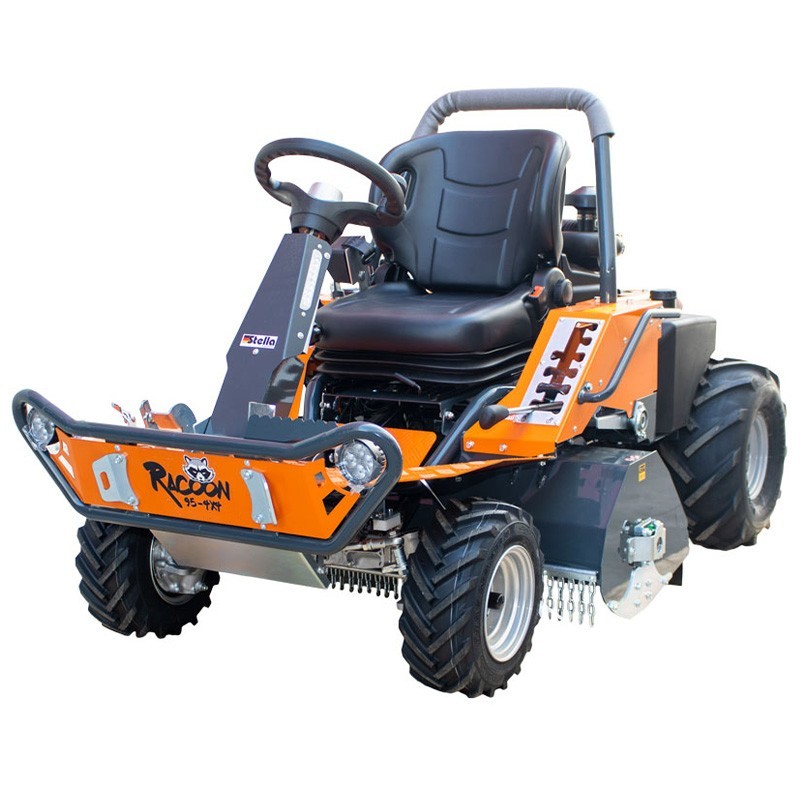

The Stella Racoon 4x4 brushcutter is a versatile and robust machine, designed to work in difficult terrain and dense vegetation. Thanks to its all-wheel drive and connectable differential lock, it offers exceptional grip on slopes, muddy areas or uneven surfaces, ensuring efficient and safe cutting at all times.
Available in two versions, with cutting widths of 95 and 110 cm, the Stella Racoon 4x4 adapts to different brushcutting needs. Its Y-type blade system and powerful 25 hp twin-cylinder engine ensure optimum performance on large areas, reducing working times even in demanding conditions.
This brushcutter tractor combines maneuverability and power, with intuitive dual-pedal control and a height-adjustable cutting system. It also incorporates front and rear protection for added safety, making it the ideal choice for forestry, agricultural or municipal work requiring efficiency and durability.

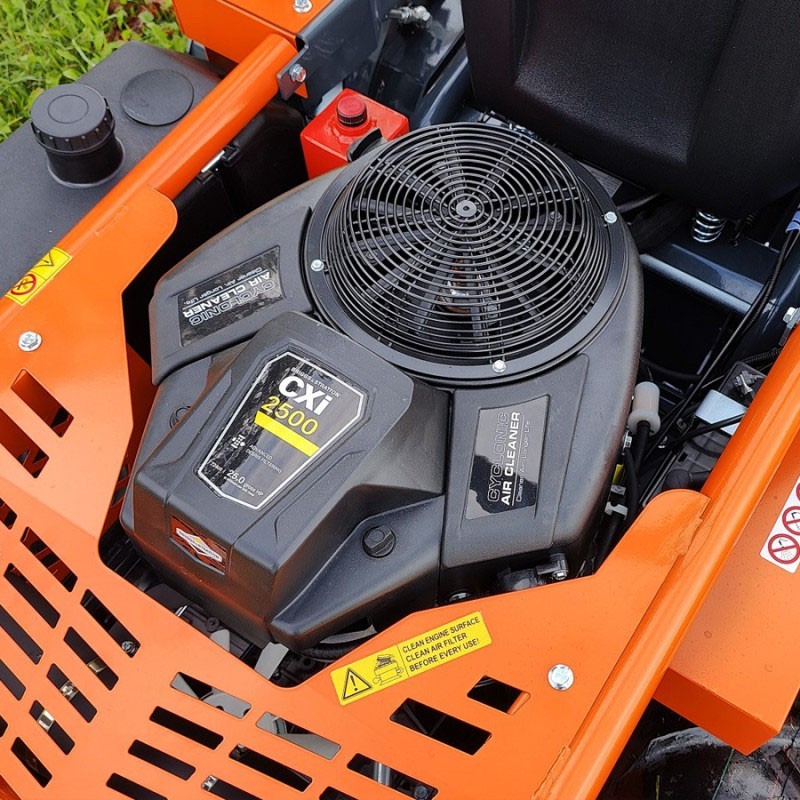

| Engine | B&S 2-cylinder 8-44C8 Series |
| Power | 25 HP |
| Displacement | 724 cc |
| Fuel tank capacity | 18 liters |
| Oil tank capacity | 1.9 liters |
| Battery power | 12V - 28Ah |
| Air filtration | Professional cyclone filter |
| Drive | Four-wheel drive |
| Differential lock | 100% connectable |
| Driving speed | 0-8 km/h (forward) / 0-6 km/h (reverse) |
| Gear control | Double pedal for forward and reverse |
| Differential lock activation | Front pedal |
| Front wheels | AS tires 16x6,50-8″ AS tires 16x6,50-8″ AS wheels |
| Rear wheels | AS 20x10-8" tires |

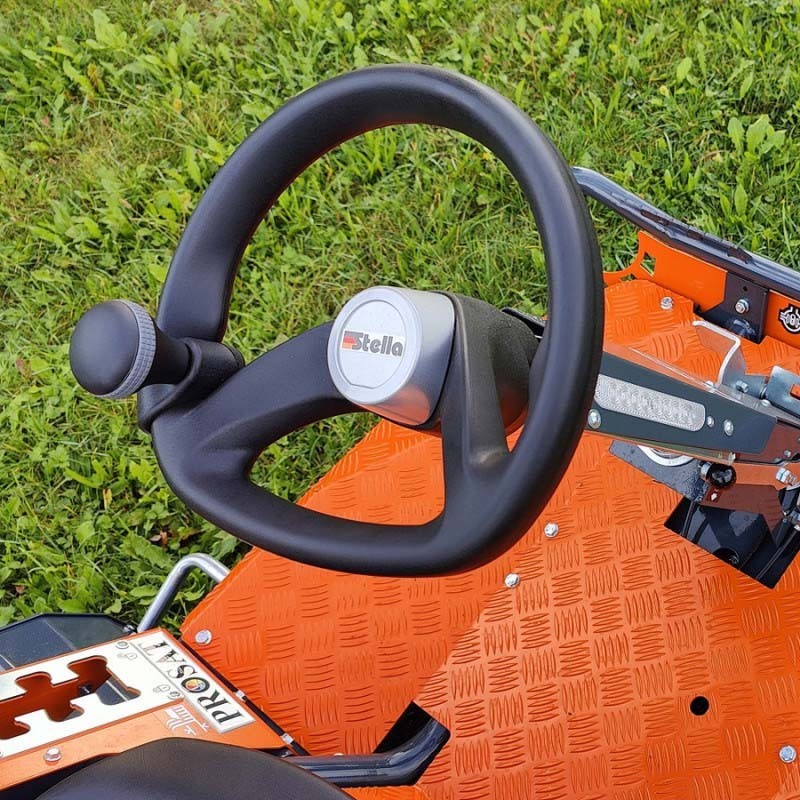

| Steering | Rack and pinion |
| Seat | Standard |
| Service Brake | Through all-wheel drive front-wheel drive. |
| Parking brake | Brake pedal lock |
| Cutting width | 95 / 110 cm |
| Number of Y-type blades | 52 / 60 blades |
| Drive | V-belt with connectable blade clutch |
| Blade stop | Automatic band brake at switch off |
| Protection system | Front chains and rear rubber tarpaulin |

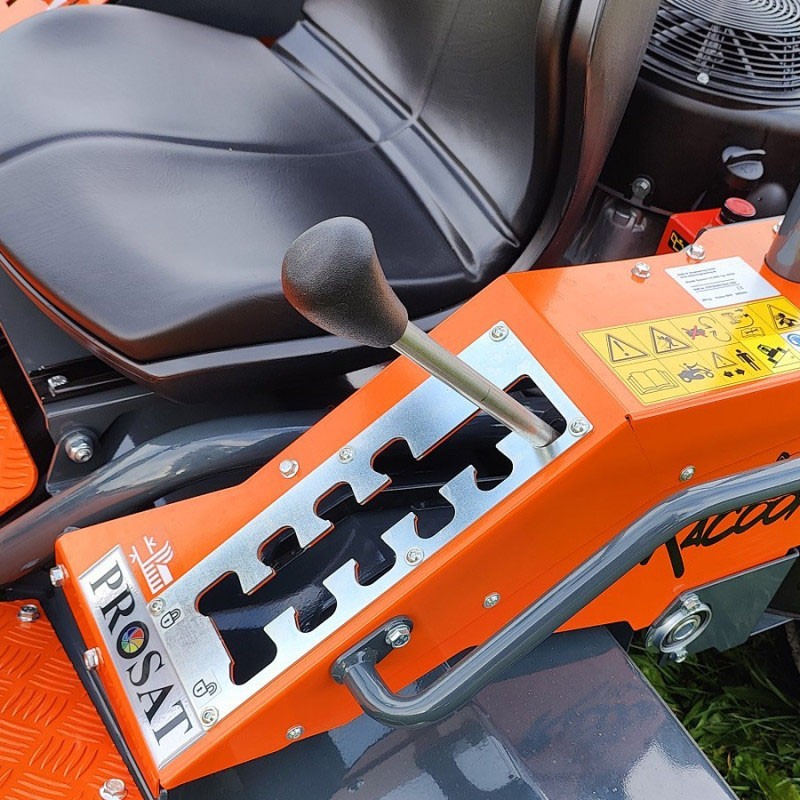

| Cutting height | 30-90 mm (4 fixed and 6 floating positions) |
| Dimensions | 220 x 111/126 x 121 cm |
| Distance between axles | 135 cm |
| Weight | 376 / 380 kg |
| Tie-down points | 2 front and 2 rear |
| Crane eyelet | 3 points (1 front and 2 rear) |
| IMPORTANT NOTICE |
| It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
