Branch shredder for tractor Zeppelin ESTRF3045Z 180 mm
- Cutting diameter: 180 mm
- Power requirement: 30-45 Hp
- Blades: 2+2
- Weight: 440 kg
CARDAN SHAFT INCLUDED
€3,265.17 VAT incl.
Assembly and set-up INCLUDED |

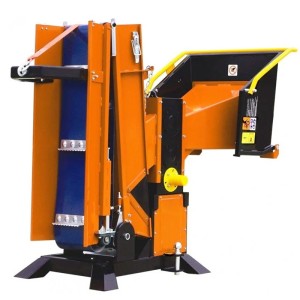

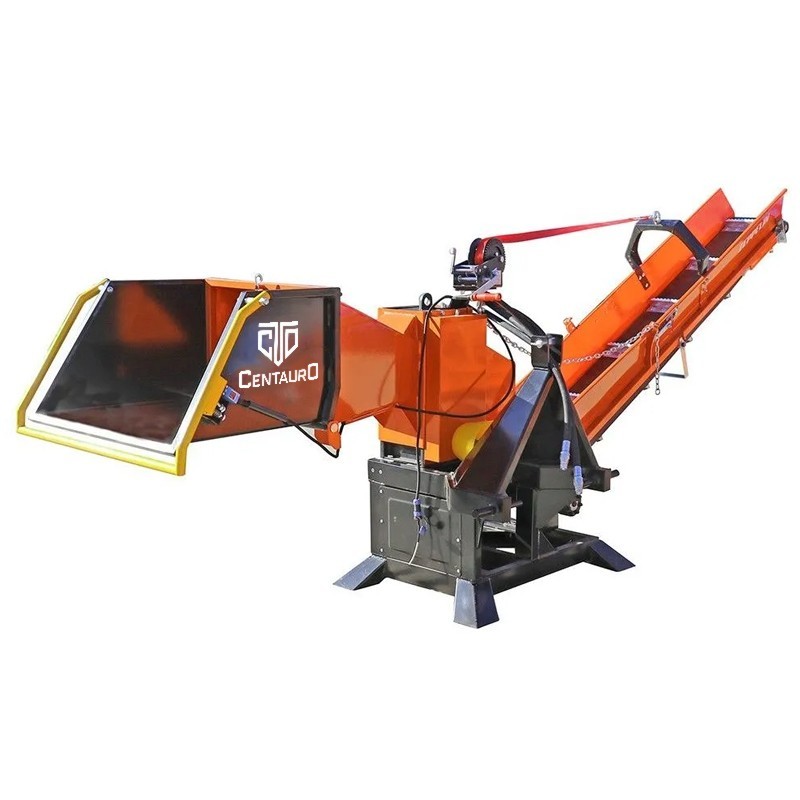

The PTO Saw Centauro Villanueva is a robust and efficient machine, designed for cutting logs and branches in agricultural and forestry operations. With an internal cutting width of 180 mm and a double drive shaft system, it allows cutting logs up to 11 cm in diameter in soft or hard wood.

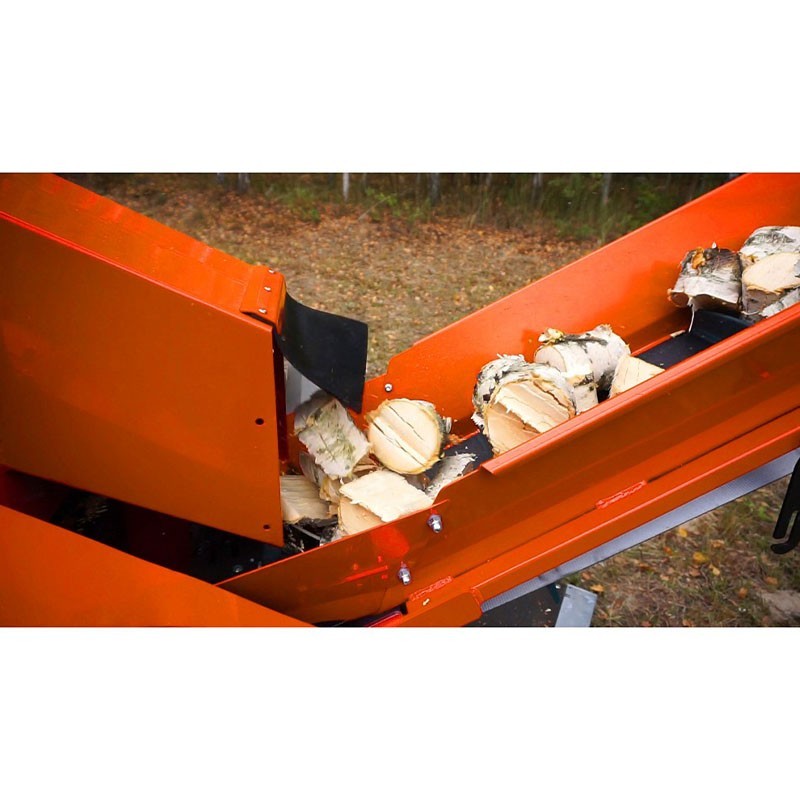

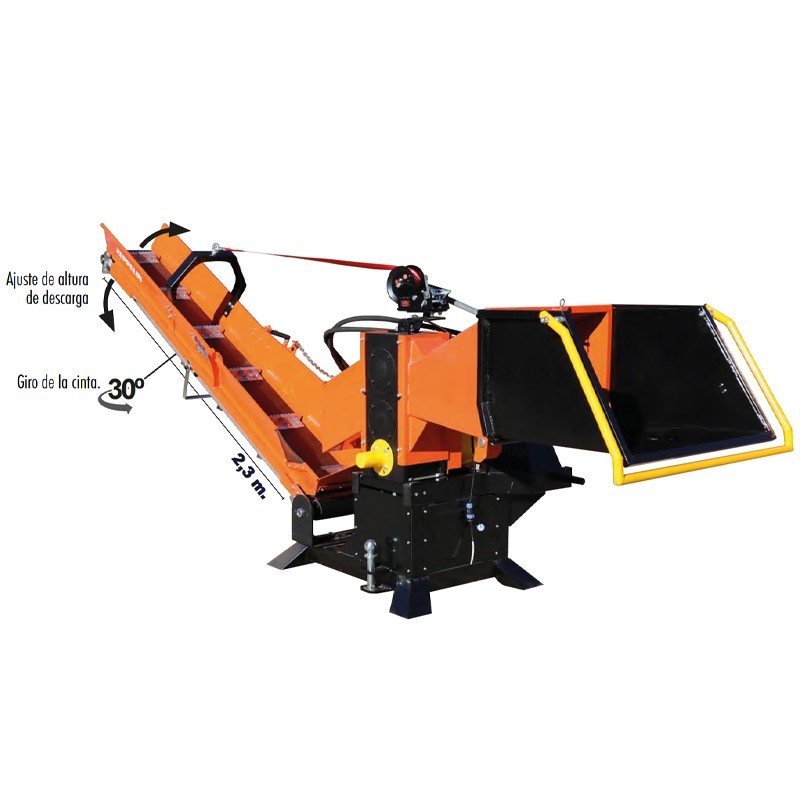

Equipped with 8 adjustable blades, the saw offers a cutting length of 5-10 cm, ideal for achieving precise results. Its height-adjustable conveyor belt with a 30º rotation facilitates handling and unloading of material.
Compatible with three-point hitch I and II CAT, this saw requires a power of 25 to 35 Hp and a recommended speed of 540 rpm for optimal performance.
Work efficiency | 10 - 11 m3/hour |
Maximum length of cut log | 10 cm |
Conveyor belt length | 2.3 m |
Maximum log diameter | 11 cm |
Number of Blades | 4 + 4 |
Log length with 8 blades | 5-10 cm |
Required power | 25/35 Hp |
Recommended PTO speed | 540 rpm |
Maximum cutting diameter for dry hard wood | 90 mm |
Maximum cutting diameter for fresh hard wood | 100 mm |
Maximum cutting diameter for fresh soft wood | 110 mm |
Internal cutting width | 180 mm |
Cutter | Hadox steel type 500 |
Hopper | 620-380 mm |
Three-point hitch | I and II cat. |
Weight | 310 kg |
IMPORTANT NOTICES |
It is mandatory for the customer to check oil and grease levels before starting. If the merchandise cannot be checked at the time of receipt, it must be indicated on the carrier's sheet that the customer agrees pending examination. |
