Branch shredder for tractor Negri R335TPN 160mm
Branch shredder for tractor Negri R335TPN hopper
Branch shredder for tractor Negri R335TPN

Branch shredder for tractor Negri R335TPN


  • Resharpenable blades
  • Knives and hammers rotor
  • Required power: 40 HP
  • Weight: 800 Kg
En stock
icon Power Supply
Power Supply
PTO tractor
icon Tractor power
Tractor power
minimum 40 HP
icon Cutting rotor type
Cutting rotor type
Blades + hammers
icon Number of blades
Number of blades
6
icon Hammers
Hammers
22
icon Max branch diameter
Max branch diameter
160 mm
icon Number of hoppers
Number of hoppers
1 hopper
icon Safety switch
Safety switch
Yes
icon Transmission type
Transmission type
Belts
icon Drag rotors
Drag rotors
1 Drive rotor
icon Nostress System
Nostress System
Yes
icon Power Supply hydraulics
Power Supply hydraulics
Self-powered
icon Lever of
Lever of
Security
icon Crushing opening
Crushing opening
390 x 160mm
icon ✔️
✔️
Inverted roller rotation
icon ✔️
✔️
High output
icon Chimney rotation
Chimney rotation
Yes
icon Country of manufacture
Country of manufacture
Italy
€16,261.66 excl. VAT
- 4%
€15,611.19 excl. VAT
€18,889.55 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Branch shredder for tractor Negri R335TPN
€18,889.55
Qty

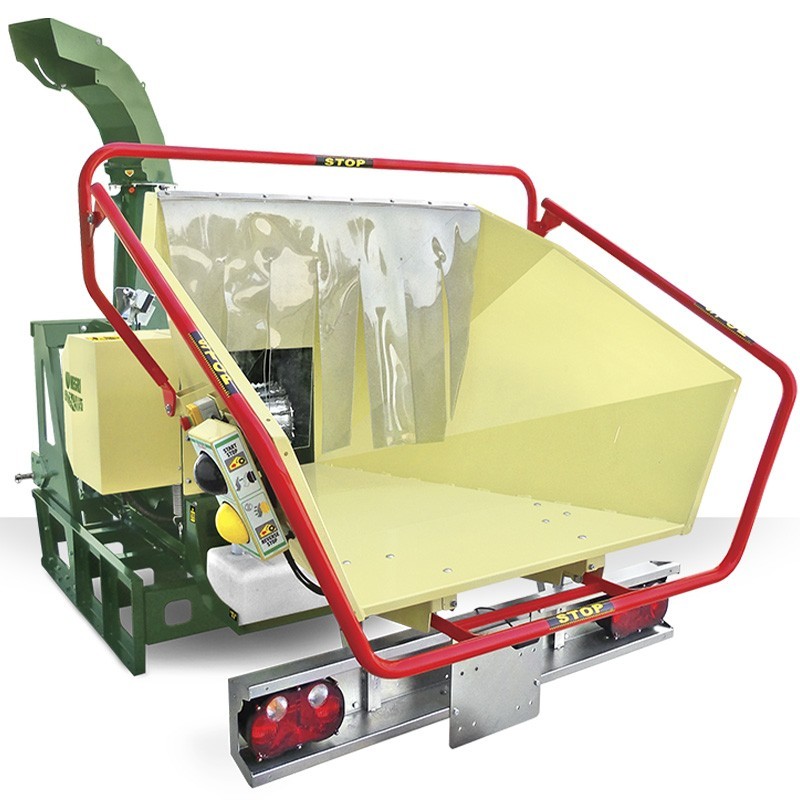

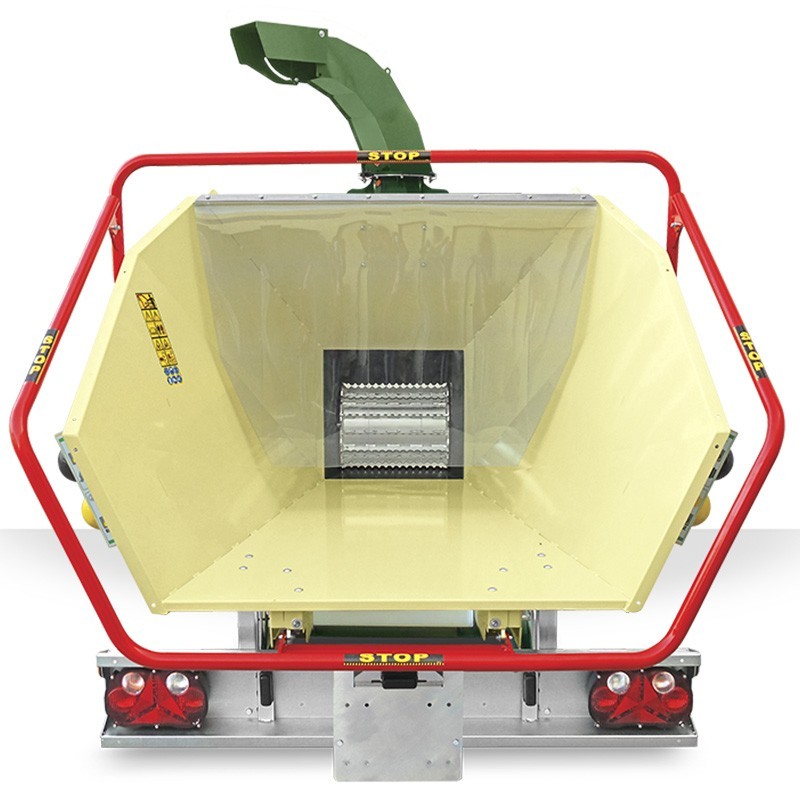

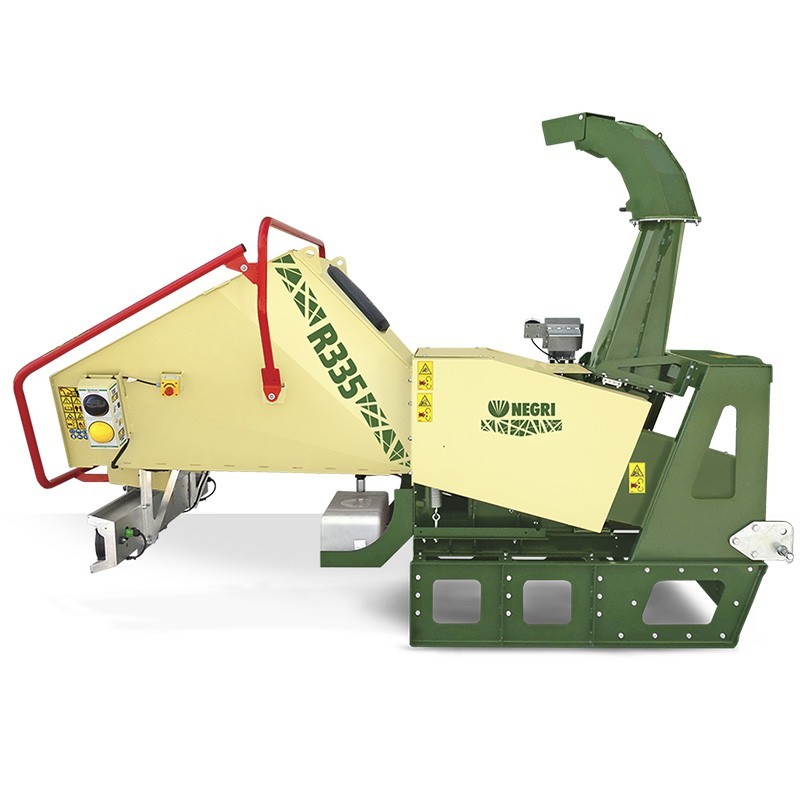

Tractor branch shredder Negri R335TPN

The Bio shredder for tractor Negri R335TPN with a design that includes resharpenable blades and reversible mobile hammers, allowing for easy maintenance and long service life.

The presence of a removable fixed refining screen ensures a consistent and quality end result, while the hydraulic roller adjustable in speed and direction of rotation guarantees efficient and controlled crushing.

In addition, its rotating launch tube with adjustable ejection depth and a large, comfortable hopper facilitate operation. The lubrication for bearings and the multifunctional OBS (On Board System) control with Nostress add value to the performance of this shredder.

With an hourly production capacity of between 15 and 20 m³/h and a crushing opening of 390 x 160 mm, this machine can handle branches up to 160 mm in diameter, offering efficiency and power in forestry or gardening work.

Features

ROTOR | Cuchillas + Martillos

ROTOR : Blades + Hammers
Cuchillas reafilables (acero templado)
Resharpenable blades (hardened steel)
Martillos móviles reversibles (acero templado)
Reversible mobile hammers (hardened steel)
Criba de refinación fija amovible

Removable fixed refining screen
Rodillo hidráulico regulable en velocidad
Hydraulic roller adjustable in speed and direction of rotation
Prolongación tubo de lanzamiento (400 mm)
Launching tube extension (400 mm)
Tubo de lanzamiento giratorio y con profundidad de expulsión regulable
Pivoting launching tube with adjustable depth of ejection
OBS - On Board System
OBS - On Board System (Multifunctional control system with Nostress)
Sistema de lubrificación para cojinetes
Lubrication system for bearings
Tolva amplia y cómoda

Large and comfortable hopper
Transmisión por correas con grupo multiplicador
Belt drive with multiplier group
Enganche tres puntos para tractor - Categoría 1/2
Three-point hitch for tractor - Category 1/2

Technical data

Cutting system
Blades 6 hardened steel
Hammers 22 mild steel
Features
Hourly production 15 - 20 m3/h
Crushing opening 390x160 mm
Crushable max. 160 mm
Driving force
Power > 40 / 29.5 hp/kw
Power Supply Three-point hitch
Technical specifications
Length 3120 mm
Width 1570 mm
Height 2320 mm
Discharge height 2320 mm
Introduction height 740 mm
Introduction opening 1340 x 860 mm
Crushing opening 390 x 160mm
Weight 800 kg

Chipper accessories Negri:

  • Launching tube extension (400 mm)
  • Cardan shaft with CE certified freewheel
