Branch Shredder for Tractor Geo Italy ECO16 130 mm
- Minimum tractor power 18 - 50 HP/13 - 37 kW
- Blades 4 + 1 counter blade
- Inlet tube with double 360 degree adjustment
- Maximum cutting diameter 13 cm
€1,868.27 VAT incl.

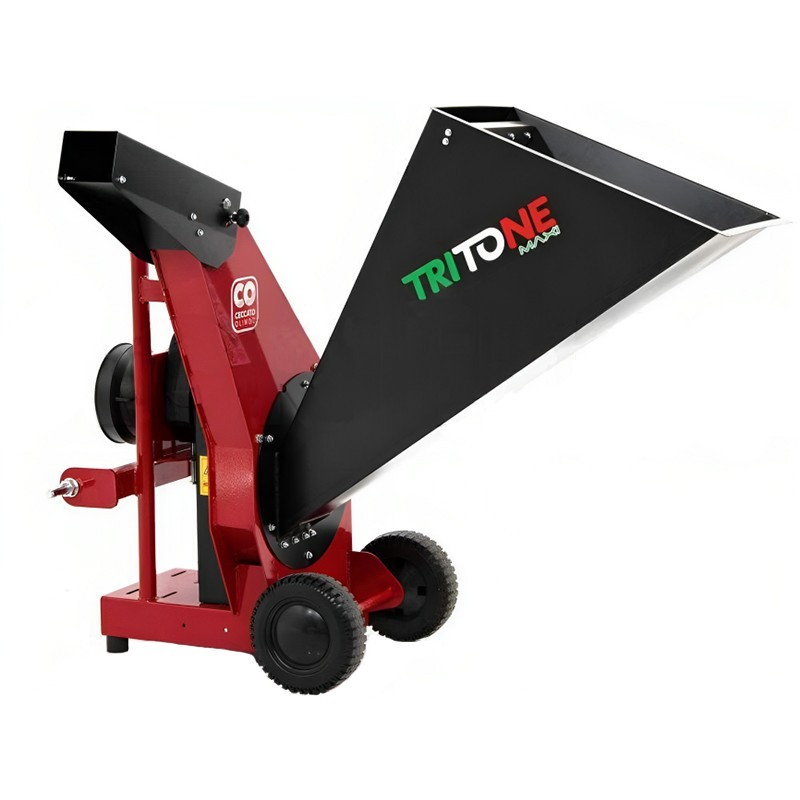

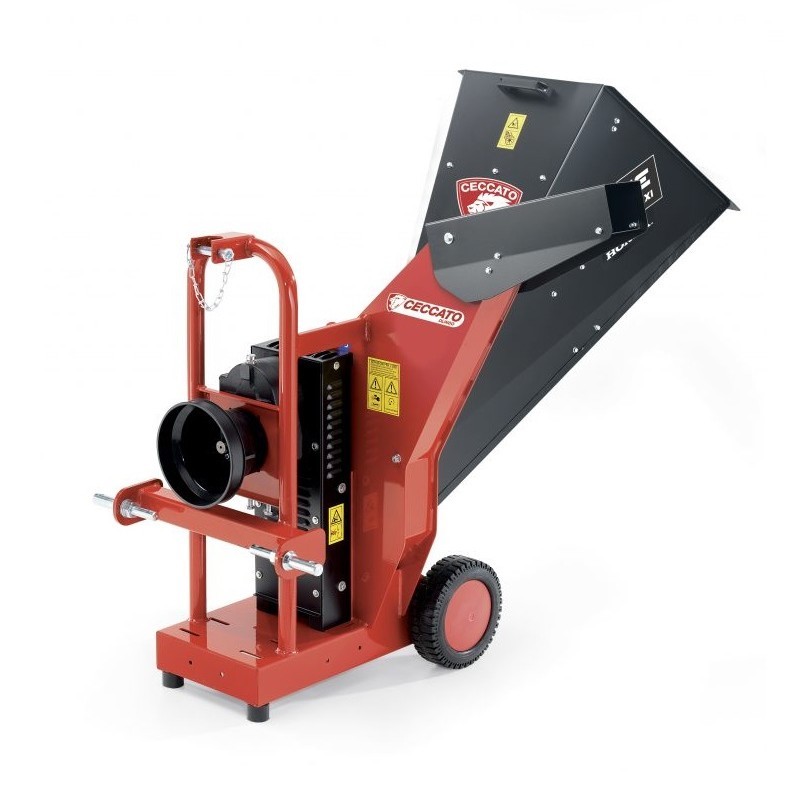

The PTO Bio Shredder Ceccato Olindo Tritone MAXI TDF G is a powerful tool for shredding branches, fed through the tractor PTO. With a hopper opening of 42 cm high and 65 cm wide, this machine can handle branches up to 50 mm in diameter.
Its belt drive system ensures efficient and reliable operation, with a minimum power requirement of 18 HP.
This bio shredder is equipped with a combined blade and hammer cutting rotor, consisting of 2 blades and 8 hammers, which ensures exceptional performance in material reduction.
In addition, it has a removable screen to control the size of the crushed fragments, allowing to obtain crushing dimensions between 20 and 30 mm. Its robust enameled steel construction guarantees durability and resistance, while the 2.50-4" rear wheels facilitate its mobility in different terrains.
Power supply | PTO |
Exhaust outlet | medium |
No. of hoppers | 1 |
Hopper opening height | 42 cm |
Hopper opening width | 65 cm |
Grid to reduce chunks | Yes (removable) |
Interchangeable strainer | Yes |
Min shredding size with screen | 1 сm |
Min. power | 18 HP |
Maximum branch diameter | 80 mm |
Transmission type | Belt drive |
Chassis material | Enameled steel |
Type of cutting rotor | Combination of blades and hammers |
No. of blades | 2 |
Counter knives | 2 |
No. of hammers | 8 |
Blade movement | rotary |
Grinding dimensions | 20 - 30 mm |
Chimney rotation | manual |
Wheels | 2.50 - 4 " rear wheels |
Product dimensions | 168 x 85 x 125 cm |
Net weight | 134 Kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
CARDAN SHAFT INCLUDED
