DELEKS Hydraulic Tractor Crane Model EL-300 16 - 45 HP

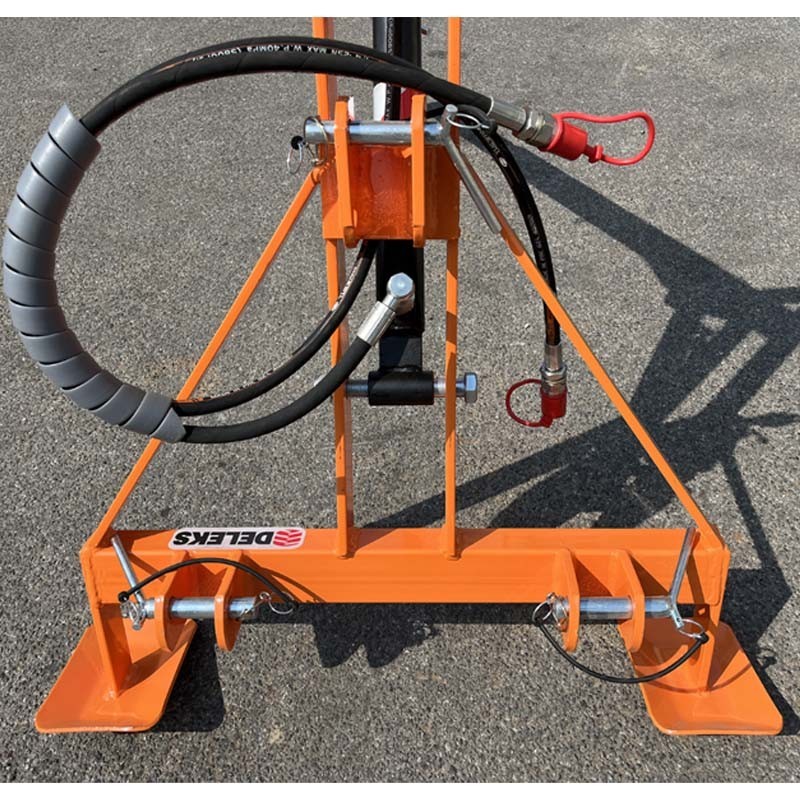

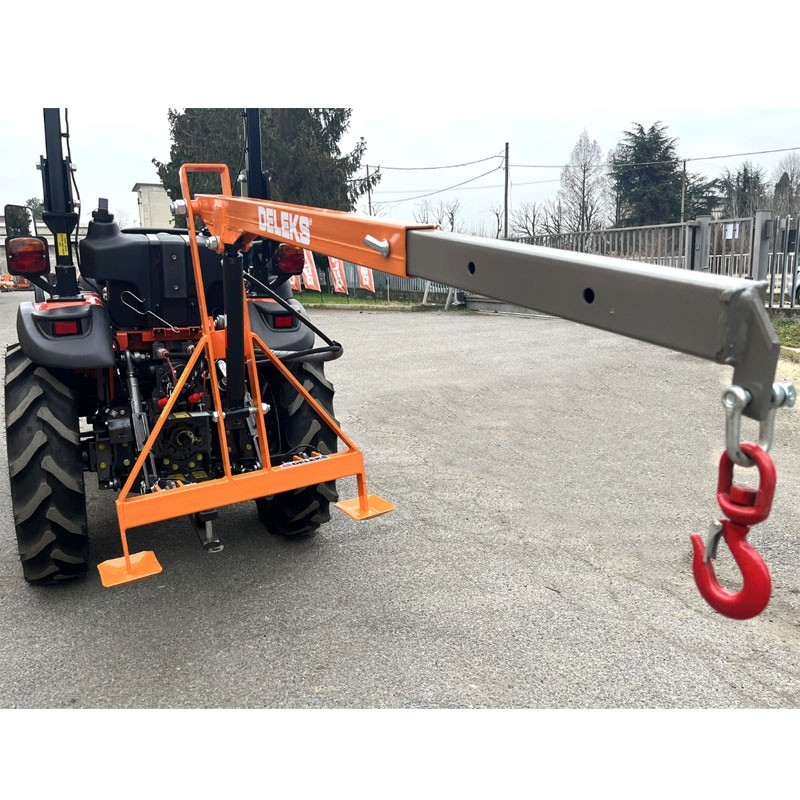

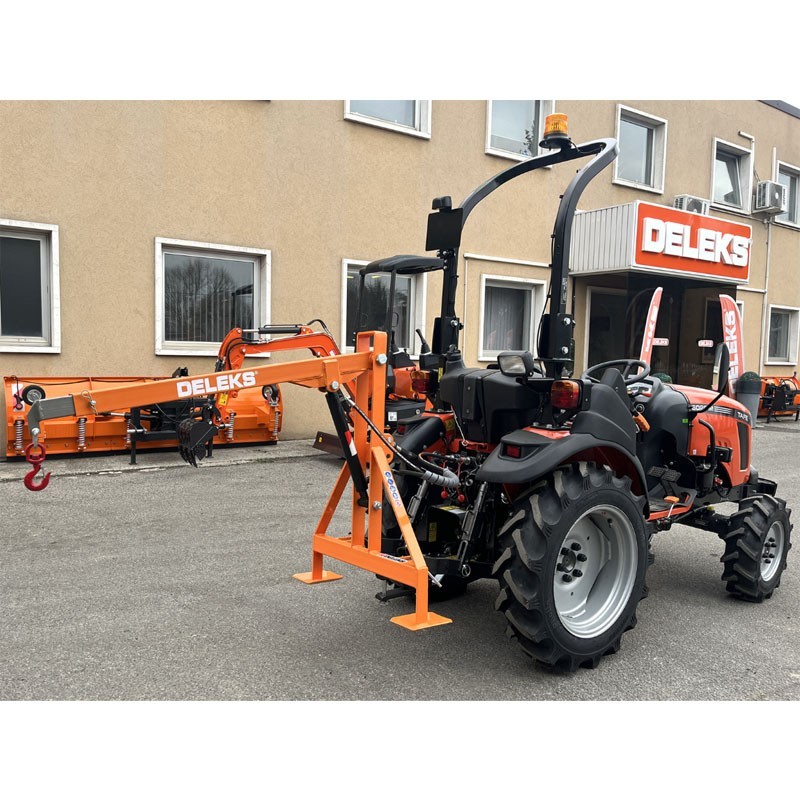

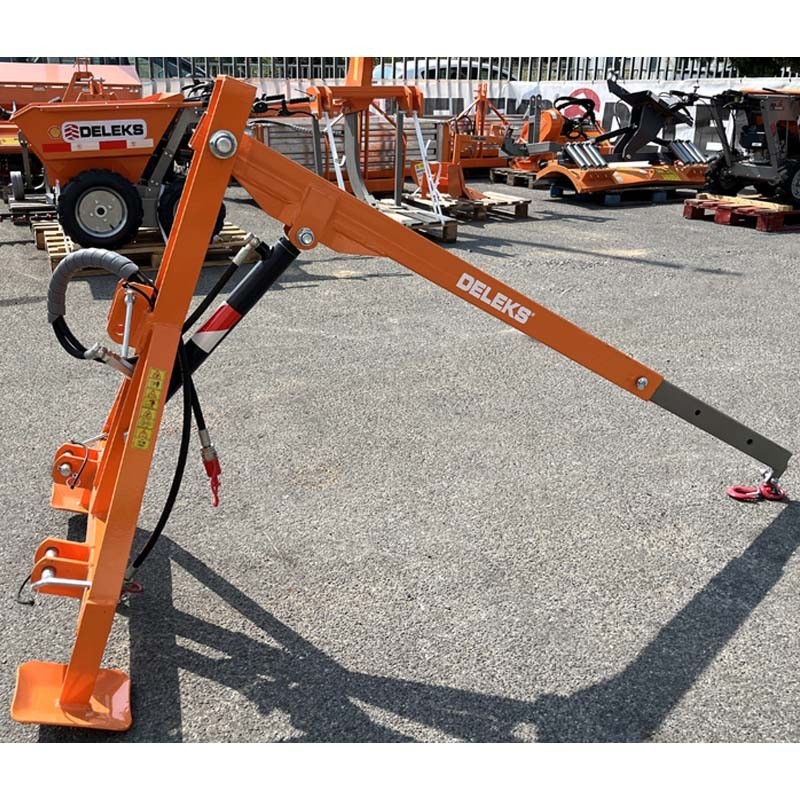

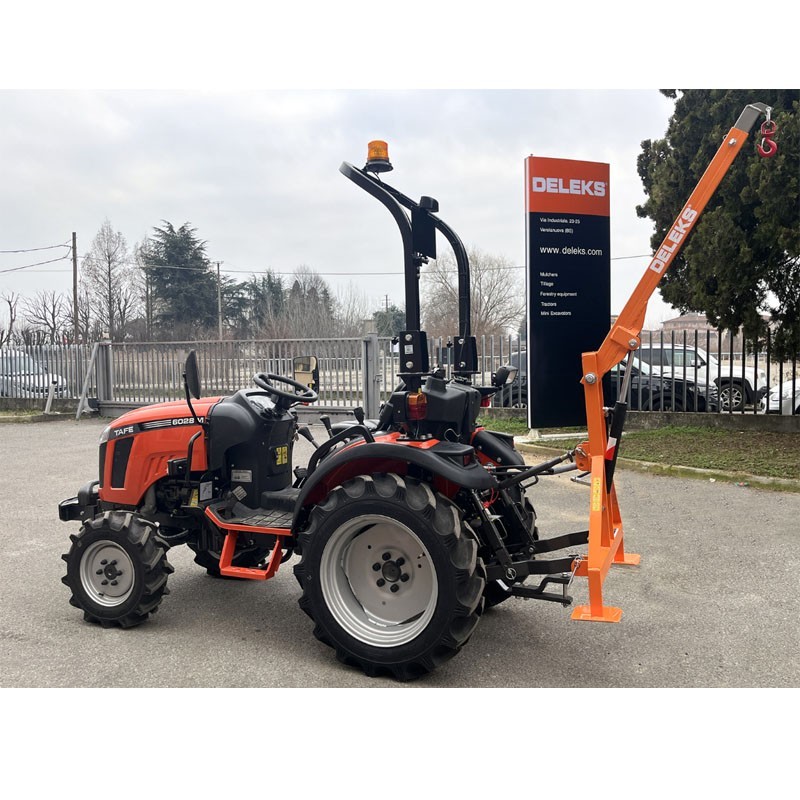

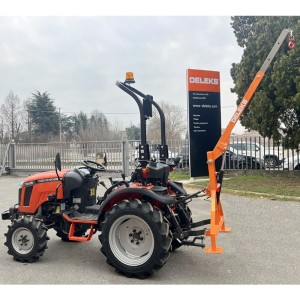

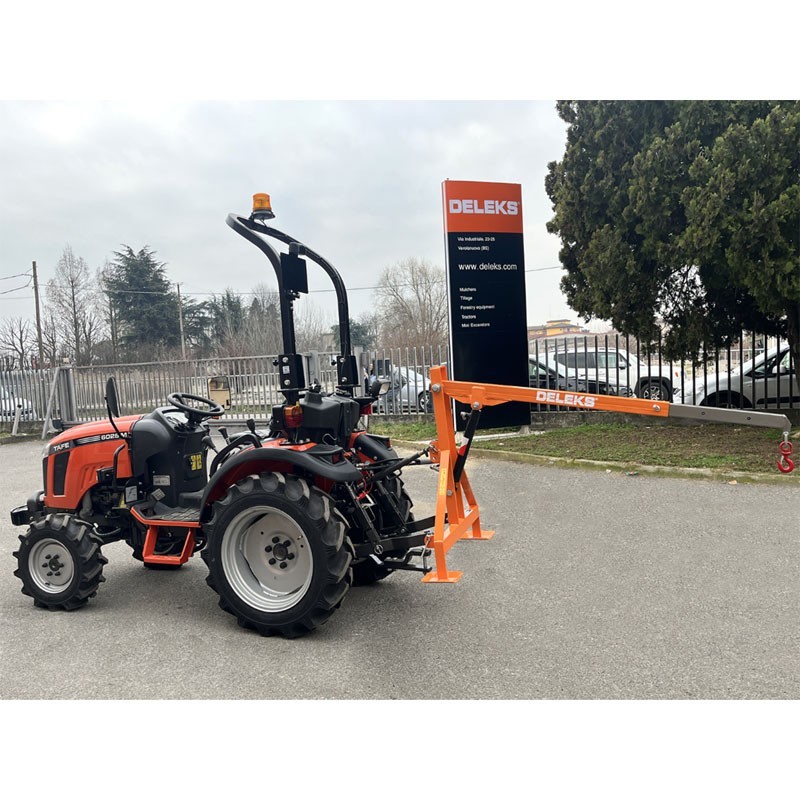

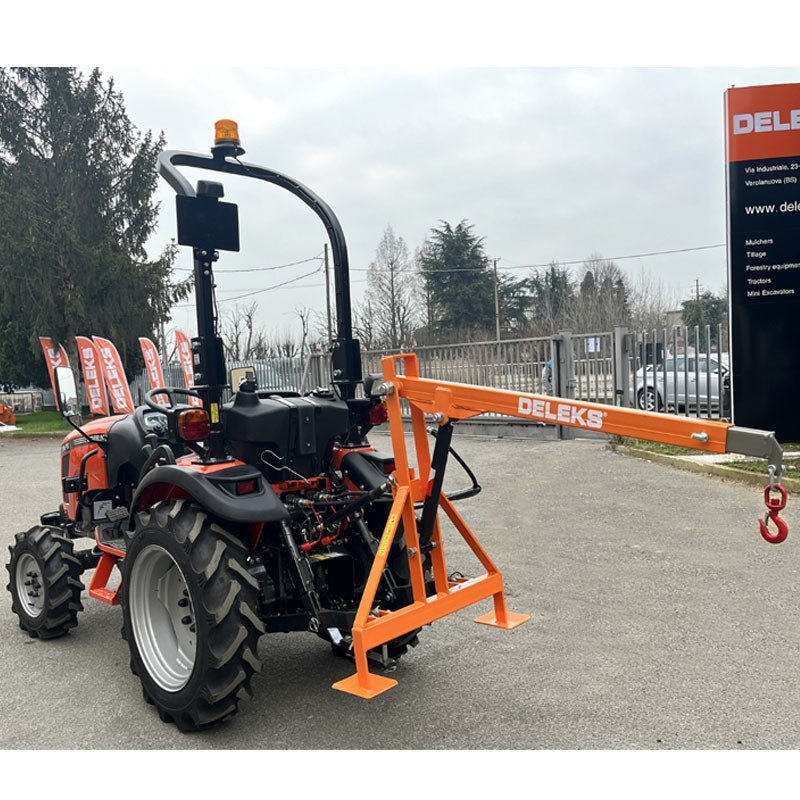

The DELEKS Model EL-300 16 - 45 HP Hydraulic Tractor Crane has a boom that consists of 3 parts. It has a robust design. For lifting and transporting loads behind the tractor, with a maximum capacity of 200 kg. Compatible with most CAT 1 tractors.

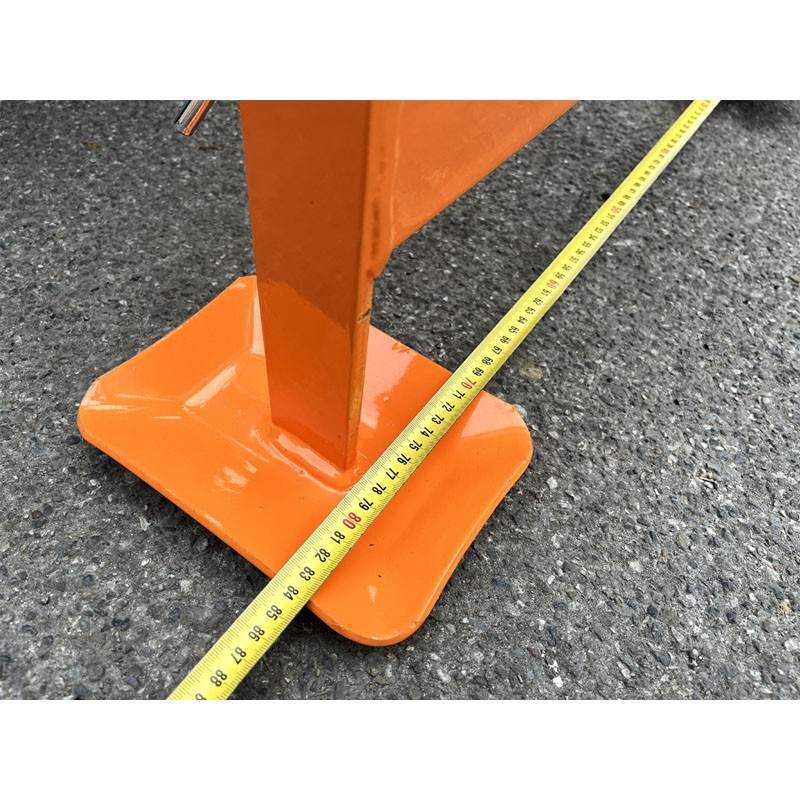

It has a European Quality conformity and a 2 years warranty, it has an ease of use, assembly and storage, it has reinforced tension points and the hook can be locked, for more security, it has 2 feet for more stability.

Features

Overall width 840 mm
Weight 48 kg
Tractor power 16 - 45 Hp

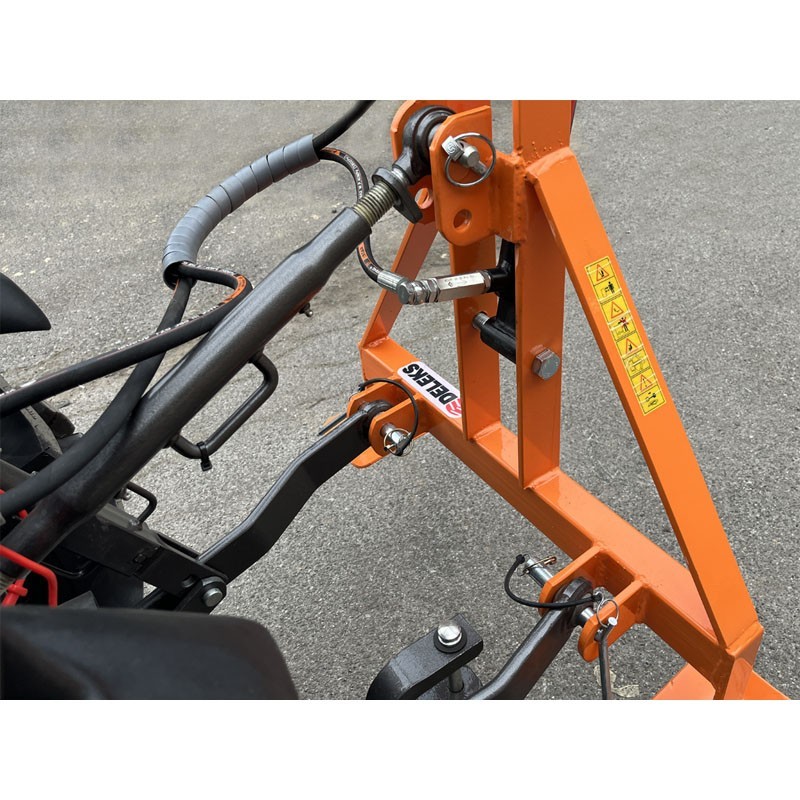

3-point hitch Cat. 1 (ø 19.0-22.0mm)
Distance between lower points 365.0 - 465.0 mm

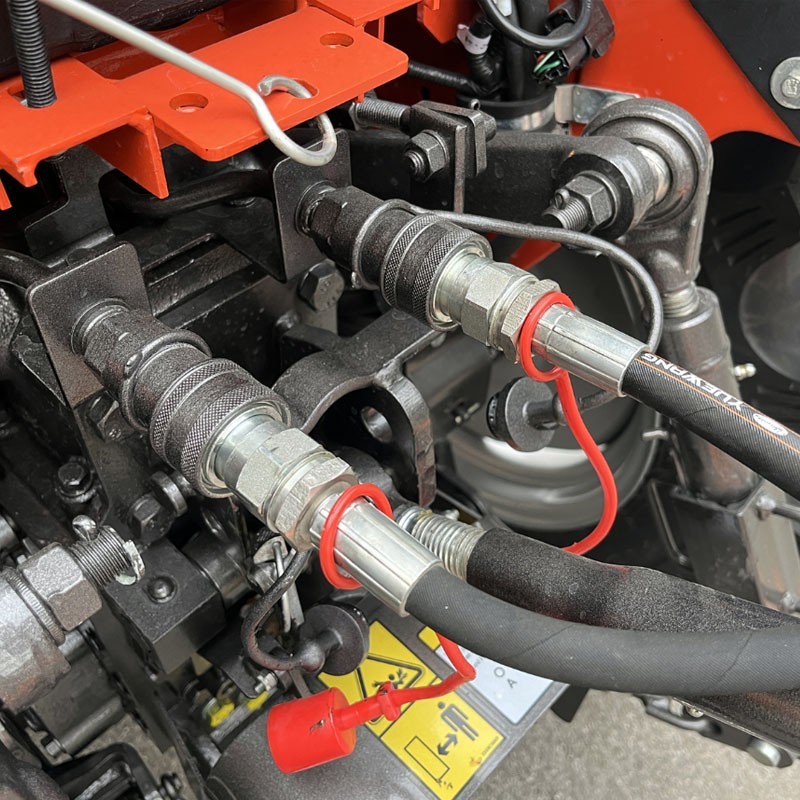

Hydraulic hoses (2) 1500.0 mm, 1.2" AGRI, WP-400 bar
Hydraulic piston ø 50.0 - 25.0 mm
Thickness of 3-point linkage 11.0 mm
Lifting capacity 200.0 kg
Lifting height 2100.0 mm + tractor arm lift
Open length 1640.0 mm
Length closed 1240.0 mm
Number of arm adjustments 3

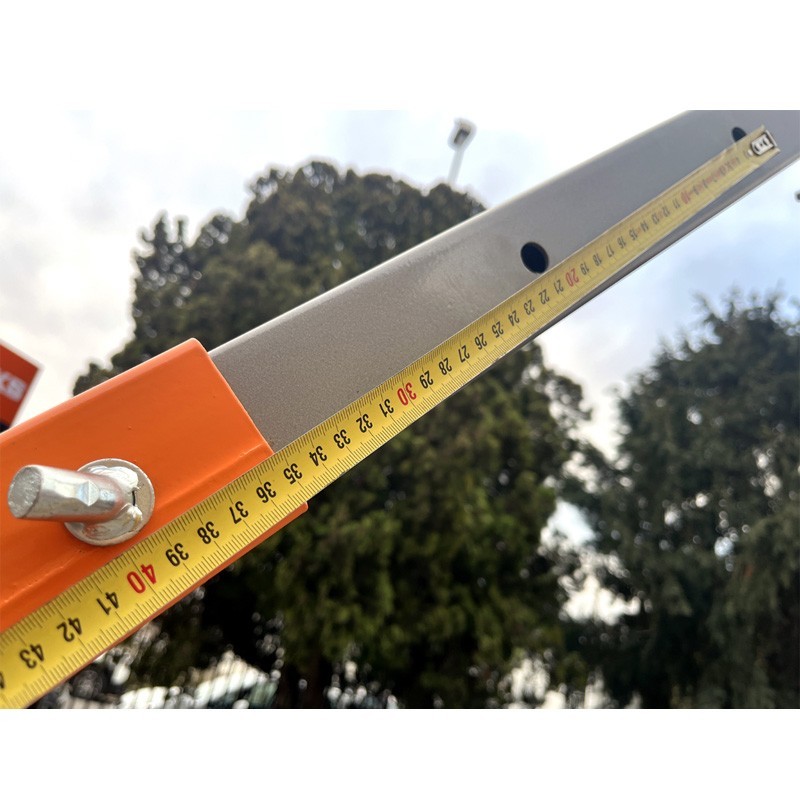

Arm adjustment space 200.0 mm
Total height (arm down) 1100.0 mm
Outer dimension of arms 80.0*40.0 mm
Outer arm thickness 4.0 mm
Inner arm thickness 5.0 mm
Min./max. oil pressure 60 - 80 bar
Optional oil flow 18 - 22 l/min
Packing dimension 1100*780*400.0 mm
IMPORTANT NOTICE
The customer is obliged to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
260477

Data sheet

Power Supply
PTO tractor
Tractor power
16 - 45 HP
Load capacity
200 kg
3-point hitch for tractor
Yes
Country of manufacture
Italy
Weight
48 kg

Specific References

EAN-13
8053470239588
New
