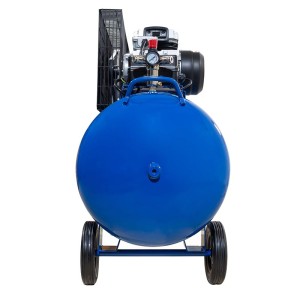

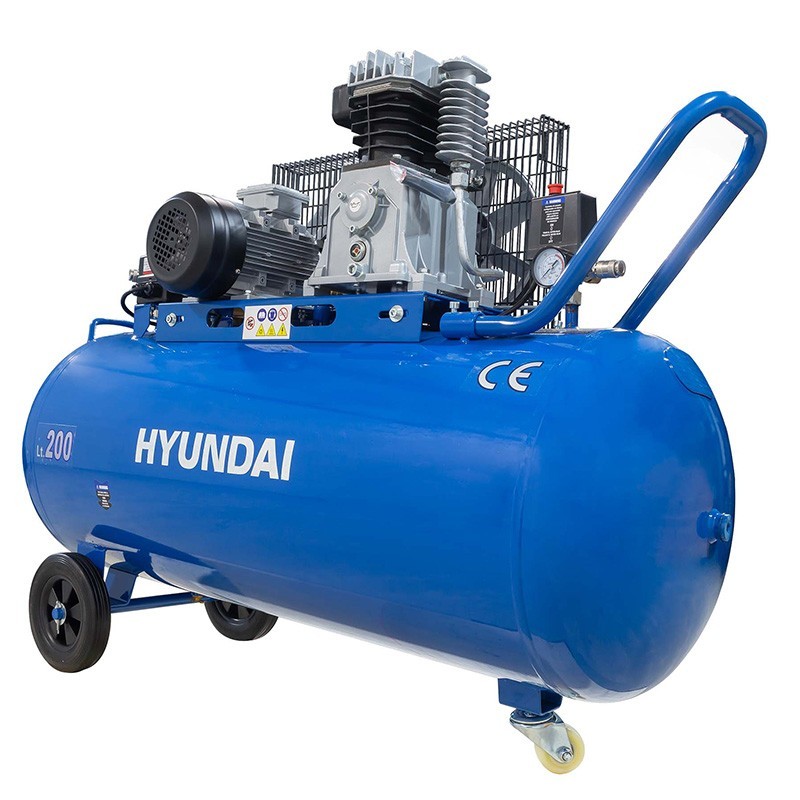

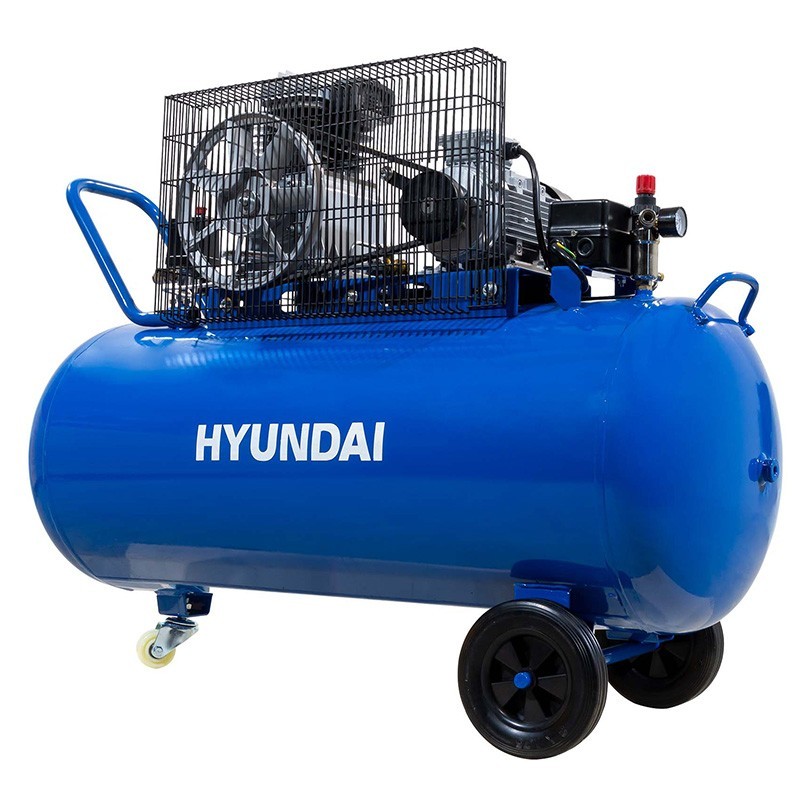

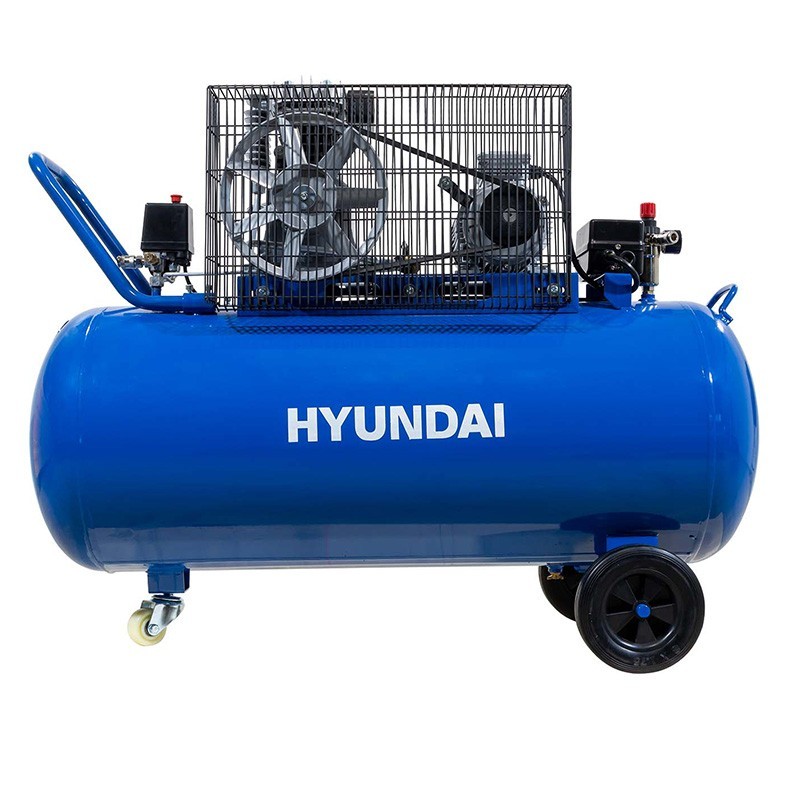

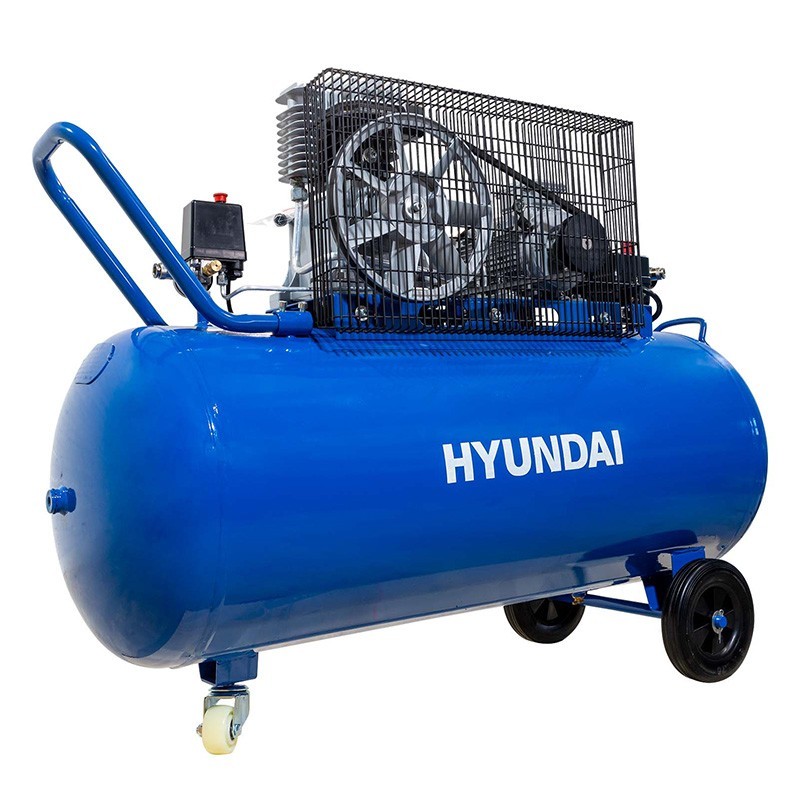

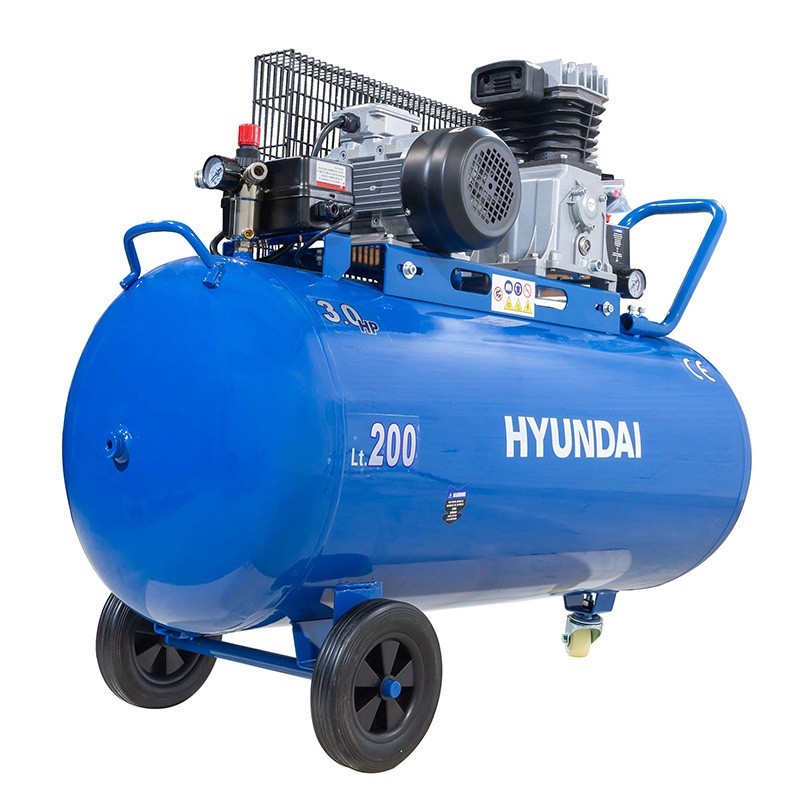

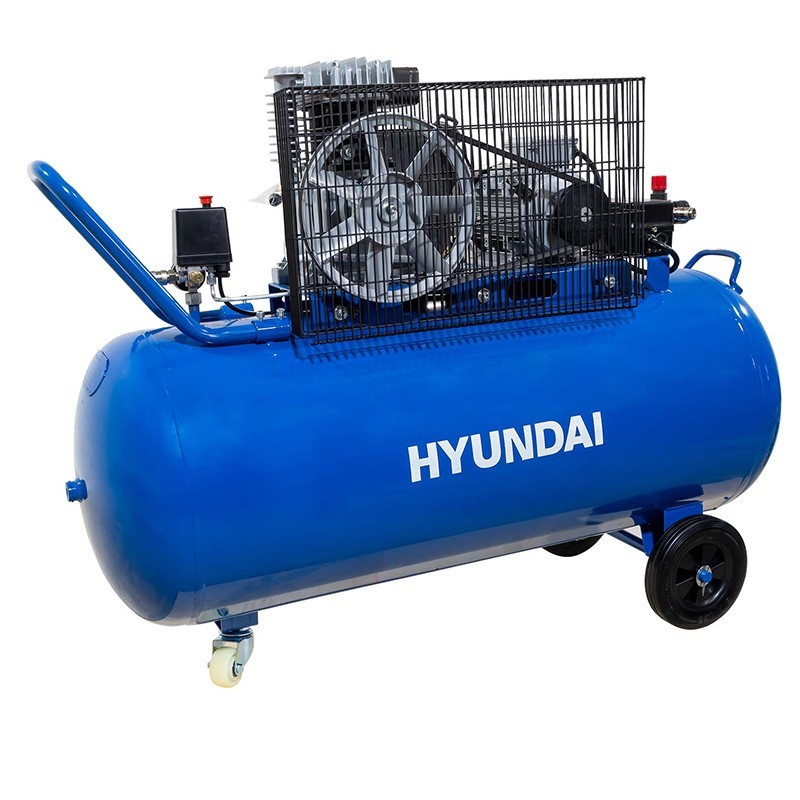

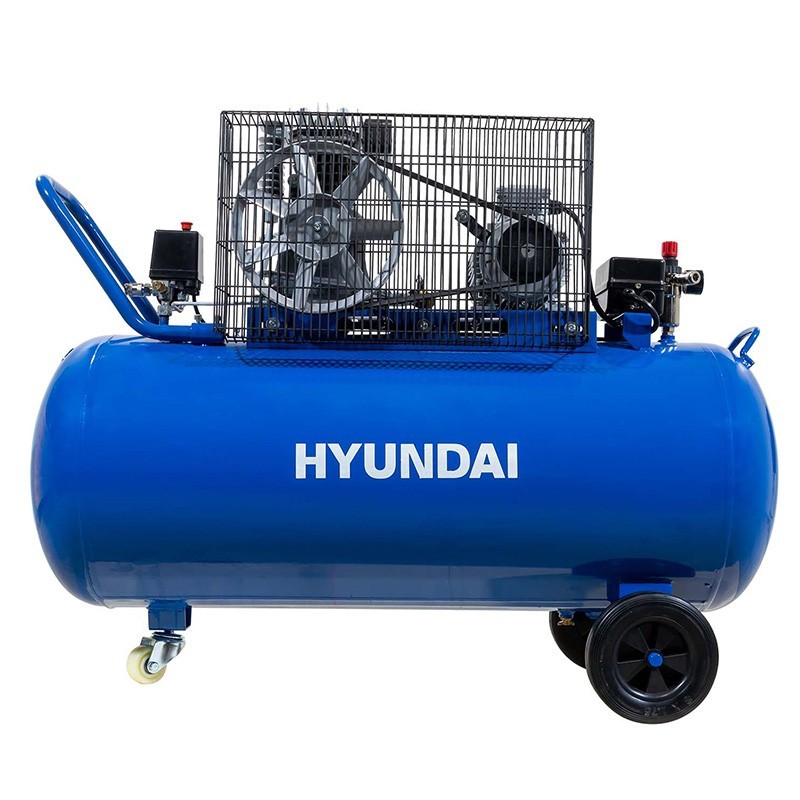

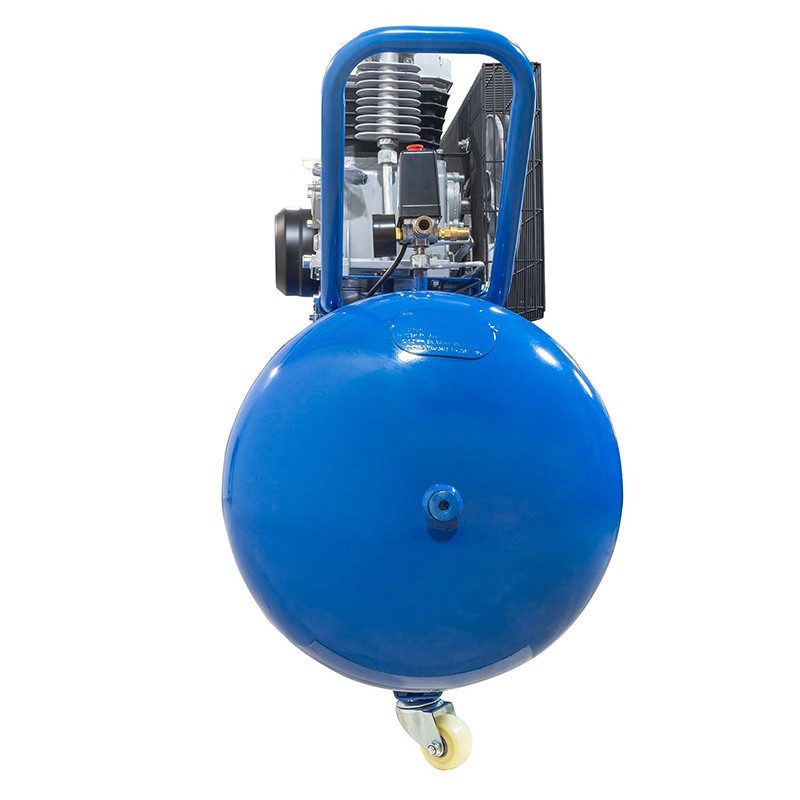

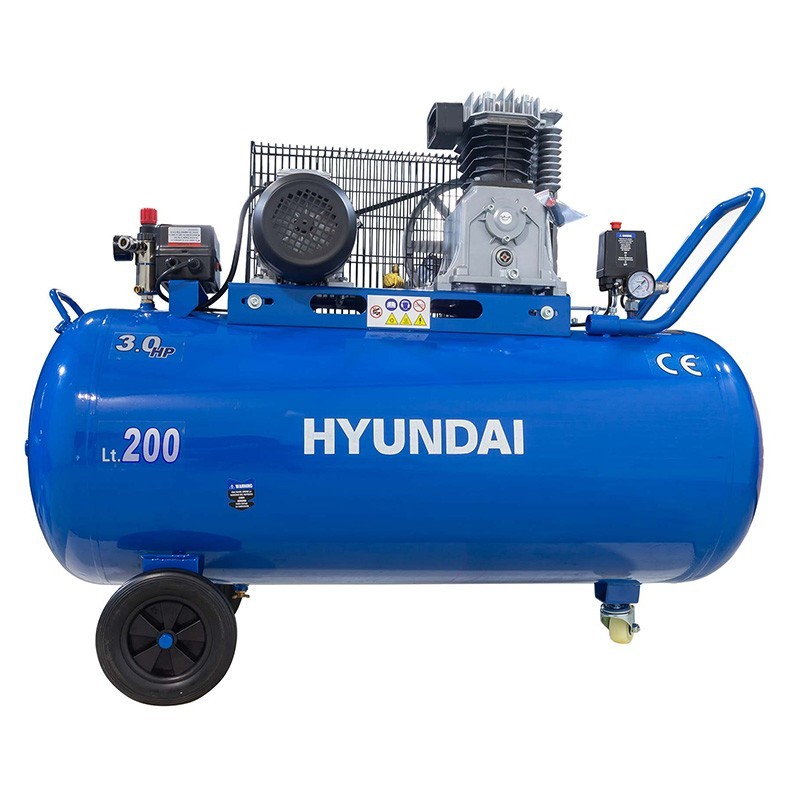

The compressor Hyundai HYACB200-31T is a robust and efficient tool, designed to meet the most demanding requirements. Equipped with a 3 Hp motor and belt drive, this compressor guarantees powerful and constant operation.
The three-phase 400 V / 50 Hz power Supply ensures optimum performance in industrial applications. This compressor has a 200 liter tank and a suction air capacity of 330 L/Min, providing a constant air flow for various tasks.
In addition, it includes pressure regulators and several air outlets, which facilitates its adaptability to different needs. The maximum pressure of 10 Bar (145 PSI) and optimum lubrication ensure prolonged operational efficiency.
The design of the Hyundai HYACB200-31T incorporates metal belt guards and a grab handle with wheel kit, allowing for easy and safe transportation. Its low vibration and noise level, together with IP54 protection and rear and intermediate coolers, ensure safe and comfortable operation in any working environment.
Maximum pressure | 10 Bar / 145 PSi |
Motor power | 3 Hp |
IP protection | 54 |
Transmission | Belt |
Power Supply | 400 V / 50 Hz / 3 ph |
Tank | 200 L |
Air intake (L/Min) | 330 |
Rotation | 1.500 min |
Cylinders / stages | 2 / 1 |
Oil | Synthetic |
Output | Direct - / Reduced 1 |
Pressure Reducer | 1 |
Condensate / Discharge | Manual |
Amperage | 4,5 A |
Cord diameter | 3x1,5 mm2 |
Cord | 2 m |
Group | AB 248 |
Wheels | 15 cm |
Product dimensions | 146 X 64 X 114 cm |
Weight | 105 Kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
